Oxygen 3000 Plus

Digital Broadcast Console

Oxygen 3000 Plus: much more than a Digital Broadcast Mixer!

A full range of powerful features for Radio On-Air and Production available in 3 different formats and flexible configurations: 8, 12 and 16 faders with 1 or 2 Audio I/O Boards and 16+16 or 32+32 Dante™ I/O.
Oxygen 3000 Plus is the best-equipped console of its category: Low Latency, Users Preset, Smart Keys, EQ, Compressors, Telephone Hybrid, HDMI Output, Analogue and Digital I/O, USB, Bluetooth, Dante™ AoIP, Telco, Presenter Talk Box, Streaming In/Out.

The DSP based processing guarantees high-end quality audio and of course you will find the easiness of use that marks all the AxelTech’s products.
Oxygen Remoter Software, which enables up to 8 additional virtual faders for a full I/O control is available on Oxygen 3000 Plus as it is, for free, in any Oxygen Digital Console model.

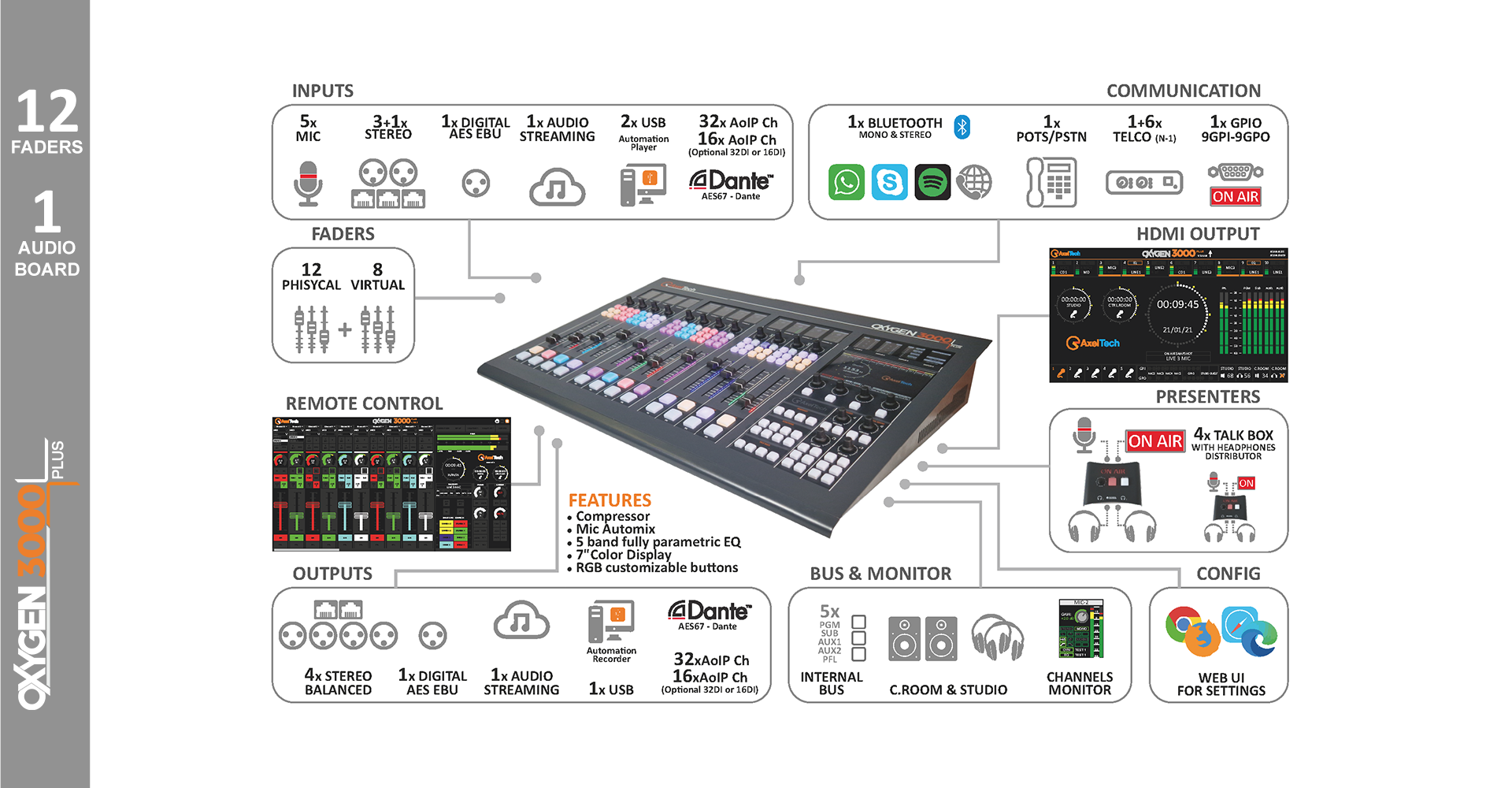

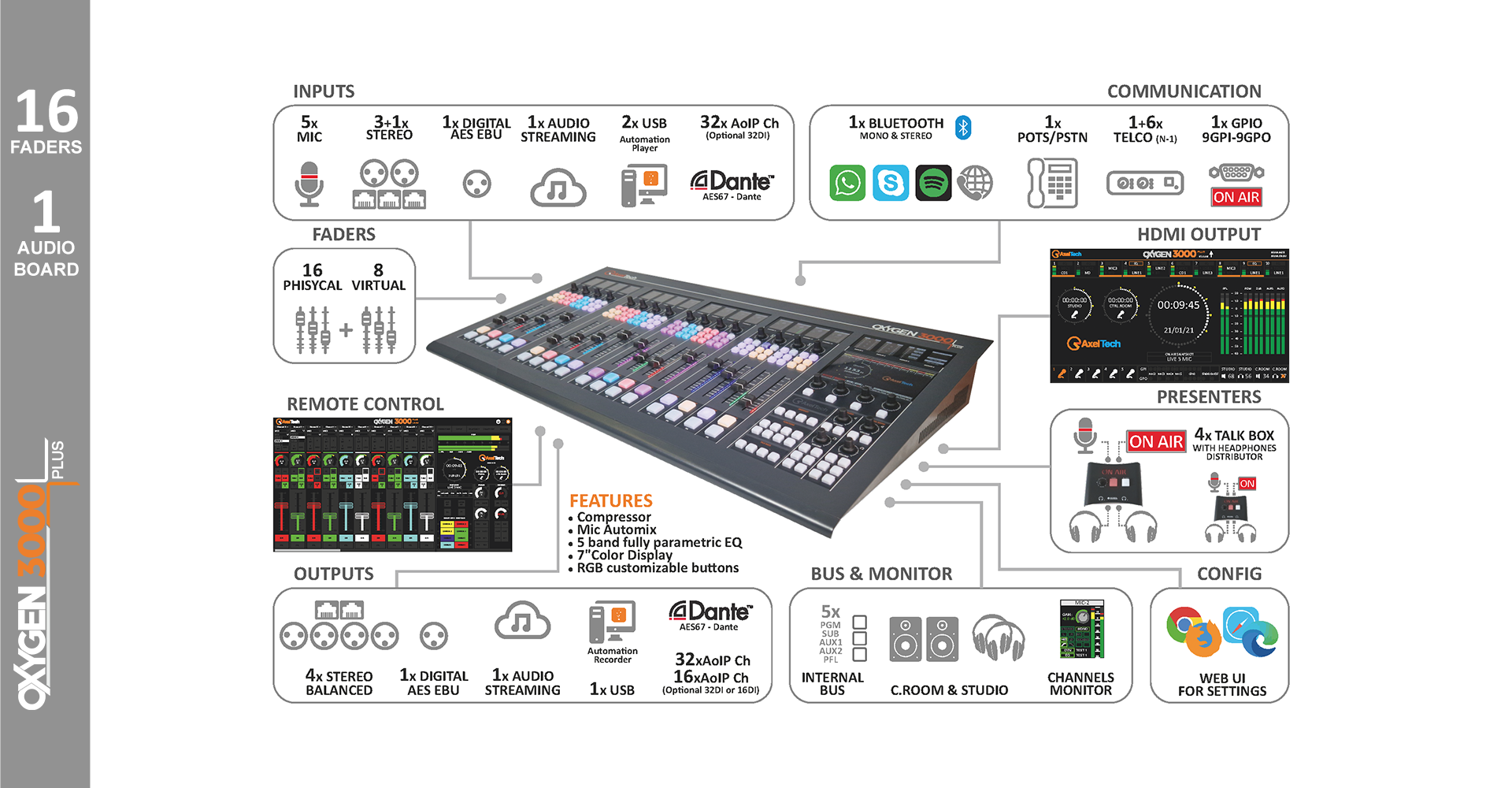

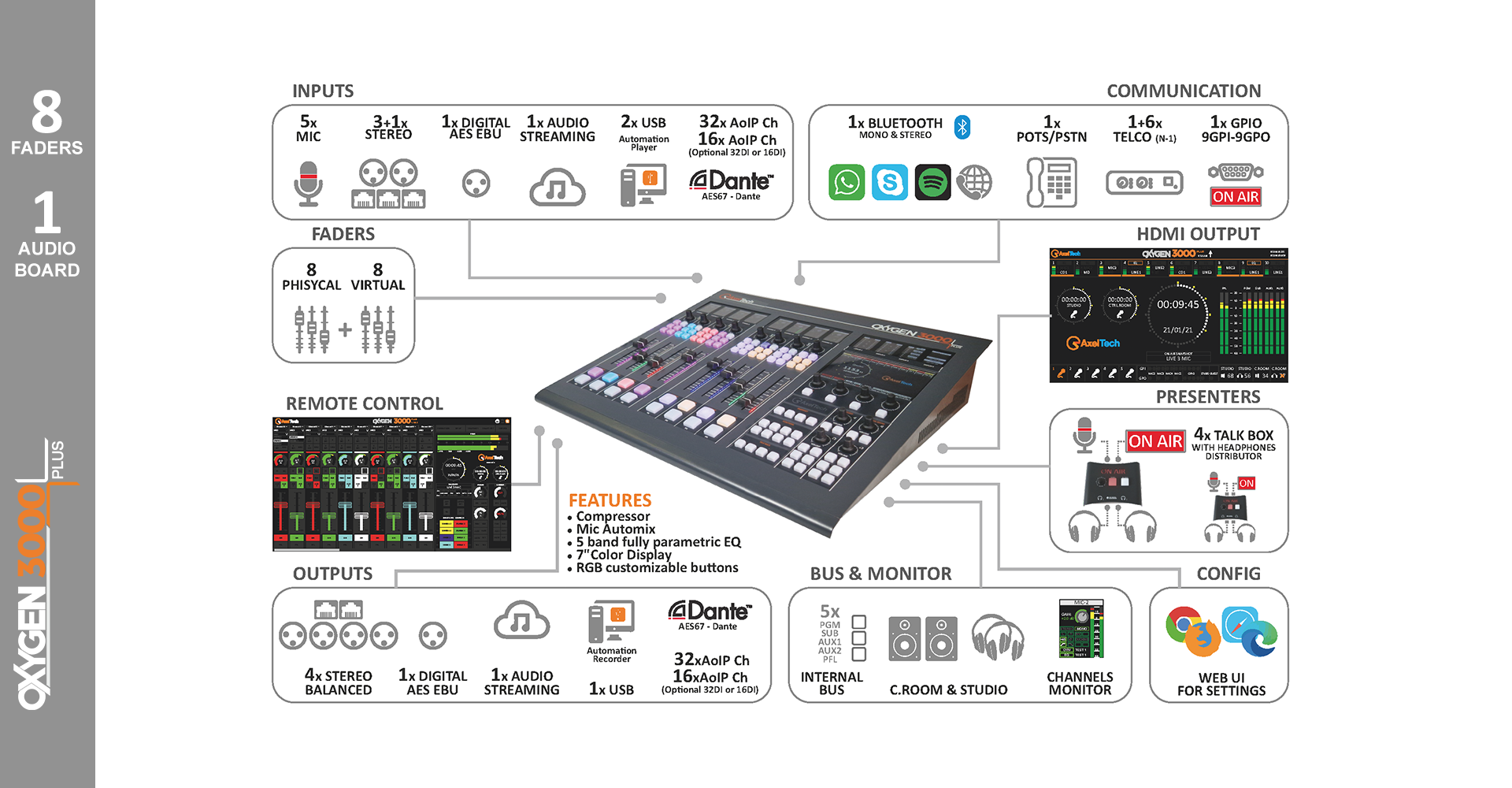

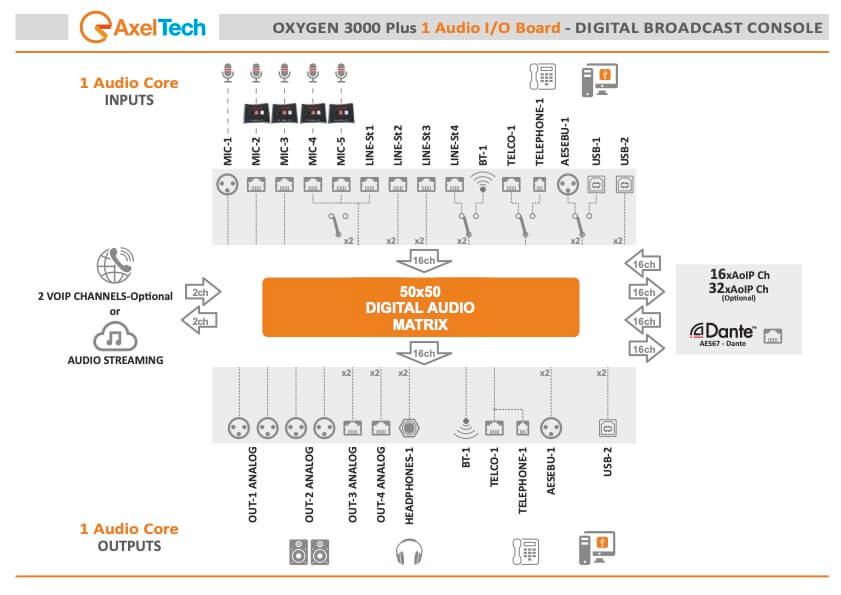

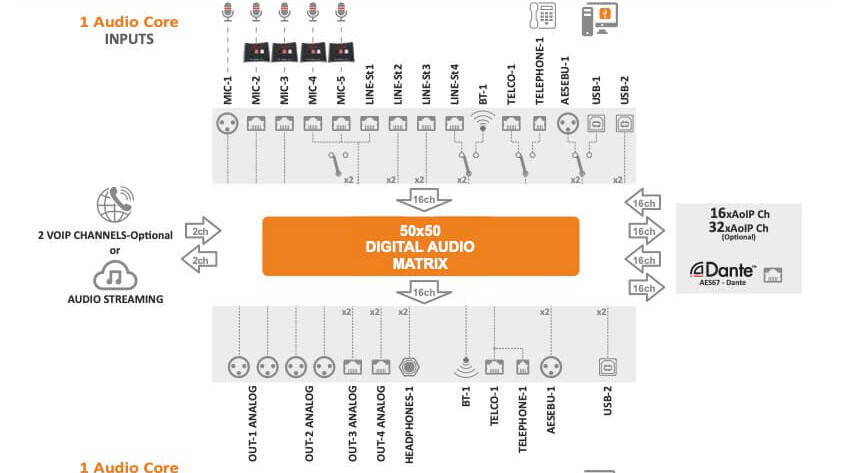

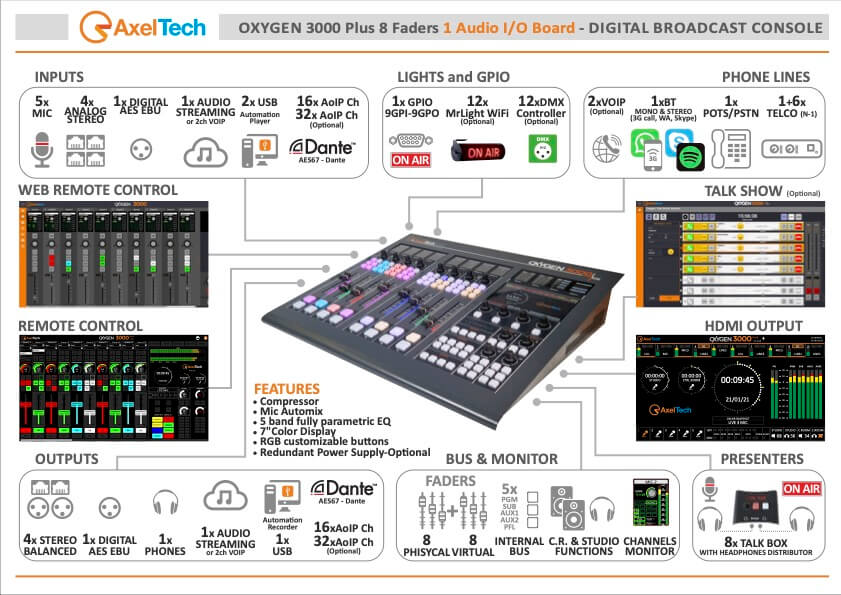

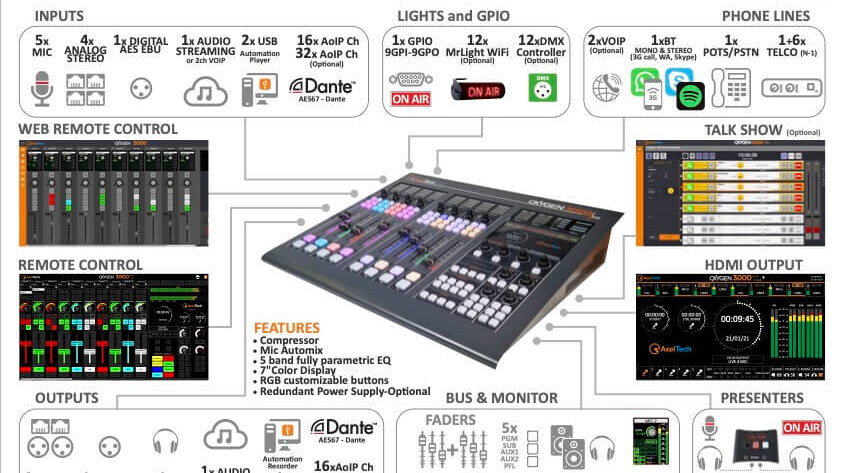

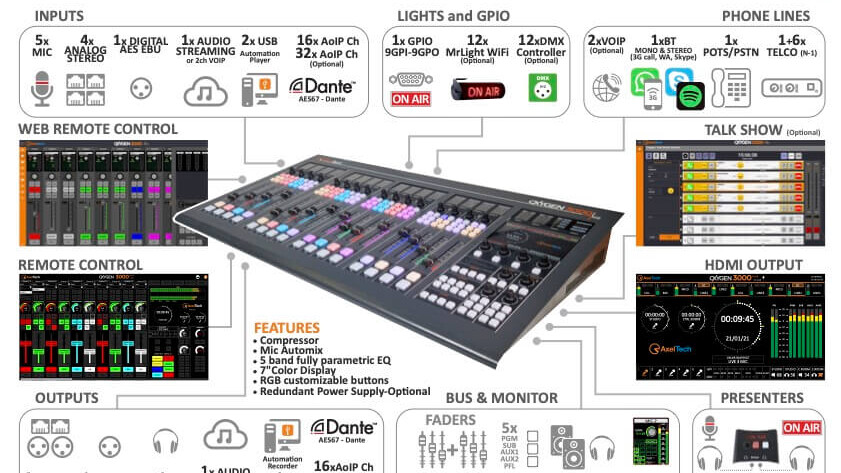

Input & Output with 1 Audio I/O Board

  • Up to 5 microphone inputs with Automix
  • 2 stereo analogue inputs, up to 4 Stereo analogue inputs using other input sources
  • 4 stereo analogue outputs
  • 1 built-in telephone hybrid or 1 Telco with GPIO
  • Up to 4 Telco using other input sources
  • 1 Bluetooth audio interface or 1 stereo analogue input
  • 1 digital In (AES/EBU) or 1 USB Input (play)
  • 1 digital Out (AES/EBU)
  • Up to 2 USB audio Input (play)
  • 1 USB audio Output (rec)
  • 1 Streaming In + 1 Streaming Out
  • 16 inputs + 16 outputs or 32 inputs + 32 outputs via Dante (optional) configurable as mono/stereo/telco

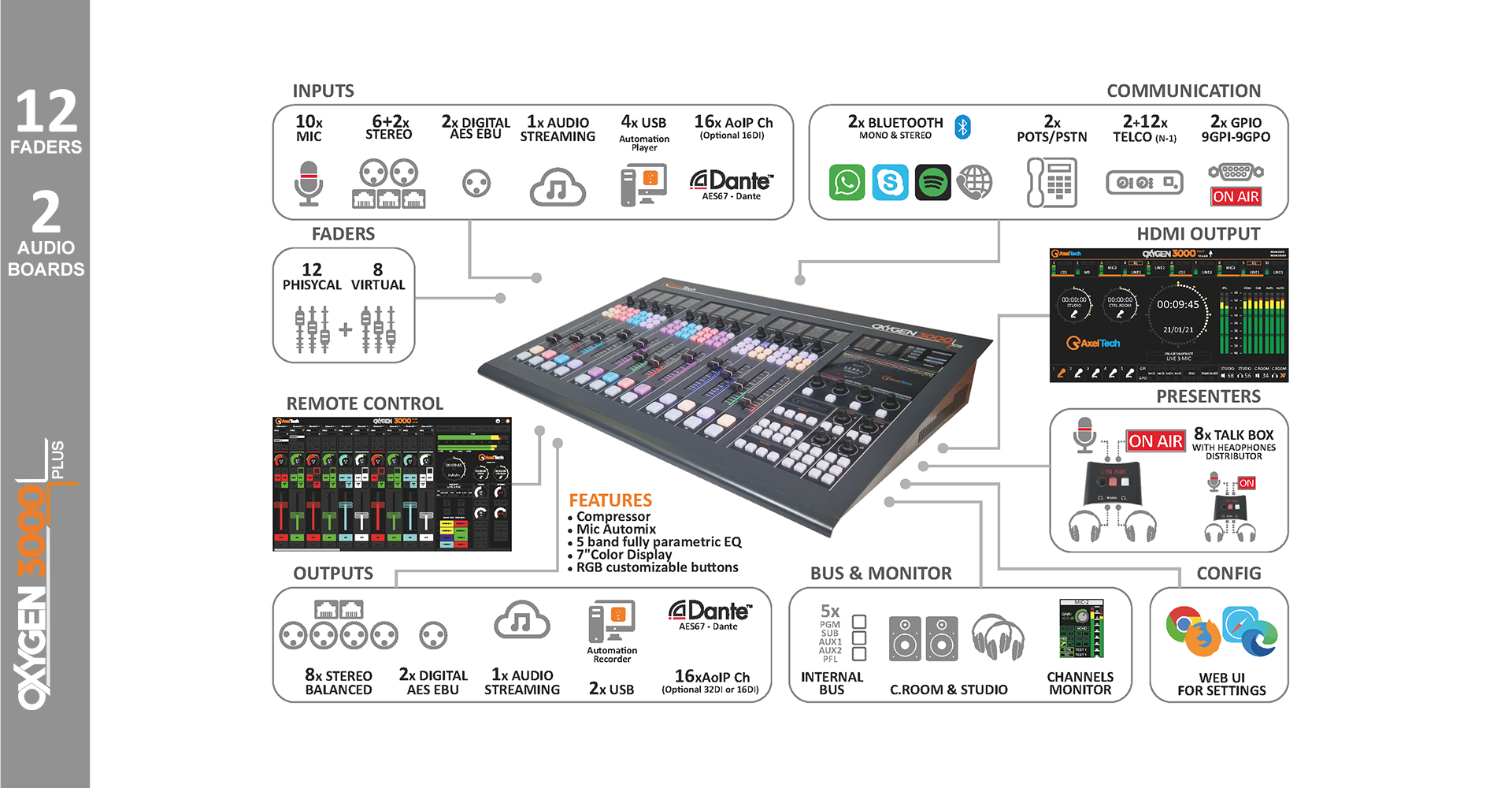

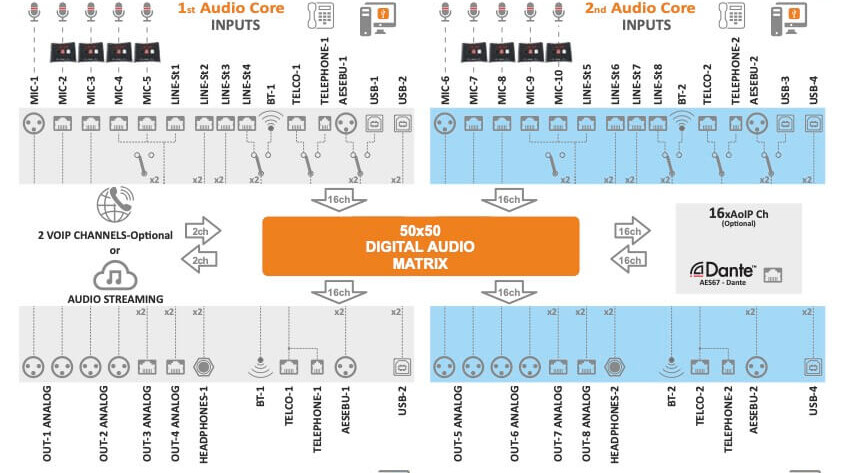

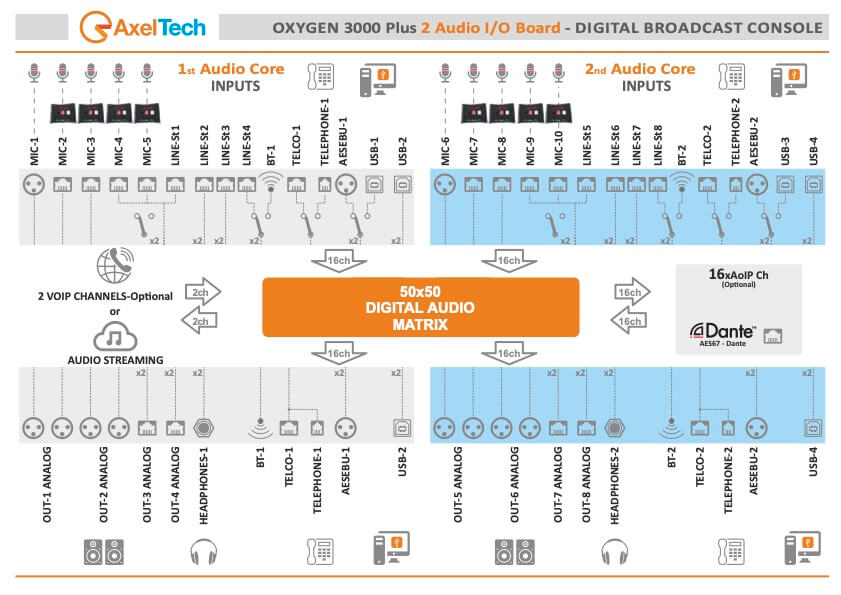

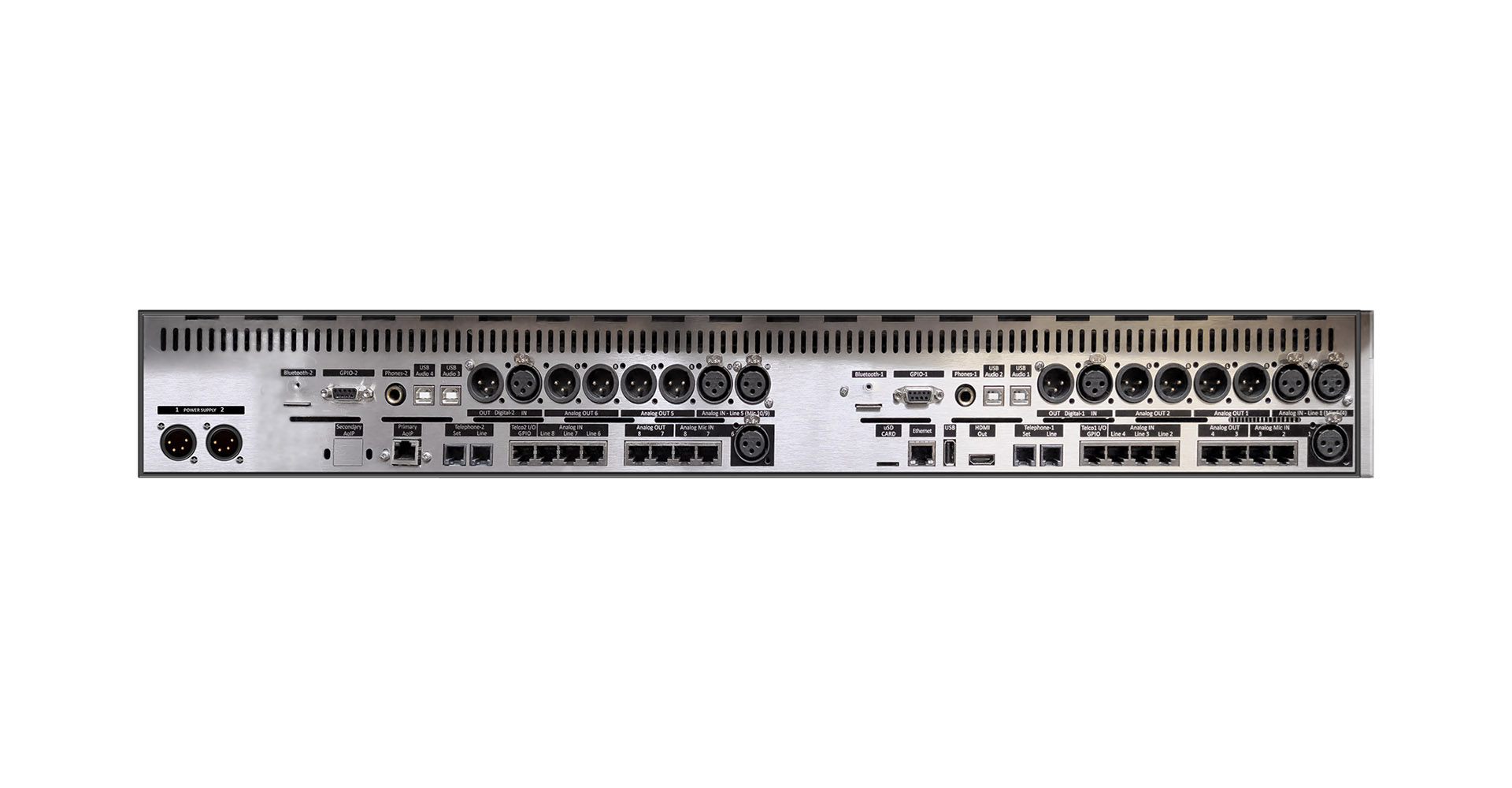

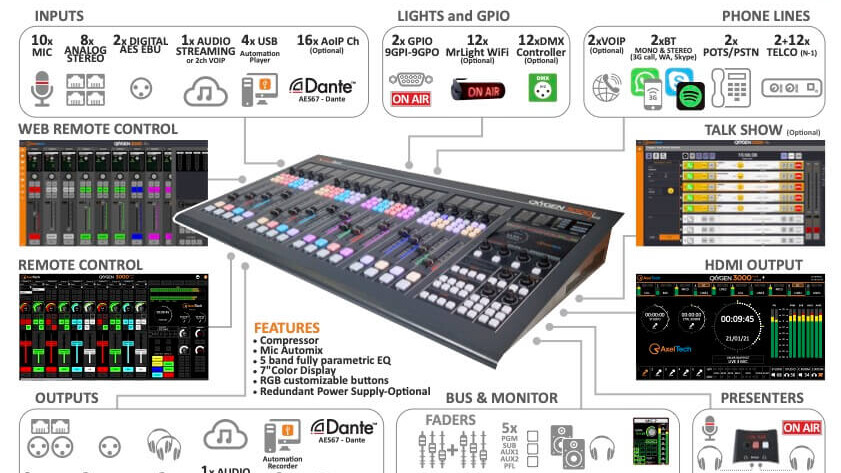

Input & Output with 2 Audio I/O Boards

  • Up to 10 microphone inputs with Automix
  • 4 stereo analogue inputs, up to 8 Stereo analogue inputs using other input sources
  • 8 stereo analogue outputs
  • 1-2 built-in telephone hybrid or 1-2 Telco with GPIO
  • Up to 8 Telco using other input sources
  • 1-2 Bluetooth audio interface or 1-2 stereo analogue input
  • 1-2 digital In (AES/EBU) or 1-2 USB Input (play)
  • 2 digital Out (AES/EBU)
  • Up to 4 USB audio Input (play)
  • 2 USB audio Output (rec)
  • 1 Streaming In + 1 Streaming Out
  • 16 inputs + 16 outputs via Dante (optional) configurable as mono/stereo/telco

General

  • Fully Digital Broadcast Console for Radio Broadcasting with 8, 12 or 16 faders
  • Knob with A/B Fast source switch or source selection for each fader
  • 4+1 busses (PGM, SUB, Aux1, Aux2, PFL)
  • Near 0 latency (< 0,7 ms I/O)
  • Digital Signals Routing 50×50 matrix with direct Input to Output
  • Assignable Stereo N-1 on any output
  • Complete Remote Control by means of an application replicating the surface
  • Remote configuration and maintenance via Web Interface
  • User-definable Presets & Snapshots
  • 5 bands fully parametric Equalizer on each input
  • Dynamic Processor with expander and compressor section on each microphone input
  • Advanced and configurable Monitor Facilities for Control Room and Studio
  • Customizable RGB colored buttons
  • 7” TFT IPS Graphic Color Display for console configuration
  • Four 2,2” TFT IPS displays for the output levels monitoring
  • 2,2” TFT IPS displays on top of each fader displaying channel status, levels and source name
  • HDMI Out for console status display
  • 2 Timers (Ctrl-Room and Studio microphones on HDMI Monitor)
  • START/ON Buttons for each fader
  • 4 recall Snapshot buttons
  • 4 direct Talkback buttons
  • RGB led Bar for each fader
  • Studio & Control Room Monitor Section
  • 8 customizable Smartkey Buttons
  • 2 customizable Function Keys for each fader
  • TalkBox for guest and presenter (optional)
  • Redundant PSU (optional)

Built In Decoder and Streamer

Oxygen 3000 Plus, in addition to analog/digital/AoIP inputs and outputs, is open to integration with the IP world thanks to the ability to decode an audio streams (stereo or mono) as input and generate an output audio stream (stereo or mono).

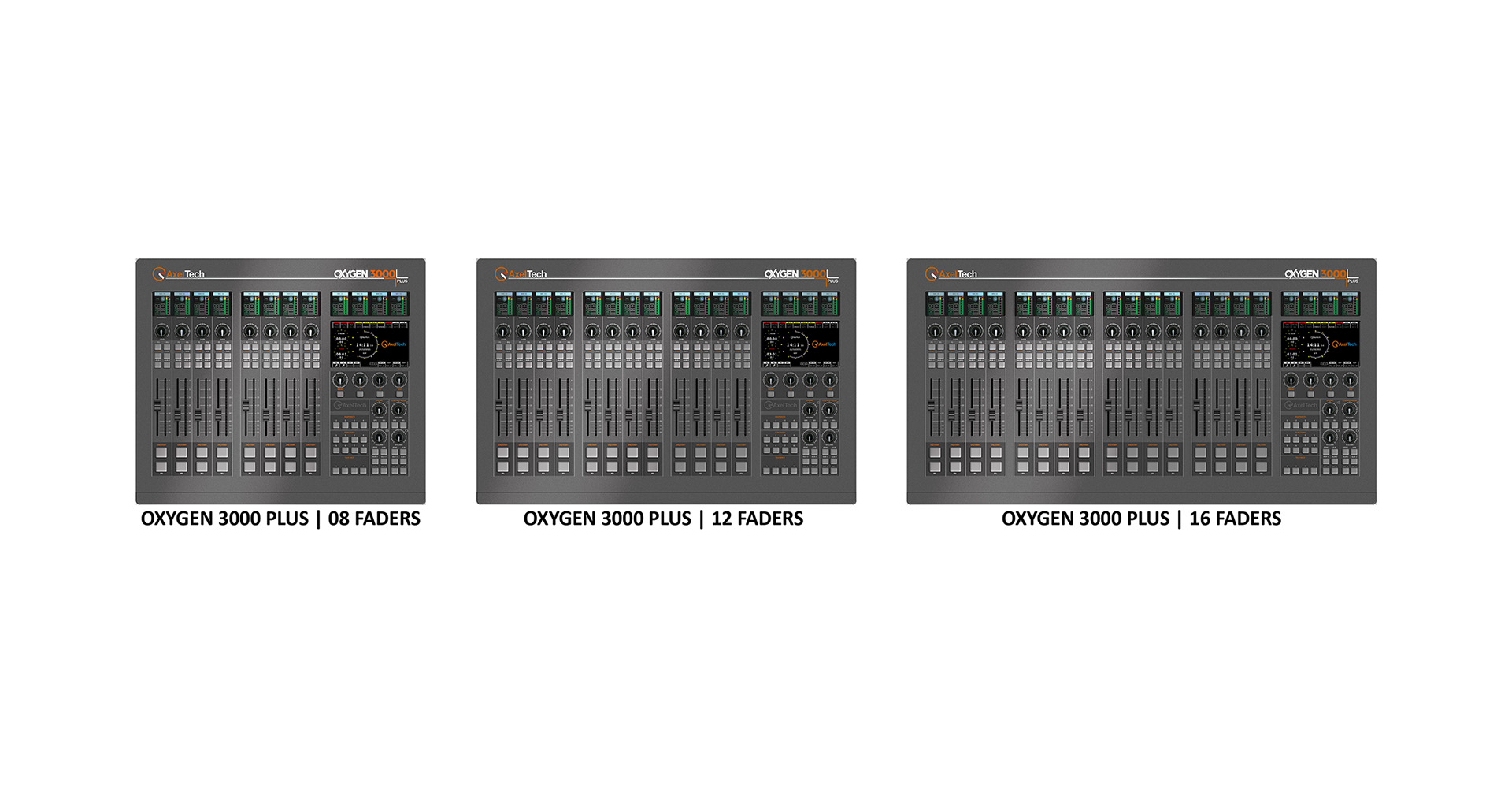

Versions

  • Oxygen 3000 Plus 8 Fader 1 Audio I/O Board
  • Oxygen 3000 Plus 8 Fader 1 Audio I/O Board Dante 16
  • Oxygen 3000 Plus 8 Fader 1 Audio I/O Board Dante 32

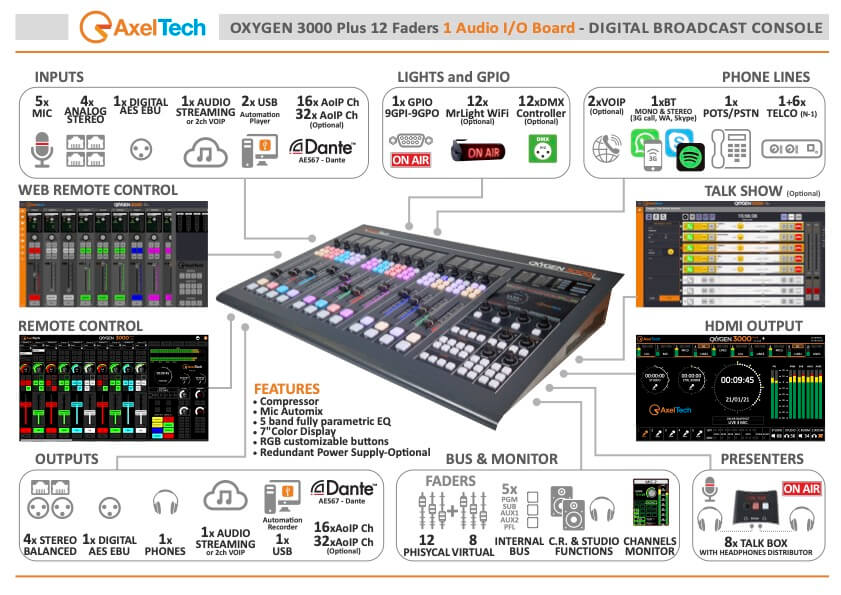

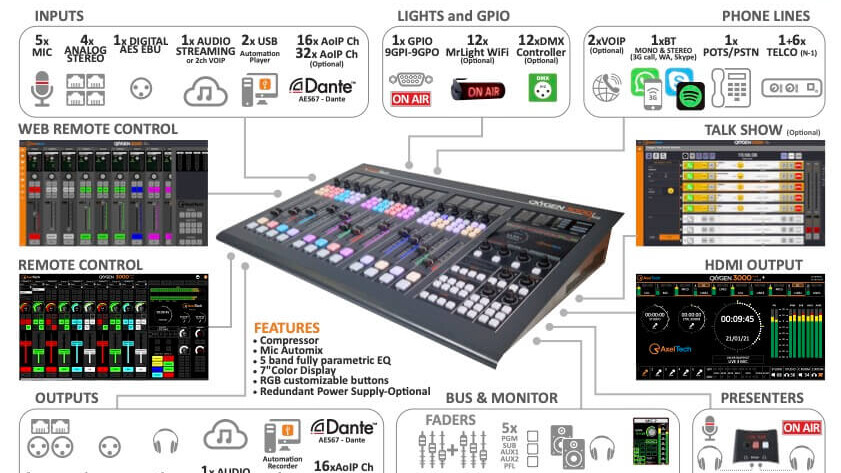

  • Oxygen 3000 Plus 12 Fader 1 Audio I/O Board
  • Oxygen 3000 Plus 12 Fader 1 Audio I/O Board Dante 16
  • Oxygen 3000 Plus 12 Fader 1 Audio I/O Board Dante 32
  • Oxygen 3000 Plus 12 Fader 2 Audio I/O Board
  • Oxygen 3000 Plus 12 Fader 2 Audio I/O Board Dante16

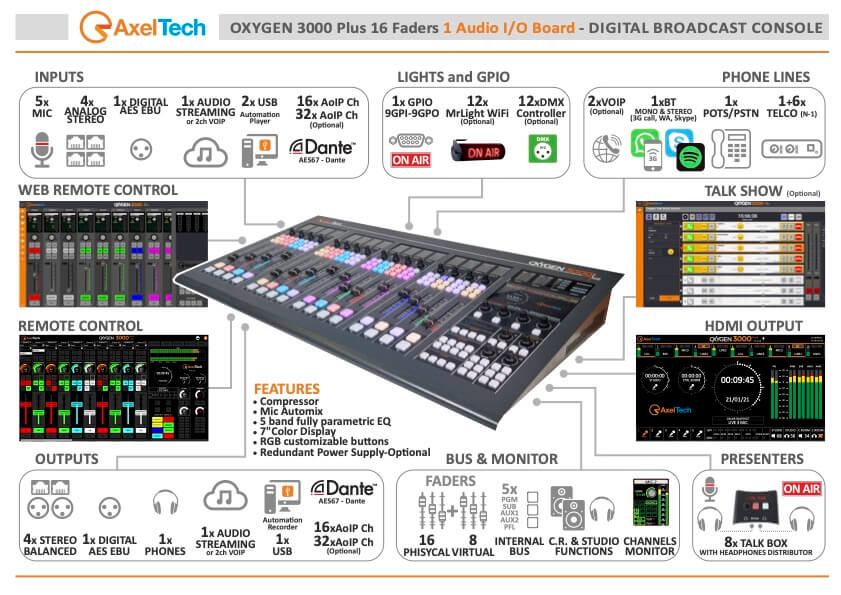

  • Oxygen 3000 Plus 16 Fader 1 Audio I/O Board Dante 32

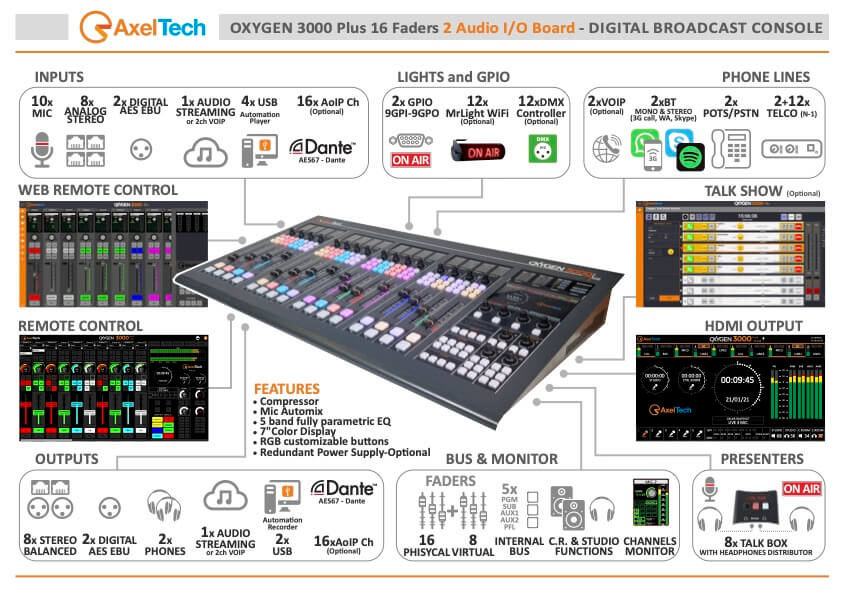

  • Oxygen 3000 Plus 16 Fader 2 Audio I/O Board
  • Oxygen 3000 Plus 16 Fader 2 Audio I/O Board Dante 16

Options

  • Redundant power supply
  • Talk Box
  • Dante I/O board
  • RJ45 adapters for:
    • Mic
    • Line In
    • Line Out
    • Telco
    • GPIO

The complete Oxygen Line Up

Microphone Inputs

  • Up to 5 Microphone Inputs with Automix on each Audio I/O Board
  • 3 Mic on XLR and 2 Mic on RJ45 (with Talk Box connector/adaptor) all balanced with + 48V Phantom and GPIO on each Audio I/O Board
  • Independent ON AIR Lights and Cut Off control when opening Control Room and Studio microphones
  • PFL button switches to private conversation on Hybrid/Telco/Bluetooth mode
  • Enable TalkBack feature on any Studio or Control Room microphone
  • Parametric Compressors/Expander with enhanced features for MICROPHONE and MONO inputs
  • Save and recall microphone presets including Compressor/Expander settings
  • Phase inversion on microphone inputs
  • MONO inputs assignable as EXT source
  • Ducking/AutoFader assignable to all sources (automatic attenuation of music on speech)

Automix

The Automix feature simplifies mixing activities if many guests are in the studio.

The Automix adds a new source to the existing ones (called “Automix”) and it will be the sum of all the enabled microphones.

The Automix source has all the features of a normal microphone source such as:

  • Studio/Control Room loudspeakers control
  • Studio/Control Room light control
  • Can be used as audio in Private mode for phone calls

Using the Automix source, the user can manage in a very simple way all the microphones of the studio with many benefits:

  • Managing all the studio’s microphones with one fader only;
  • A dedicated AGC section for each microphone input automatically adjusts the correct level;
  • Automatic management of attenuation on microphones not in use, simulating a slight closure of the fader;
  • Final compressor with automatic leveling of the Automix source;
  • Possibility to use the microphones individually.

This feature simplifies the work of the mixer engineer, especially if he/she is also hosting the show.

Available settings in the Automix menu:

  • MIC-1    ON/OFF
  • MIC-2    ON/OFF
  • MIC-3    ON/OFF
  • MIC-4    ON/OFF
  • MIC-5    ON/OFF
  • MIC-6    ON/OFF (with second audio board)
  • MIC-7    ON/OFF (with second audio board)
  • MIC-8    ON/OFF (with second audio board)
  • MIC-9    ON/OFF (with second audio board)
  • MIC-10    ON/OFF (with second audio board)
  • DANTE-1    ON/OFF (with Dante™ option)
  • DANTE-2    ON/OFF (with Dante™ option)
  • DANTE-3    ON/OFF (with Dante™ option)
  • DANTE-4    ON/OFF (with Dante™ option)
  • DANTE-5    ON/OFF (with Dante™ option)
  • DANTE-6    ON/OFF (with Dante™ option)
  • Idle Mic Attenuation
  • Attenuation Attack Speed
  • Attenuation Release Speed
  • Compression Threshold
  • Compression Ratio
  • Compression Attack Speed
  • Compression Release Speed
  • Autogain Speed
  • Autogain Max Gain
  • Autogain Max Attenuation

Analogue inputs

  • 2 balanced stereo analogue inputs on RJ45, up to 2 additional balanced stereo analogue inputs (one on XLR and one on RJ45) using other input sources, on each Audio I/O Board
  • Channel mode selection: STEREO, MONO, L, R, INV-L, INV-R, INV

Digital input line

  • 1 AES/EBU Input on XLR with Sample Rate Converter (32 – 192 kHz), on each Audio I/O Board

USB audio I/O

  • 2 Built-in stereo USB (Type-B) (2 Stereo Inputs-1 Stereo Output) Audio Interfaces on each Audio I/O Board, allow to directly connect the PC to the Oxygen 3000 Plus console, with no need for extra audio cards (the PC detects the console as a digital audio card with 2 stereo inputs and 1 stereo output for simultaneous playout and recording)

Telephone hybrid and Telco

  • Telephone Hybrid: 1 POTS/PSTN telephone line with Line In and Tel Set connection on each audio I/O board
  • Telco: 1 in/out N-1 to connect external telephone hybrid with control via TLC/GPIO, on each Audio I/O Board
  • Up to 6 Telco using other input sources, on each Audio I/O Board
  • GPI and GPO management on max 5 Telco I/O, on each Audio I/O Board
  • RING and HOOK on F keys for each TELCO I/O
  • N-1 on Telco outputs for all BUS (PGM, SUB, AUX-1, and AUX-2)

Analogue outputs

  • For each Audio I/O Board 4 Balanced Outputs:
    • OUT – 1 & 2 XLR – Assignable
    • OUT – 3 & 4 RJ45 – Assignable

Digital output

  • 1 AES/EBU output (32 – 192 kHz) on XLR on each Audio I/O Board

Headphones and local monitor outputs

  • For each Audio I/O Board, 1 Unbalanced output line on Jack 6.3 for Control Room and Studio Headphones
  • Adjustable maximum Control Room and Studio speakers volume
  • Adjustable maximum Control Room and Studio headphones volume
  • Adjustable CUT or Attenuation mode (-40, -30, -20, -10 dB) on Control Room and Studio speakers
  • Independent source selection (PGM, SUB, AUX1, AUX2, EXT1, EXT2) for control room and studio speakers, control room and studio headphones with or without PFL
  • Independent Talk Back management on Control Room and Studio speakers
  • Independent Talk Back management on Control Room, Studio and Guest headphones
  • Selectable source for Guest headphones (PGM, SUB, AUX1, AUX2, EXT1, EXT2)
  • Same source selection for Control Room and Studio headphones, with independent level

GPI/GPO

  • GPI: 9 on each Audio I/O Board, for Talk back, Telephone Hybrid or other features
  • GPO: 9 on each Audio I/O Board, to control OnAir lamps or provide HOOK and RING commands for external telephone Hybrid
  • User custom GPIs (e.g. Ring, Talkback, channel ON/OFF, etc.)
  • User custom GPOs (e.g. Hook/ONAIR, Studio-Light, Control Room-Light)

Surface & Management

  • Direct Firmware update via Internet
  • WEB UI for Console configuration and service features (Save, restore, update, logs, etc)
  • Conditional Access (4-digit PIN) to limit console configurations to authorized users
  • Save and recall EQ presets (up to 10)
  • New real-time EQ algorithm with graphic
  • Fast and accurate Meters on 2.2” TFT IPS displays
  • Save and recall control panel configuration with 10 Snapshots
  • Save and recall total console configuration. The configuration can be saved to internal memory (microSD), USB and PC (via WEB interface)
  • Gain adjustment knobs with adaptive speed
  • Dimmable buttons light
  • Adjustable fader ON/OFF threshold (from -50 dB to 0 dB)
  • CountUp/Timer on studio and control room microphones on the built-in 7″ display

Telephone Hybrid and Telco

The built-in telephone hybrid allows direct connection of a telephone line POTS/PSTN on RJ-11C.

It’s also available a Telco N-1 in/out, to connect Oxygen 3000 Plus to an external telephone hybrid. Telco-1 N-1 output is always available on RJ45. TLC commands are available on RJ45 connector with Hook and Ring interface for external telephone hybrid.

6 inputs/outputs N-1 are also available (with 4 GPI controls).

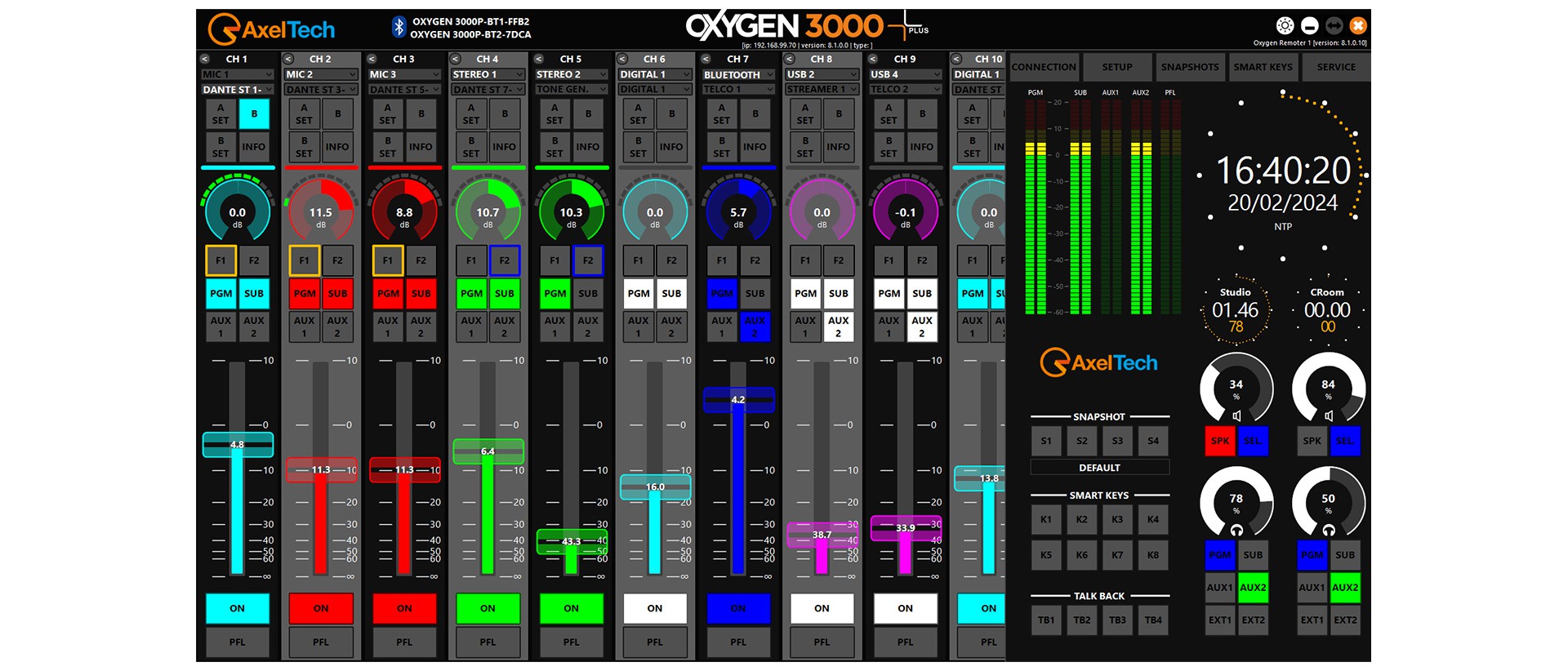

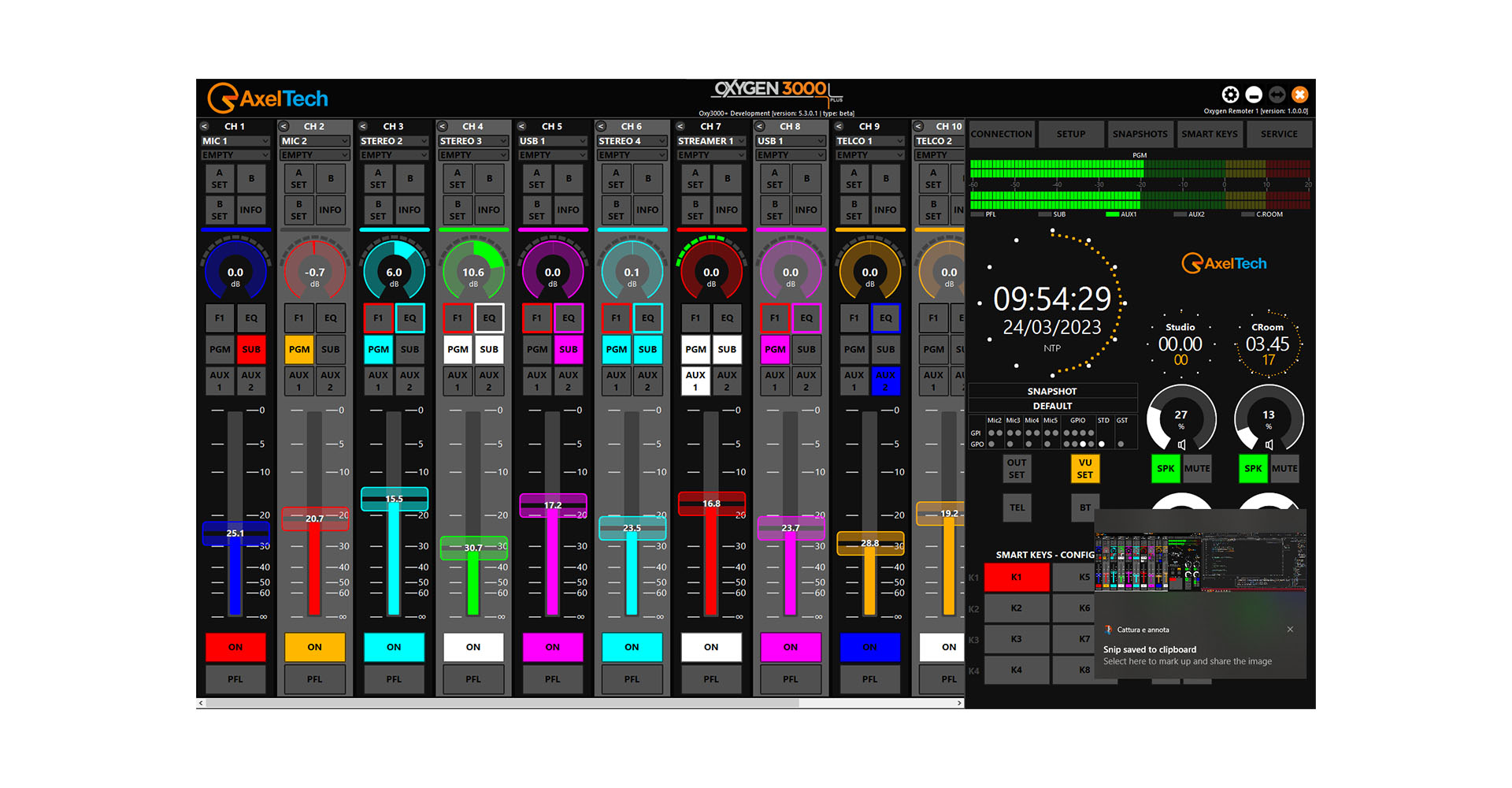

Software Remote Control

Oxygen Remoter is a software tool available for free with any Oxygen console. It offers advanced remote control features such as accessing to any set up and information, fader and buttons control and any  other operation available on the physical consoles. It is very useful especially for compact consoles and in any environment that has limited space.

The Virtual Fader technology enables users to assign each input to a virtual fader/channel on the remote surface, this is of course very useful when controlling channels remotely. Additionally, transforming the A/B pair into two virtual faders is a smart solution that maximizes the management of the available sources.

Oxygen Remoter can remotely control multiple consoles and create an ecosystem, this can be very helpful for remote productions where, for instance, a portion of the channels may need to be controlled from a studio while the others are still managed from the physical surface in the control room.

Oxygen Remoter is a powerful tool that provides extra flexibility and control’s tools to all the Oxygen consoles.

Oxygen Remoter is downloadable from the Oxygen console’s administration web page.

Displays

On the OXYGEN 3000 Plus AxelTech reinvented the experience between the studio engineer and the console.

The 7″ TFT IPS graphic display shows all the airing parameters and with the 4 rotary knobs allows the fast and intuitive programming of all the mixer’s parameters.

Selectable home page layouts are available with many theme icons. Default page shows the levels and the A & B source names for any fader.

Four 2,2 ”TFT IPS displays have been implemented for an immediate and complete monitoring of the outputs.

The 2,2 ”TFT IPS displays on top of each fader show the channel status, levels, sources and main settings.

HDMI output

The HDMI output connects the console to a HD display monitor and it can monitor all  the following information:

  • Audio input source levels
  • 4+1 BUS output levels
  • A/B source names assigned of 10 channels
  • Display On-Air sources
  • Microphone On timer (control room & studio)
  • Large Clock
  • Audio output level (Loudspeakers & Headphones)
  • On-Air microphone
  • Telephone active
  • HDMI output combined with 4 rotary knobs allow the fast and intuitive programming of all the mixer parameters.
  • The programming GUI has been designed in order to be very easy and intuitive.
  • Selectable home page layouts are available, with many theme icons.

HDMI output can be customized with the user’s logo. Selectable display layouts are available.

Bluetooth

Oxygen 3000 Plus can be equipped with a Bluetooth module on each Audio I/O Board. This allows airing the calls made via GSM, Skype, Viber and WhatsApp with a Smartphone, a Tablet or a PC. Oxygen 3000 Plus has two Bluetooth connection modes: bidirectional to support phone calls; monodirectional to put on air high quality stereo audio (A2DP) streamed by Bluetooth sources.

With Bluetooth calls, PFL enables PRIVATE conversation mode.

Built In Decoder and Streamer

Oxygen 3000 Plus, in addition to analog/digital/AoIP inputs and outputs, are open to integration with the IP world, thanks to the ability to decode an audio streams (stereo or mono) as input and generate an output audio stream (stereo or mono).

Supported CODECs:

Input (CBR & VBR):

  • AAC (AAC-LC): 32-256 kbps, 16/32/44.1/48 kHz
  • Linear PCM – 16 bit, 16/32/44.1/48 kHz
  • MP3 (MPEG1-Layer 3): 32-320 kbps, 16/32/44.1/48 kHz
  • MP2 (MPEG1-Layer 2): 32-320 kbps, 32/44.1/48 kHz
  • OGG VORBIS: 32-256 kbps, 16/32/48 kHz
  • OPUS: 6-320 kbps, 48 kHz

Output (CBR):

  • AAC (AAC-LC): 32-256 kbps, 16/32/48 kHz
  • Linear PCM – 16 bit, 16/32/48 kHz
  • MP3 (MPEG1-Layer 3): 32-320 kbps, 16/32/48 kHz
  • MP2 (MPEG1-Layer 2): 32-320 kbps, 16/32/48 kHz
  • OGG VORBIS: 32-256 kbps, 16/32/48 kHz o OPUS: 6-320 kbps, 48 kHz

Supported Streaming Servers:

  • Icecast: AAC, MP3, OPUS and Ogg Vorbis

Network and Transport & protocols:

  • Transport: Real-time Transport Protocol (RTP), Real-time Streaming Protocol (RTSP)
  • Protocols: IPv4, IPv6, TCP/IP, UDP, RTP, RTSP

Casting modes: Multicast and Unicast

Auxiliary Data / TAGs:

Auxiliary Data/TAGs to be inserted in encoded output stream (ID3 for MP3) can be defined:

Statically:
  • From a web page
  • Using REST-type commands
  • Read from a file via SMB/SAMBA
  • Parsed by ASCII UDP commands
  • Parsed by SNMP string commands
Dynamically:
  • Imported by the Input Stream

Dynamic data streaming in uscita (titolo / autore / nome del canale / URL emittente)

Key applications:

  • STL and SSL links, DVB S/T audio, WEB radio
  • Audio streaming over internet

Redundant Power Supply

Oxygen 3000 Plus is equipped with an external Universal Switching Power Supply 12V (with 4 poles XLR connections) able to operate with a voltage between 90Vac and 264Vac and a frequency between 50 and 60Hz. This PSU can adapt itself to the operating voltage of any country in the world. Optionally the console can be equipped with a redundant power supply: in this configuration the fault of one of the PSU is promptly noticed on the 7” display.

Talk Box

Talk Box is very simple to connect to the On Air Console: it takes 2 RJ45 cables of the length that is needed to connect it to the mixer. It is possible to connect up to 4 Talk Boxes on each Audio I/O Board. The Talk Box manages a direct connection of the microphone and its own On-Air light. It is also possible to connect it to the studio’s On-Air Light. The Talk Box has a headphone amplifier with two 6.3mm outputs. Through the two backlit buttons it is possible to activate and deactivate your own microphone (On/Off/Cough) or enable Talk back to the console.

Dante™ AoIP Interface

Oxygen 3000 Plus can be equipped with a Dante™ interface (also supporting AES67 and SMPTE ST 2110-30 transport protocols) which provides 16 Inputs and 16 Outputs or 32 Inputs and 32 Outputs on dedicated Ethernet port, with independent Level Control and Sample Rate Conversion.

Dante™ AoIP interface is installed at the factory and has to be requested at the order.

Cable Adapters

RJ45 adapters are available for:

  • Mic with GPIO
  • Line In
  • Line Out with GPIO
  • Telco with GPIO

Analog Balanced Microphone Inputs
ConnectorRJ45 & XLR Balanced – EMI Suppressed
Input Impedance2,4 KΩ
Nominal Input Level (sensitivity)-9/-66 dBu
Max Input Level (clipping point)+9 dBu
A/D conversion24 bit / 48 Khz
Signal To Noise Ratio (referred to peak level)>110 dB
THD+N<0,01%
Analog GainAdjustable +0 ÷ +60 dB (3dB step)
Phantom Power+48V

Analog Balanced Stereo Inputs
ConnectorXLR & RJ45 Balanced – EMI Suppressed
Input Impedance10 KΩ
Nominal Input Level (sensitivity)0 dBu
Max Input Level (clipping point)+18 dBu
A/D conversion24 bit / 48 Khz
Frequency response+/-0,5 dB from 20 Hz to 20 kHz
Signal To Noise Ratio (referred to peak level)>110 dB
Stereo Separation (referred to peak level)>90 dB
THD+N<0,002 %

Analog Balanced Telco Input
ConnectorRJ45 Balanced – EMI Suppressed
Input Impedance10 KΩ
Nominal Input Level (sensitivity)0 dBu
Max Input Level (clipping point)+18 dBu
A/D conversion24 bit / 48 Khz
Signal To Noise Ratio (referred to peak level)>110 dB
THD+N<0,002%

Digital Input
ConnectorBalanced on 1 XLR – EMI Suppressed
Input Impedance110Ω
StandardAES3
Audio Sample Rate32/44.1/48/96/192 KHz with SRC
Resolution24 bit
Dynamic Range (Converter Values)124dB

Analog Balanced Stereo Outputs
ConnectorRJ45 Balanced – EMI Suppressed
Output Impedance23 Ω, nominal 600 Ω
Nominal Output Level0 dBu
Max Output Level (clipping point)+18 dBu
D/A conversion24 bit / 48 Khz
Signal To Noise Ratio (referred to peak level)>110 dB
Stereo Separation (referred to peak level)>90 dB
THD+N<0,002 %

Dante I/O
Sample Rates (16x16 Versions)44.1/48/88.2/96 kHz
Sample Rates (32x32 Versions)44.1/48/88.2/96 kHz
Audio Flows In/Out             Up to 32x32 simultaneous streams
Digital Audio Formats TDM, I2S
Audio Transport Formats Dante Audio over IP, AES67 RTP, SMPTE ST2110-30 RTP (enrolled devices)
Sample Bit Depth16, 24 or 32 bits per sample
Audio Buffering Up to 2000 samples per channel
Clocking Onboard word clock or external word clock
Form Factor Card edge module. 4.5cm x 6cm (1.75” x 2.4”)
FPGA High performance Xilinx Spartan6 FPGA
Microprocessor Soft-core Microblaze processor
Clock High quality, low jitter onboard SiLabs
Ethernet Standard RGMII/MII interface for Ethernet PHY or switch chip
Power3.3VDC @ 2W max
Physical Connector Mini-PCI
Control Interfaces SPI Master and Slave; GPIO; I2C
Network RGMII/MII

USB Audio Digital I/O
ConnectorUSB Type B – EMI Suppressed
Playback And Recording Sample RateSRC 44.1-48 KHz
Resolution16 bit
Available Stereo Channels2 stereo USB - 2 Inputs & 1 Output on each Audio I/O Board

Analog Balanced Talkbox Outputs
ConnectorRJ45 balanced – EMI Suppressed
Output Impedance100ohm, nominal 600ohm
Nominal Output Level0dBu
Max Output Level (clipping point)+14dBu
D/A conversion24 bit / 48 Khz
Signal To Noise Ratio (referred to peak level)>110dB
Stereo Separation (referred to peak level)>90dB
THD+N<0,05%

Analog Balanced Telco Output
ConnectorRJ45 Balanced – EMI Suppressed
Output Impedance23 Ω, nominal 600 Ω
Nominal Output Level0 dBu
Max Output Level (clipping point)+18 dBu
D/A conversion24 bit / 48 Khz
Signal To Noise Ratio (referred to peak level)>110 dB
THD+N<0,002 %

Digital Output
ConnectorBalanced on 1 XLR – EMI Suppressed
Input Impedance110 Ω
StandardAES3
Audio Sample Rate32/44.1/48/96/192 KHz
Resolution24 bit
Dynamic Range (Converter Values)124 dB

PSTN Interface
ConnectorRJ11
Transhybrid loss>20 dB

System
Audio CoreAnalog Devices ADAU1452 32bit 294 MHz fixed point DSP
Audio CODECsCirrus CS42448 24 bit/192 kHz
LAN ConnectionRJ45 - 1 Gbit
Nominal Delay (analog input to analog output)0,7 ms
GPIO Inputs/Outputs4 GPI/4 GPO on DB9; 4 GPI/2 GPO on Mic2 & Mic3 RJ45; 2 GPO on Out3 & Out4 RJ45; 1 GPI/1 GPO on Telco RJ45
Communication Port2xUSB type-A, 2xUSB type-B , 1xLAN, 1xHDMI
Operating Temperature0°C ÷ 40°C

Dimensions
8 Faders Dimensions (W; H; D)584 mm; 113,5 mm; 495,5 mm
12 Faders Dimensions (W; H; D)764 mm; 113,5 mm; 495,5 mm
16 Faders Dimensions (W; H; D)944 mm; 113,5 mm; 495,5 mm
Weight15 to 25 Kg

PSU
TypeExternal Universal Switching Power Supply 12V with 4 poles XLR connections - Optional Redundant
Power Supply90-264 VAC / 50-60 Hz / 120 W
