Falcon D7

FOCUS ON

Broadcast Audio Processor for FM & HD Radio

Falcon D7 is an all-in-one equipment (Audio Processor, Loudness Control, Change Over) for TV, DAB, HD Radio, Sirius XM, Web applications thanks to the 20 kHz Processing architecture. Falcon D7 offers ease of use and high quality performances and generates a perfect sound. Falcon D7 the top of its category thanks to many features and functions often not available on much higher priced devices. Falcon D7 sounds great and enables you to set up your perfect sound identity by choosing the pre set that suits better with the style of your channel or by tailor making your own set.

  • l-in-one 5 Bands Audio Processor with Loudness Control and Change Over/Silence Detector.
  • 15/20 kHz processing allows Falcon to feed TV or digital audio broadcasting such as DAB, HD Radio, Sirius XM and Web Radio.
  • Fully customizable top class Audio processing tools with 5 bands compression control, adjustable Drive and Threshold, Dual AGC, 3 Bands Equalization (Low, Mid and High frequency), Stereo Enhancer, Voice Detector and Brightness Control.
  • Mono Sound Phase Control gives a more natural and pleasant sound to the human voices. The final limiter enhances the sound presence
  • More than 240 Factory Presets + 20 User Presets allow to tailor at best your channel.
  • Loudness control: EBU R 128 and ITU-R BS.1770-4 recommendations for digital and analogue audio outputs.
  • Fully configurable Audio Changeover/Silence Detector to switch over four out of the Analog, Digital, MPX, IP, AoIP, DanteTM (optional) and Build In Player inputs.
  • The hardware bypass circuit guarantees audio presence and programs continuity.
  • Full range of outputs: : one analog, two digital audio (over XLR connectors), two Optional DanteTM and one IP streams.
  • Falcon can integrate with existing infrastructure via Ethernet port, two RS-232 serial ports, two USB ports and six GPI ports with optical coupler and four relays.
  • A LAN port and a built-in Web Server to control & configure the processor from any device and tune audio from anywhere also using the IP streams I/O.
  • Falcon Logs every second on the external microSD card the value/status of 8 out of 88 internal parameters for 1 year (at the end of the period oldest data will be overwritten). The user can choose the 8 parameters to be logged and can select a time lapse among the logging to exported the data on a CSV file for any analysis.
  • Falcon processors are equipped with a universal 90-260 V AC power supply, working at 50 or 60 Hz, ready to be used in every country around the world. Thanks to the low power consumption (max 15 W) Falcon is also a green equipment.
  • Falcon 1 Rack Unit robust design is sustained by the extensive use of steel and aluminum. Falcon appliances are immune to strong electro-magnetic fields and are suitable to be installed in extreme climate environments.

Falcon audio processors integrate many extra though needful features for both the TV and the digital radio workflows. Falcon series equipment ensures top quality performances and high level audio. It features powerful DPSs, 5-bands architecture, dual bands AGCs, 3-bands equalizer, stereo enhancer, speech detector and 5 limiters. The comprehensive and accurate control of each audio parameter allows to perfectly shape the audio to broadcast unique and exceptional branded sound.

COMPLETE SET OF INPUTS

Extended Changeover/Silence Detector with configurable source priorities out of the following sources:

1xAnalog, 2xAES/EBU, 2xIP, 2x DanteTM (Optional), 1xInternal Player

SAMPLING RATE FROM 32 kHz TO 192 kHz


COMPLETE SET OF OUTPUTS

1xAnalog, 2xAES/EBU, 1xIP, 2x DanteTM (Optional)


BUILT-IN AUDIO PLAYER

Suitable like a backup source or for test purpose. A Test Signal Generator is also available.


ADVANCED SNMP

(Simple Network Management Protocol)

Allows data interchange and simplified configuration of third-party appliances connected in the same LAN using shared datasets MIB.


UPGRADEABLE AND RELIABLE

Internal microSD card whit OS for Disaster Recovery. Easily Upgradable via WEB or Windows application.


BUILT-IN AUDIO ENCODER AND STREAMER

Can manage two audio streams like an input, can generate an output audio stream.


WEB BASED CONTROL PANEL

The whole system can be managed through a WEB page generated by the internal web Server. The main functions can be managed through the physical panel.


Advanced features

20 kHz PROCESSING

20 kHz processing allows to use it as processor for TV and digital audio broadcasting such as DAB Audio, HD Radio Audio, Sirius XM Audio, Web Radio Audio.


LOUDNESS PROCESSING

EBU R 128 and ITU-R BS.1770-4 Loudness Recommendations available for digital and analog radio processing chains compliant with every country loudness rules.


ADVANCED CHANGEOVER

The Advanced Audio Changeover/Silence Detector can switch between any available input source: Analog, Digital, IP, DanteTM, Internal Audio Player.


REAL TIME AUDIO MONITOR

Processing delay is quite non audible, 10 to 30mS depending on the processing complexity.


Audio processing

Clarity of sound

Falcon processors high-quality hardware design and software algorithms produce a detailed, crystal-clear sound on any speaker system, always preserving original audio signature.

Voice processor

A dedicated processing section boosts presence of voice delivering a soft, silky sounding effect. Vocals are always on top of the mix making lyrics comfortably audible. Each instrument and vocalist gains dominium of its own space.

Extreme density

Falcon processors deliver full impact sound at the highest volume density preserving original audio detail, identity and mood. The dedicated ‘Bass Enhancer’ stage delivers a strong and effective ‘drum punch’ for a deep musical emotion.

Here are the (processing) tools to make it sound as you like:

AGC – Automatic Gain Control

AGC

  • AGC Enable
  • Cross Frequency
  • Filter Slope
  • Drive
  • Attack Time
  • Release
  • Gate Threshold
  • Release Acc. Hold
  • Release Acc. Coeff.
  • Work Zone Threshold
  • Work Zone Release
  • L/R Linkage
  • Bass vs Master Coupling
  • Idle Compression
  • Idle Speed
  • HP Filter

EFX/EQ

Stereo Enhancer

  • Mode, Band, Effect Limiter, Effect Drive, Effect Depth

Post-AGC Equalizer

  • Low Band
  • Mid Band
  • High Band
  • Low Pass Frequency
  • Center Frequency
  • High Pass Frequency
  • Low Pass Slope
  • Band Pass Width
  • High Pass Slope

Speech Detector

  • Mode
  • Action

Phase Rotator

  • Phase Rotator

Multiband

Multiband Controls

  • Drive
  • Attack Time
  • Release
  • Gate Threshold
  • Release Acc. Hold
  • Release Acc. Coeff.
  • Idle Compression
  • Idle Speed
  • Band1 vs Band2 Coupling
  • Band2 vs Band3 Coupling
  • Band4 vs Band3 Coupling
  • Band5 vs Band4 Coupling

Compressors

  • Threshold (for each of 5 bands)
  • Relative Attack (for each of 5 bands)

Compressor-Limiters Feedback

  • Feedback (for each of 5 bands)

Limiters

  • Drive (for each of 5 bands)
  • Attack Time (for each of 5 bands)
  • Release (for each of 5 bands)
  • Hold (for each of 5 bands)

Downward Expander

  • Expansion (for each of 5 bands)
  • Expansion Threshold (for each of 5 bands)

Bands Mixer

  • Gain (for each of 5 bands)

Final Limiters

Limiters Setup

Bass Limiter

  • Bass Drive
  • Bass Attack
  • Bass Release
  • Bass Threshold
  • Super Bass Mode
  • Super Bass Gain
  • Lookahead Mode

Main Limiter

  • Mid. Freq Drive
  • Mid. Freq Attack
  • Mid. Freq Release
  • Mid. Freq Threshold
  • Mid-High Peaks SubDrive
  • Mid-High Peaks Attack
  • Mid-High Peaks Release
  • Mid-High Peaks Threshold

Bass/Main Limiter Setup

  • Bass Limiter Mix
  • Main Limiter Mix

Lookahead Final Limiter

  • Overdrive

Brilliance adjustment

  • Wide Band Process Brilliance Attenuation

MPX Bass Control

  • Mode
  • Drive
  • Clipping Threshold

MPX Limiter Deemphasis

  • Drive
  • Attack

MPX Limiter Emphasis

  • Drive
  • Attack

MPX Limiter Emphasis 2

  • Drive
  • Attack

MPX Limiter Global

  • Attack



Factory Presets

The right sound for your Radio or TV in a few clicks thanks to our Factory Presets.

In our Factory Presets there is all our expertise acquired in thirty years of experience, enriched by the advice of the most important experts in the sector.

HD Radio Applications

Falcon processors are populated with 8 Families of Factory Presets for FM & HD Radio, allowing sound engineer to rapidly find the desired sound. For each Family are available some Flavors.

All the Factory Presets are available in the 50 µsec and 75 µsec Pre-emphasis versions, some are available in a specific version for HD Radio.

For each Flavor, are available 4 additional versions:

  • +1: slightly emphasized
  • +2: moderately emphasized
  • EFX: as +2 with some Bass & Stereo enhancing
  • Voice: slightly reduced to highlight speech



Combining all of this, the Falcon gives you more than 240 presents, one of which is the right for you.



General Purpose (50 µsec, 75 µsec, HD)

The easiest and fastest way to go on the air. This preset is the best possible compromise between various musical genres, speech and advertising.

Flavors:

  • All Purpose
  • Classic Hits
  • Rockloud
  • General Purpose

Clean (50 µsec, 75 µsec, HD)

A clean preset for VOICE or music formats that requires a transparent processing with a good amount of AGC.

Flavors:

  • CHR Hot
  • Newstalk
  • Clean

Open (50 µsec, 75 µsec)

Open and clean with a touch of color and loudness.

Flavors:

  • Rock open
  • Open

Compressed (50 µsec, 75 µsec, HD)

For who search a compressed, loud and big sound.

Flavors:

  • RNB
  • Bass punch
  • Compressed

Loud (50 µsec, 75 µsec, HD)

Loud and open preset for a competitive sound.

Flavors:

  • CHR Loud 1
  • Loud

POP-Contemporary (50 µsec, 75 µsec)

Processed and loud preset for contemporary music.

Flavors:

  • AC Bright
  • CHR Bright
  • Electra V2
  • Gigawatt
  • POP Contemporary

Oldies-Generic (50 µsec, 75 µsec)

Loud, big and compressed preset with a good amount of auto equalization for oldies format radios.

Flavors:

  • Oldies
  • Oldies Generic

Oldies 70-80 (50 µsec, 75 µsec)

Like Oldies Generic but with more gentle processing and a different approach to oldies music processing.

Flavors:

  • Loud 80s
  • Oldies 70-80



TV Applications

Falcon processors are populated with a Factory Presets for TV as well, specifically designed for modern TV sets & Sound Bars, available in some Flavors:

  • Generic
  • Film
  • Music
  • News
  • Quiet

For each Flavor, are available 2 additional versions:

  • +1: slightly emphasized
  • +2: moderately emphasized



Signal Routing and Changeover

The new Falcon processor includes a technologically advanced Audio Changeover/Silence Detector able to switch between any available source: Analog, Digital, IP, AoIP…In case of missing audio from any external sources, the processor can play the playlist stored in the microSD.



An embedded Test Signals Generator allows to output an audio signal suitable for testing the equipment or the whole audio system.

I/O Connections

Falcon Audio Processor new series features a complete set of input and outputs connections. Analog and AES/EBU digital audio connections are standard with hardware bypass: Analog Input > Analog Output | Digital1 Input > Digital1 Output | Digital2 Input > Digital2 Output



Three USB ports (one on the front, one on the rear panel and one installed on the internal circuit board), are available.

microSD allows to clone the whole setup from one Falcon to another one.



DanteTM connection, available as an option, allows to manage AoIP DanteTM or AE67 signals: 2 Stereo inputs and 2 Stereo outputs.



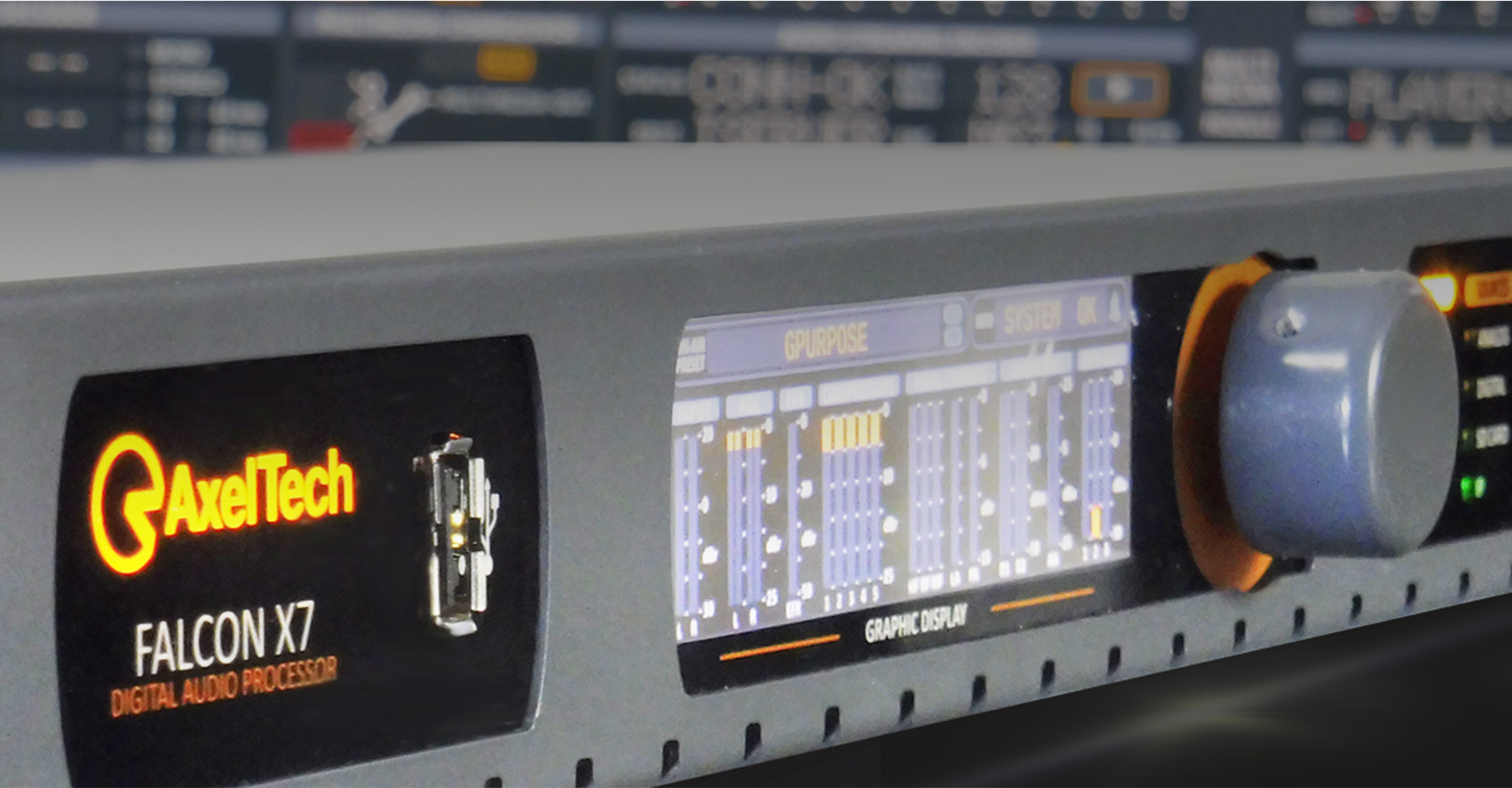

Front Panel

Falcon D7 features a wide Color TFT Technology display (480×128) that shows the input and output processing, including the corrections for each band featured from the compressor, the limiters and the multiband AGC.

Obviously, it also shows the input and output of all signal levels.

Moreover trough the display it’s possible to check the system status: operating parameters, GPI/O port status, etc..



A TRS (stereo Jack 6,3 mm) connector allows monitoring both original and processed signal, checking in the faster way the differences between the available presets.

Communications & Alarms

Falcon audio processors can exchange information with other equipment through some communication ports: One LAN/WAN port, two RS-232 serial ports, two USB ports, one GPIO port with optical coupler and relays.

Information will be sent (status, alarms) or received (commands). A panel with 40 LEDs and the LCD display show status information.

Alarm messages can be sent via GPO, SNMP (Trap), and http.

Web Server

Users can manage Falcon equipment via LAN, no need to install any client software. The internal Web Server can be managed with any browsers (Chrome, Firefox, Explorer, Opera…). The GUI on the web page is clear, easy to use and responsive, suitable to be managed from any device: Personal Computers, tablets, smartphones.

SNMP (v 2.0c) programming protocol allows to manage the whole command set. Falcon firmware also implements HTTP, FTP, SNMP, SMTP, UDP, TCP and is PV4 – IPV6 addressing compliant. RDS services need a precise synchronization: the system tries to connect to a primary NTP, backup NTP and to an external GPS receiver (not supplied).

Moreover, connecting an external GPS allows to geo-localize the Falcon. The WEB server supplies a page with a map that shows the appliance position. Standard Ethernet interface can manage up to 4 independent TCP ports, up to 4 separate UDP ports and 1 SNMP port. Obviously, it also shows the input and output of all signal levels

DanteTM AUDIO-OVER-IP CONNECTIVITY

DanteTM option (also supporting AES67 and SMPTE ST 2110-30 transport protocols) provides an Ethernet connection for 2 Stereo Input and 2 Stereo Output, with independent and dedicated Level Control and Sample Rate Conversion.

Analog Input - AUDIO
Number of Inputs1 Stereo
Connectors:2 XLR, female - Electronically balanced – EMI Suppression
A/D Conversion:24bit Sigma-Delta Conversion (Crystal CS4272)
AD Clipping Point+24.0 dBu
Operative Nominal LevelFrom –12.0dBu to +13.0dBu (0.1dBu Step) Software adjustable
Line Impedance10 kΩ (Electronically balanced selectable)
DistortionLess than 0.01% TDH+NOISE (0.0 dBu 1Khz)
AD Dynamic Range108 dB RMS (110 dB A weighted)
Input ModesStereo, Mono (Left), Mono (Right), Mono (Left+Right)
CMRR input>60 dB (20 Hz to 20 kHz)
FM Frequency range5 Hz-15 kHz (+/- 0,5dB when processing is disabled)
DAB Frequency range5 Hz-20 kHz (+/- 0,5dB when processing is disabled)

Digital Input – AUDIO
Inputs Number2 (1st for audio, 2nd for audio or Digital MPX)
ConnectorsXLR, female – Electronically balanced– EMI Suppression
FormatAES3/EBU
Input impedance110 Ω
Sample rate32 kHz / 44.1 kHz / 48 kHz /96 kHz / 192 kHz with src and jitter attenuation
Operative Nominal levelFrom 0.0 dBFs to -25.0 dBFs (0.1 dBu step) Software adjustable
Dynamic Range125 dB (Typical), 122 dB (Minimal)
Distortion Less than 0.01% TDH+NOISE (0.0 dBu 1Khz)
Input ModesStereo, Mono (Left), Mono (Right), Mono (Left+Right)
Conversion dynamic range124 dB (32 KHz) | 126 dB (44,1 kHz) | 126 dB (48 kHz) 122 dB (96 kHz)
Conversion resolution24 bits
FM Frequency range2 Hz-15 kHz (+/- 0,025dB when processing is disabled)
DAB Frequency range2 Hz-20 kHz (+/- 0,025dB when processing is disabled)

MPX INPUT
ConnectorsUnbalanced on 2 BNC – EMI Suppression
Input impedance50 KΩ
Adjustable Nominal Input Level (Sensitivity)-6 dB to +13,0 dB (0.1 dBu step) Software adjustable
Max Input Level+18,0 dBu
A/D ConversionTexas PCM4220

Digital Input MPX
ConnectorsBalanced on 1 XLR – EMI Suppression
Input impedance110 Ω
FormatAES192
Sample rate192 kHz
Nominal input level (sensitivity)From 0 dBFs to –25,0 dBFs (0,1 dB step)

Analog Output AUDIO
Output Number1
Connectors2 XLR, female - Electronically balanced – EMI Suppression
D/A Conversion24 bit Sigma-Delta Conversion (Crystal CS4272)
Output Level-6.0 dBu to +20.0 dBu (0.1 dBu Step)
Output Level Max.+ 24,0 dBu
Output Impedance10 Ω
Load Impedance600 Ω or greater
THD + NoiseLess than 0.01% (0.0dBu @ 1 kHz)
Signal to noise Ratio>80 dB unweight - 100% Mod. 20 Hz–15 KHz
L/R CrossTalk< –70 dB, 20 Hz–15 KHz
Pre-emphasis50 µsec, 75 µsec
FM Frequency range5 Hz-15 kHz (+/- 0,5dB when processing is disabled)
DAB Frequency range5 Hz-20 kHz (+/- 0,5dB when processing is disabled)

Digital Output AUDIO
Outputs Number2 (1st for audio, 2nd for audio or Digital MPX)
ConnectorsBalanced on 1 XLR – EMI Suppression
FormatAES3/EBU
Output impedance110 Ω
Sample rates32 kHz / 44.1 kHz / 48 kHz / 96 kHz / 192 kHz Software selectable
Resolution24 bit
Operative Nominal levelFrom 0.0 dBFs to -30dBFs (0.1 dBu step)
Dynamic Range125 dB (Typ), 122 dB (Min)
DistortionLess than 0.01% TDH+NOISE (0.0 dBu 1 Khz)
Pre-emphasis50 µsec, 75 µsec
FM Frequency range2 Hz-15 kHz (+/- 0,025 dB when processing is disabled)
DAB Frequency range2 Hz-20 kHz (+/- 0,025 dB when processing is disabled)

MPX OUTPUT
ConnectorsUnbalanced on 2 BNC – EMI Suppression
Source impedance10 Ω
Load impedance600 Ω or greater
Maximum Load Capacitance5 nF
D/A ConversionTexas PCM 1796
Composite output level-6,0 dB to +13,0 dB (0,1 dBm step)
Max Output Level+18.0 dBm
Mod Power LimiterAdjustable from -1.0 dB to +12 dB according to ITU-R BS.412
Pilot Frequency19 KHz +/- 1 Hz
Pilot Level-25.5 to -14.0 dB in 0.1 dB/Step - Ref 100% Mod
Pilot Stability19 kHz, ± 1 Hz
Pilot PhaseAdjustable +/- 12 degrees, 1 degree step
Pilot THD+Noise0.03% (TDH 0.002%)
Stability+/-10 ppm (-10 to +55 °C)
Signal-to-Noise Ratio (S/N)> 85 dB on a 60 kHz Bandwidth, referenced to 100% modulation, unweighted
Distortion<= 0.01% THD - Bypass mode, de-emphasized, 20 Hz – 15 kHz bandwidth, referenced to 100% modulation, unweighted
Stereo SeparationGreater than 70 dB, 30 Hz – 15 kHz
Linear Crosstalk> -80 dB - main channel to sub-channel or sub-channel to main channel referenced to 100% modulation
38 kHz Suppression> 70 dB (referenced to 100% modulation)
Pilot Protection> 65 dB relative to 10% pilot injection, ± 500 Hz.
Crosstalk M/S > 80 dB
Crosstalk S/M> 80 dB
MPX clipping & limitingBased on look-ahead techniques
RDS/RBDS ProtectionBetter than -55 dB @ 56kHz, better than - 65dB@57 kHz (MPX Clipper Disabled)
Pre-emphasis50 µsec, 75 µsec
MPX ModesStereo, Mono, L+R, L-R, Pilot only, No Pilot
MPX ClipperOn/Off and adjustable 95% to 105 %, 1% step

Digital Output MPX
Connectors:Balanced on 1 XLR – EMI Suppression
Input impedance:110 Ω
Format:AES192
Sample rate:192 KHz
Output level adjustment:From 0,0 dBFs to –30,0 dBFs (0,1 dB steps)

BACKUP PLAYER
Physical supportUSB Flash Drive, microSD CARD (max 64GB)
Audio file formatMP3, WAV
Sample Rate32 | 44,1 | 48 | 64 | 96 kHz

RDS FEATURES (Optional)
RDS Level adjustmentDigitally controlled
Phase adjustmentYes, 0 ÷ 359.9°
RDS Subcarrier100% Digitally Generated Shape
CENELEC – EN50067 compliant Yes
Accurate Clock Time (CT) Sync with Internet ConnectionYes
Remote TA actuation for Traffic AnnouncementsYes
GPS module for automatic synchronisation of the built-in Real Time Clock (RTC)Optional external via USB
Group SupportedAll
Group SequenceConfigurable
PS8 DSN x MAIN + 10 PSN
PI8 DSN x MAIN + 10 PSN
PIN & PTYRDS/RBDS
AF Method Aup to 1024 (64 lists)
AF Method Bup to 1024 (64 lists)
RTYes, 32 messages
RT rate adjustmentGroup Sequence
RT+ for songs and content taggingYes
TPYes
TA ControlCommand, Soft, GPI
PTYNYes
EON10 PSN
CTYes
TMC, EWS, IH, TDCYes
Free Format Groups (FFG)Yes
Open Data Application (ODA)Yes
PS ScrollingYes
Scrolling by characters, by word, auto centre, truncate long wordsYes (Characters – from 1 up to 8)

COMMUNICATION
Connection with radio automation: SoftwareYes
Network connectivity4 TCP ports / 4 UDP / 1 SNMP
Configuration softwareWeb Server, FTP
Password protectionYes
ASCII ProtocolConfiguration messages
REST CommandYes
Alert notifications on user-defined events via SNMP traps or E-mailsYes
Embedded SNMP agent permitting: active management tasksYes
Supported Network ProtocolsHTTP, SNTP, UDP, TCP, NTP, FTP
UECP ProtocolEBU SPB490 Ver. 7.05
PI CalculatorYes
RDS 2.0 ReadyYes

System Features
Remote interface GPIn 6x GP In optocoupled
Remote interface GPOut 4x Relays – dry contacts
Remote interface connectorDB 25 female connector - EMI suppressed
Remote interface GPIO Voltage and CurrentDC 5V Source and Sink 10 mA
Communication Port2 x RS232, 3 x USB, 1 x LAN
Serial Interfaces1st RS232 on DB9 female connector - EMI suppressed
2nd RS232 on DB25 female connector - EMI suppressed
Firmware can be upgraded in the fieldYes
Front-panel Colour TFT DisplayNo (Falcon X6) / Yes (Falcon X5, X7)
Data may be entered on-site with Front-panel ButtonsNo (Falcon X6) / Yes (Falcon X5, X7)
Front Panel LEDs40

PHYSICAL
Dimensions485 x 44 x 240 mm (1 rack unit)
AC Rate Voltage230Vac / 110Vac +/- 10% - 30VA – Connector IEC 3-Wire detachable
AC Frequency50 Hz / 60 Hz +/- 4%
Power factor0,9
Processing architectureFully digital, based on DSP 24bit/250Mhz.
5 band Signal processing
Weight3,5 Kg
Operating temperature-5°C / +50°C up to 95% non condensing
Max AltitudeUp to 3000 meters above marine level
Safety StandardCE, ETL, UL
RFIFalcon X/D has been designed to work in strong RF Fields and it is provided with Standard RFI filters. Necessary RFI filters are standard and same are provided.
GroundingOne more earth terminal is provided in the Falcon X/D body to connect audio earth connection








    Input & Output

    • 3 microphone inputs
    • 4 stereo analogue inputs
    • 4 stereo analogue outputs
    • 1 built-in telephone hybrid,
    • 1+4 telco interface with GPIO
    • Bluetooth audio interface (optional)
    • 1 digital Out (AES/EBU)
    • 2 USB audio interfaces (disabled with Dante option installed)
    • 8 stereo inputs + 8 stereo outputs via Dante (optional)

    General

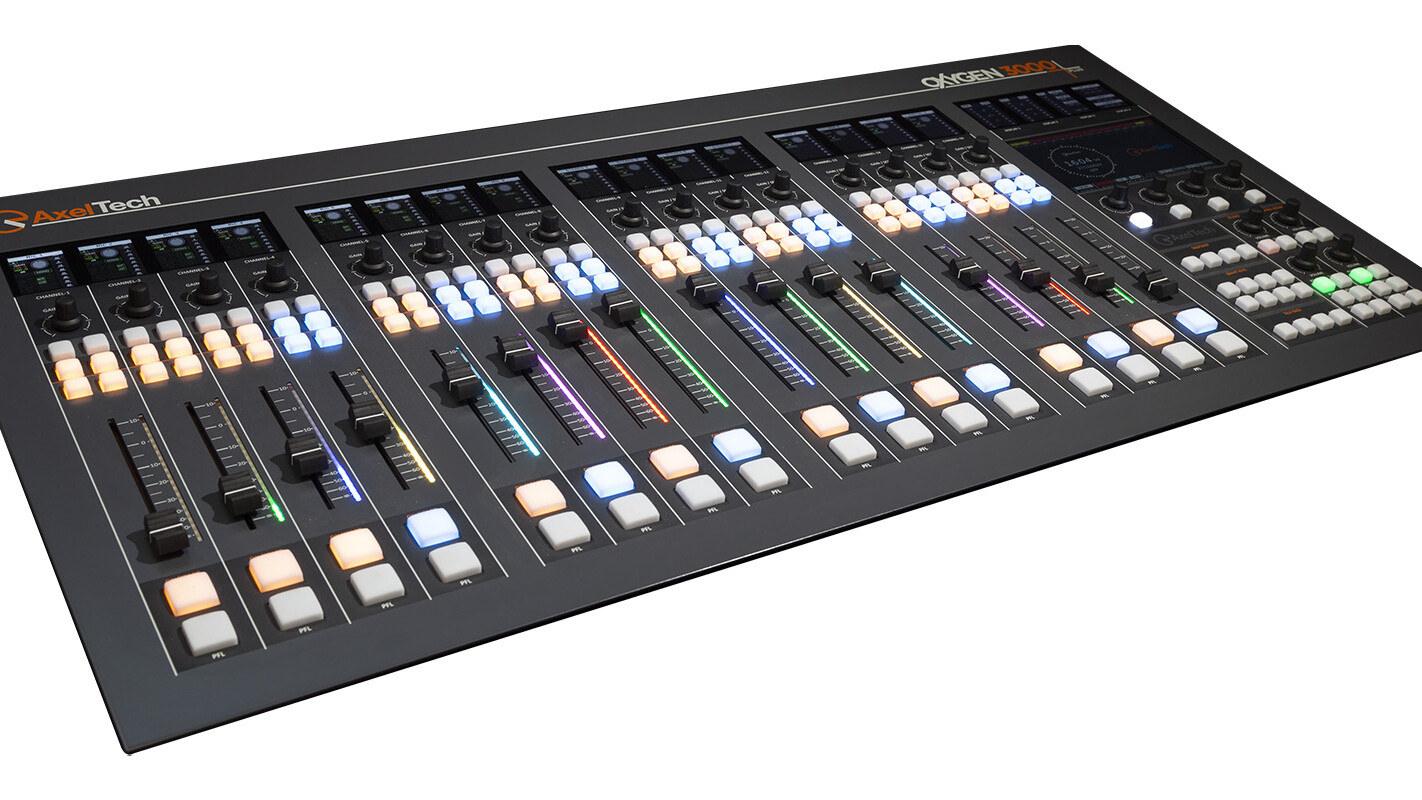

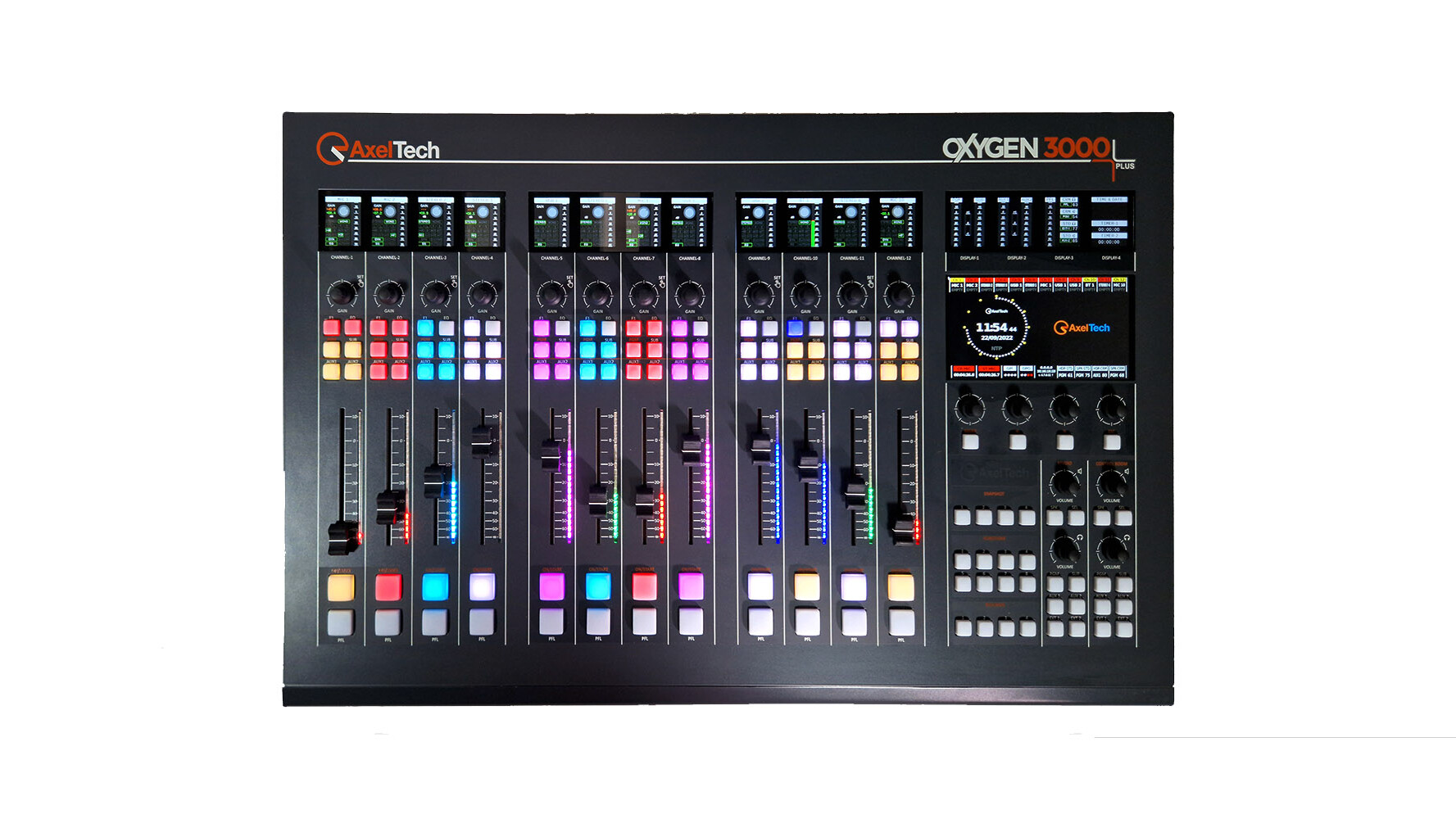

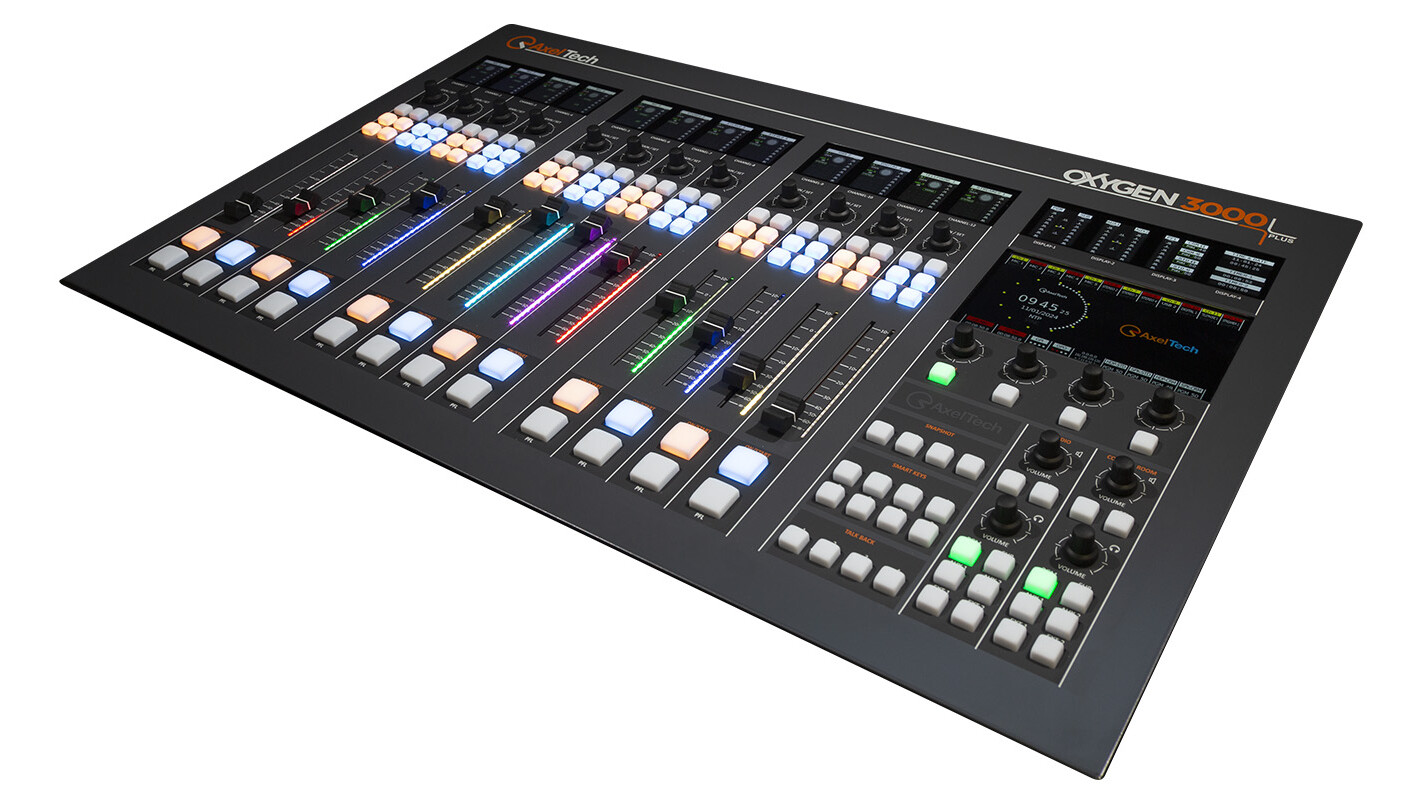

    • Fully Digital Broadcast Console for Radio Broadcasting with 6 faders
    • A/B Fast source switch buttons for each fader
    • 4+1 busses (PGM, SUB, Aux1, Aux2, PFL)
    • Near 0 latency (< 0,7 ms I/O)
    • Digital Signals Routing via the 48×48 internal matrix

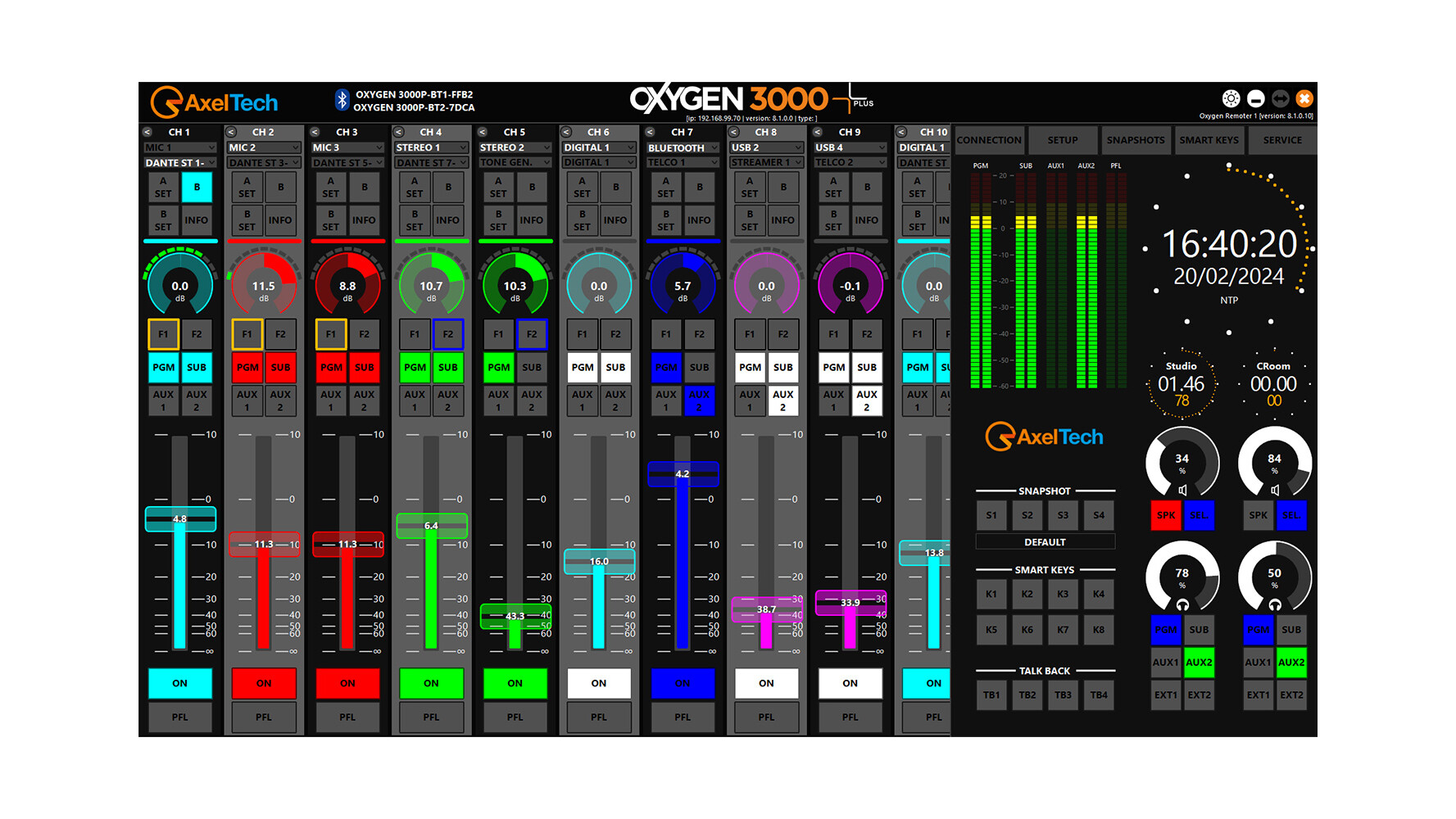

    • Complete Remote Control by means of an application replicating the surface
    • Remote configuration and maintenance via Web Interface
    • User-definable Presets & Snapshot
    • 5 bands fully parametric Equalizer on every input
    • Dynamic Processor with expander and compressor section on each microphone inputs
    • Advanced and configurable Monitor Facilities for Control Room and Studio
    • Customizable RGB colored buttons
    • High Resolution (120 leds) meter bars for outputs
    • HDMI Out for console status display
    • 2 Timers (Ctrl-Room and Studio microphones timers on HDMI Monitor)
    • TalkBox for guest and presenter (optional)

    Versions

    • Oxygen 1000
    • Oxygen 1000 – Bluetooth
    • Oxygen 1000 – Dante
    • Oxygen 1000 – Dante – Bluetooth

    Options

      • Talk Box
      • RJ45 adapters for:

    o Mic with GPIO
    o Line In
    o Line Out with GPIO
    o Telco with GPIO

    Microphone Inputs

    • 3 Microphone Inputs
    • Mic 1 on XLR, Mic 2 & 3 on RJ45: 2-3, all balanced with + 48V Phantom and GPIO
    • Independent ON AIR Lights and Cut Off control, when opening Control Room and Studio microphones
    • PFL button switches to private conversation on Hybrid/Telco/Bluetooth mode
    • Enable TalkBack feature on any Studio or Control Room microphone
    • Parametric Compressors/Expander (drive, threshold, attack time, release time) for MICROPHONE and MONO inputs
    • Save and recall microphone presets including Compressor/Expander settings
    • Phase inversion on microphone inputs
    • MONO inputs assignable as EXT source
    • Ducking / AutoFader assignable to all sources (automatic attenuation of music on speech)

    Analogue inputs

    • Line Stereo Inputs: 4
    • Balanced on XLR for Line 1, Balanced on RJ45 for Line 2-4
    • Channel mode selection: STEREO, MONO, L, R, INV-L, INV-R, INV
    • Stereo-1 & DANTE-1 inputs can be configured as 4 Telco Inputs

    USB audio I/O

    • 2 Built-in stereo USB (Type-B) I/O Audio Interfaces allow to directly connect the PC to the Oxygen 1000 console, with no need for audio cards
    • In facts the PC detects each of the console USB as a digital audio card with 1 stereo inputs and 1 stereo outputs for simultaneous playout and recording

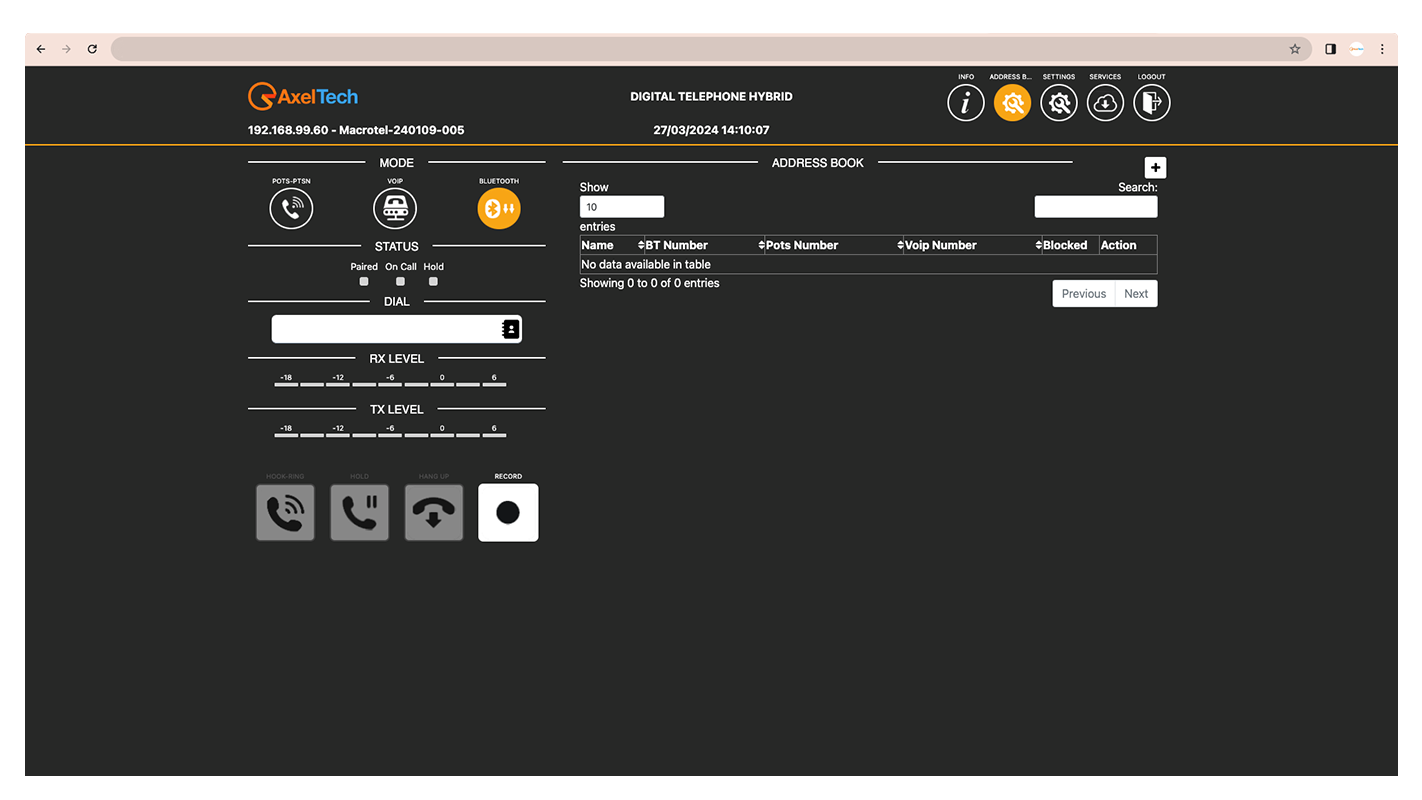

    Telephone hybrid and Telco

    • Telephone Hybrid: 1 POTS/PSTN telephone line with Line.In and Tel.Set connection
    • Telco: 1 in/out N-1 to connect external telephone hybrid with control via TLC/GPIO
    • 4 mono additional Telco can be obtained configuring Analog Inputs (Stereo-1 & DANTE-1) and (OUT-2 & DANTE-1) stereo outputs.
    • GPI and GPO management on all 5 Telco channels
    • RING and HOOK on F1 key for each TELCO channels
    • N-1 on Telco outputs for all BUS (PGM, SUB, AUX-1, and AUX-2)

    Analogue outputs

    • 4 Balanced Outputs:
      • OUT-1 – XLR – Fixed as PGM
      • OUT-2 – XLR – by default assigned as SUB
      • OUT-3 – RJ45 – by default assigned as AUX-1
      • OUT-4 – RJ45 – by default assigned as AUX-2
    • OUT-2 stereo output can be configured as N-1 to achieve up to 2 mono additional Telco
    • OUT-1 & OUT-2 outputs are both equipped with a GPO

    Digital output

    • 1 AES/EBU output on XLR

    Headphones and local monitor outputs

    • OUT-2-4 outputs: can be configured as Studio Presenter and Studio Guest Headphones
    • Unbalanced outputs: 2 Line out on Jack 6.3 for Control Room Headphones
    • Adjustable maximum Control Room and Studio speakers volume (Studio Speaker only via SW)
    • Adjustable maximum Control Room and Studio headphones volume (Studio Headphones only via SW)
    • Adjustable CUT or Attenuation mode (-40, -30, -20, -10 dB) on Control Room and Studio speakers
    • Independent source selection (PGM, SUB, AUX1, AUX2, EXT) for control room and studio speakers, control room and studio headphones with or without PFL
    • Independent Talk Back management on Control Room and Studio speakers
    • Independent Talk Back management on Control Room, Studio headphones
    • Same source selection for Control Room and Studio headphones, with independent level

    GPI/GPO

    • GPI: 9 in total, for Talk back, Telephone Hybrid or other features
    • GPO: 9 total, to control OnAir lamps or provide HOOK and RING commands for external telephone Hybrid
    • User custom GPIs (e.g. Ring, Talkback, channel ON/OFF, etc.)
    • User custom GPOs (e.g. Hook/ONAIR, Studio-Light, Control Room-Light)

    Surface & Management

    • Automatic firmware update via Internet
    • WEB UI for Console configuration and service features (Save, restore, update, logs, etc.)
    • Save and recall EQ presets (up to 10)
    • New real-time EQ algorithm with graphic
    • Fast and accurate Led Meters display
    • Save and recall control panel configuration with 10 Snapshots
    • Save and recall total console configuration. The configuration can be saved to internal memory (microSD), USB and PC (via WEB interface)
    • Gain adjustment knobs with adaptive speed
    • Dimmable buttons light
    • Adjustable fader ON/OFF threshold (from -50 dB to 0 dB)

    Telephone Hybrid and Telco

    The built-in telephone hybrid allows direct connection of a telephone line POTS/PSTN on RJ-11C. The audio is processed via DSP that delivers a state-of-the-art audio processing. It’s also available a Telco N-1 in/out, to connect Oxygen 1000 to an external telephone hybrid. The Telco N-1 is always available on RJ45. TLC commands are available on the same RJ45 with Hook and Ring interface.

    TLC commands for Telco-2-5 are available and configurable on GPIO-DB9 connector with Hook and Ring.


    HDMI output

    The HDMI output allows to connect a HD display monitor to the console, suitable to be used in two flavors:

      • Monitor, that displays the following information:
          • Audio input source levels
          • 4+1 BUS output levels
          • A/B source names assigned of 10 channels
          • Display On-Air sources
          • Microphone On timer (control room & studio)
          • Large Clock
          • Audio output level (Loudspeakers & Headphones)
          • On-Air microphone
          • Telephone active
        • Configure, for configuring all of the device features.
          • HDMI output combined with 4 rotary knobs allow the fast and intuitive programming of all the mixer parameters.
          • The programming GUI has been designed in order to be very easy and intuitive.
          • Selectable home page layouts are available, with many theme icons.

    HDMI output can be personalized with the customer logo. Selectable display layouts are available.

    Bluetooth

    Oxygen 1000 can be equipped with a Bluetooth module. This allows airing the calls made via GSM, Skype, Viber and WhatsApp with a Smartphone, a Tablet or a PC. Oxygen 1000 has two Bluetooth connection modes: bidirectional to support phone calls; monodirectional to put on air high quality stereo audio (A2DP) streamed by Bluetooth sources.

    With Bluetooth calls, PFL enables PRIVATE conversation mode.

    Bluetooth interface is installed at the factory and must be requested at ordering stage.

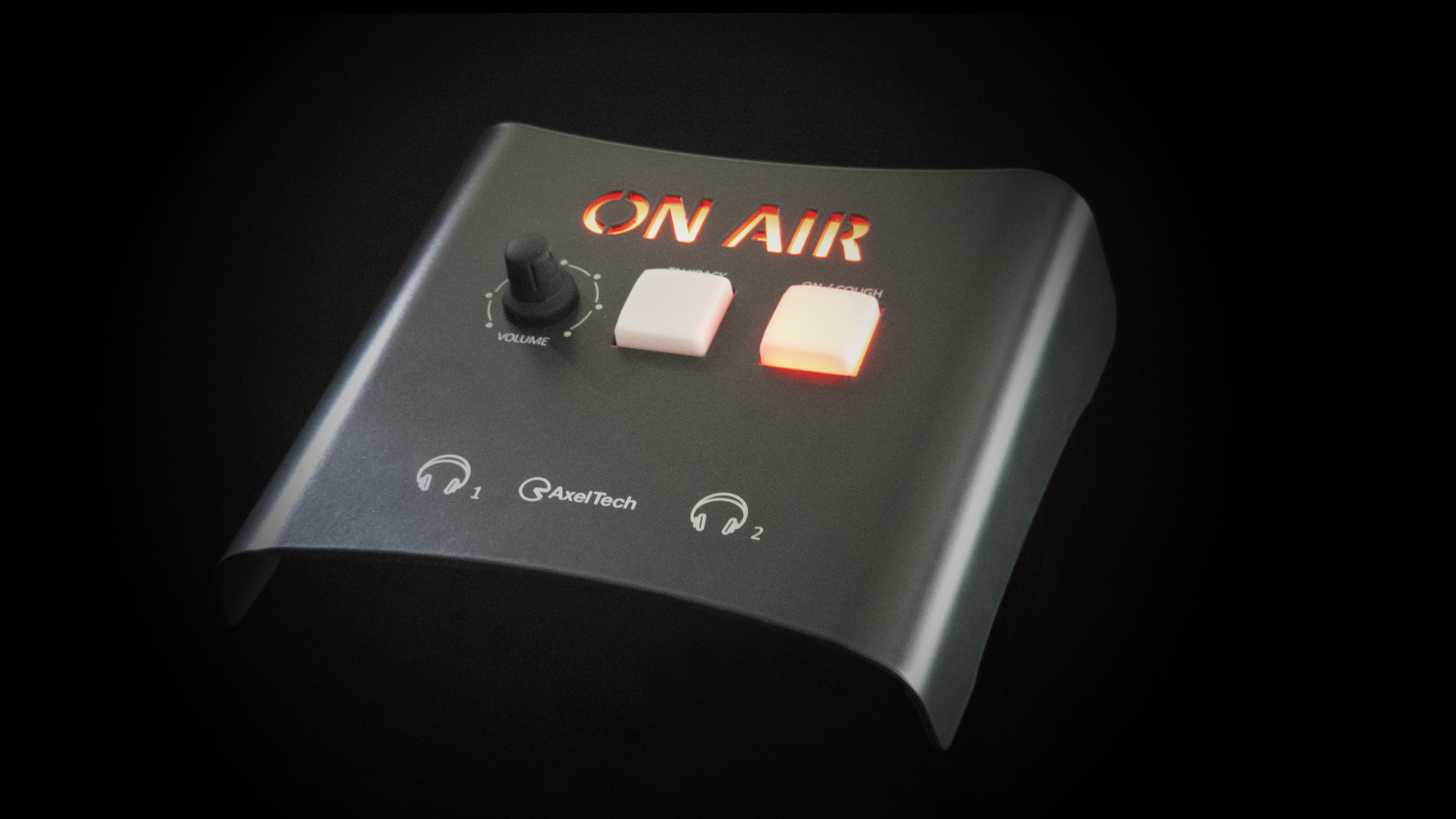

    Talk Box

    It is a device dedicated to the presenter and guests. Talk Box is very simple to connect to the On Air Console: its take 2 RJ45 cables of the length that is needed to connect it to the mixer. It is possible to connect up to 2 Talk Boxes to the Oxygen 1000. The Talk Box offers a direct connection of the microphone and relative On-Air light, it is also possible to directly connect the studio’s On-Air Light. The Talk Box has a headphone amplifier with two 6.3mm outputs. Through the two large backlit buttons it is possible to activate and deactivate your own microphone (On / Off / Cough) or enable Talk back to the console.


    Dante AoIP Interface

    Oxygen 1000 can be equipped with a Dante (compliant with AES67) interface which provides 8 Stereo Input and 8 Stereo Output on a dedicated Ethernet port, with independent Level Control and Sample Rate Conversion.
    On Oxygen 1000 Dante versions the USB I/O ports are disabled.
    Dante AoIP interface is installed at the factory and must be requested at ordering stage.


    Cable Adapters

    RJ45 adapters are available for:
    o Mic with GPIO
    o Line In
    o Line Out with GPIO
    o Telco with GPIO

    Analog Balanced Microphone Inputs
    ConnectorRJ45 & XLR Balanced – EMI Suppressed
    Input Impedance2,4 KΩ
    Nominal Input Level (sensitivity)-9/-66 dBu
    Max Input Level (clipping point)+9 dBu
    A/D conversion24 bit / 48 Khz
    Signal To Noise Ratio (referred to peak level)>90 dB
    THD+N<0,01%
    Analog GainAdjustable +0 ÷ +57 dB (3dB step)
    Phantom Power+48V

    Analog Balanced Stereo Inputs
    ConnectorXLR & RJ45 Balanced – EMI Suppressed
    Input Impedance10 KΩ
    Nominal Input Level (sensitivity)0 dBu
    Max Input Level (clipping point)+18 dBu
    A/D conversion24 bit / 48 Khz
    Frequency response+/-0,5 dB from 20 Hz to 20 kHz
    Signal To Noise Ratio (referred to peak level)>100 dB
    Stereo Separation (referred to peak level)>90 dB
    THD+N<0,002 %

    Analog Balanced Telco Input
    ConnectorRJ45 Balanced – EMI Suppressed
    Input Impedance10 KΩ
    Nominal Input Level (sensitivity)0 dBu
    Max Input Level (clipping point)+18 dBu
    A/D conversion24 bit / 48 Khz
    Signal To Noise Ratio (referred to peak level)>100 dB
    THD+N<0,002%

    PSTN Interface
    ConnectorRJ11
    Transhybrid loss>20 dB

    Analog Balanced Stereo Outputs
    ConnectorRJ45 Balanced – EMI Suppressed
    Output Impedance23 Ω, nominal 600 Ω
    Nominal Output Level0 dBu
    Max Output Level (clipping point)+18 dBu
    D/A conversion24 bit / 48 Khz
    Signal To Noise Ratio (referred to peak level)>100 dB
    Stereo Separation (referred to peak level)>90 dB
    THD+N<0,002 %

    USB Audio Digital I/O
    ConnectorUSB Type B – EMI Suppressed
    Playback And Recording Sample RateSRC 44.1-48 KHz
    Resolution16 bit
    Available Stereo Channels1 Play & 1 Rec for each USB interface

    Digital Output
    ConnectorBalanced on 1 XLR – EMI Suppressed
    Input Impedance110 Ω
    StandardAES3
    Audio Sample Rate48 KHz
    Resolution24 bit
    Dynamic Range (Converter Values)124 dB

    Analog Balanced Telco Output
    ConnectorRJ45 Balanced – EMI Suppressed
    Output Impedance23 Ω, nominal 600 Ω
    Nominal Output Level0 dBu
    Max Output Level (clipping point)+18 dBu
    D/A conversion24 bit / 48 Khz
    Signal To Noise Ratio (referred to peak level)>100 dB
    THD+N<0,002 %

    System
    Audio CoreAnalog Devices ADAU1452 32bit 294 MHz fixed point DSP
    Audio CODECsCirrus CS42448 24 bit/192 kHz
    System CoreAllwinner A20 dual core cortex-A7 at 800MHz, 1GB RAM
    LAN ConnectionRJ45 - 100Mbit
    Nominal Delay (analog input to analog output)0,7 ms
    GPIO Inputs/Outputs4 GPI/4 GPO on DB9; 4 GPI/2 GPO on Mic2 & Mic3 RJ45; 2 GPO on Out3 & Out4 RJ45; 1 GPI/1 GPO on Telco RJ45
    Communication Port2xUSB type-A, 2xUSB type-B , 1xLAN, 1xHDMI
    Operating Temperature0°C ÷ 40°C

    PSU
    Power Supply90-260 VAC / 47-63 Hz / 30 W

    Dimensions
    Dimensions (W; H; D)344mm; 80mm; 343mm
    Weight< 5Kg


    Studio Playout & Ingest YouPlay AxelTech

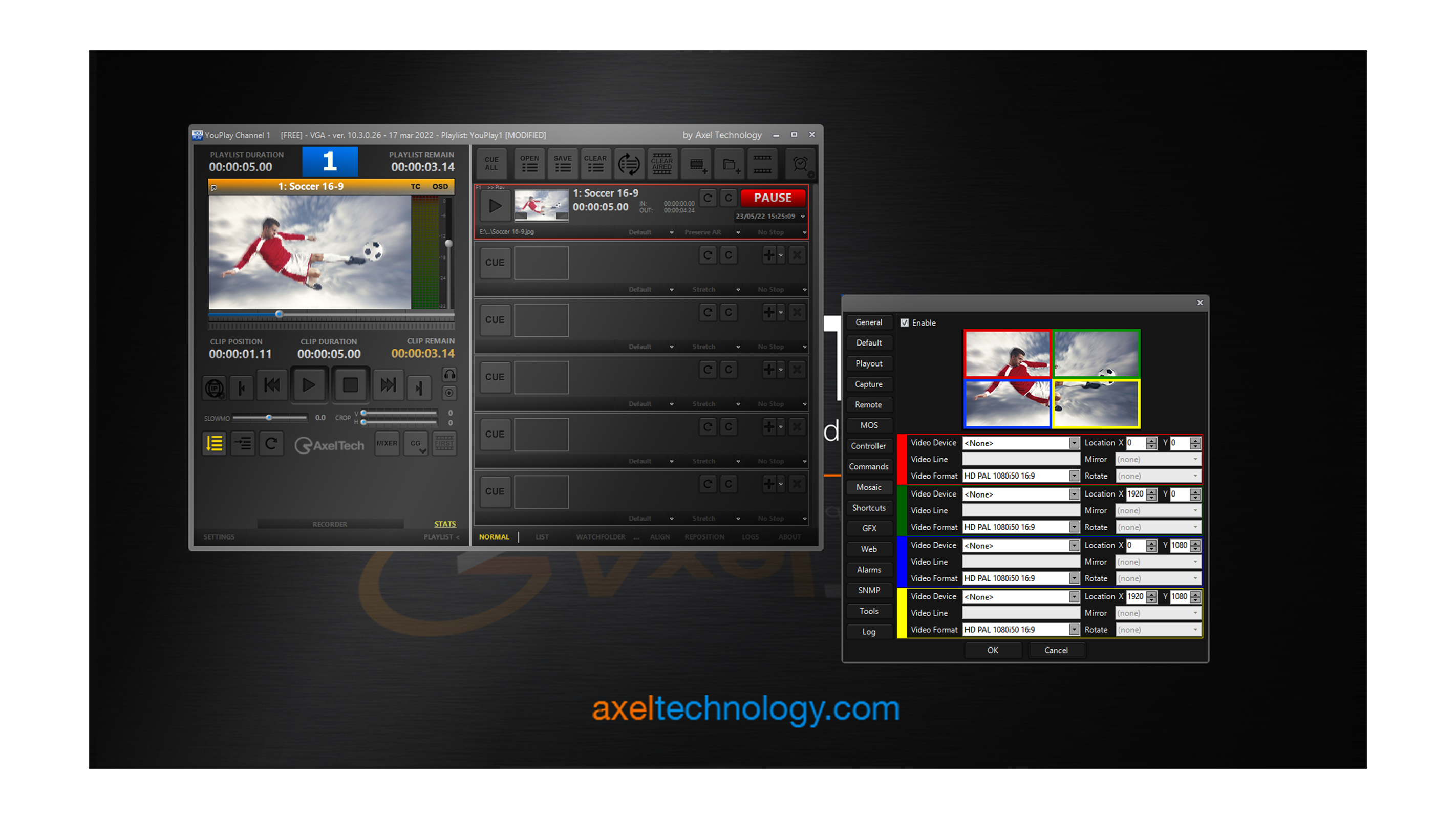

    YouPlay

    YouPlay

    TV Production Playout

    A smart tool for

    Studio Playout & Ingest

    Tapeless workflow finds in YouPlay the cleverest way to play video during live production, such as on-air video Contribution Playout for news, talk shows, events coverage.

    YouPlay is the ideal PCR Automation to Feed Studio Video Walls, featuring Clips Playout or playlists, play/stop from still frame, animations play.

    YouPlay has been designed to be a real multiple-formats player with a user-friendly interface that fits perfectly into live production with no need of training or skilled operators.

    • SRT - Secure Reliable Transport
    • 4K

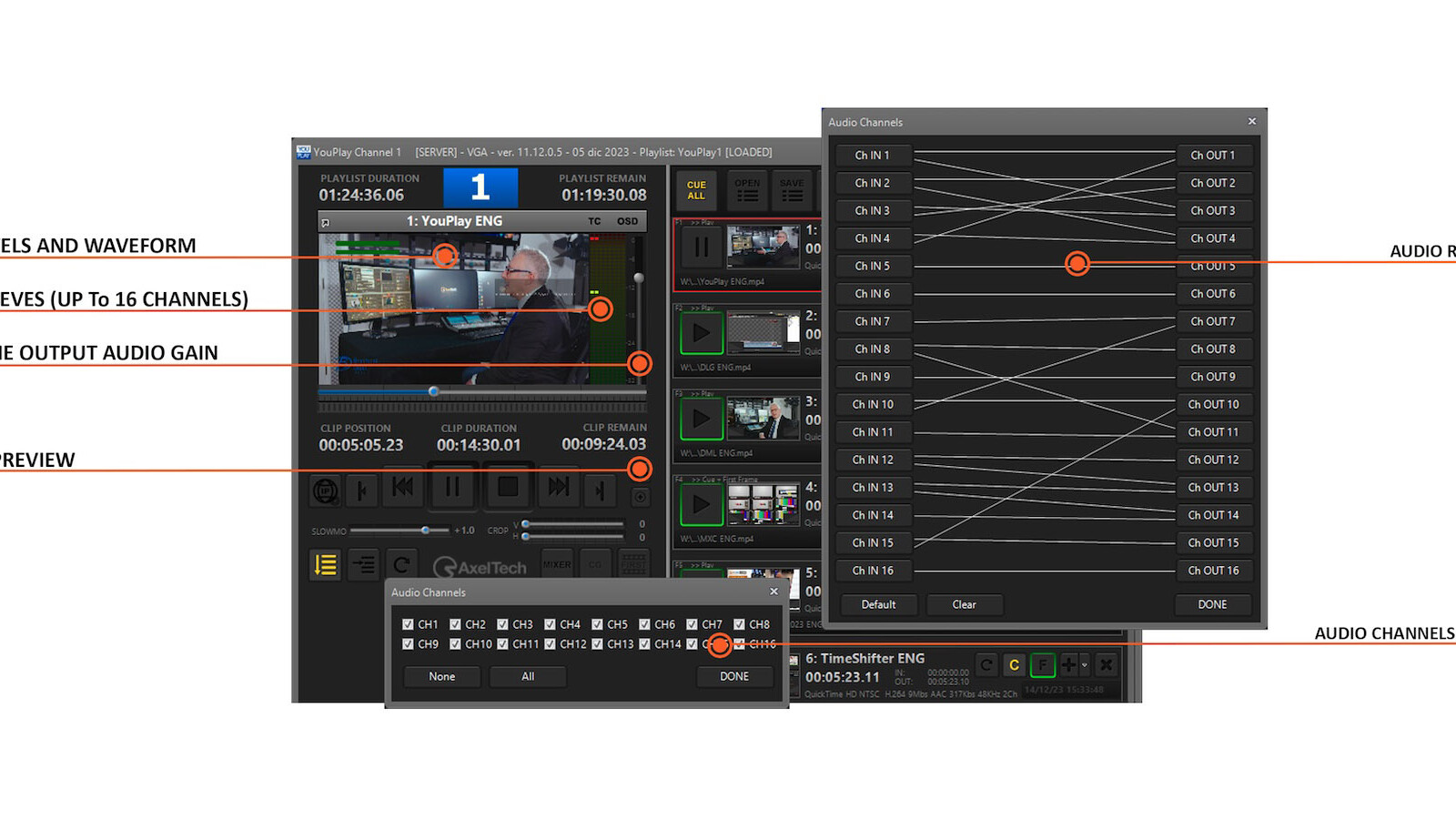

    • Multi track audio re-shuffling tool
    • Background video playback from NDI or URL sources
    • Backup capture source on alternative data path
    • SDI, NDI and URL input source as playlist clip
    Studio Playout & Ingest YouPlay AxelTech

    YouPlay supports DV, HDV, DVCPRO, MJPEG, MPEG-2, TS, MPG, VOB, H.264, H.265, AV1, MP4, QuickTime, PRORES, DNxHD, AVI, WMV, ASF, MXF, XDCAM, IMX, GXF, LXF, FLV, MKV, WebM, HuffYUV, VP8, VC3, JPEG2000, DPX, including any audio or bitmap file format.

    Support of SDI and IP I/O NDI, SMPTE 2022 & SMPTE 2110 (only with specific video card) allows to deploy YouPlay both in traditional and IP based production facilities.

    Main Features

    • SDI/NDI/IP 4K/2K/HD/SD playout & ingest (YOUPLAY SERVER model)
    • Virtually any video and file format compatibility (SD/HD/2K/4K): up to 16 Audio channels (Dynamic selection of enabled audio channels)
    • Automatic up/down scaling and aspect ratio adjustment (16/9, 4/3, etc.)
    • Hardware Compatibility: BMD (SDI), AJA (SDI, SMPTE 2022 & SMPTE 2110), BlueFish (SDI, SMPTE 2022 & SMPTE 2110)
    • Key output on SDI with 32 bits Bitmaps sequence, QuickTime Animation and ProRes 4:4:4
    • Timecode RP188-VITC-LTC
    • Crop, field swap, aspect correction mode (Letterbox, no Letterbox, stretch)
    • Free CGComposer app for CG template creation
    • Timed CG on playlist with dynamic text metadata.
    • Frame accurate single clip loops.
    • Slow-motion up to -2x/+2x
    • Play while ingest
    • Remote control with BMD ATEM, NEWTEK TRICASTER, BMD HYPERDECK emulation, VDCP mixer, RS422 controller
    • MOS integrations for NEWSROOM with multiple channel gateway

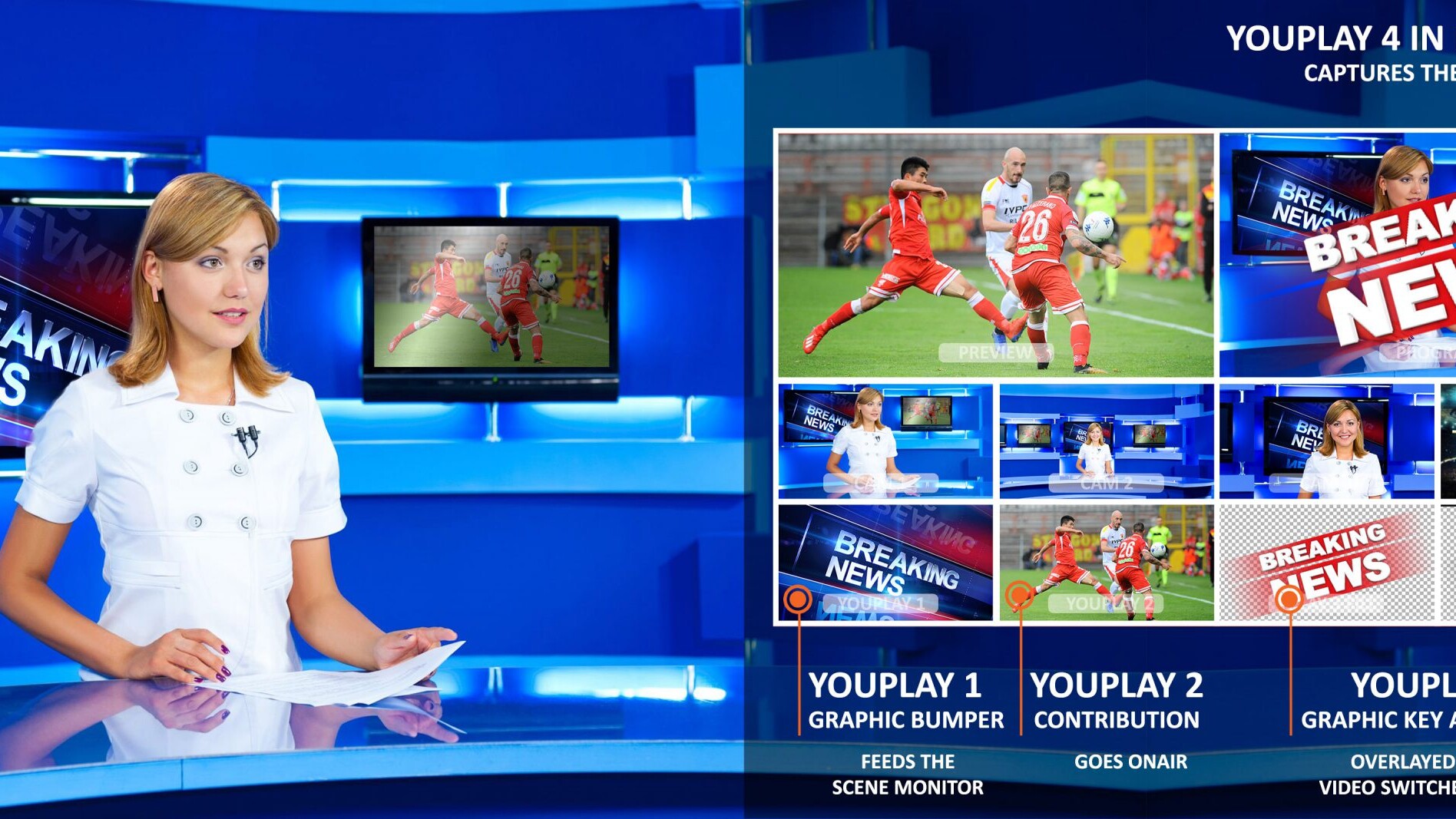

    YouPlay Workflow

    Studio Playout & Ingest YouPlay AxelTech

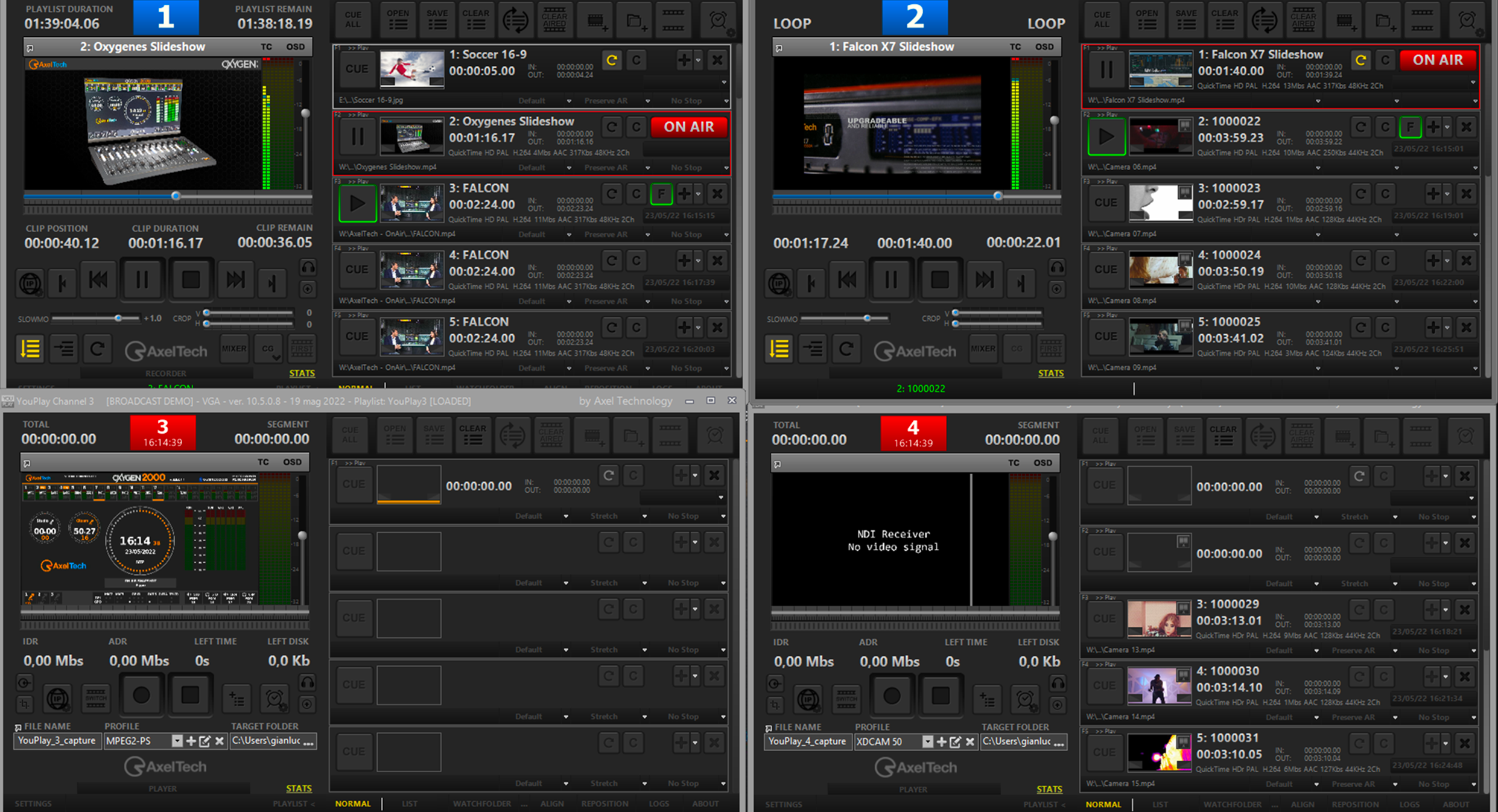

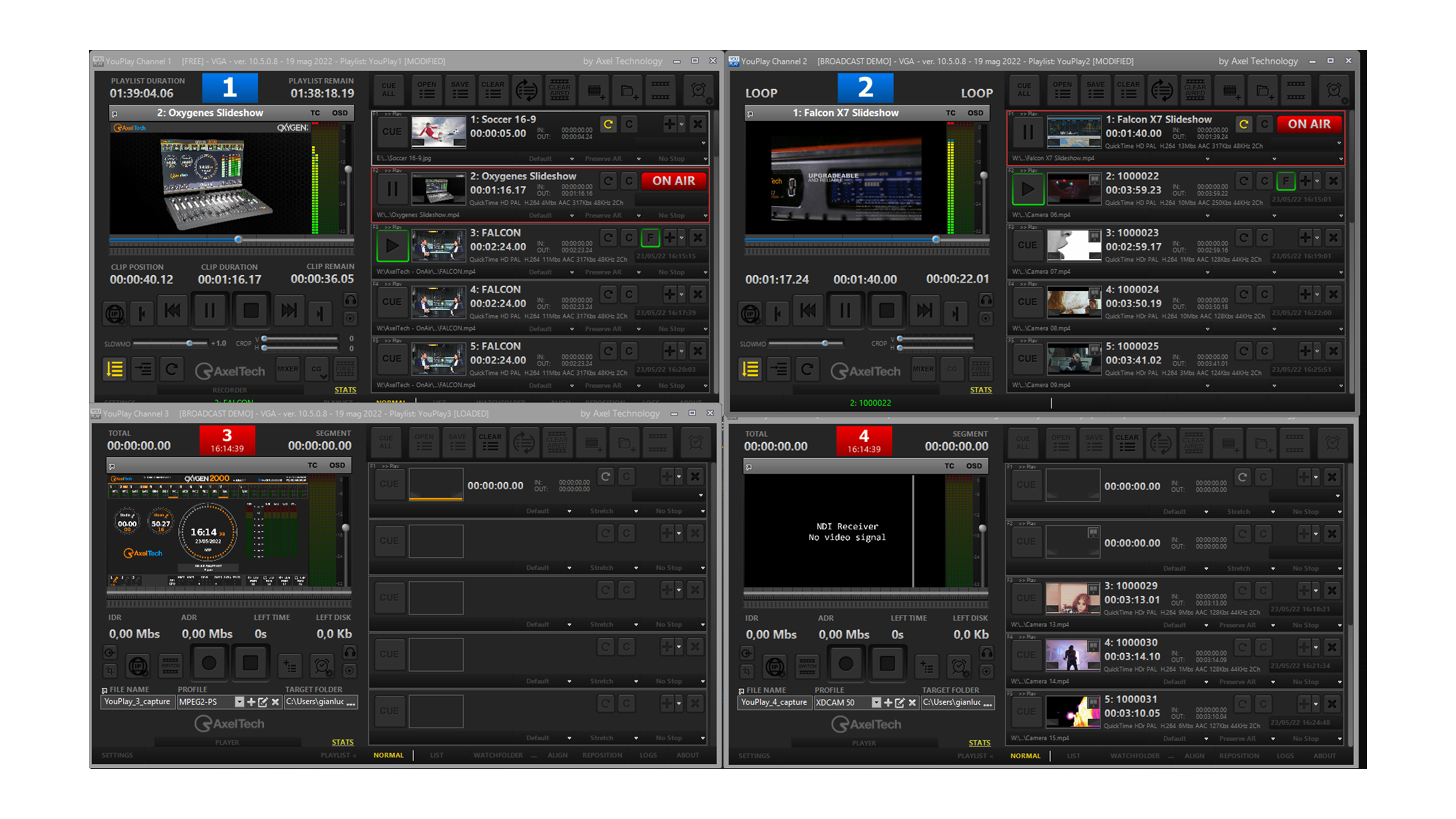

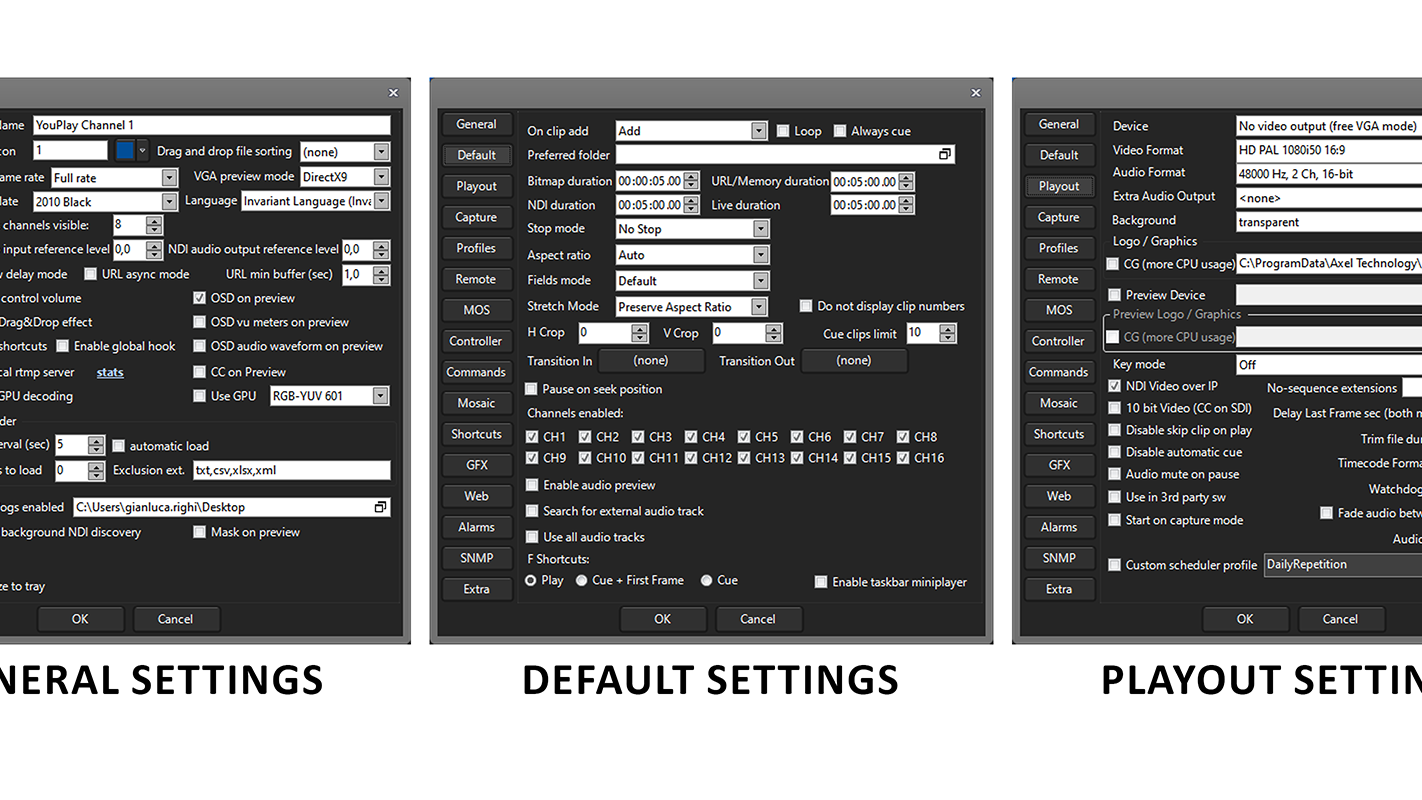

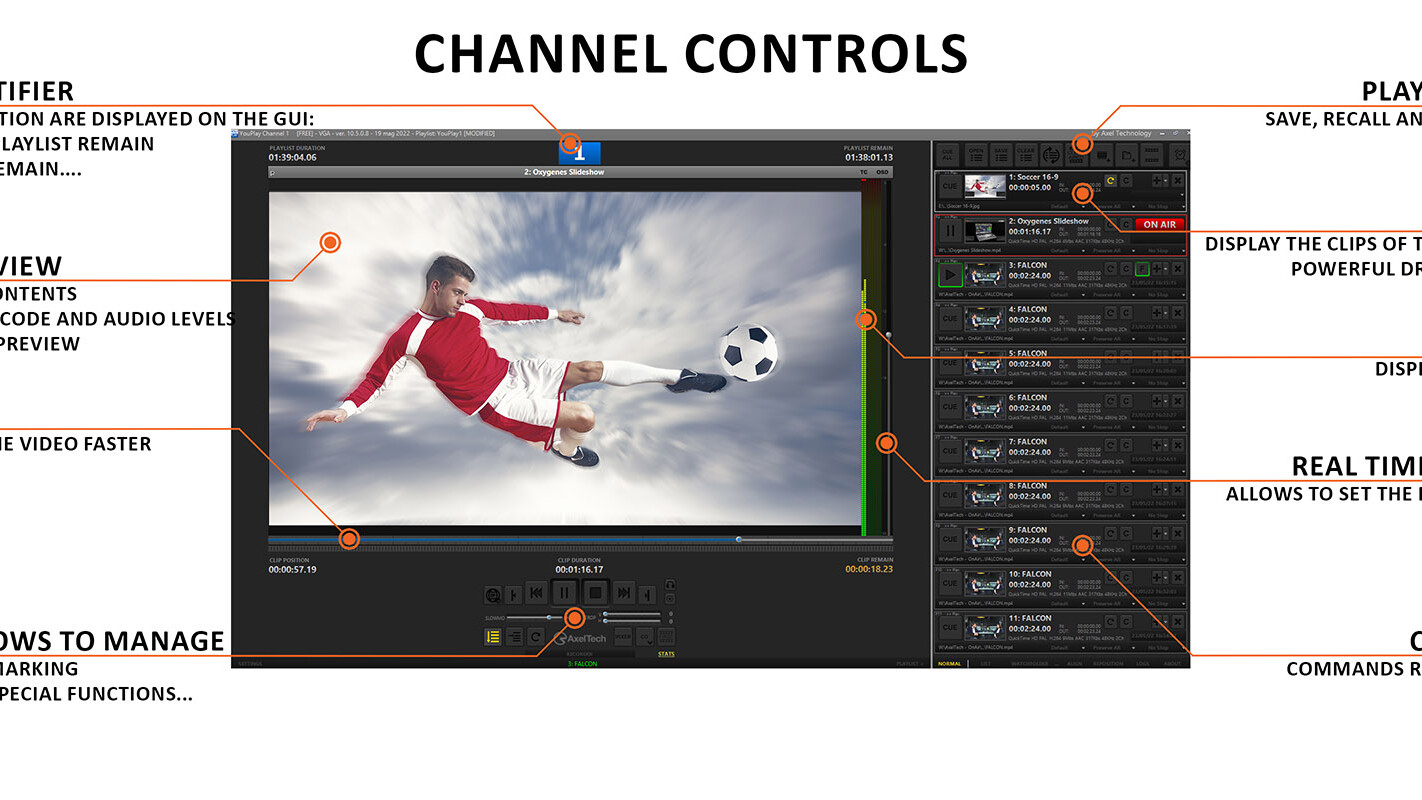

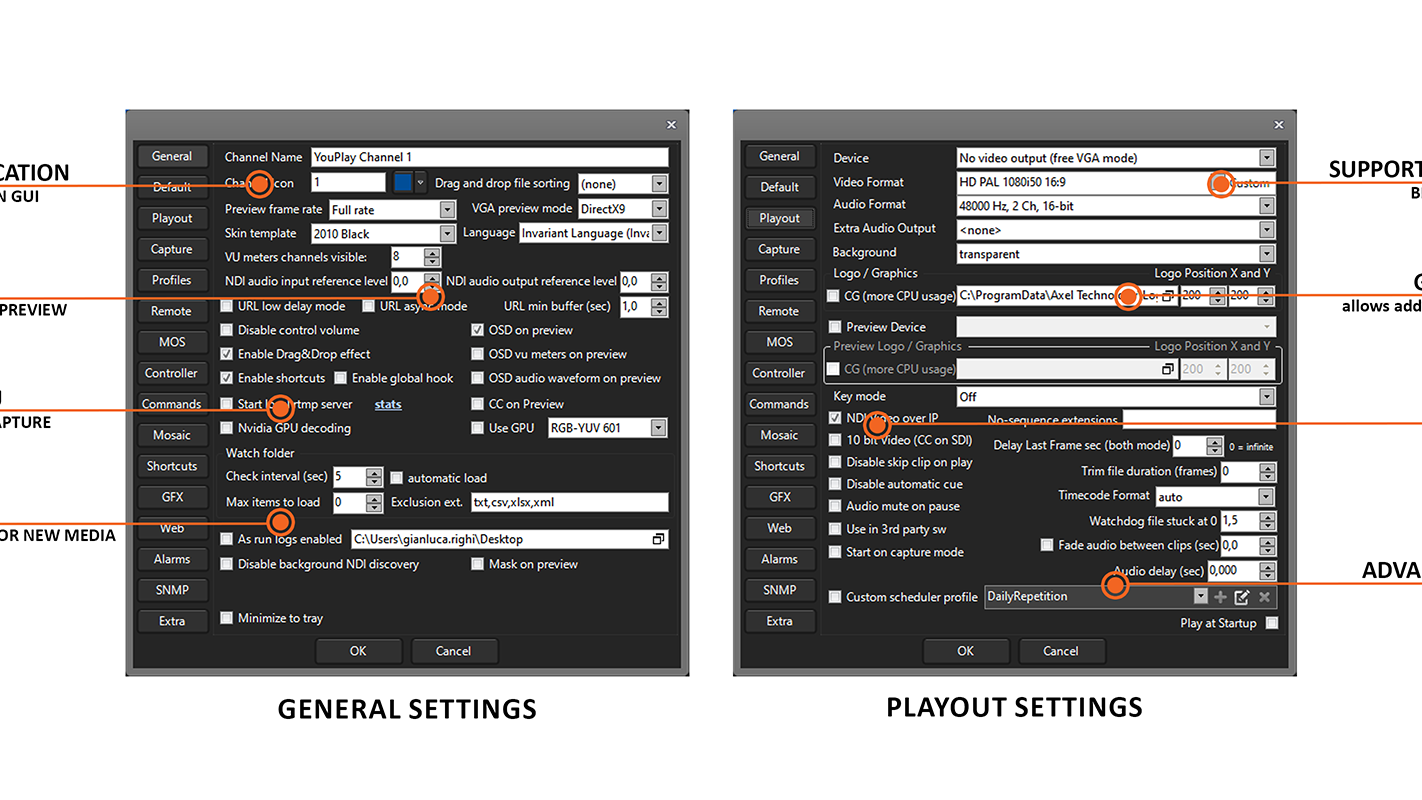

    YouPlay Playout mode

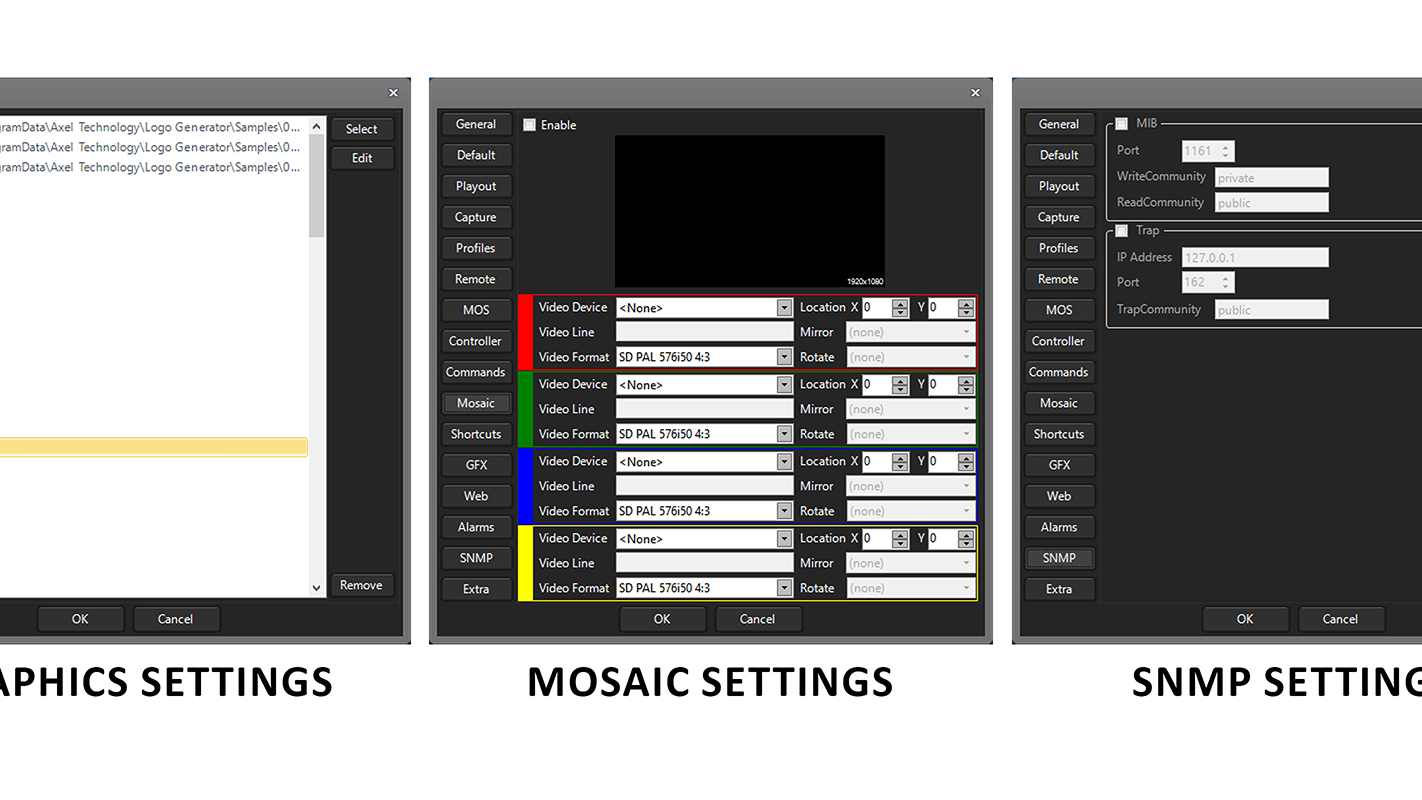

    Specifications

    • Supported Video Cards: BMD DeckLink and Intensity, AJA Corvid, Bluefish
    • Resolutions: SD, HD, 2K, 4K (depending on AV card)
    • Simultaneous NDI output
    • Up to 16 Audio channels
    • 10 Bit video output for CC over SDI and ancillary data
    • KEY and FILL output (if supported by video card)
    • Timecode rp188 and LTC
    • SDI inputs, NDI sources and URLs on the playlist
    • MOS, RS422, BMD ATEM, NEWTEK TRICASTER, BMD HYPERDECK emulation

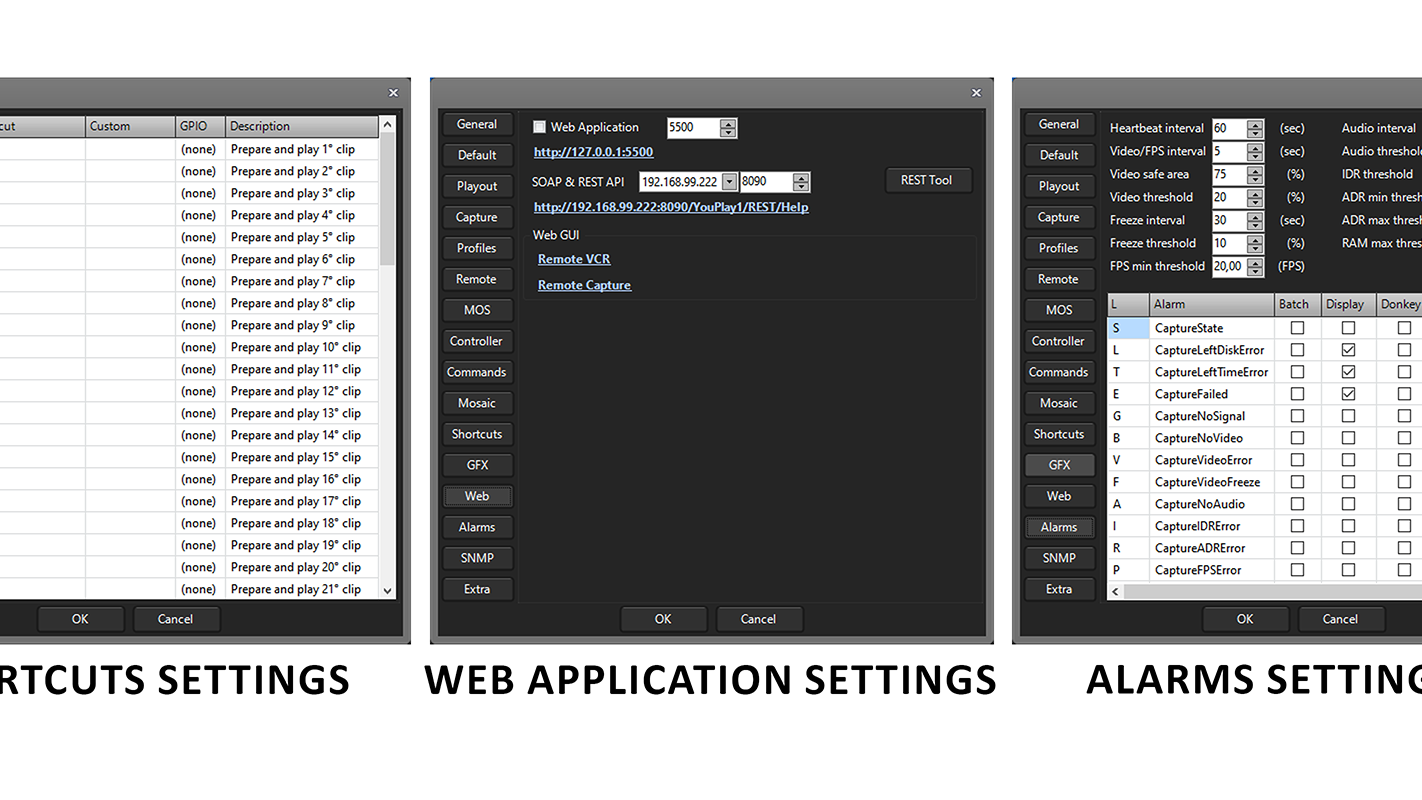

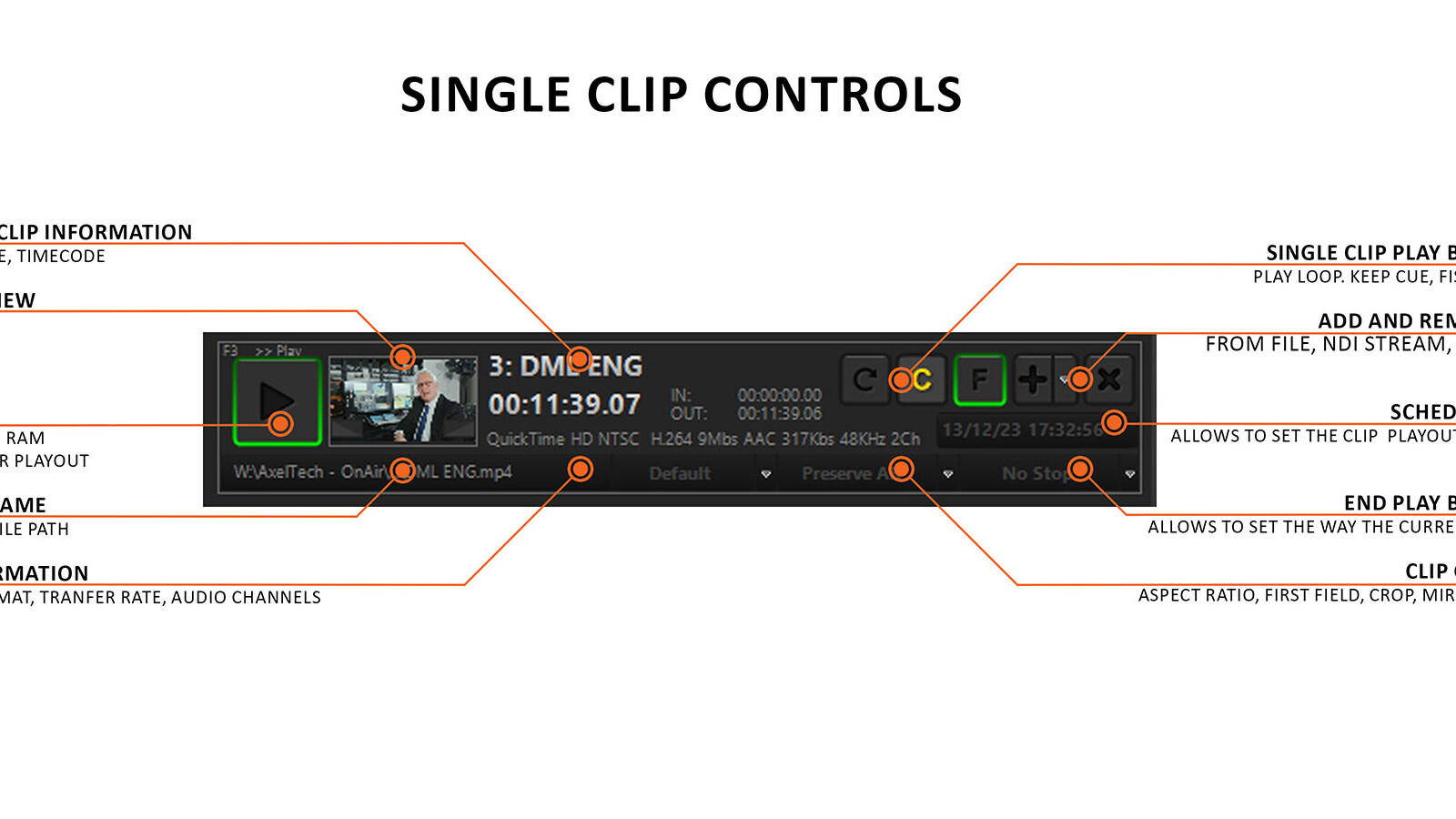

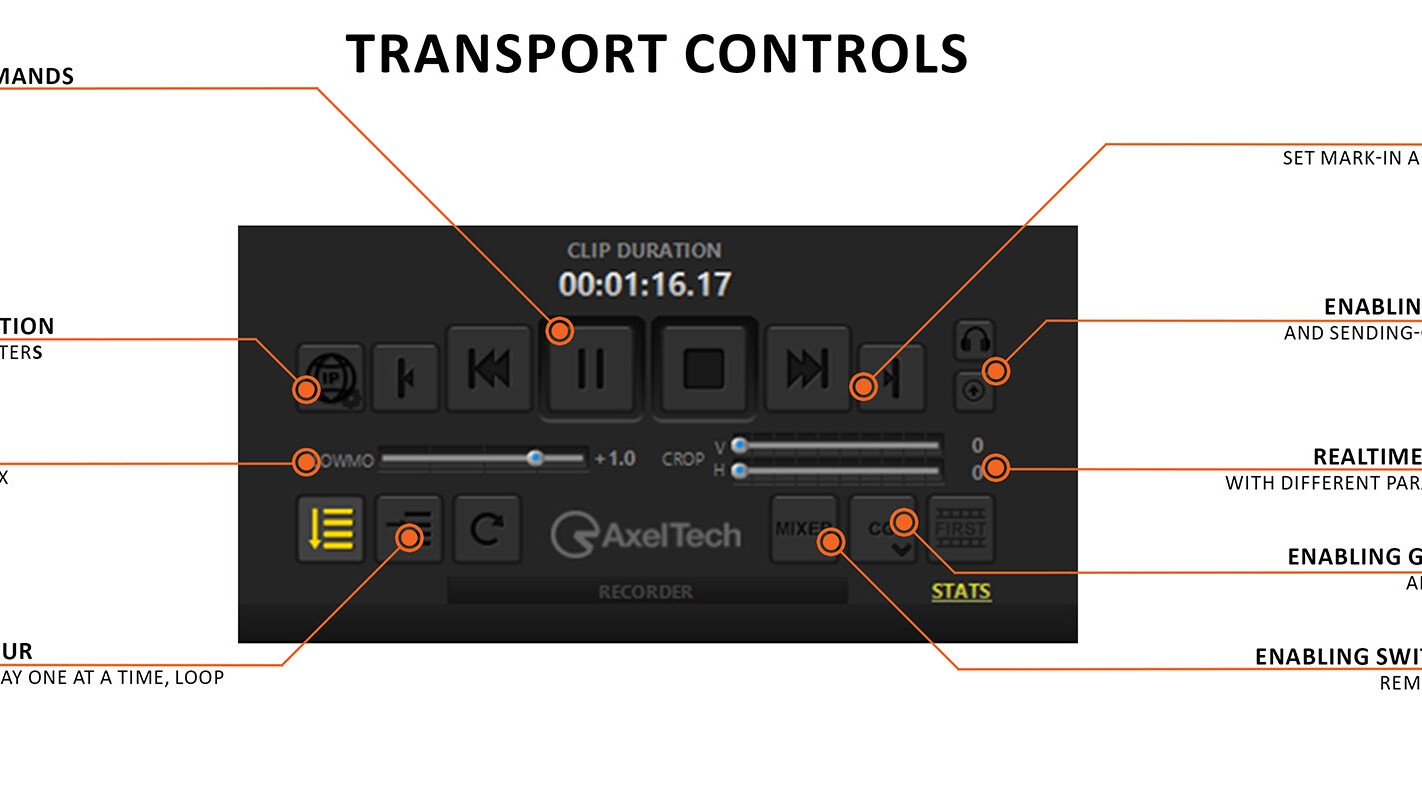

    GUI

    • Channel alias, icon and color
    • Preview framerate adjust for RDP optimization
    • Customizable shortcuts for CUE, PLAY, FIRST FRAME
    • CC on preview
    • Drag and Drop of multiple files
    • Drag and Drop between Channels
    • Single clip position duration and position display
    • Total playlist duration and remain display
    • First frame positioning
    • OSD vu-meters and waveform
    • Customizable number of vu-meters
    • Realtime video preview
    • Customizable skins
    • Customizable drag and drop file sorting
    • Simple player or graphical/grid playlist GUI
    • Independent and sizable GUI for each channel
    • 4 channel GUI scaled for 1920x1080 screen

    Features

    • Virtually any video and file format compatibility
    • DV, HDV, DVCPRO, MJPEG, MPEG-2, TS, MPG, VOB, H.264, H.265, AV1, MP4, QuickTime, PRORES, DNxHD, AVI, WMV, ASF, MXF, XDCAM, IMX, GXF, LXF, FLV, MKV, WebM, HuffYUV, VP8, VC3, JPEG2000, DPX, in any resolution or framerate with automatic adaption
    • NVidia GPU decoding for H264 and H265
    • Automatic upscale, downscale, framerate adaptation and aspect ratio correction
    • CG overlay
    • Log files
    • As run log files
    • MarkIn and MarkOut management
    • Frame accurate loops
    • Slow motion also with RS422 and VDCP controllers
    • REC while PLAY (for specific formats) with endless MarkOut
    • Realtime Vertical and Horizontal Crop
    • Realtime field swap: top bottom progressive
    • Realtime aspect ratio correction mode: Letterbox, no letterbox, stretch
    • Realtime Mirror and rotate
    • Automatic load of last playlist at start-up
    • Advanced CG with clocks, tickers, rolls, crawls, bitmap animations, any video file format
    • All CG graphics as secondary events
    • GPI in/out with MOXA and JLCOOPER for play and stop commands
    • Ableton Launchpad hotkeys

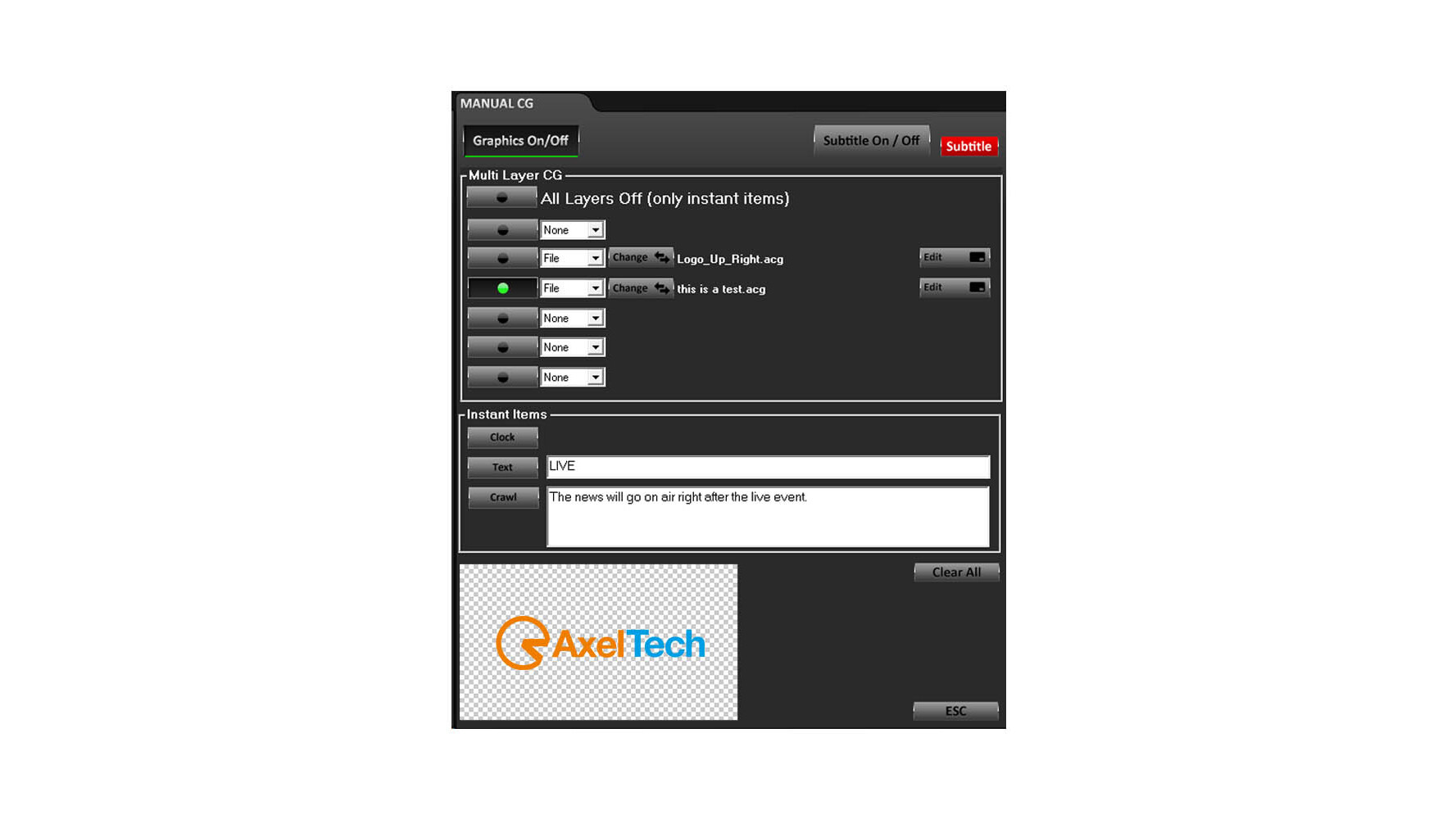

      Free CG composing app for template creation
    • SDI preview output with OSD (timecode)

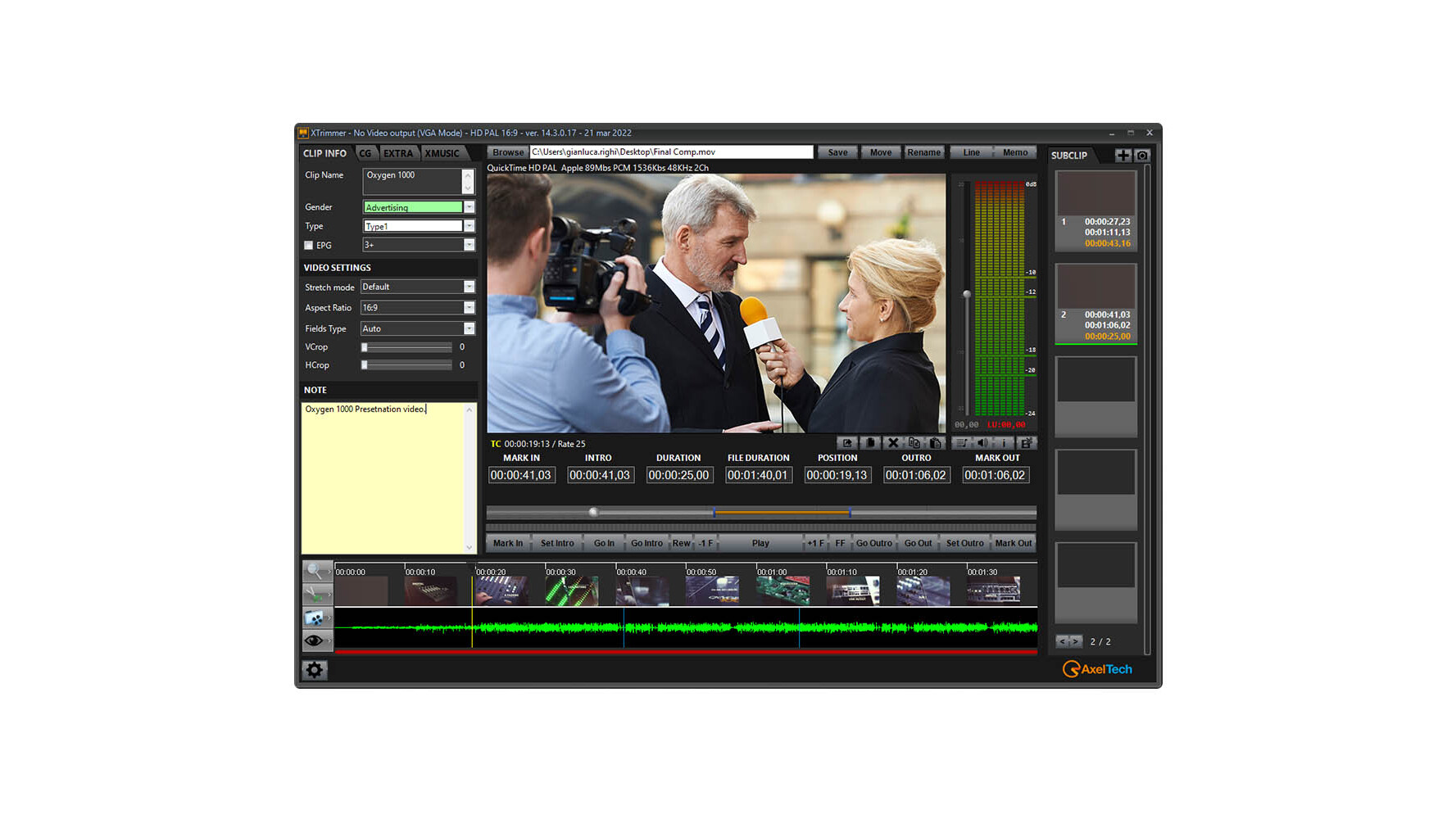

    • Free XTrimmer Quality control app with SDI/NDI output, metadata insertion and loudness control
    • Watchfolder with GUI notification and 1 button load
    • Default behaviour for duration, stop mode, aspect ratio, fields swap and stretch mode
    • Automatic use of external audio files with same filename
    • Multiple channel control from main channel for play, stop, pause, rec and stoprec

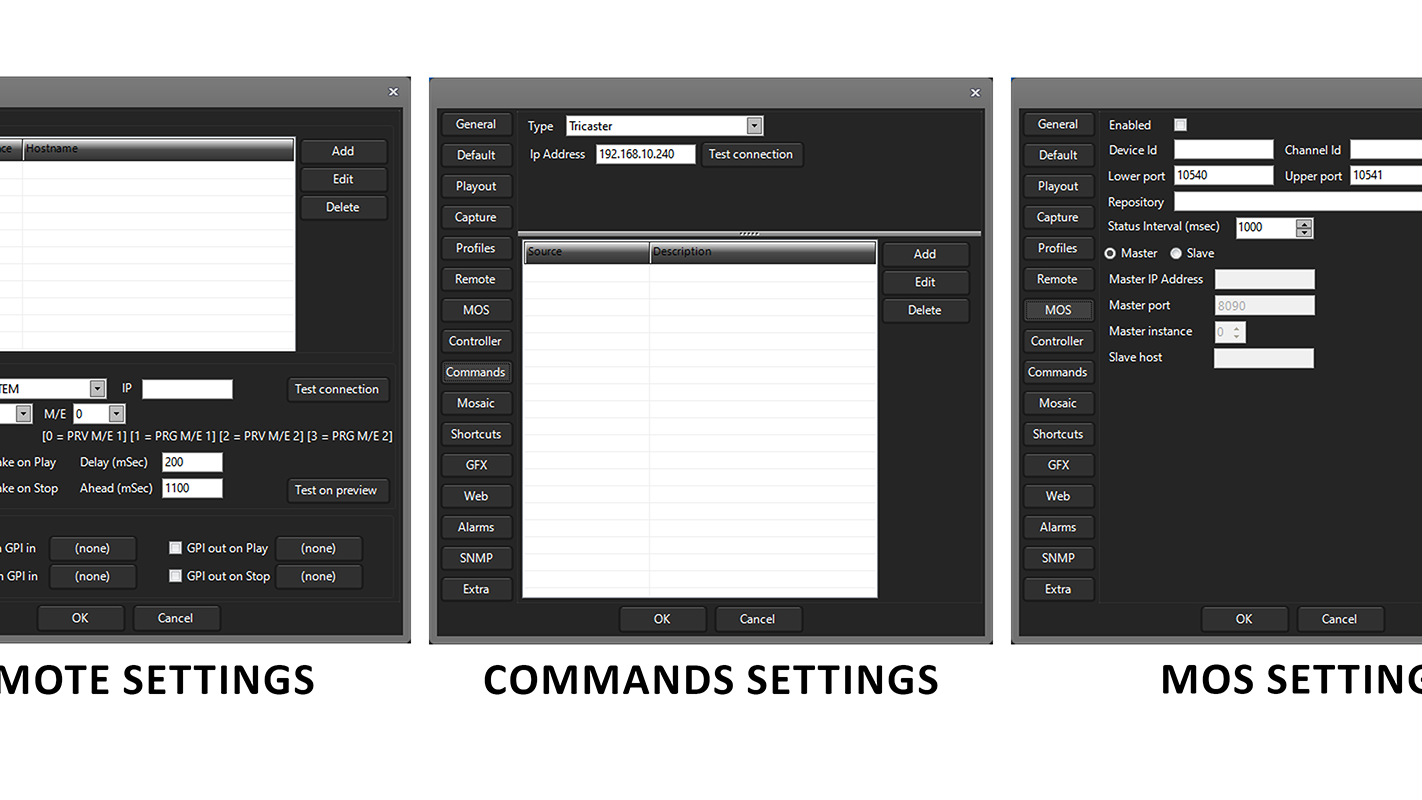

    • Remote control of BMD ATEM and NEWTEK TRICASTER
    • MOS protocol for multiple channel gateway
    • Protocols supported : SONY RS422,VCDP RS422, VDCP TCP/IP, BMD HYPERDECK
    • Integration for 3rd party RS232 RS422 routing switchers
    • RESTAPI commands
    • SNMP MIB, TRAPS and Alerts
    • XMAM integration with drag and drop from web browser
    • Audio preview on windows audio
    • Audio master volume and single clip volume
    • Start time code can be modified for each clip
    • Simple scheduling tool for automatic playout

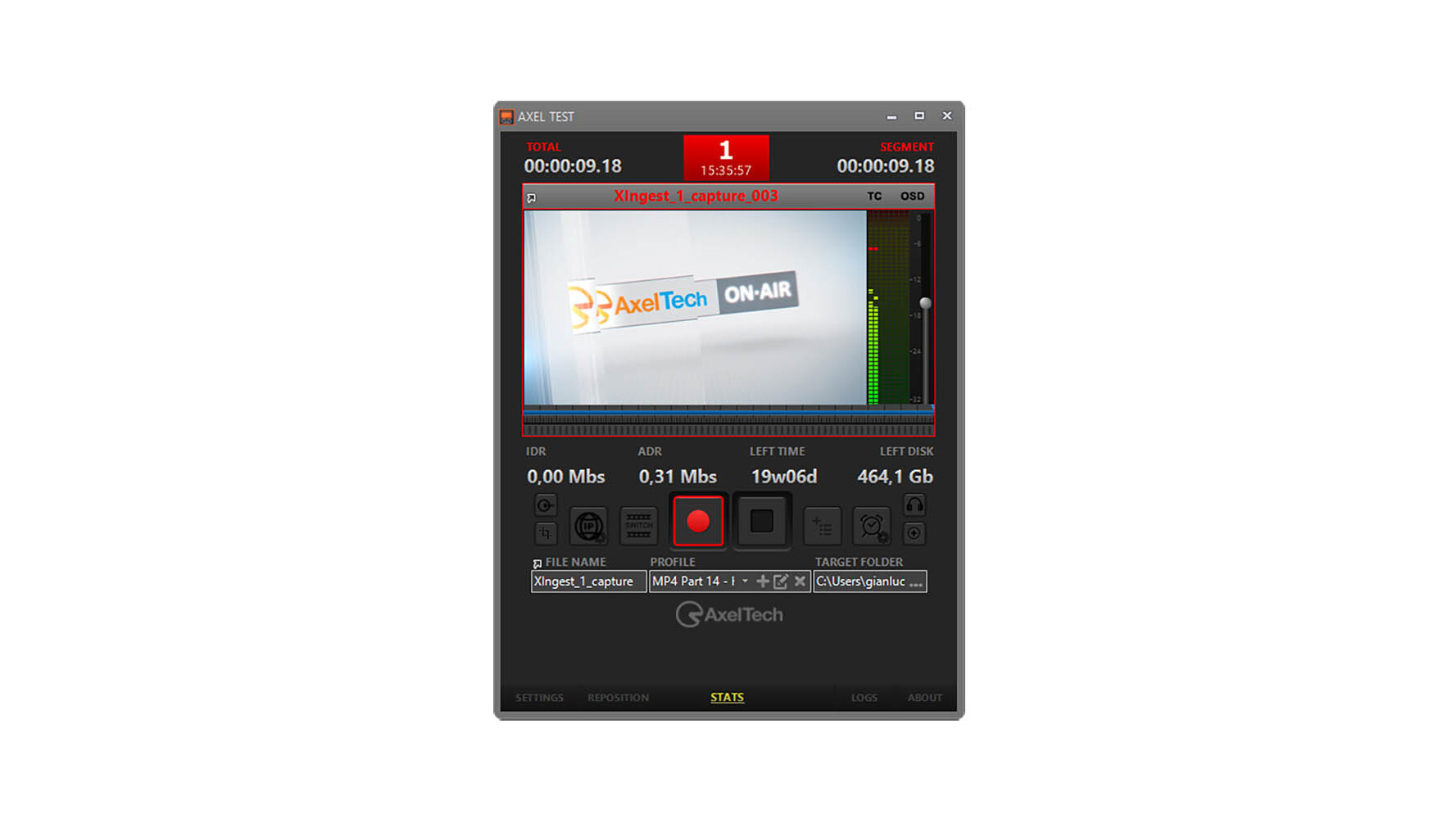

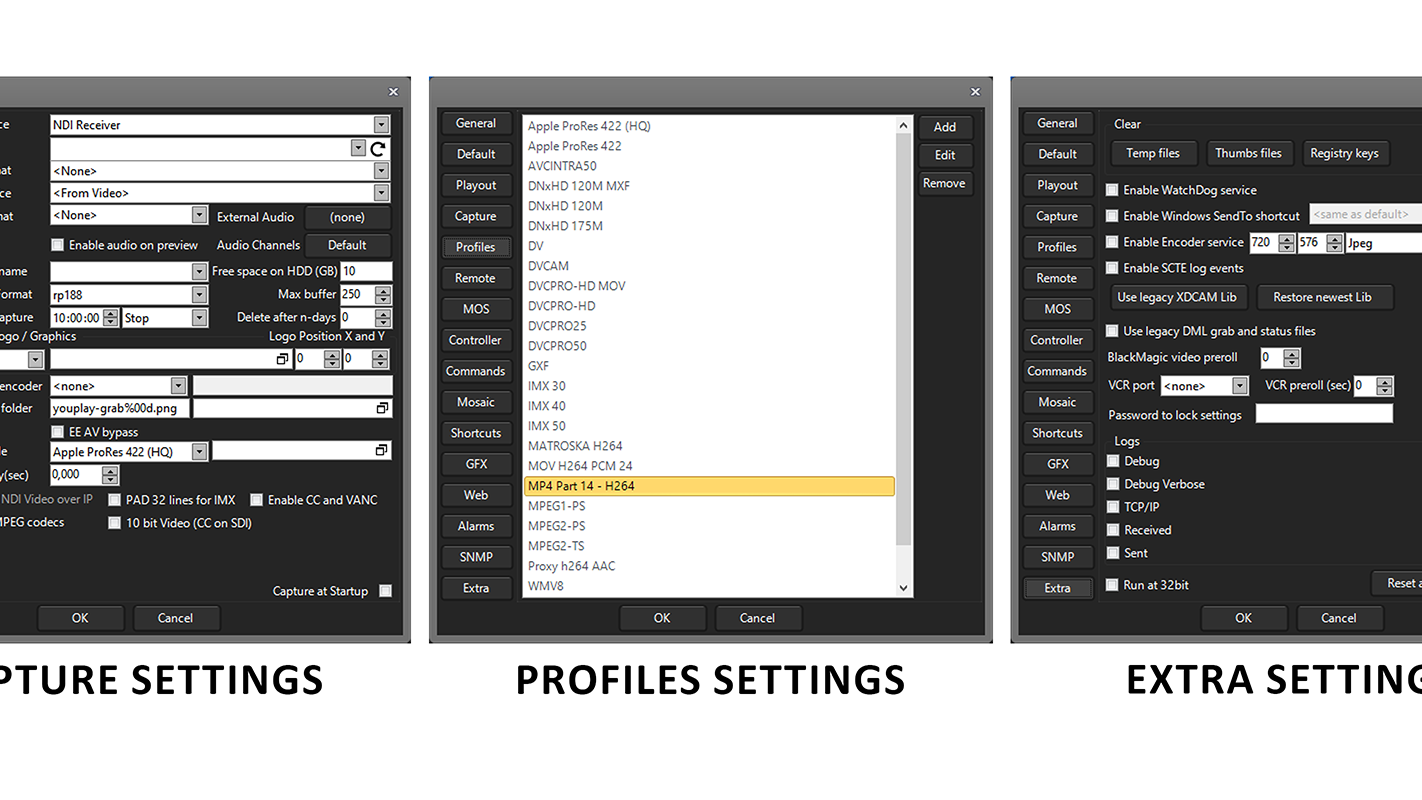

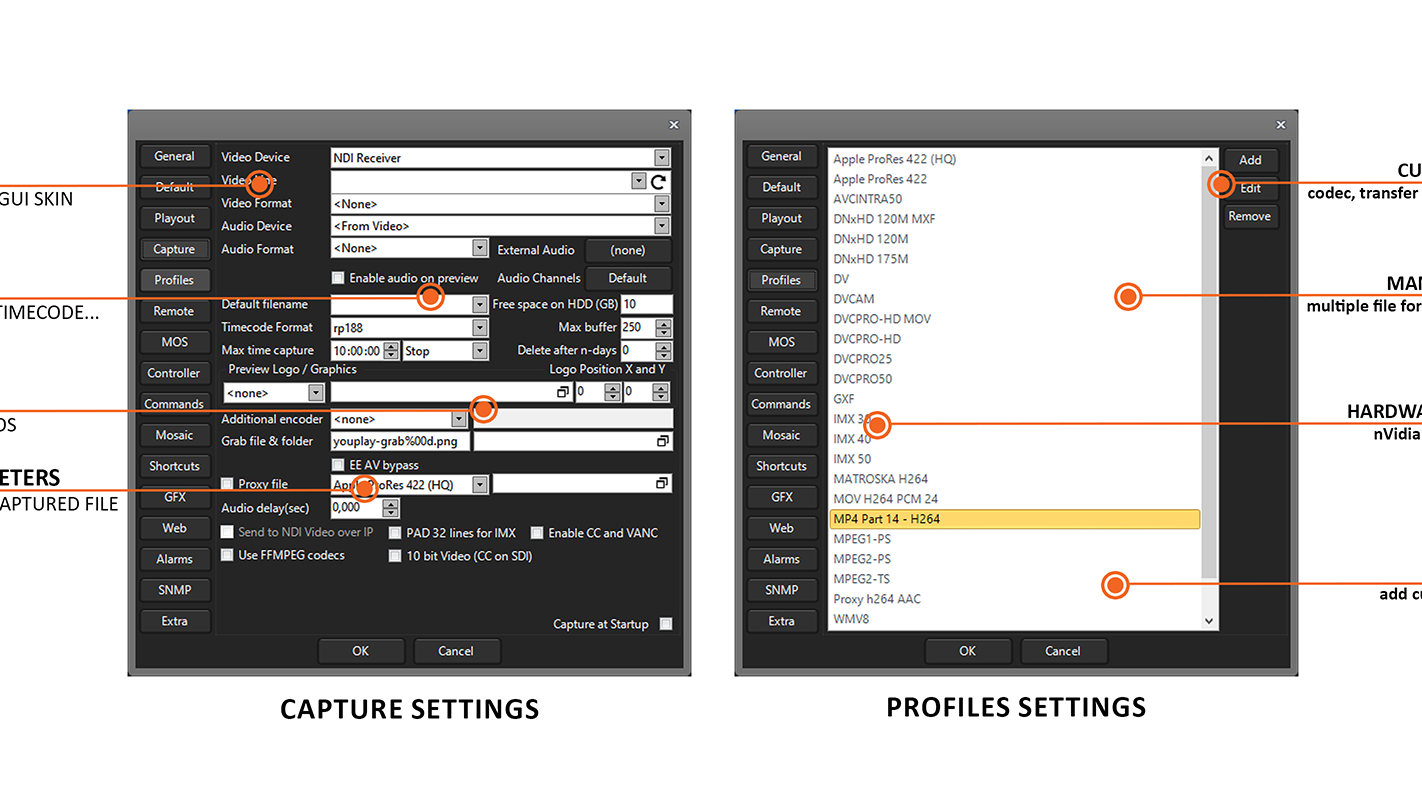

    YouPlay Ingest mode

    Specifications

    GUI

    • OSD vu-meters and waveform
    • Counters for total and segment
    • File code and Timecode counters
    • Taskbar miniplayer
    • User definable shortcuts
    • WEB GUI
    • Channel label
    • Sizable GUI
    • Realtime video preview
    • Average and instant data rate monitoring
    • Space and time left on disk real time calculation
    • NDI source selection on main GUI
    • OSD display for counters
    • Custimizable 2-16 channel vu and peak meters

    Video Codecs

    • MPEG 4 part 2
    • Cisco OpenH264
    • Intel Quicksync H264
    • Nvidia NVEnc H264
    • Nvidia NVEnc H264 lossless
    • Nvidia NVEnc H265
    • MPEG 1
    • MPEG 2
    • DV
    • DVCPRO
    • MJPEG
    • FLV Sorenson
    • HuffYUV
    • WMV 8
    • Google VP8
    • Apple Prores proxy, LT, 422, HQ
    • QuickTime ANIM
    • Uncompressed 422 8-bit
    • Uncompressed 422 10-bit
    • DNxHD
    • VC3
    • OPEN JPEG2000
    • DPX

    System requirements depend on

    • Video playout and capture resolution
    • Video codec format
    • Number of simultaneous playout/capture/streaming/proxy

    Features

    • GPU accelerated capture with Nvidia GTX or better and Intel quicksync
    • SDI to NDI of live source
    • Customizable memory buffer for capture
    • Internal RTMP server for point to point connections over internet
    • Capture time limit or automatic file switch
    • Audio preview on sound card
    • Simultaneous PROXY file capture
    • Batch capture from RS422 VTRs
    • Remote control TCPIP of Blackmagic Design ATEM, Videohub and NewTek TriCaster
    • Remote control of any RS232 or RS422 routing switcher or master control
    • SOAP & REST API
    • Watchdog service
    • Log Files
    • Accurate statistics of capture process
    • Seamless file switching during capture
    • Image grab with custom file syntax
    • Capture calendar scheduler for unattended capture
    • Volume adjustment with original volume simultaneous display
    • IP streaming encoder of live input in RTMP, UDP, RTSP, IIS, HLS, WMS.

    File format wrappers

    • Mpeg Program (MPG)
    • Mpeg Transport (TS)
    • MPEG4 part 14 (MP4)
    • QuickTime (MOV)
    • DNxHD (MOV)
    • IMX MPEG4
    • MXF
    • MXF D-10 (IMX)
    • GXF
    • DV
    • FLV
    • DVD VOB
    • ASF
    • iPod Mp4
    • AVI
    • Matroska (MKV)
    • WebM
    • Image Sequence (DPX, PNG, JPG)

    Audio codecs

    • WAV (16, 24, 32, Cinema, signed, floating etc)
    • MP2
    • MP3
    • AC3 (ATSC A/52A)
    • AAC
    • ALAC
    • ADCPM
    • VORBIS

    Suggested system requirements

    • I7 8700K CPU
    • Windows 10
    • 16GB RAM
    • NVidia GTX

    Minimum system requirements

    • I3 CPU
    • Windows 7
    • 4GB RAM

    Youplay family

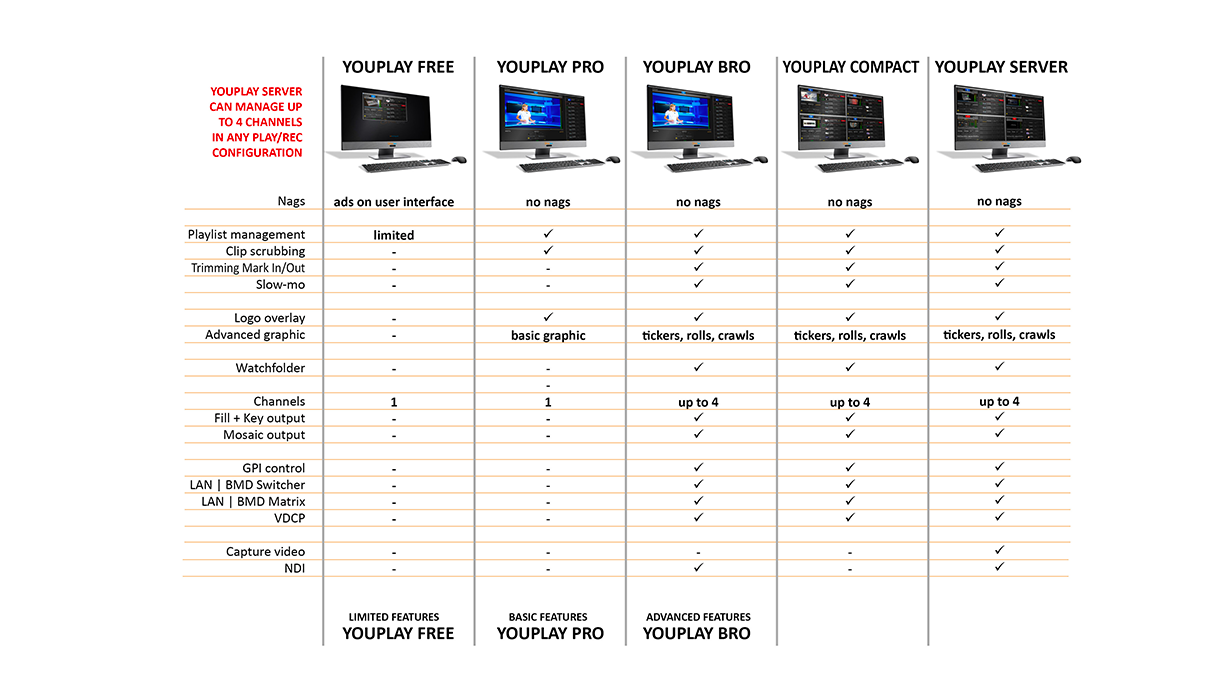

    comparison table

    Studio Playout & Ingest Youplay AxelTech

    YouPlay Free

    FREE. Try it, use it.

    YouPlay Free is fully functional with same features as YOUPLAY PRO version with advertisement on VGA and countdown on screen for 30 seconds. After countdown, video output is clean and usable for real production. Channel 2, 3, and 4 are demo modes for YOUPLAY BROADCAST version without any NDI/SDI output. Ingest mode, available on YOUPLAY SERVER, in demo mode allows 1 minute of capture. Enjoy the free version of the most powerful TV production player on the planet!

    Ask for aquote now








      Subscribe to our newsletter





        Fields of Interest

        RadioTVCorporate A/V

        Giving your consent, you agree to the processing of your data in order to access the service of sending information, advertising material and sales communications by email; purposes and modes of data processing are mentioned in the privacy notice, available here: Privacy Notice

        I give my consentI do not give my consent

        Giving your consent, you agree to the processing of your data in order to access the service of: data profiling for analysis and market surveys (marketing); purposes and modes of data processing are mentioned in the privacy notice, available here: Privacy Notice


        I give my consentI do not give my consent

        Ask for aquote now








          Subscribe to our newsletter





            Fields of Interest

            RadioTVCorporate A/V

            Giving your consent, you agree to the processing of your data in order to access the service of sending information, advertising material and sales communications by email; purposes and modes of data processing are mentioned in the privacy notice, available here: Privacy Notice

            I give my consentI do not give my consent

            Giving your consent, you agree to the processing of your data in order to access the service of: data profiling for analysis and market surveys (marketing); purposes and modes of data processing are mentioned in the privacy notice, available here: Privacy Notice


            I give my consentI do not give my consent

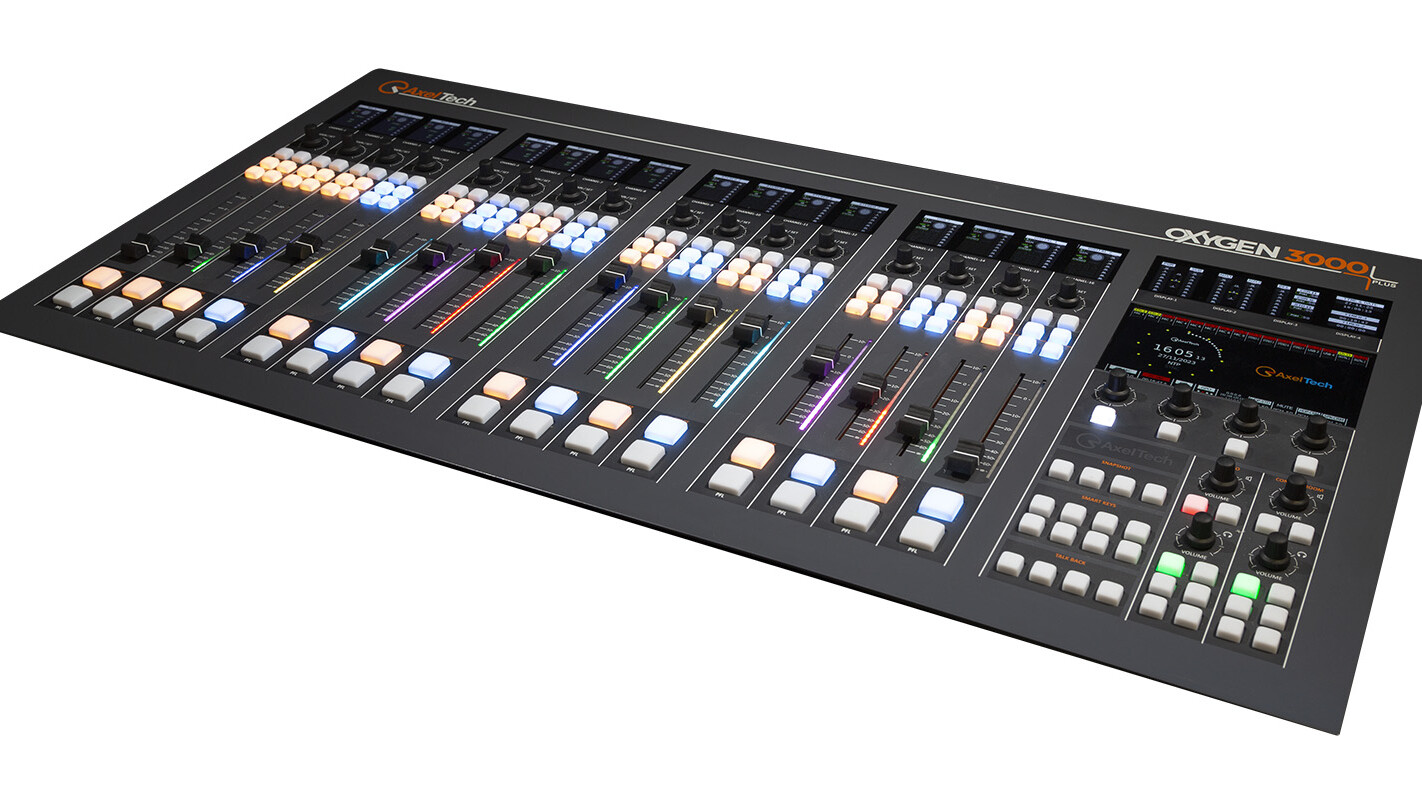

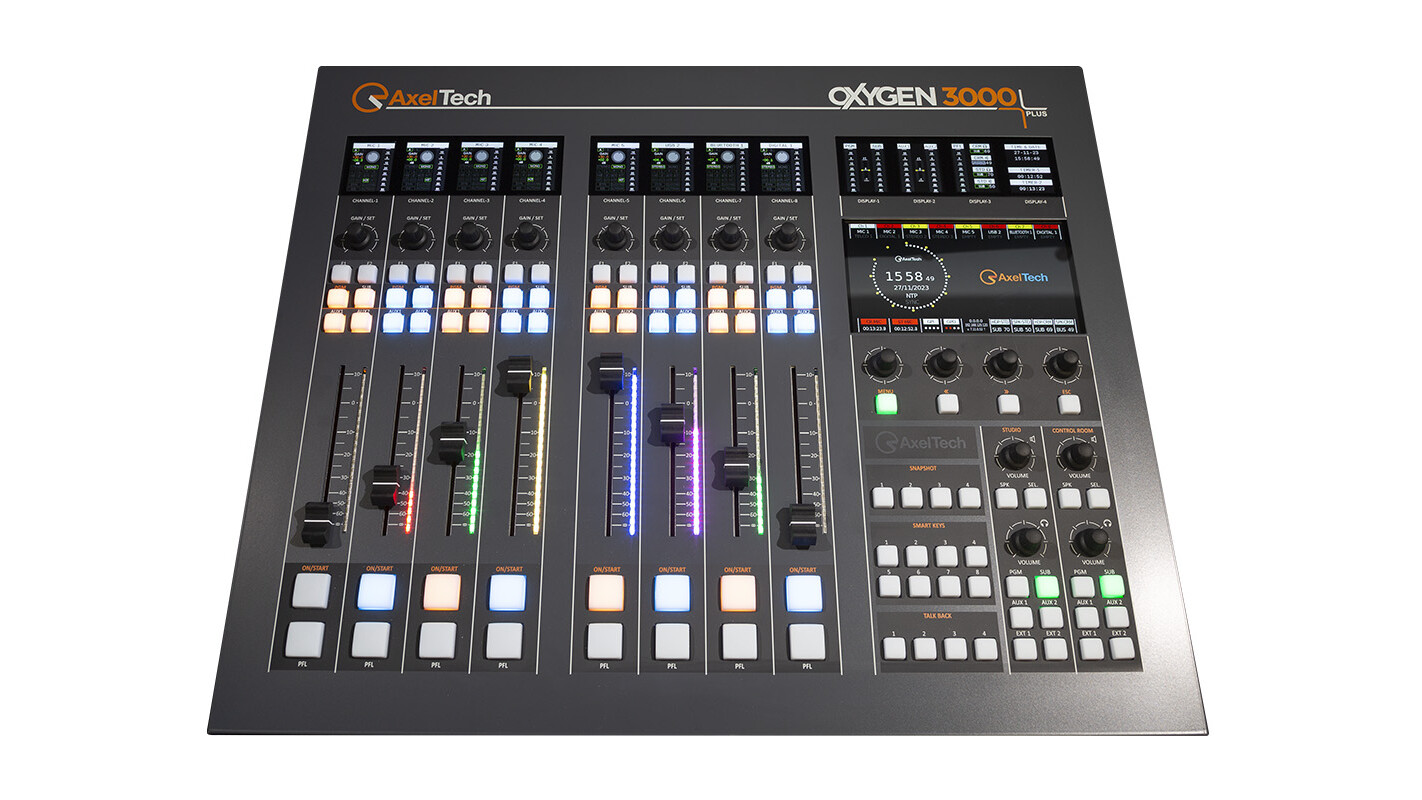

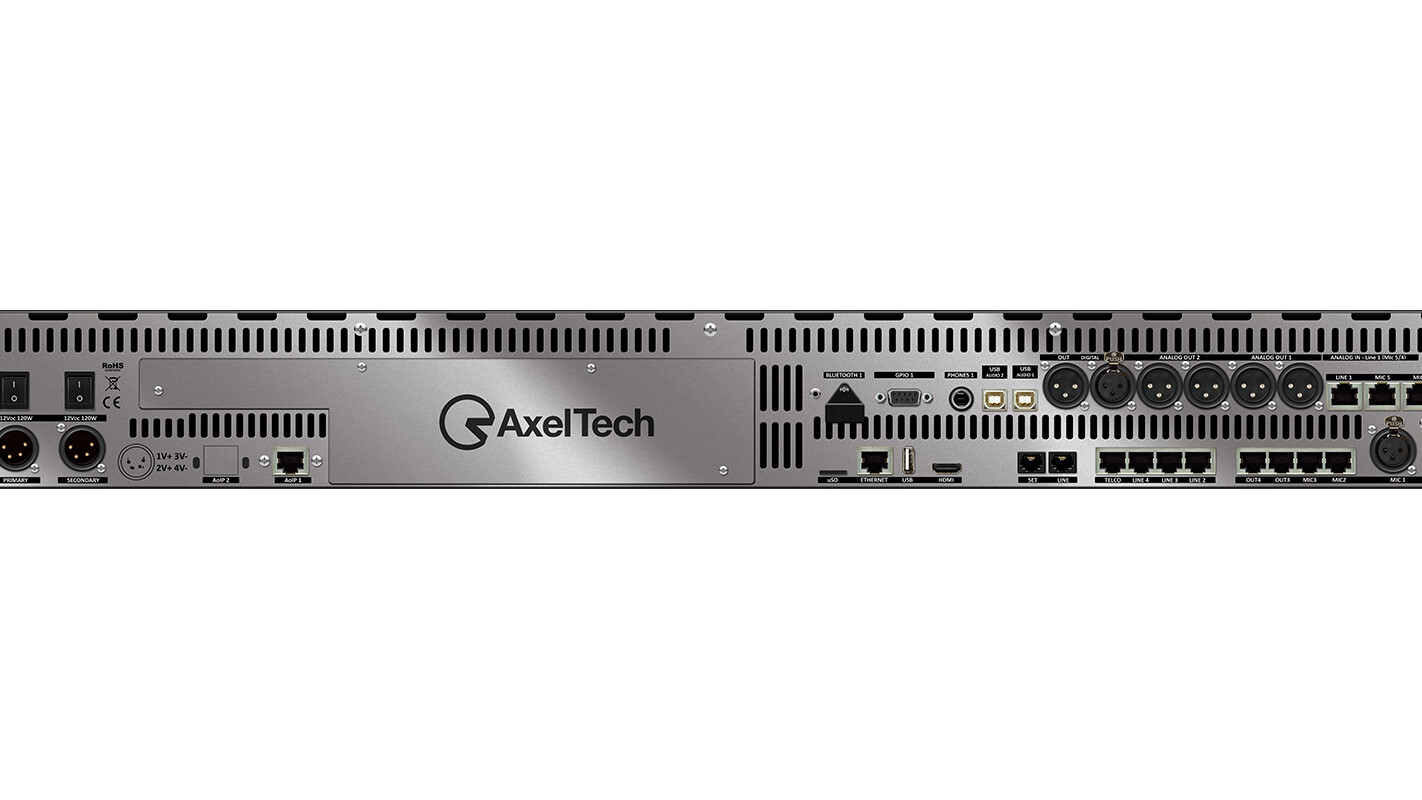

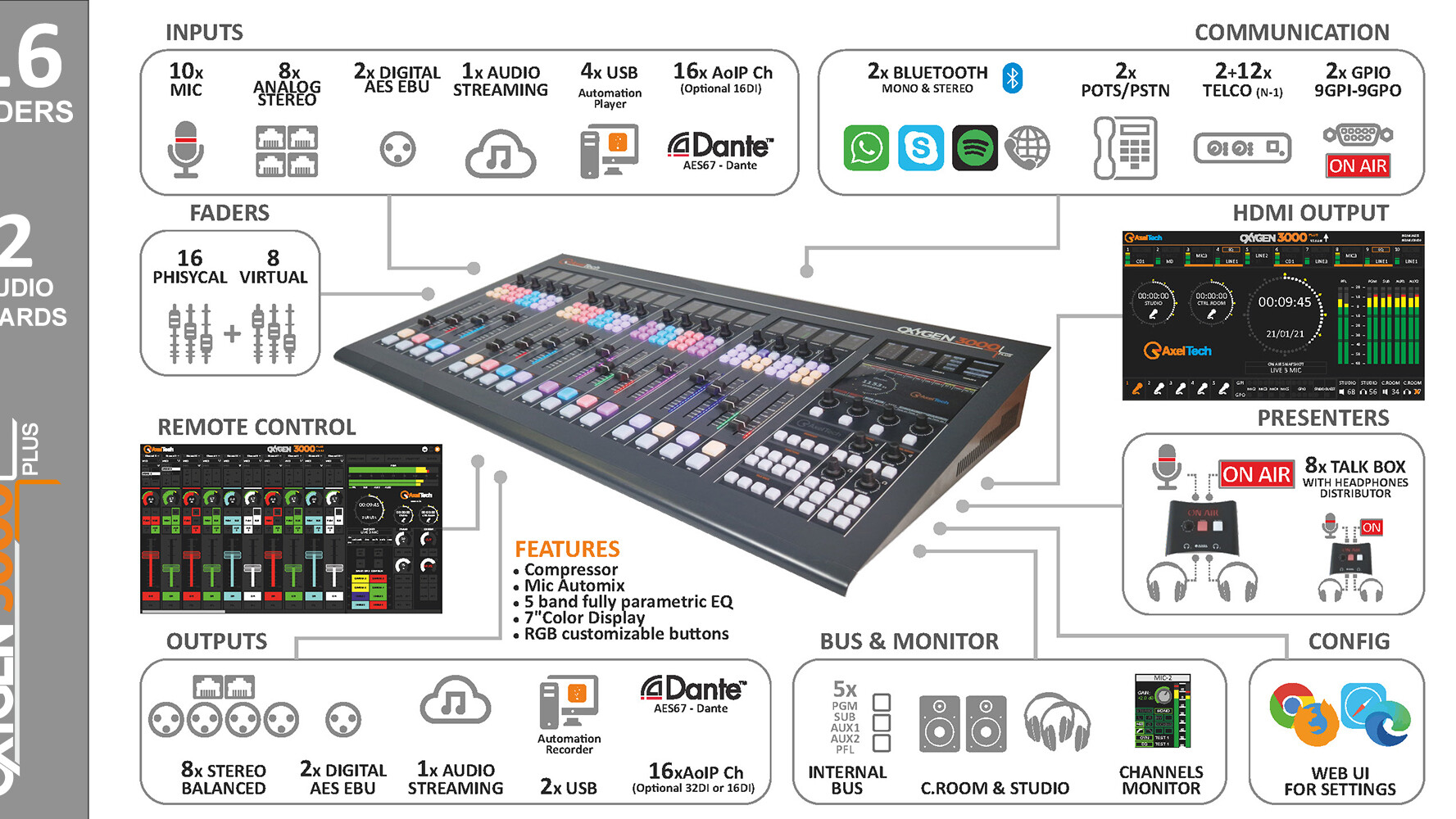

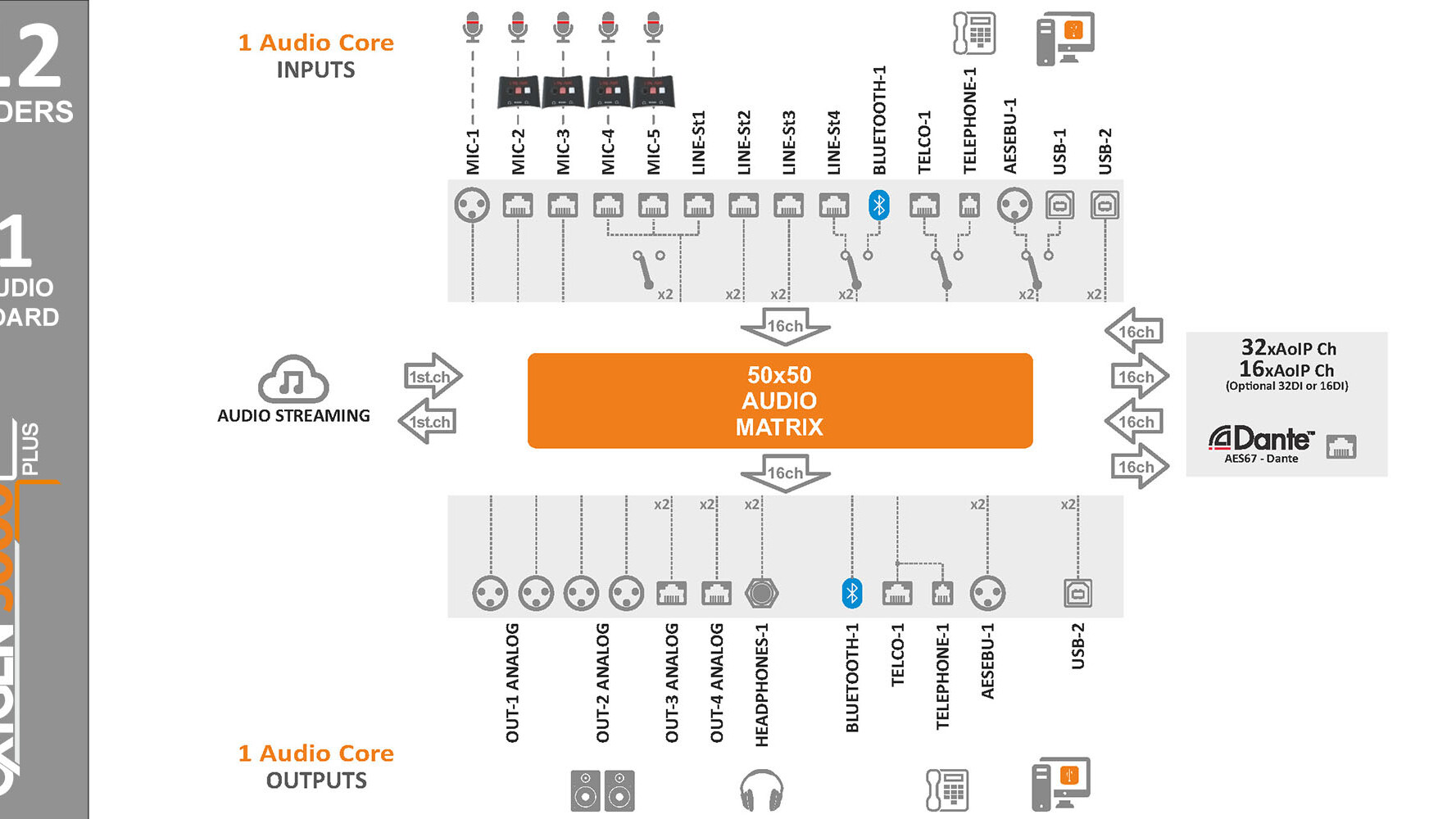

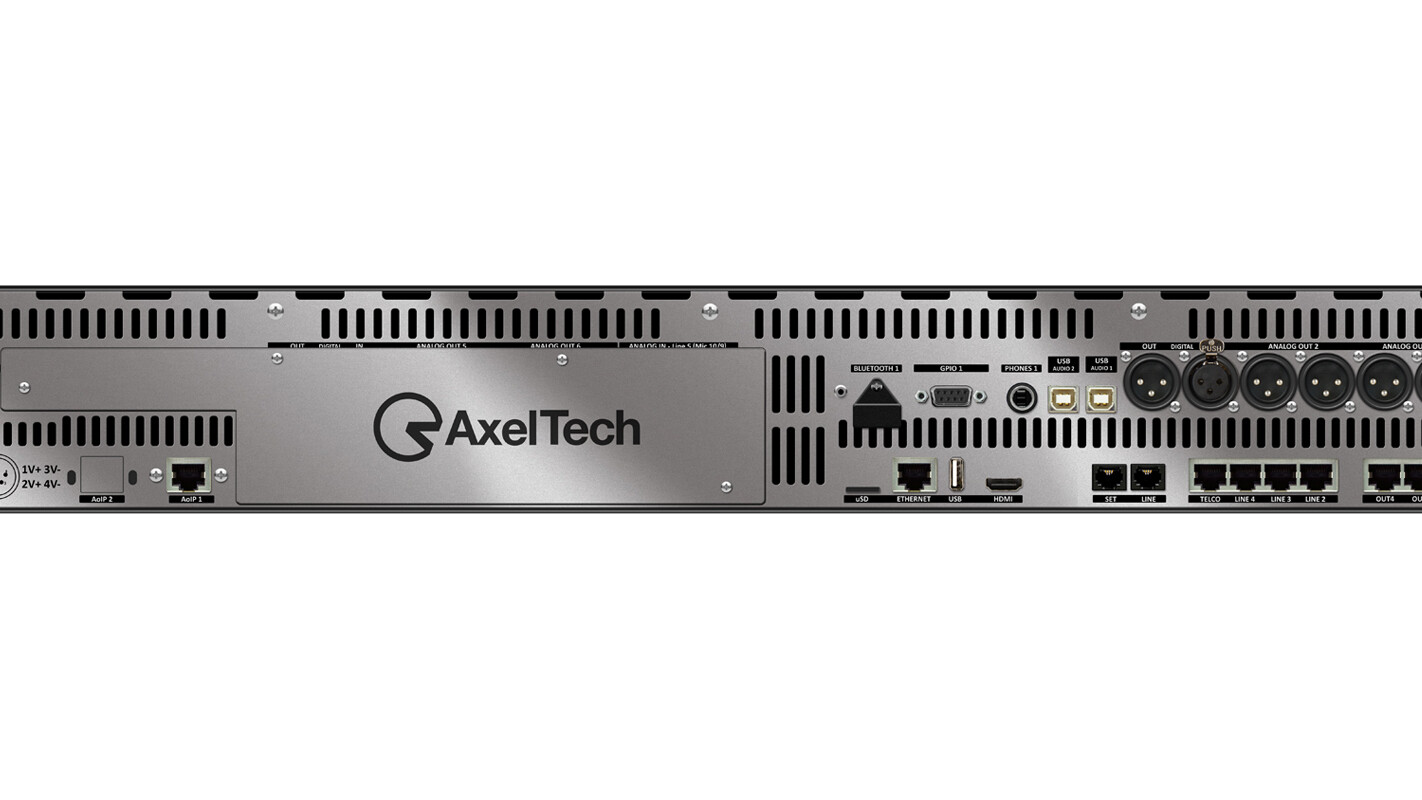

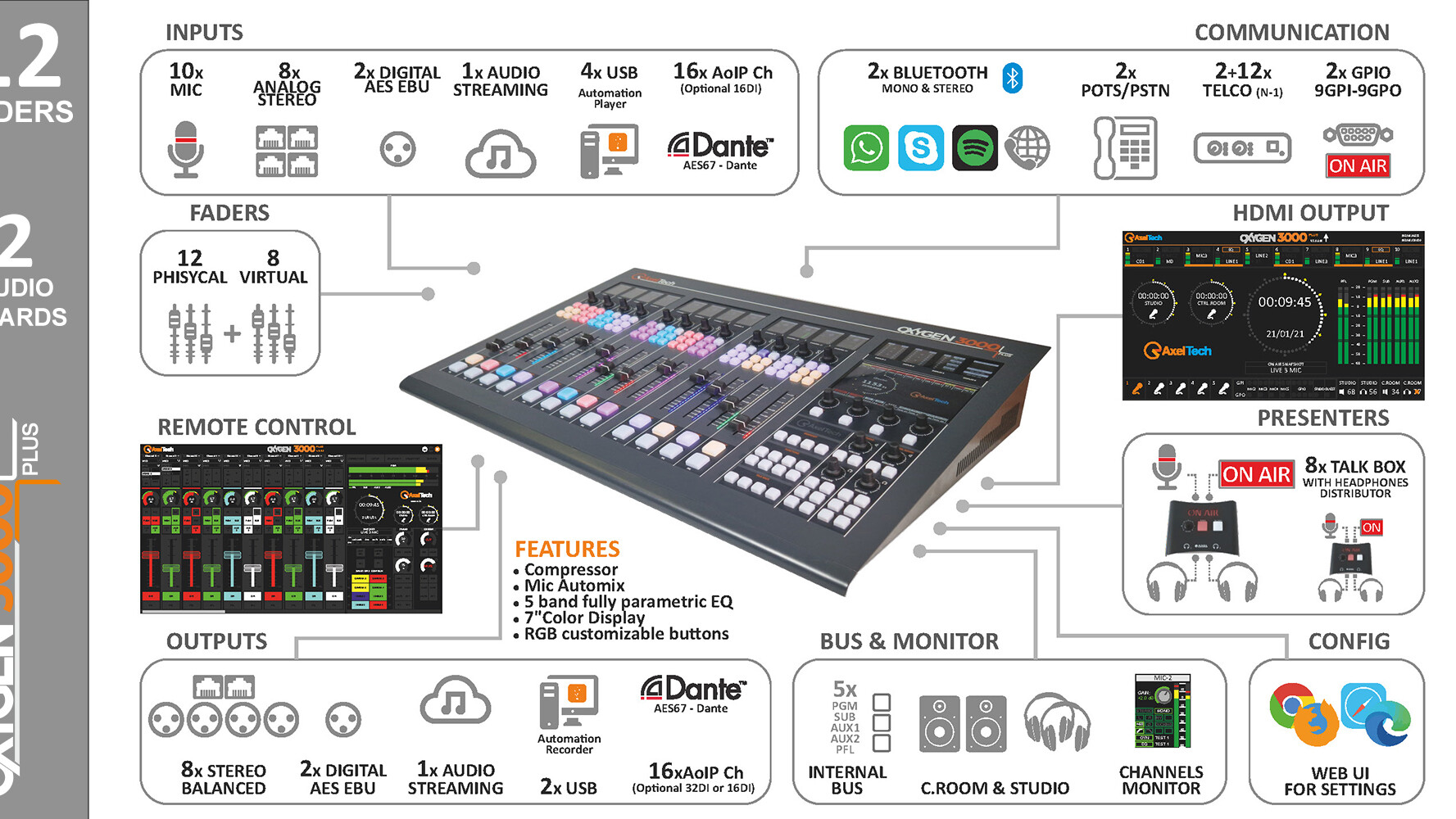

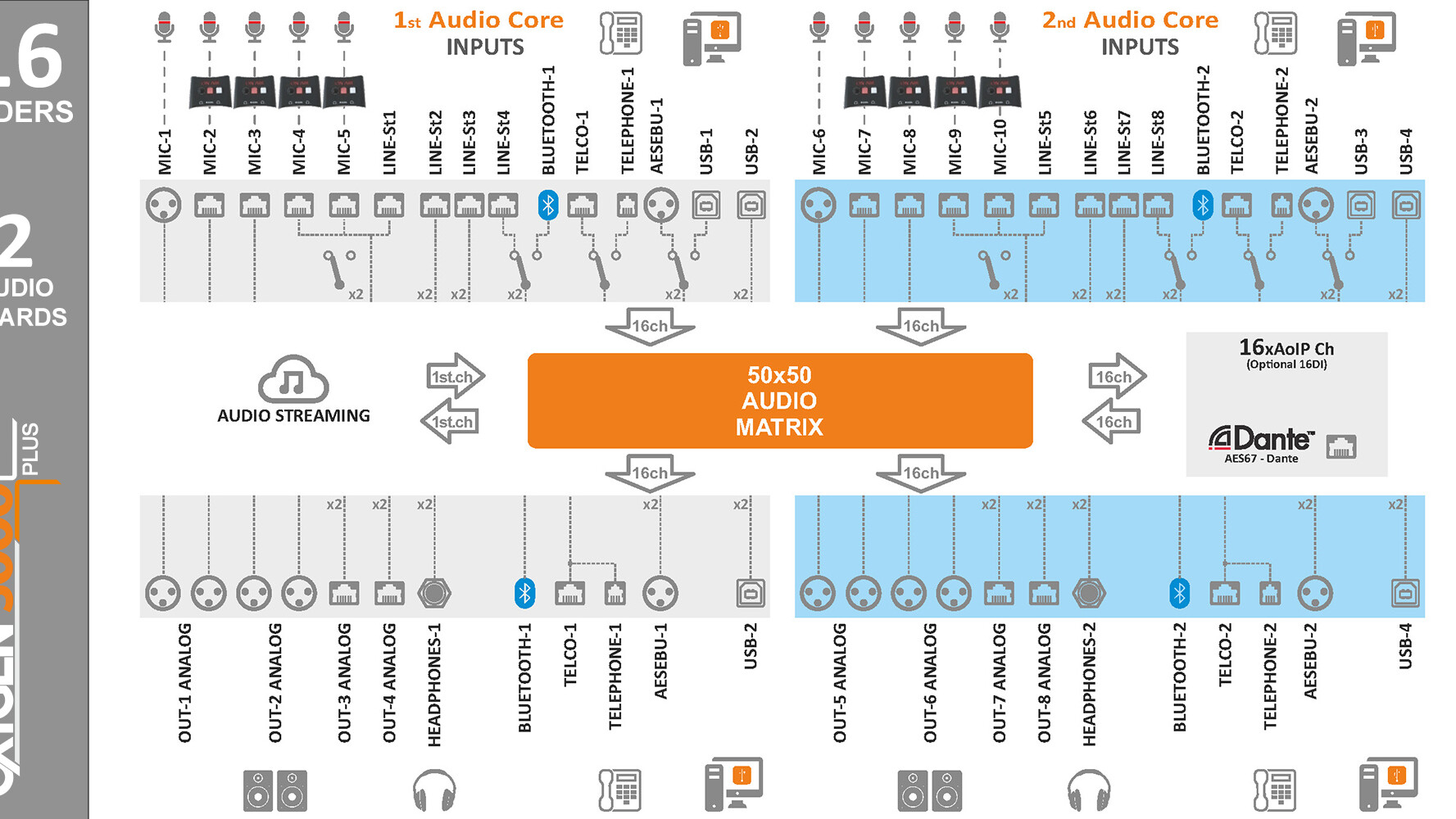

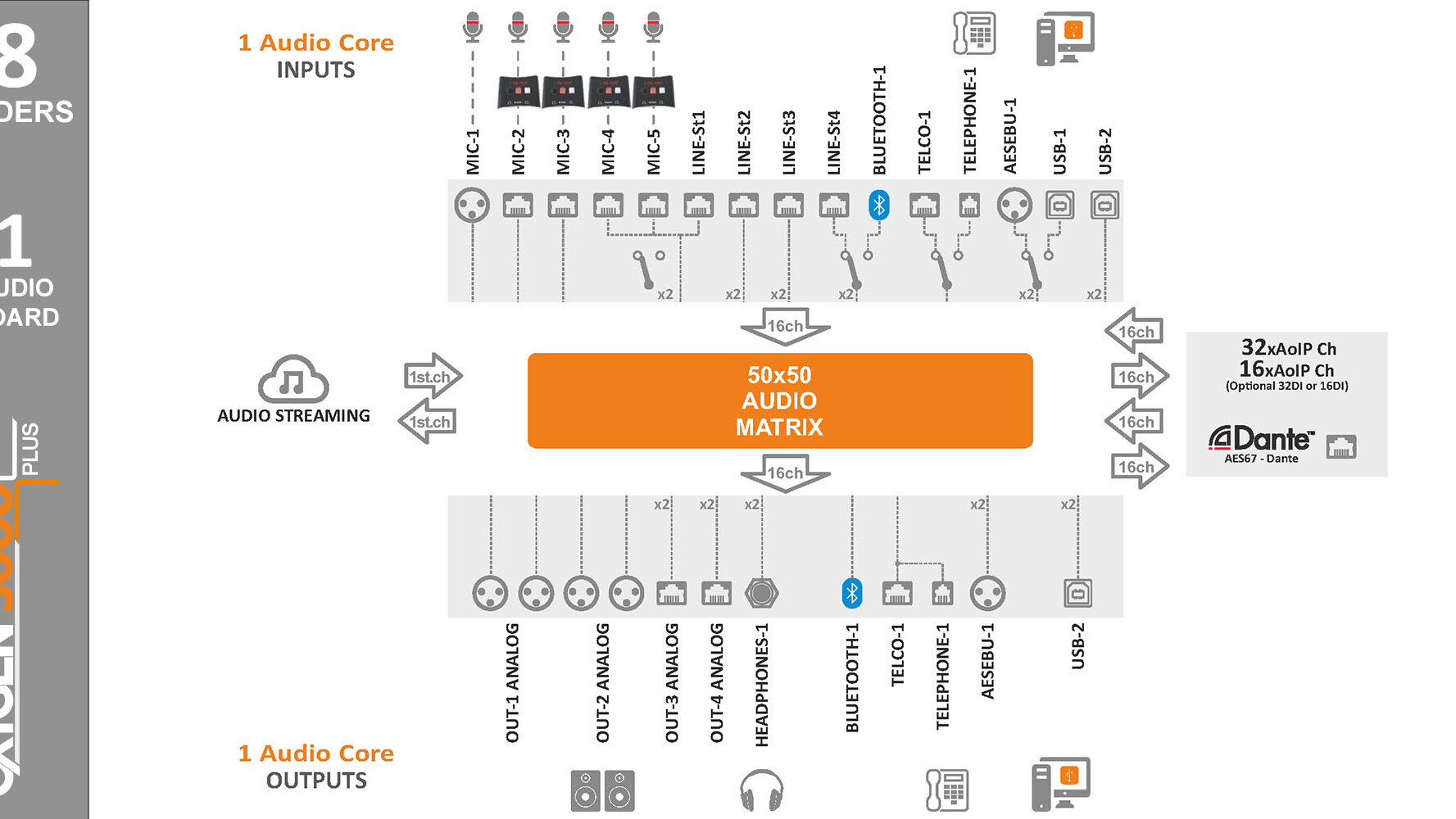

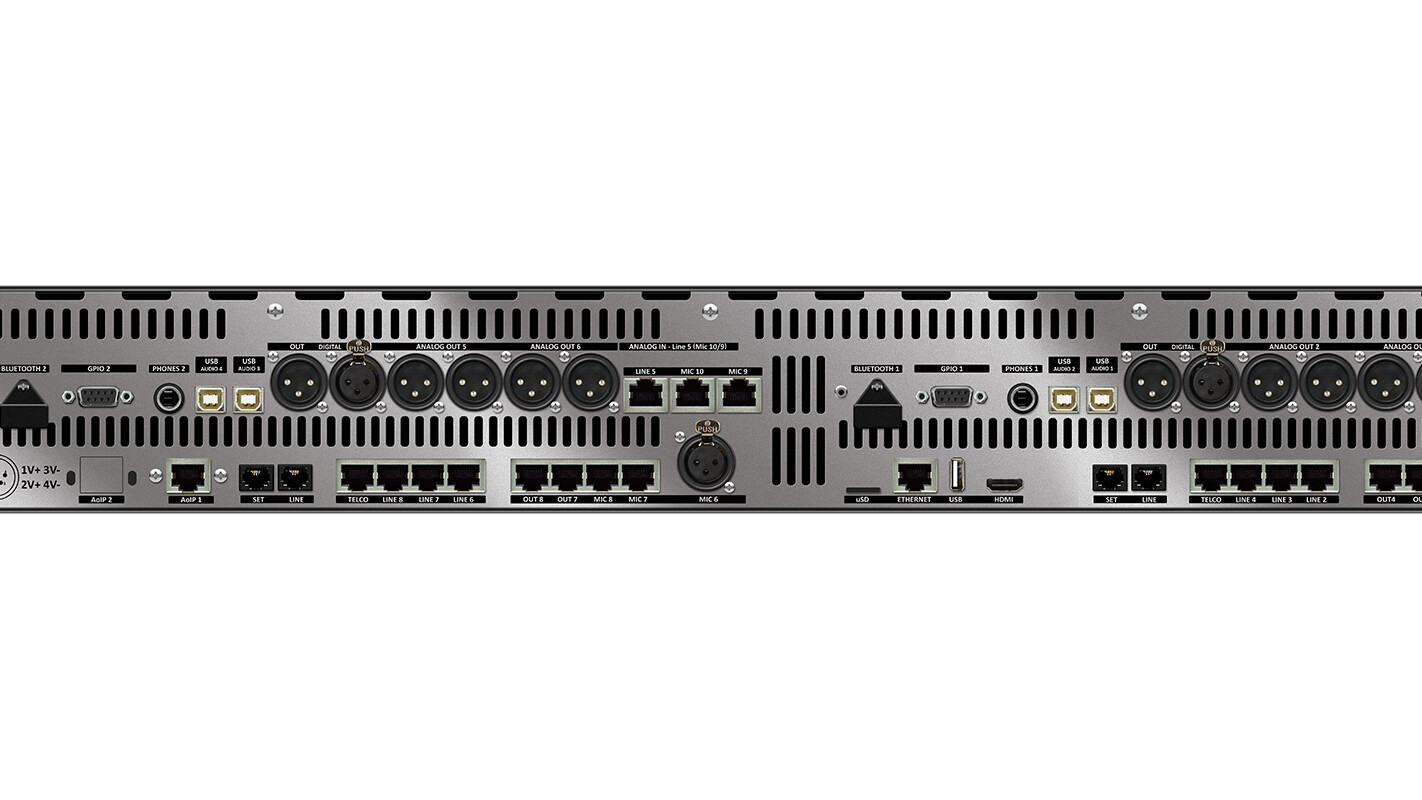

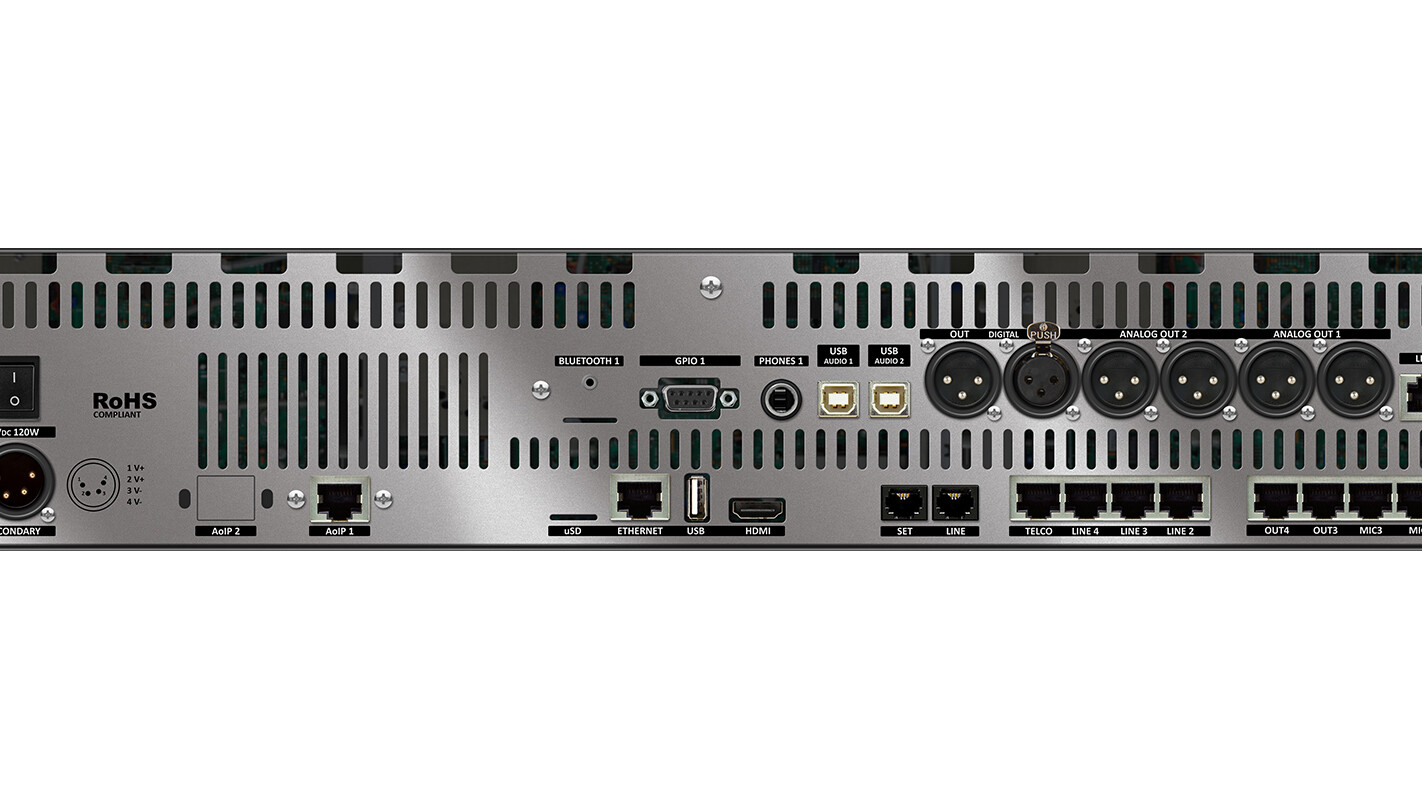

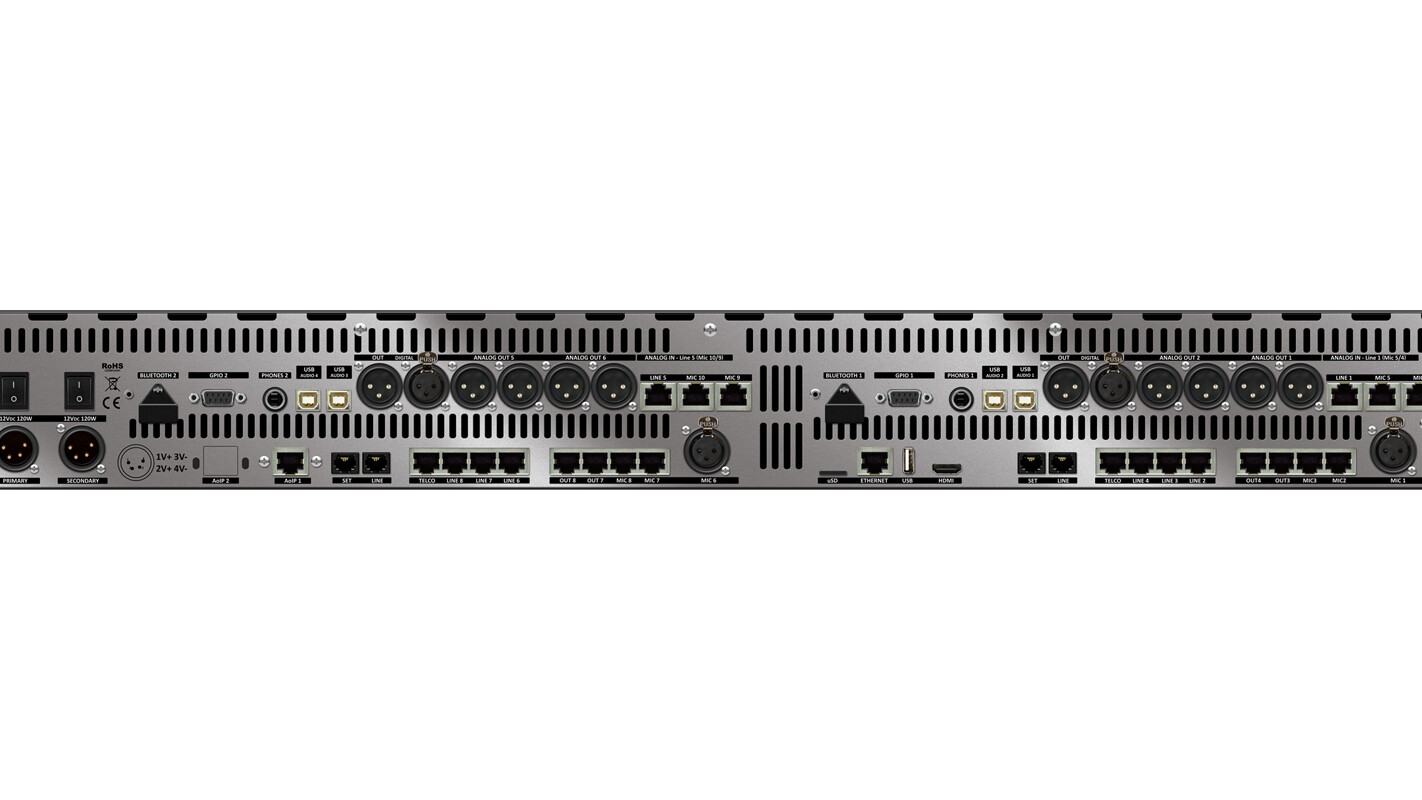

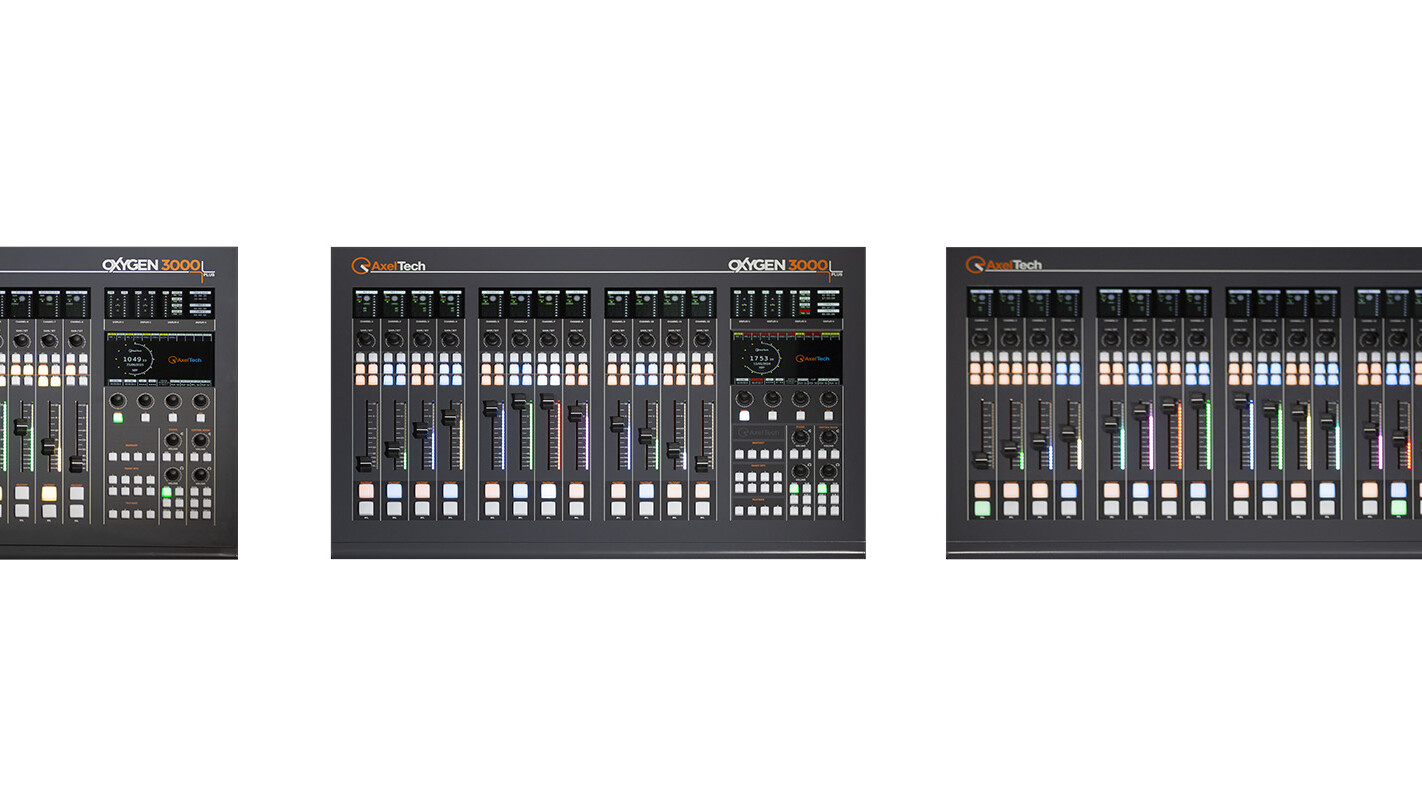

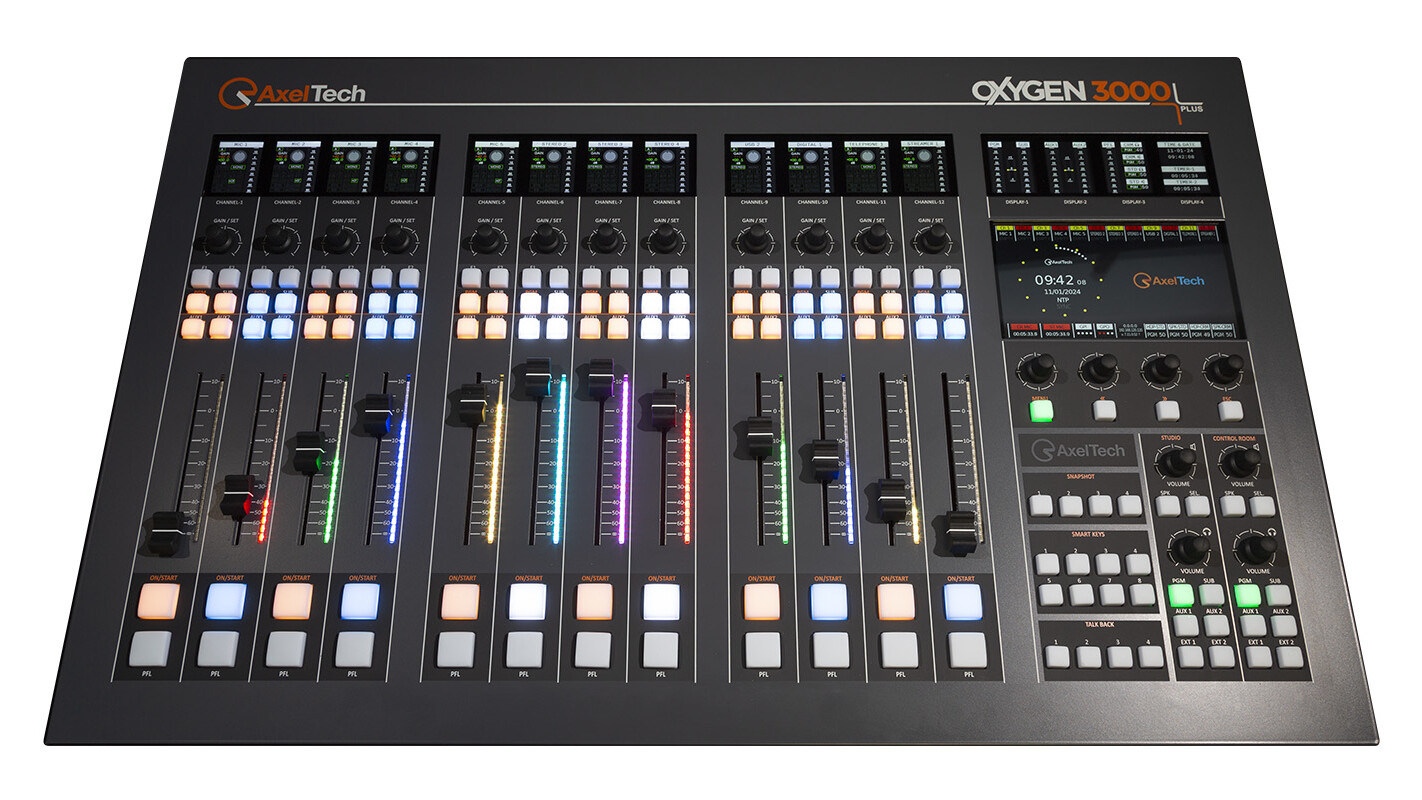

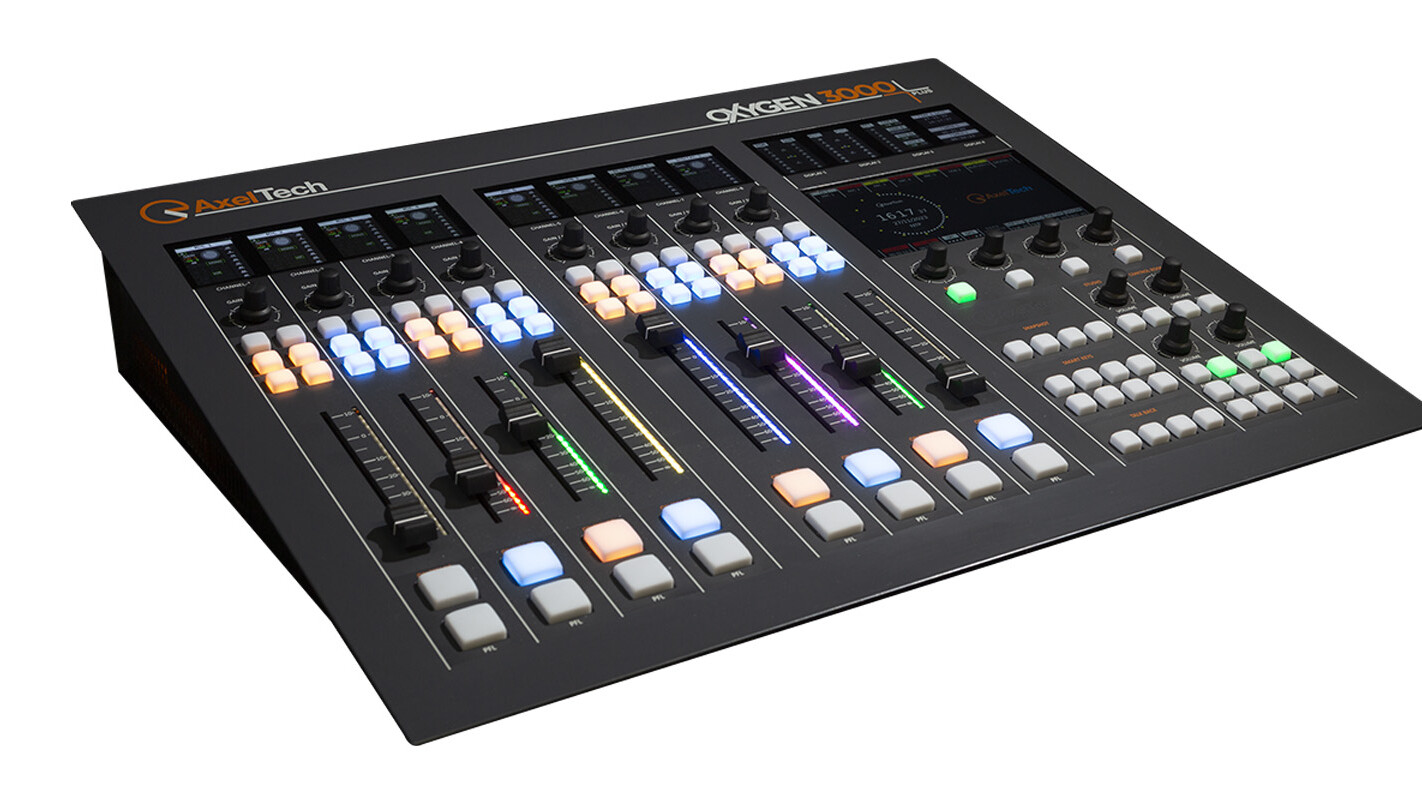

            Oxygen 3000

            Oxygen 3000
            New Digital sound in your Radio

            The number 1 of the category, upgraded with extended features

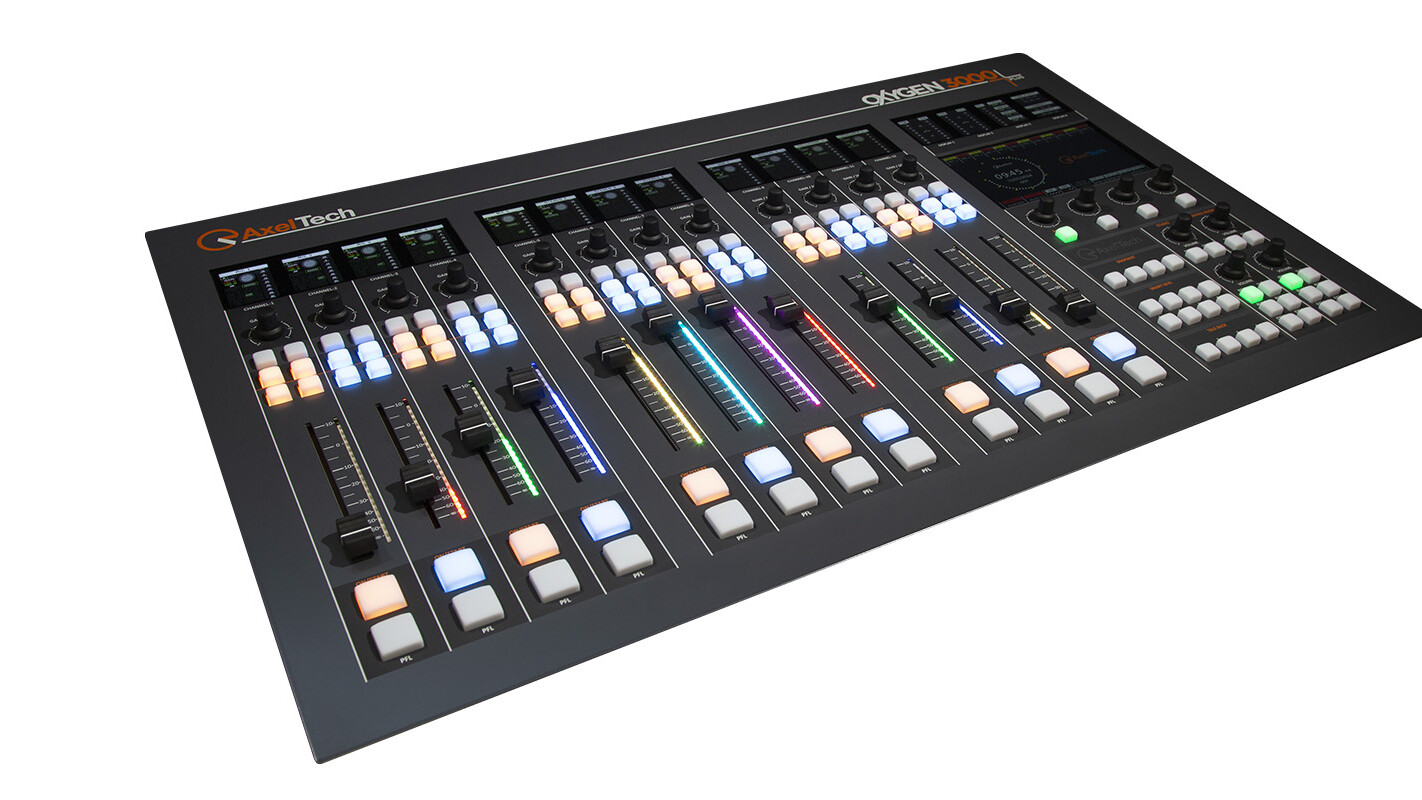

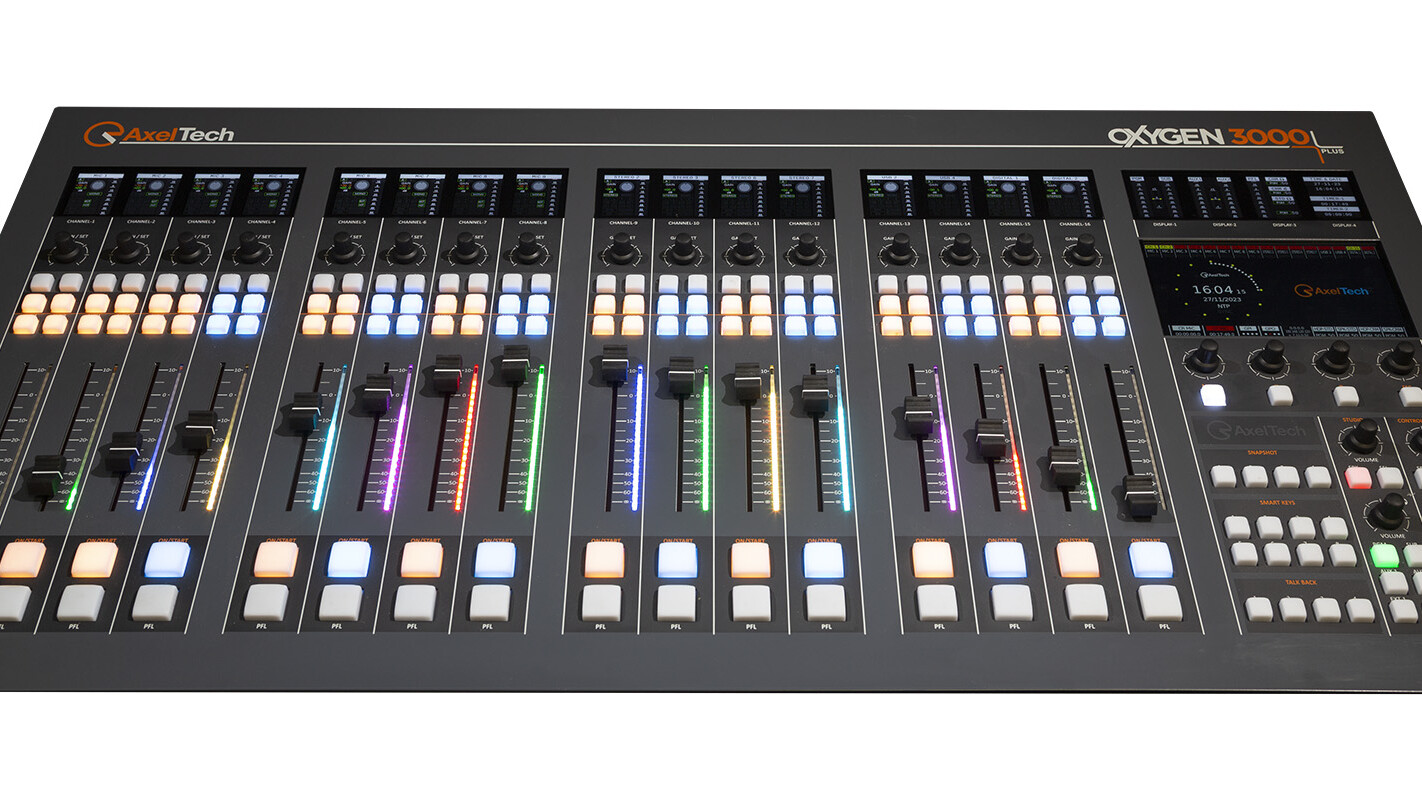

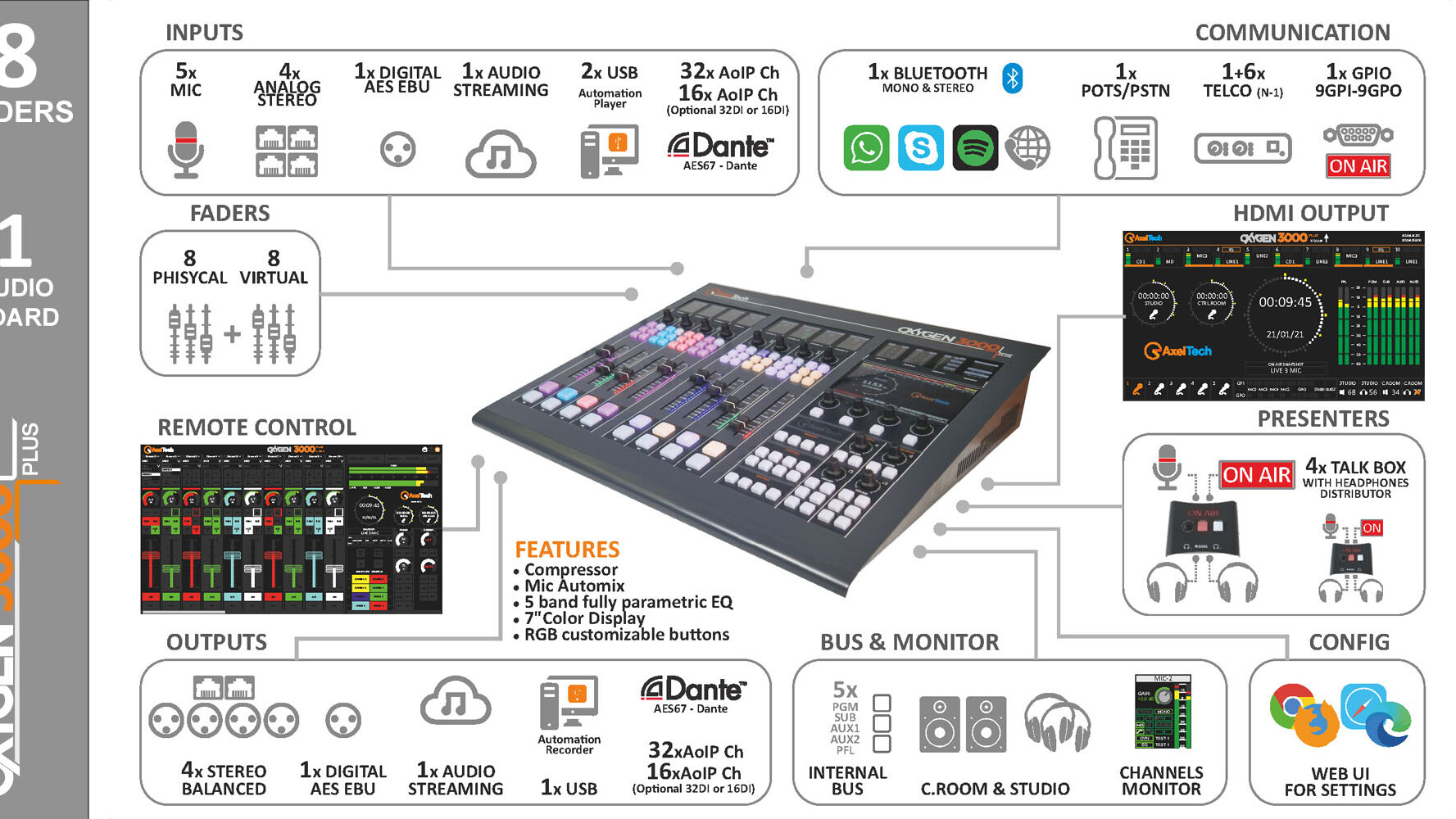

            Oxygen 3000 Digital Mixing Console for Radio defined a new standard in the broadcast market. Characterized by an elegant design and compact size, Oxygen 3000 is suitable to be used as On Air Console and Production Console. Oxygen 3000 is based on digital technology with DSP audio processing to deliver high-end quality, latest features and flexibility with ease of use. Oxygen 3000 is the Bestseller in its category at the best quality/price ratio. Oxygen 3000 is a powerful and compact unit featuring 10 faders, meters for each single channel, built-in 7” display for settings, wide range of connectivity and accessories in a rugged and classy steel chassis.
            Easy and reliable as the analogue mixing consoles, Oxygen 3000 adds the value of the digital engine that grants a near 0 latency ( < 0,7 ms I/O ) and plenty of advanced functions as the internal routing signal, customizable preset and easy recall, user defined smart keys, analog and digital I/O.

            Oxygen 3000 completely revised with a brand new firmware.

            Oxygen 3000 New Features

            General

            • Automatic firmware update via Internet
            • Conditional Access (4-digit PIN)
            • Save and recall EQ presets (up to 10)
            • New real-time EQ algorithm with graphic
            • Faster and more accurate Led Meters display
            • Save and recall control panel configuration with 10 Snapshots
            • Save and recall total console configuration. The configuration can be saved to internal memory (microSD), USB and PC (via WEB interface)
            • User custom GPIs (e.g. Ring, Talkback, channel ON/OFF, etc.)
            • User custom GPOs (e.g. Hook/ONAIR, Studio-Light, Control Room-Light)
            • Selectable home page layouts for built-in 7" display
            • Selectable home page layouts for HDMI Output
            • Gain adjustment knobs with adaptive speed
            • Dimmable buttons light
            • Adjustable fader ON/OFF threshold (from -50db to 0 db)
            • CountUp/Timer/CountDown on studio and control room microphones on the built-in 7" display
            • A & B source names on the 7" Display and HDMI Out
            • MONO inputs assignable as EXT source
            • Ducking / AutoFader assignable to all sources (automatic attenuation of music on speech)
            • WEB UI with service features (Save, restore, update, logs, etc)
            • New theme icons on display screens

            Stereo Inputs

            • Channel mode selection: STEREO, MONO, L, R, INV-L, INV-R, INV

            Bluetooth Module

            • With Bluetooth calls, PFL enables PRIVATE conversation mode

            MIC-Mono Inputs

            • Independent ON AIR Lights and Cut Off control, when opening Control Room and Studio microphones
            • PFL button switches to private conversation on Hybrid/Telco/Bluetooth mode
            • Enable TalkBack feature on any Studio or Control Room microphone
            • Parametric Compressors/Expander (drive, threshold, attack time, release time) for MICROPHONE and MONO inputs
            • Save and recall microphone presets including Compressor/Expander settings
            • Phase inversion on microphone inputs

            Telco Channels

            • GPI and GPO management on all 5 Telco channels
            • RING and HOOK on F1 key for each TELCO channels
            • N-1 on Telco outputs for all BUS (PGM, SUB, AUX-1, and AUX-2)

            Monitor Out

            • Adjustable maximum Control Room and Studio speakers volume
            • Adjustable maximum Control Room and Studio headphones volume
            • Adjustable CUT or Attenuation mode (-40, -30, -20, -10 dB) on Control Room and Studio speakers
            • Independent source selection (PGM, SUB, AUX1, AUX2, EXT) for control room and studio speakers, control room and studio headphones with or without PFL
            • Independent Talk Back management on Control Room and Studio speakers
            • Independent Talk Back management on Control Room, Studio and Guest headphones
            • Selectable source for Guest headphones (PGM, SUB, AUX1, AUX2, EXT)
            • Same source selection for Control Room and Studio headphones, with independent level

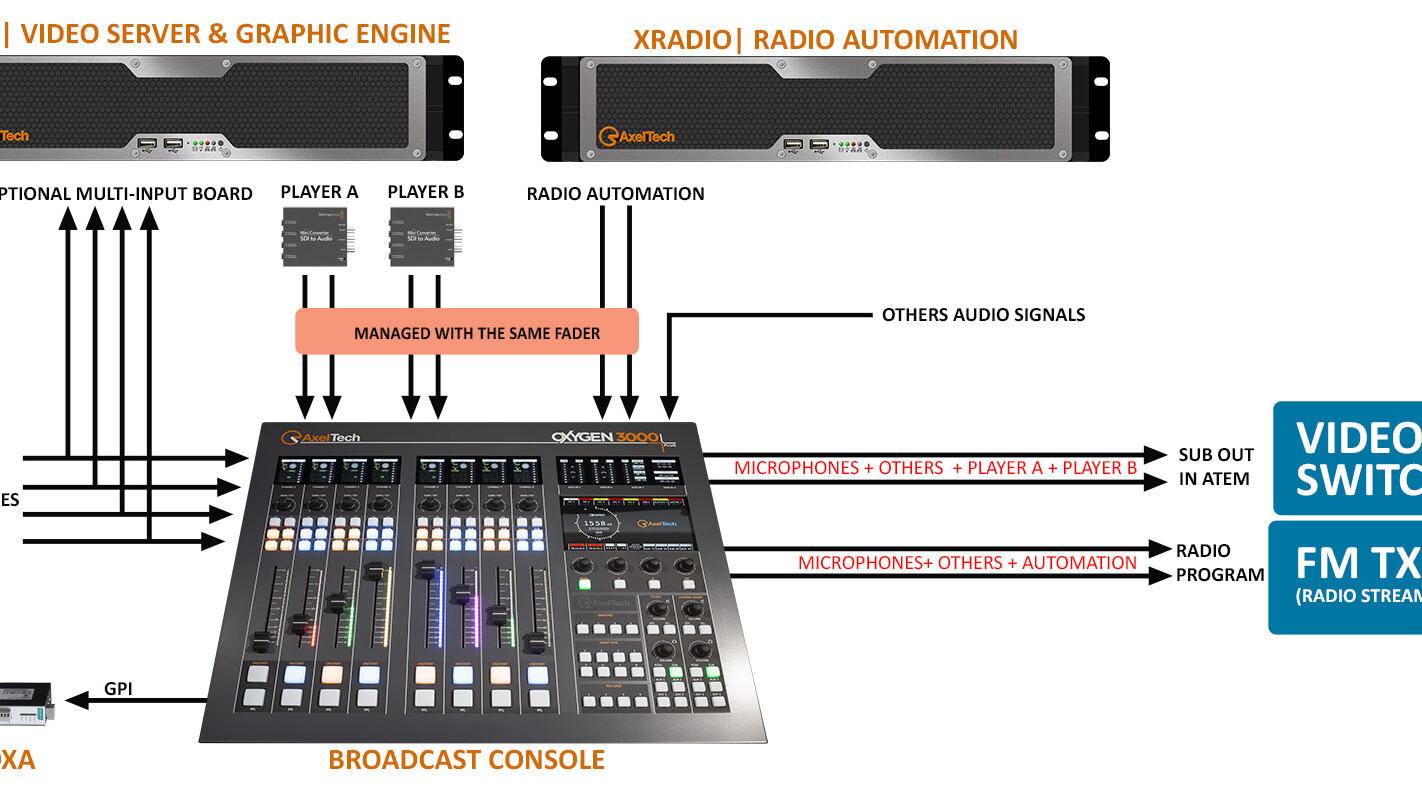

            Console Radio Broadcast Oxygen 3000 AxelTech
            Console Radio Broadcast Oxygen 3000 AxelTech

            Highlights

            General

            • Fully Digital Broadcast Console
            • Near 0 latency ( < 0,7 ms I/O)
            • Signals routing
            • 10-fader console
            • 4+1 busses (PGM, SUB, Aux1, Aux2, PFL)
            • User-definable Snapshot
            • 5 band fully parametric EQ
            • Dyn Processor on microphone inputs
            • Webpage
            • Customizable RGB colored buttons
            • 7” Graphic Color Display
            • Ctrl-Room and Studio Facilities
            • A/B Fast source switch buttons
            • 10 led meter bars for input source monitoring
            • High Resolution led meter bars for outputs (164 leds)
            • HDMI Out - Full HD connection for mixer monitor
            • 2 Timers (Ctrl-Room and Studio microphones timers on HDMI Monitor)
            • TalkBox for guest and presenter*
            • Redundant PSU (optional)

            Input Output

            • 5 microphones inputs
            • 8 stereo inputs
            • 7 stereo outputs
            • 1 built-in telephone hybrid,
            • 1+4 telco interface with GPIO
            • Bluetooth audio interface
            • 1 digital In/Out (AES EBU)
            • 2 USB audio interface
            Console Radio Broadcast Oxygen 3000 AxelTech

            Inputs & Outputs

            Microphone Inputs - Oxygen 3000 allows connection of XLR and RJ45 connector:

            • Inputs replicated from XLR to RJ45: 2-3-4-5, balanced with + 48V Phantom and GPIO
            • Telco: Microphone No. 5 mutually exclusive

            Digital input line:

            • Digital Input: 1 AESEBU Input on XLR

            Analogue Outputs:

            • Line Outputs: 6
            • Balanced outputs: 4 Line out on XLR - PGM, SUB, AUX-1, AUX-2
            • Unbalanced outputs: 2 Line out on RCA - REC-1, REC-2

            Headphones and local monitor outputs:

            • Balanced outputs: 2 line out on RJ45 for Studio Presenter and Studio Guest Headphones
            • Unbalanced outputs: 2 Line out on RCA for Control Room and Studio Speaker
            • Unbalanced outputs: 2 Line out on Jack 6.3 for Control Room and Studio Headphones

            Analogue inputs lines:

            • Line Inputs: 8
            • Balanced inputs: 3 Line In on XLR
            • Unbalanced Inputs: 4 Line on RCA
            • Aux Input: 1 Line In Jack 3.5mm

            Telephone hybrid and Telco:

            • Telephone Hybrid: 1 POTS/PSTN telephone line with Line.In and Tel.Set connection
            • Telco: 1 in/out N-1 to connect external telephone hybrid with control via TLC/GPIO
            • 4 inputs/outputs N-1 on inputs STEREO 4/5 and outputs REC 1/2

            Digital output:

            • Digital Output: 1 AESEBU output on XLR

            GPI/GPO:

            • GPI: 12 in total, for Talk back, Telephone Hybrid or other features
            • GPO: 10 total, to control OnAir lamps or Telephone Hybrid

            Talk Box

            It is a device dedicated to the presenter or guests.
            This TalkBox is very simple to connect to the On Air Console, actually its take 2 RJ45 cables of the length that needed to connect it to the mixer. It is possible to connect maximum up to 4 units.
            The TalkBox offer a direct connection of the microphone and relative On-Air light, it is also possible to directly connect the studio's On-Air Light. The Talk Box has a headphone amplifier with two 6.3mm outputs.
            Through the two large backlit buttons it is possible to activate and deactivate your own microphone (On / Off / Cough) or enable Talk back to the console.

            Details

            USB audio interface
            The USB audio interface allows to directly connect the PC to the Oxygen 3000 console, with no need for audio cards: infact the PC detects the console as a digital audio card with 2 stereo inputs and 2 stereo outputs for simultaneous playout and recording.

            Telephone Hybrid and Telco
            The built-in telephone hybrid allows direct connection of a telephone line POTS/PSTN on RJ-11C. The audio is processed via DSP that delivers a state-of-the-art audio processing. It’s also available a Telco N-1 in/out, to connect Oxygen 3000 to an external telephone hybrid. The output Telco N-1 is always available on XLR male, while the input receiving line is mutually shared with Mic-5. TLC commands are available on SubD connector with Hook and Ring interface for external telephone hybrid.
            4 inputs/outputs N-1 on inputs STEREO 4/5 and outputs REC 1/2 are also available without GPIO controls.

            Bluetooth
            Oxygen 3000 has a Bluetooth connection. This allows airing the calls made via Skype, Viber, Whatsapp or a normal phone calls by a Smartphone and Tablet.
            Oxygen 3000 has two modes of Bluetooth connection, bidirectional to support phone calls and mono monodirectional for streaming high quality stereo audio (A2DP): this last feature allows airing the music from smartphones and tablets.

            GPIO
            The console Oxygen 3000 has 12 GPI and 10 GPO, which allow connections to OnAir signal lamps according the opening of a microphone channel, or provide HOOK and RING commands for external telephone Hybrid.

            Features details

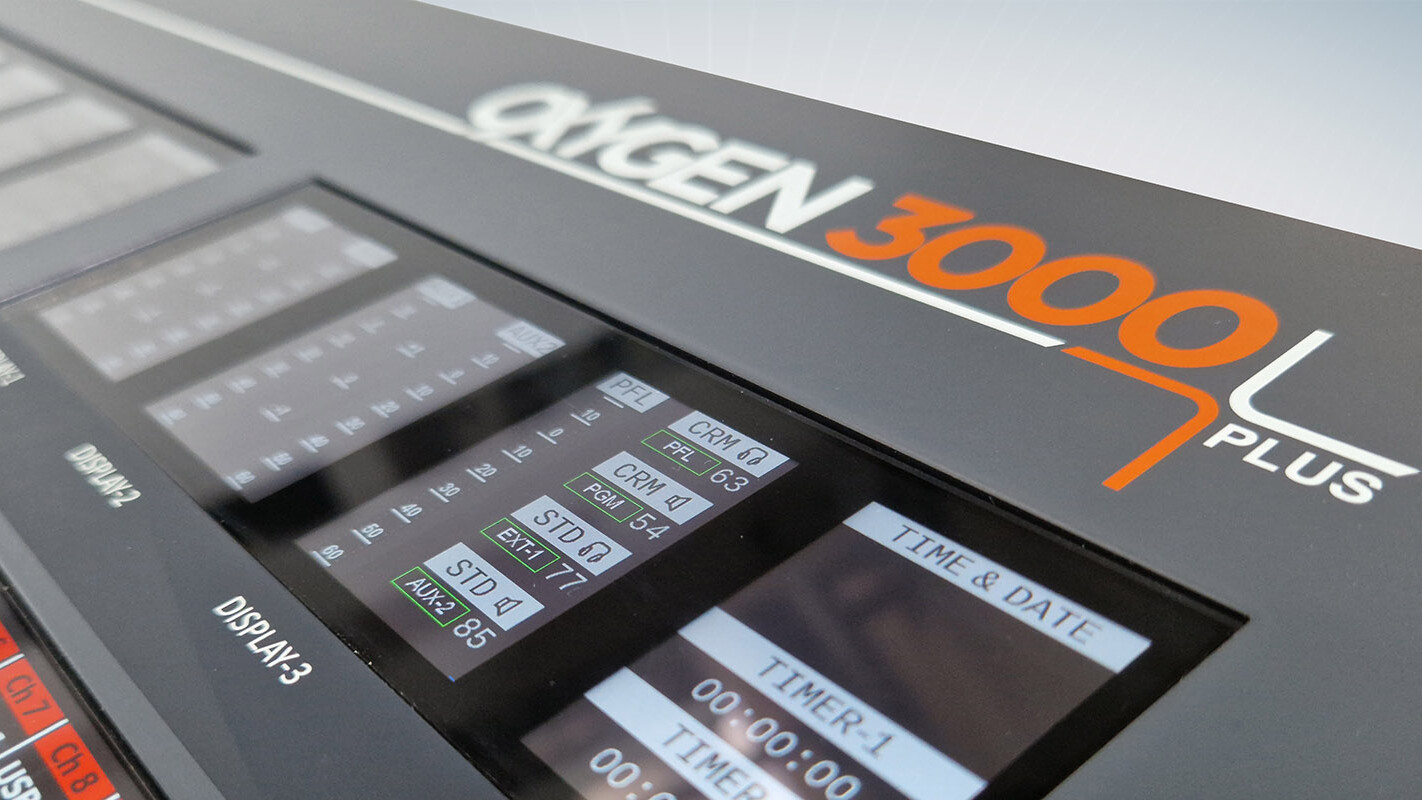

            Display 7"

            The OXYGEN 3000 has a 7 " colour graphic display for displaying all the airing parameters and for configuring all the device feature.
            The large display combined with the 4 rotary knobs allow the fast and intuitive programming of all the mixer parameters. actually, Oxygen 3000 have a very easy and intuitive programming interface has been specially designed.

            HDMI output

            The HDMI output in OXYGEN 3000 is offer the possibility to connect a display monitor FullHD at the console. This feature providing multiple information on settings and operating levels. List of HDMI output display components.

            • Audio input source leavle
            • 4+1 BUS output leavle
            • A/B sources assigned of 10 channels
            • Display ON-Air sources
            • Microphone On timer (control room & studio)
            • Large Clock
            • Audio output level (Loudspeakers & Headphones)
            • OnAir microphone
            • Telephone active

            The HDMI interface also offers the possibility for radio stations to upload their own logo on the graphic interface.

            Power supply

            Universal Power on IEC Schuko cord, thanks to the universal power supply switching with working voltage between 90Vac and 264Vac and frequency between 50-60Hz. The PSU is able to adapt itself to the operating voltage of any country in the world. It’s also available redundant power supply (optional)

            Technical Specifications

            Analog Balanced Stereo Inputs
            ConnectorXLR Balanced – EMI Suppressed
            Input Impedance10Kohm
            Nominal Input Level (sensitivity)0dBu
            Max Input Level (clipping point)+18,5dBu
            A/D conversion24 bit / 48 Khz
            Frequency response+/-0,5dB from 20Hz to 20kHz
            Signal To Noise Ratio (referred to peak level)>100dB
            Stereo Separation (referred to peak level)>90dB
            THD+N<0,002%

            Analog Unbalanced Stereo Inputs
            ConnectorRCA unbalanced – EMI Suppressed
            Input Impedance10Kohm
            Nominal Input Level (sensitivity)0dBu
            Max Input Level (clipping point)+18,5dBu
            A/D conversion24 bit / 48 Khz
            Signal To Noise Ratio (referred to peak level)>90dB
            Stereo Separation (referred to peak level)>80dB
            THD+N<0,05%

            Analog Balanced Microphone Inputs
            ConnectorXLR Balanced – EMI Suppressed
            Input Impedance2,4Kohm
            Nominal Input Level (sensitivity)-21dBu
            Max Input Level (clipping point)+7dBu
            A/D conversion24 bit / 48 Khz
            Signal To Noise Ratio (referred to peak level)>90dB
            THD+N<0,01%
            Analog GainAdjustable +0 ÷ +60dB (3dB step)
            Phantom Power+48V

            Analog Balanced Telco Input (shared with MIC5, mutually exclusive)
            ConnectorXLR Balanced – EMI Suppressed
            Input Impedance2,4Kohm
            Nominal Input Level (sensitivity)0dBu
            Max Input Level (clipping point)+18,5dBu
            A/D conversion24 bit / 48 Khz
            Signal To Noise Ratio (referred to peak level)>90dB
            THD+N<0,01%

            Analog Balanced Stereo Outputs
            ConnectorXLR Balanced – EMI Suppressed
            Output Impedance23ohm, nominal 600ohm
            Nominal Output Level0dBu
            Max Output Level (clipping point)+18,5dBu
            D/A conversion24 bit / 48 Khz
            Signal To Noise Ratio (referred to peak level)>100dB
            Stereo Separation (referred to peak level)>90dB
            THD+N<0,002%

            Analog Unbalanced Stereo Outputs
            ConnectorRCA Unbalanced – EMI Suppressed
            Output Impedancenominal 560ohm
            Nominal Output Level0dBu
            Max Output Level (clipping point)+19dBu
            D/A conversion24 bit / 48 Khz
            Signal To Noise Ratio (referred to peak level)>90dB
            Stereo Separation (referred to peak level)>80dB
            THD+N<0,05%

            Analog Balanced Talkbox Outputs
            ConnectorRJ45 balanced – EMI Suppressed
            Output Impedance100ohm, nominal 600ohm
            Nominal Output Level0dBu
            Max Output Level (clipping point)+14dBu
            D/A conversion24 bit / 48 Khz
            Signal To Noise Ratio (referred to peak level)>100dB
            Stereo Separation (referred to peak level)>90dB
            THD+N<0,05%

            Analog Balanced Telco Output
            ConnectorXLR Balanced – EMI Suppressed
            Output Impedance23ohm, nominal 600ohm
            Nominal Output Level0dBu
            Max Output Level (clipping point)+18,5dBu
            D/A conversion24 bit / 48 Khz
            Signal To Noise Ratio (referred to peak level)>100dB
            THD+N<0,002%

            Digital Input
            ConnectorBalanced on 1 XLR – EMI Suppressed
            Input Impedance110Ω
            StandardAES3
            Audio Sample Rate32/44.1/48KHz with aSRC
            Resolution24 bit
            Dynamic Range (Converter Values)124dB

            Digital Output
            ConnectorBalanced on 1 XLR – EMI Suppressed
            Input Impedance110Ω
            StandardAES3
            Audio Sample Rate48KHz
            Resolution24 bit
            Dynamic Range (Converter Values)124dB

            USB Audio Digital I/O
            ConnectorUSB Type B – EMI Suppressed
            Playback And Recording Sample Rate48KHz fixed
            Resolution16 bit
            Available Stereo Channels1 Play & 1 Rec for each USB interface

            PSTN Interface
            ConnectorRJ11
            Transhybrid loss>36dB

            System
            Audio CoreAnalog Devices ADAU1452 32bit 294MHz fixed point DSP
            Audio CODECsCirrus CS42448 24bit/192kHz
            System CoreAllwinner A20 dual core cortex-A7 at 800MHz, 1GB RAM
            System display7” TFT 800x480 LCD
            LAN ConnectionRJ45 - 100Mbit
            Nominal Delay (analog input to analog output)0,7ms
            GPIO Inputs/Outputs12 GPI / 10 GPO
            Communication Port2xUSB type-A, 2xUSB type-B , 1xLAN, 1xHDMI
            Operating Temperature0°C ÷ 40°C

            PSU (optionally redundant)
            Power Supply90-260 Vac / 47-63 Hz 45W

            Dimensions
            Dimensions (W; H; D)660mm; 142mm; 540mm
            Weight< 20Kg

            Dimensions

            Radio Mixer Console Oxygen 3000 AxelTech

            Ask for aquote now








              Subscribe to our newsletter





                Fields of Interest

                RadioTVCorporate A/V

                Giving your consent, you agree to the processing of your data in order to access the service of sending information, advertising material and sales communications by email; purposes and modes of data processing are mentioned in the privacy notice, available here: Privacy Notice

                I give my consentI do not give my consent

                Giving your consent, you agree to the processing of your data in order to access the service of: data profiling for analysis and market surveys (marketing); purposes and modes of data processing are mentioned in the privacy notice, available here: Privacy Notice


                I give my consentI do not give my consent

                Ask for aquote now








                  Subscribe to our newsletter





                    Fields of Interest

                    RadioTVCorporate A/V

                    Giving your consent, you agree to the processing of your data in order to access the service of sending information, advertising material and sales communications by email; purposes and modes of data processing are mentioned in the privacy notice, available here: Privacy Notice

                    I give my consentI do not give my consent

                    Giving your consent, you agree to the processing of your data in order to access the service of: data profiling for analysis and market surveys (marketing); purposes and modes of data processing are mentioned in the privacy notice, available here: Privacy Notice


                    I give my consentI do not give my consent


                    XTV Suite

                    Sun always shines on

                    XTV Suite

                    TV Automation

                    One for all, all for one

                    XTV Suite is a professional complete set of software tools for TV Broadcast Automation which manages video capture, trimming, scheduling and playout. Completely automatic and unattended efficiency 24/7.
                    XTV is perfect for TV stations, Satellite Channels, Cable TV, News Room, Web TV, CCTV, Corporate TV, Presentation, hotel pay TV channels, museums info channels and video wall display, which can take advantage of its user-friendly interface.
                    XTV Channel In A Box (CIAB) architecture guarantees a linear scalability of your TV Playout facility.

                    • SRT - Secure Reliable Transport
                    • 4K & 8K
                    • Automatic Metadata generation for EPG
                    • XTrimmer & XIngest: Multi track audio re-shuffling tool
                    • XMirror: now manages both Graphic Templates and media mirroring
                    TV Automation Channel In a Box XTV AxelTech

                    Designed to achieve
                    a true universal format compatibility

                    At the same time, multi-channel TV stations and TV networks can enjoy XTV’s scalable structure and universal file compatibility. XTV is designed to achieve a true ‘universal format’ compatibility. XTV ties together all production departments allowing direct playout of DV, HDV, MPEG-2, MPEG-4, H.264, H.265, QuickTime, AVI, MXF, XDCAM, PRORES, DNXHD, GXF, LXF, etc, in any resolution or framerate with automatic adaption.

                    TV Automation Channel In a Box XTV AxelTech

                    XTV Suite is able to satisfy those customers looking for second generation CIAB - Channel In A Box, able to provide traditional playout deployment reliability and functionalities with the typical CIAB TCO.

                    Media
                    compatibility
                    and multiformat
                    benefits

                    TV Automation Channel In a Box XTV Suite AxelTEch

                    XTV plays out any kind of media in any resolution:
                    DV, HDV, MPEG-2, MPEG-4, MPEG-1, H.264, QuickTime, MXF, XDCAM,
                    PRORES, DNXHD, GXF, LXF, etc.

                    XTV allows to play and mix any media format according to broadcaster’s
                    production workflow and pros and cons of each AV codec.

                    Hardware Compatibility: BlackMagic, AJA, BlueFish
                    Dynamic Playlist: Real time playlist management
                    without black frames nor freezes.

                    Advanced Scheduler: Unlimited playlist length with automatic
                    clip skipping and cutting when late.

                    Duration stretching when ahead of time. Sequence loop.

                    Automatic filler insertion for gap handling.

                    Log Report: Status and playout logging, with XML
                    export for easy processing and printing.

                    No Database: Metadata is saved directly into media file,
                    allowing file rename,copying and moving.

                    XTV Suite include

                    XPlayout  > 24/7 Automation
                    XIngest  > real-time capture from SDI-NDI-IP

                    Additional software modules

                    not included in XTV Suite

                    XMirror  > Playlist media cache copier
                    XMusic  > Automatic musical playlist creator

                    Free apps

                    XTrimmer > Metadata injector and quality control
                    XScheduler > Offline playlist management
                    CGComposer > CG template creator
                    XLogsViewer > As run logs viewer
                    XInfo > Playlist information display
                    XRouter > Routing switcher sharing on LAN
                    XRemote > Remote control or routing switcher
                    XEmergency > N+1 playout redundancy (needs xplayout licence)

                    TV Automation Channel In a Box XTV AxelTech

                    XTrimmer

                    XTrimmer is the free app for quality control and metadata insertion. It allows to mark the clips for in and out points, segment the clip for advertisement interruption, but also modify the clip’s video and audio parameters to exactly match the desired output. Parameters include aspect ratio correction modes, vertical and horizontal crop to minimize letterbox on air, field dominance inversion, but also precise audio level correction with automatic loudness calculation. XTrimmer allows secondary CG events insertion to air graphics precisely superimposed and timed with the playlist also defining crossfade/wipe effects between clips. Video file is leaved untouched as an original, while all parameters are saved as metadata, invisibly piggy-backed to the video file, so you can copy, move and rename the file, as the metadata follows automatically. XTrimmer is a completely free application allowing to be installed on any networked computer and so participating effectively to the automation workflow. XTrimmer can be used with the computer screen and loudspeakers, but also features video outputs on most blackmagic or aja video devices and/or NDI output, allowing quality control in full video resolution, also with CG and graphics. Suggested system requirements are i-7 on Windows 10, decklink mini monitor and 32” HDMI TV.

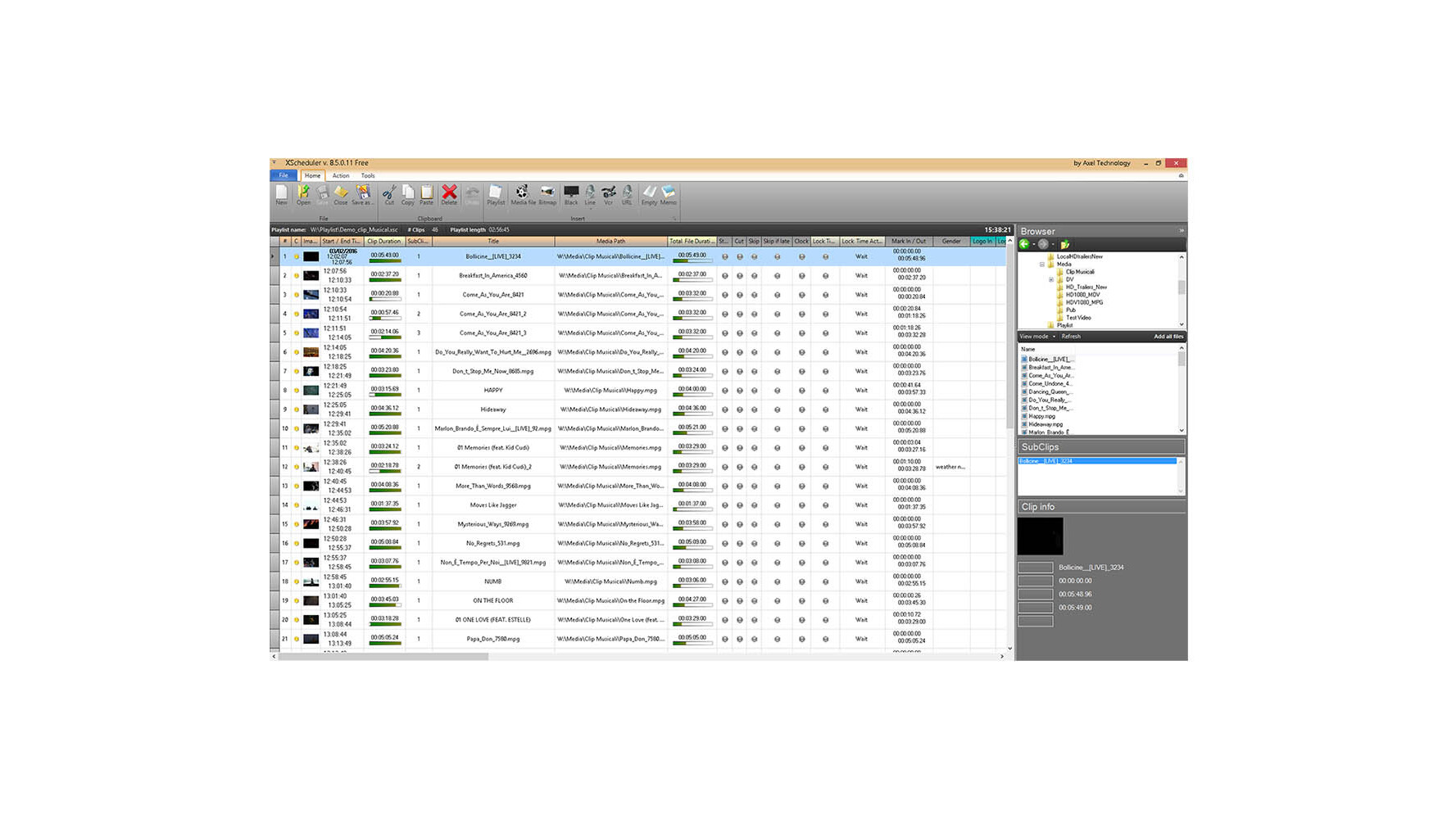

                    XScheduler

                    XScheduler is the free app for offline playlist creation. It allows to manage and edit playlist simply dragging and dropping video files on the GUI, defining starting dates and times, and allowing to modifiy the clip parameters individually, such as aspect ratio correction modes, vertical and horizontal crop to minimize letterbox on air, field dominance inversion, but also managing secondary events like GPI and character generation and graphics. Clips are highlighted by color matching the clips’s gender. Live sources and URLs can be inserted directly in the playlist, and, like Xtrimmer, realtime video preview with graphics is available on the computer screen and also as a video output on most blackmagic or aja video devices and/or NDI output, allowing quality control in full video resolution, also with CG and graphics. XScheduler is a completely free application allowing to be installed on any networked computer and so participating effectively to the automation workflow. Suggested system requirements are i-7 on Windows 10, decklink mini monitor and 32” HDMI TV.

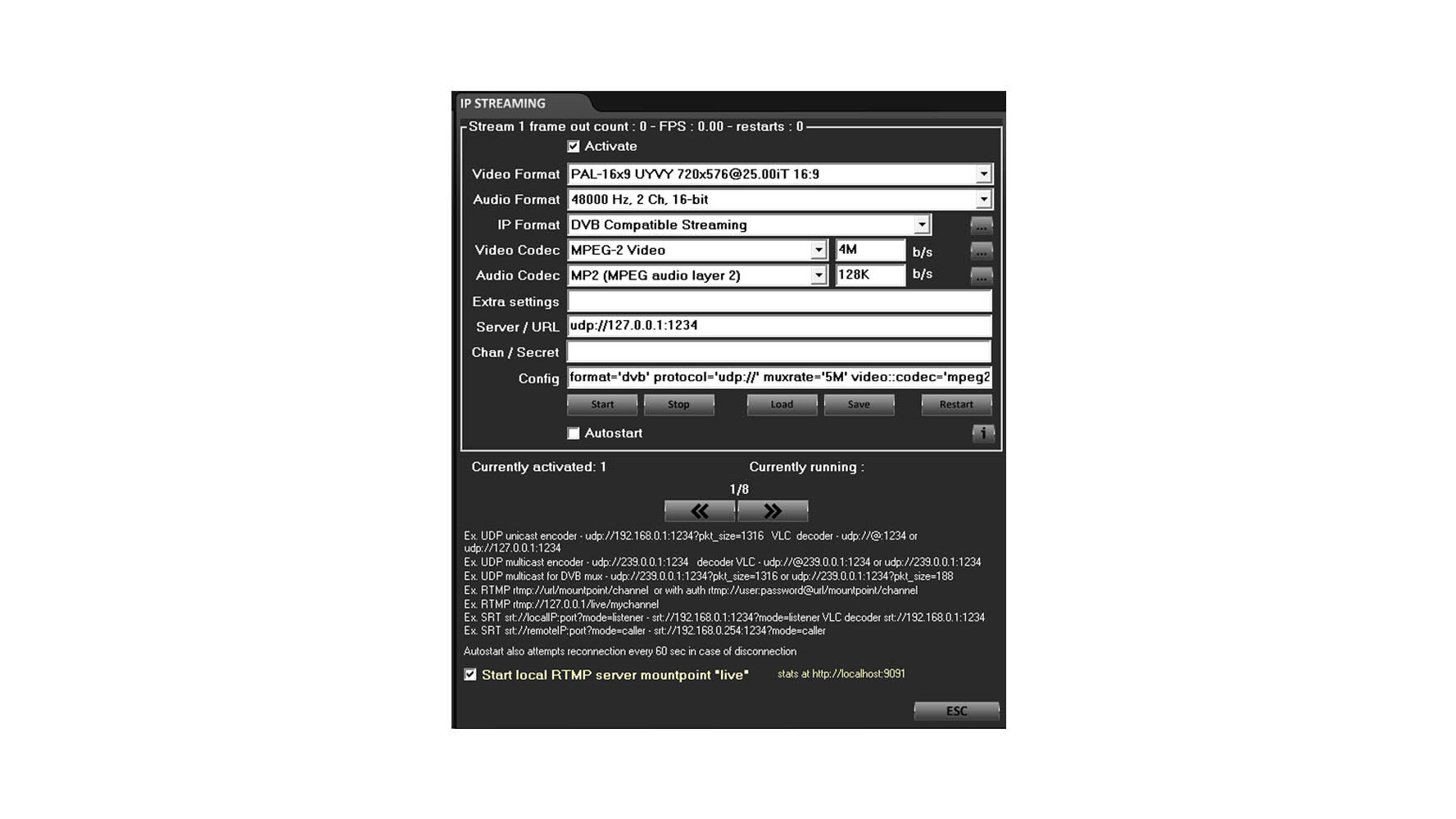

                    Future-proof Cloud & IP workflows

                    Support of IP I/O such as NDI, SMPTE 2022 & SMPTE 2110 (only with specific video cards) turns XTV Suite to a game changer. Public and Private Cloud deployment is welcome. NDI and IP sources are also supported directly on the playlist, allowing playout of NDI, UDP, RTP, RTSP, RTMP, HTTP streams and setting parameters specifically, such as aspect ratio correction modes, vertical and horizontal crop to minimize letterbox on air, field dominance inversion, etc. An internal IP encoder allows sending playout output via UDP to external multiplexers, or via RTMP,HLS,RTSP,IIS Live smooth, or windows media streaming to cloud servers for media distribution on internet. If an Nvidia GTX or better board is installed, GPU accelerated compression allows to use H264 and H265 codecs without affecting the computer’s CPU.

                    TV Automation Channel In a Box XTV AxelTech

                    Integrated multi layer CG

                    Advanced graphics can be overlayed on top of the playlist and can be used for simple channel branding or may include complex multi layered objects with tickers, rolls, crawls, time, countup/down and slideshows. The free app CG composer allows creation of graphics templates to be aired manually or associated as secondary events in the playlist for automatic workflows. CGcomposer allows importing of any bitmap file format, sequence of bitmaps or video file, and manages alpha channel for perfect transparencies. TGA or PNG sequences, animated GIF, Quicktime Anim and Prores 4:4:4:4 are fully supported for animations with alpha channel. Text and file paths for graphics can be specified in Xtrimmer, Xscheduler or Xplayout for dynamic text workflows like song info animations for music TVs, for example. Data source for text, rolls, crawls and tickers can be imported from TXT files, CSV or XLSX, updating automatically on content changes. Front color, back color, font and alignment are imported from XLSX files allowing rich text format for tickers, rolls and crawls. Animations can be inserted into cells as hyperlinks and aired seamlessly for a really professional look. XLSX formulas, macros and database connectors can be used to create your own custom application for CG management. In Xplayout the CG layer can optionally be output as a separate KEY and FILL SDI signal for external DSK insertion, or a NDI stream with alpha for Video over IP usage.

                    CGComposer

                    Amazing SqueezeBacks

                    The built-in 2D DVE and an additional multi-layer CG backround allow smooth squeezbacks on top of customizable animated graphics with tickers, rolls, crawls and time with dynamic text and countdowns for your “Now showing”, “Up next” and “Coming back in ..” workflows. Video files in any format can also be added to the backround layer as Picture in Picture objects. Squeezebacks can be associated to playlist items, like normal CG pages, and used as secondary events to be aired automatically following exact timing.

                    TV Automation Channel In a Box XTV AxelTech

                    Remote control

                    of external devices

                    and LIVE events

                    Xplayout is a modern IP based - any file format - automation, but also allows traditional remote control of external devices such as Cart machines, VCRs, logo generators and especially GPIs and master controls, video mixers and routing swicthers, such as Blackmagic Atem, Videohub, Newtek Tricaster or any device with RS232/422 control. Live events can be inserted directly on the playlist and TCPIP or serial commands will be automatically sent to the external devices. Alternatively, live sources can be aired in “AV bypass mode” connecting them to capture card inputs of the system. In this case a delay from 3 seconds to several days can be applied to accomplish a time shifter mode, very handy when managing country time zone differences.

                    Secure and Reliable

                    24/7 with redundancy

                    Xplayout is among the most reliable automation systems on the market, offering a variety of redundancy options:

                    1+1 Master and Slave workflow is built in the automation. Whatever the master XPlayout does, the slave follows automatically. If a changeover is used, it can send a GPI signal to the slave, transforming it into the master. (AxelTech DML can be used as a sw changeover)

                    Discover DML

                    N+1 with the free app XEmergency. XEmergency monitors the audio coming from up to 8 Xplayout systems using add-on audio capture cards. Whenever audio levels drop for a specific length of time, XEmergency fires up a local XPlayout, resuming the playlist from the point of interruption and blacklisting the failing system to the routing switcher. Alarm notification is achieved through SMS or email.


                    Media redundancy is built in the XPlayout, allowing to define a main media path to a networked NAS for example, a backup media path to a secondary NAS, and a preferred media path to a local hard disk copy of the media. Switching from one path to the other is completely automatic, and, in case of main media path failure, resume from backup path is available after just a few frames.


                    Media redundancy is also achieved with the optional app XMirror, the media cache sw, which keeps a copy of the media on local hard disks.


                    XTV Compact version

                    Four rack unit machine with simultaneos play and capture on local storage

                    TV Automation Channel In a Box XTV AxelTech

                    XTV Server solution

                    Each machine capture and play directly from a shared server storage

                    TV Automation Channel In a Box XTV AxelTech

                    XMirror and XMusic,

                    the options for XPlayout

                    XMIrror is a great feature when using a network NAS workflow. XMirror copies all files which populate the playlist from the big NAS onto a small local hard disk. Copies are performed slowly (to avoid saturating LAN bandwidth) and constantly (any modification to the playlist will trigger the copy process). Old files are deleted automatically to preserve disk space. If LAN or NAS fails, files will be played automatically from the local disk. If Local hard disk path is specified as a preferred path, media will always be played locally.

                    XMusic is the add-on which allows automatic playlist creation following rules that are typical of the radio world. Daily schedule is divided into “clocks” where musical genders can be listed according to the time of day. Then XMusic chooses the songs automatically, not repeating same songs and same authors, thus creating confortable and pleasant musical selection. XMusic is great for MUSIC TVs, or for channels which need a random, not repetitive, automatic media selection.

                    XMAM

                    archive and catalogue

                    optional

                    XMAM is AxelTech web based media asset management system to organize video and audio files, photos and documents. It integrates seamlessly with XPlayout and XScheduler allowing to Drag & Drop any media directly from the web browser to the playlist.

                    Discover XMAM
                    XTV Suite workflow
                    TV Automation Channel In a Box XTV AxelTech

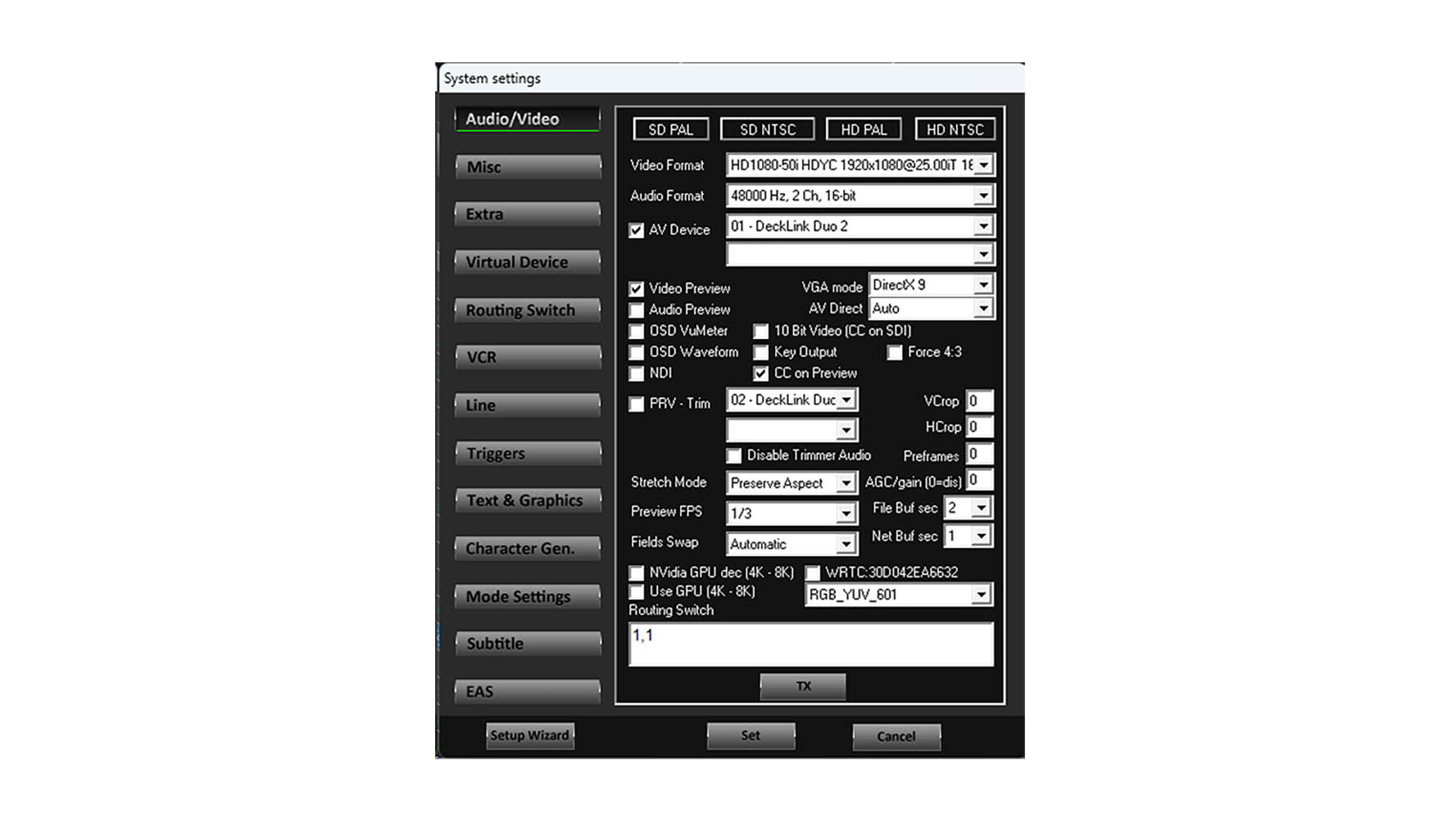

                    XPlayout

                    Specifications

                    • Supported Video Cards: Blackmagic Design DeckLink and Intensity, AJA Corvid, Bluefish
                    • Resolutions: SD, HD, 2K, 4K (depending on AV card)
                    • Simultaneous NDI output
                    • Simultaneous WebRTC output
                    • Preview output on SDI
                    • Up to 16 Audio channels
                    • Timecode rp188
                    • Virtual device emulation for use as capture device
                      in 3rd party software
                    • Split CG layer on separate SDI or NDI in Key and Fill
                    • SDI or NDI inputs for LIVE sources in AV bypass

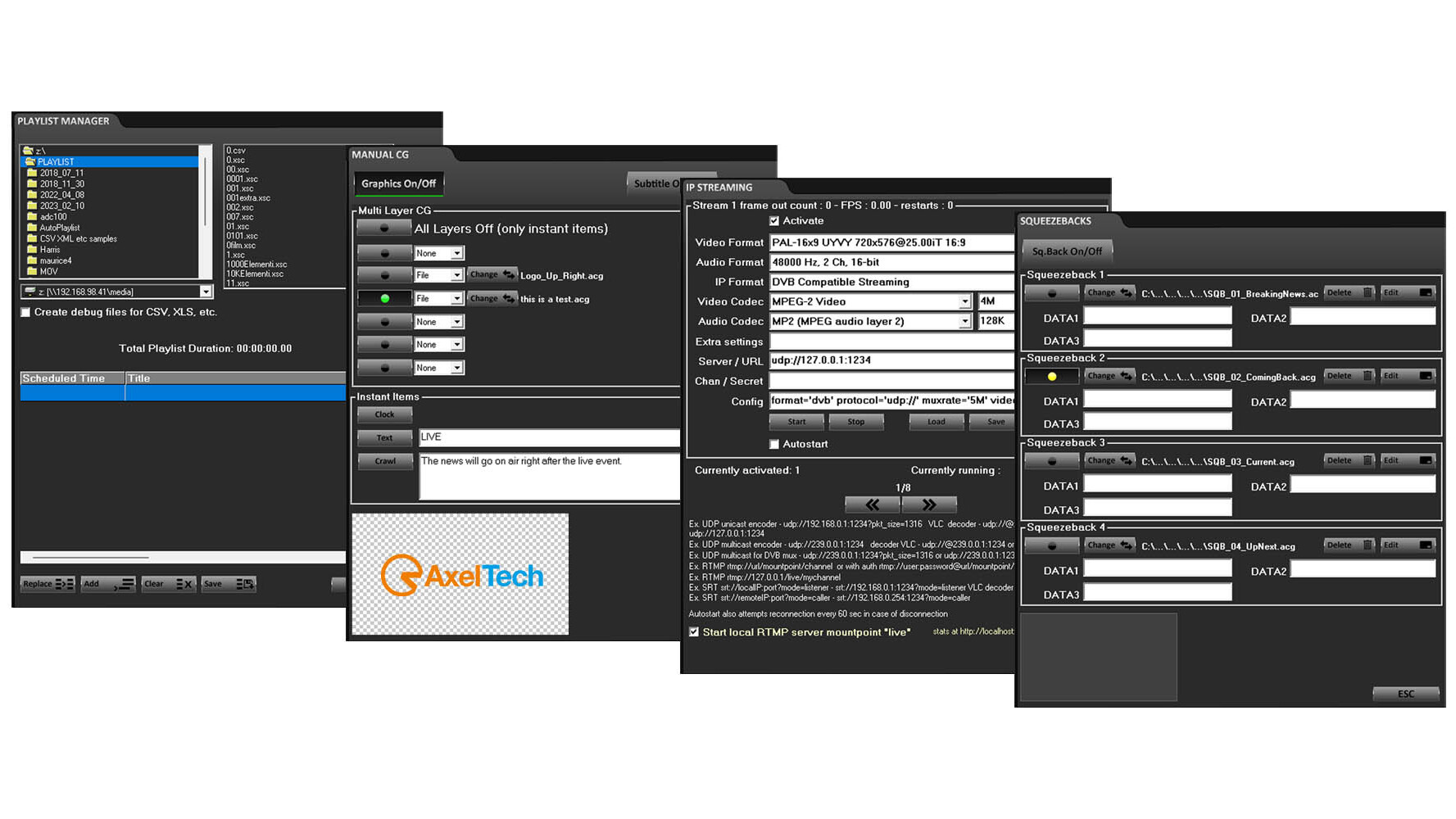

                    GUI

                    • Full screen GUI optimized for 1920x1080 monitor
                    • Channel Alias
                    • Preview framerate adjust for RDP optimization
                    • CC preview
                    • Drag and Drop of multiple files
                    • Single clip position duration and position display
                    • Total playlist duration and remain display
                    • First frame positioning
                    • Dual graphical or grid style playlist GUI
                    • Drag and Drop to GUI
                    • OSD vu-meters and waveform
                    • Realtime video preview
                    • GUI lock with password
                    • Customer Logo on main screen
                    • Colors according to file gender or status

                    Features

                    • Virtually any video and file format compatibility
                    • Automatic upscale, downscale,
                      framerate adaptation and aspect ratio correction
                    • CG overlay
                    • Key output on SDI with 32 bits Quicktime Anim,
                      Quicktime ProRes 4:4:4:4, bitmap sequence
                    • As run logs
                    • Log files
                    • VGA compatibility mode for old VGA cards
                    • Separate audio track file management
                    • Remote control of Blackmagic Design ATEM and NewTek TriCaster
                    • MarkIn and MarkOut management (triggering)
                    • Frame accurate loops
                      REC while PLAY (for specific formats) with endless MarkOut
                    • Realtime Vertical and Horizontal Crop
                    • Realtime field swap: top bottom progressive
                    • Realtime aspect ratio correction mode: Letterbox, no letterbox, stretch
                    • Detailed info on playlist, preview and output status
                    • AGC – Automatic Gain Control
                    • Automatic switch on backup path in case of main path failure
                    • Automatic play from preferred path if same media copy is available
                    • Status file and thumbnail update of main output
                    • Autofill from folder when ahead of time or end of playlist
                    • Automatic load of playlist according to file syntax
                    • Emergency file with hotkeys, also with numeric keyboard
                    • Automatic load of last playlist at start-up
                    • Routing switcher remote control : Blackmagic Design ATEM and Videohub,
                      NewTek TriCaster, any RS232 or RS422 routing switcher or master control
                    • VCR automation UVW, VP9xxx or and RS422 SONY
                    • Cart machine control: PROMATIC, DIGICART
                    • Fast CG for emergencies: clock, text and crawl
                    • Automatic CG according to file gender or user custom types
                    • Remote control of external CG
                    • Integrated master and slave workflow
                    • From 5 seconds to 1 day delay for SDI/NDI sources as time shifting
                    • Subtitle rendering for SRT files
                    • Advanced CG with clocks, tickers, rolls, crawls, bitmap animations,
                      any video file format
                    • 2D Squeezeback with advanced backround graphics layer
                    • All CG graphics as secondary events
                    • GPI in/out
                    • Automatic skip/cut if schedule is late
                    • Exact time management in cut/wait for end of current event
                    • CG composing tool for template creation
                    • Non-intrusive sub clip creation for advertisement insertion
                    • Crossfade/effects between files
                    • Traffic scheduling tool
                    • Quality control tool with SDI/NDI output, metedata insertion
                      and loudness control
                    • Automatic media copy tool from NAS to local hard disk (optional)
                    • Automatic music playlist creator (optional)

                    Xingest

                    Specifications

                    • Supported Video Cards: Blackmagic Design DeckLink and Intensity, AJA Corvid, Bluefish
                    • Resolutions: SD, HD, 2K, 4K (depending on AV card)
                    • Simultaneous NDI output
                    • Simultaneous WebRTC output
                    • Preview output on SDI
                    • Up to 16 Audio channels
                    • Virtual device emulation for use as capture device
                      in 3rd party software

                    GUI

                    • Full screen GUI optimized for 1920x1080 monitor
                    • Channel Alias
                    • Preview framerate adjust for RDP optimization
                    • CC preview
                    • Drag and Drop of multiple files
                    • Single clip position duration and position display
                    • Total playlist duration and remain display
                    • First frame positioning
                    • Dual graphical or grid style playlist GUI
                    • Drag and Drop to GUI
                    • OSD vu-meters and waveform
                    • Realtime video preview
                    • GUI lock with password
                    • Customer Logo on main screen

                    Video Codecs

                    • MPEG 4 part 2
                    • Cisco OpenH264
                    • Intel Quicksync H264
                    • Nvidia NVEnc H264
                    • Nvidia NVEnc H264 lossless
                    • Nvidia NVEnc H265
                    • MPEG 1
                    • MPEG 2
                    • DV
                    • DVCPRO
                    • MJPEG
                    • FLV Sorenson
                    • HuffYUV
                    • WMV 8
                    • Google VP8
                    • Apple Prores proxy, LT, 422, HQ
                    • QuickTime ANIM
                    • Uncompressed 422 8-bit
                    • Uncompressed 422 10-bit
                    • DNxHD
                    • VC3
                    • OPEN JPEG2000
                    • DPX

                    System requirements depend on

                    • Video capture resolution
                    • Video codec format
                    • Number of simultaneous capture/streaming/proxy

                    Features

                    • Virtually any video and file format compatibility
                    • Automatic upscale, downscale,
                      framerate adaptation and aspect ratio correction
                    • CG overlay
                    • Key output on SDI with 32 bits Quicktime Anim,
                      Quicktime ProRes 4:4:4:4, bitmap sequence
                    • As run logs
                    • Log files
                    • VGA compatibility mode for old VGA cards
                    • Separate audio track file management
                    • Remote control of Blackmagic Design ATEM and NewTek TriCaster
                    • MarkIn and MarkOut management (triggering)
                    • Frame accurate loops
                      REC while PLAY (for specific formats) with endless MarkOut
                    • Realtime Vertical and Horizontal Crop
                    • Realtime field swap: top bottom progressive
                    • Realtime aspect ratio correction mode: Letterbox, no letterbox, stretch
                    • Detailed info on playlist, preview and output status
                    • AGC – Automatic Gain Control
                    • Automatic switch on backup path in case of main path failure

                    File format wrappers

                    • Mpeg Program (MPG)
                    • Mpeg Transport (TS)
                    • MPEG4 part 14 (MP4)
                    • QuickTime (MOV)
                    • DNxHD (MOV)
                    • IMX MPEG4
                    • MXF
                    • MXF D-10 (IMX)
                    • GXF
                    • DV
                    • FLV
                    • DVD VOB
                    • ASF
                    • iPod Mp4
                    • AVI
                    • Matroska (MKV)
                    • WebM
                    • Image Sequence (DPX, PNG, JPG)

                    Audio codecs

                    • WAV (16, 24, 32, Cinema, signed, floating etc)
                    • MP2
                    • MP3
                    • AC3 (ATSC A/52A)
                    • AAC
                    • ALAC
                    • ADCPM
                    • VORBIS

                    Suggested system requirements

                    • I7 8700K CPU
                    • Windows 10
                    • 16GB RAM
                    • NVidia GTX

                    Minimum system requirements

                    • I3 CPU
                    • Windows 7
                    • 4GB RAM

                    Main Specs

                    All in one broadcast 4K - 2K - HD - SD playout
                    Complete workflow management tools: scheduling, trimming, graphic composer
                    Multiple codec playout in the same playlist with resolutions and framerates automatic adaption
                    Multiple formats playout, automatic up/down scaling and aspect ratio adjustment (16/9, 4/3, etc.)
                    File sharing on LAN architecture
                    Direct file playout from NLE (no transcoding)
                    Up to 16 audio channels management
                    Simultaneous NDI output
                    Direct streaming output transport stream MPEG2 and H.264 codec, or RTMP.
                    Automatic management of time during playout (delay/ahead) with filler
                    Live source full handling inside the playlist control of VTR, Switcher, GPI to Cart Machine
                    Multichannel and high availability configurations
                    Hot Key feature for instant videos playout
                    Graphic overlay: logos, clocks, tickers, animations
                    High quality sqeezebacks with animated backround
                    Subtitles in overlay and Closed caption
                    Clip trimming and Metadata for advertisement intentioned graphic contents
                    User friendly playlist view with explicative colour scheme
                    As run and system logs for certification

                    Ask for aquote now








                      Subscribe to our newsletter





                        Fields of Interest

                        RadioTVCorporate A/V

                        Giving your consent, you agree to the processing of your data in order to access the service of sending information, advertising material and sales communications by email; purposes and modes of data processing are mentioned in the privacy notice, available here: Privacy Notice

                        I give my consentI do not give my consent

                        Giving your consent, you agree to the processing of your data in order to access the service of: data profiling for analysis and market surveys (marketing); purposes and modes of data processing are mentioned in the privacy notice, available here: Privacy Notice


                        I give my consentI do not give my consent

                        Ask for aquote now








                          Subscribe to our newsletter





                            Fields of Interest

                            RadioTVCorporate A/V

                            Giving your consent, you agree to the processing of your data in order to access the service of sending information, advertising material and sales communications by email; purposes and modes of data processing are mentioned in the privacy notice, available here: Privacy Notice

                            I give my consentI do not give my consent

                            Giving your consent, you agree to the processing of your data in order to access the service of: data profiling for analysis and market surveys (marketing); purposes and modes of data processing are mentioned in the privacy notice, available here: Privacy Notice


                            I give my consentI do not give my consent
