    RAM-COMM Radio

    RAM-COMM Radio

    The Sales Management Software

    for Radio Stations

    RAM-COMM RADIO is a 20+ years developed software supporting all business activities in the MARKETING & SALES department of a Radio Station. Its focus is Revenues!

    The system is open to the contribution of other departments such as MANAGEMENT, ENGINEERING and PROGRAMMING. RAM-COMM is the #1 companion for all managers and professionals involved in the business flow of a Radio station.

    The sales process basically just starts from a client’s order and then ends by collecting the payments for the provided services, however there are many activities to be involved for an excellent and complete operation.

    RAM-COMM RADIO tracks them all:

    • Client/Order Management
    • Agents/Agencies and/or Sales Rep Commissions Management
    • On-Air Traffic/Programming Schedules
    • On-Air Certification
    • Billing and Invoice Generation
    • Sales Analysis

    Technical Features

    RAM-COMM RADIO is a software suitable to a single station or to Radio groups in all their distribution extensions (Radio, TV, Web, etc.); so multiple stations and splits of different advertising areas are fully supported.

    RAM-COMM RADIO manages several users with customized administration of the rights associated to each user.

    RAM-COMM RADIO offers a detailed and powerful setup of parameters, thus achieving the best customization of the Radio Station’s real functionality and specific business operation.

    RAM-COMM RADIO offers an architecture design that manages:

    • Media Import/Export from Agencies
    • Media-Check, to ensure no audio is missing on a Schedule
    • Music Soundtracks for Commercials
    • Automatic Optimization Fill of Splits

    Management Features

    RAM-COMM RADIO is the essential tool for the company’s management to keep the business always under control. It provides the best tools to major necessities such as:

    • Number and Typology of Scheduled Contracts
    • Present and Future Outcomes
    • Expiring Contracts for the Forthcoming Period
    • Contracts/Orders to be Invoiced Next

    RAM-COMM RADIO also supports some crucial management activities:

    • Easy Import/Export to External Accounting Software
    • Bank Receipts Management
    • Track of Any Possible Form of Payment
    • Work with Local VAT Rules

    Traffic/Programming Features

    RAM-COMM RADIO is highly recommended for scheduling purposes because it strongly reduces the time for the Traffic log creation. Save timing practices are available prior and after the schedule has been originated thanking to the traffic architecture and its immediate analysis tools.

    The cluster creation is an amazing capability of RAM-COMM RADIO that gives the user the full control over elements of several formats that should be scheduled in the different and selected moments of an on-air hour. A different clock can be set for all hours as well just one for all hours of the day and of the week. Temporary shifts in the clusters can be easily achieved.

    RAM-COMM RADIO is the best software to manage multi-station and multi-split environments. It has the highest flexibility to accomplish the most detailed orders.

    RAM-COMM RADIO manages every kind of advertising format inside the station’s scheduling process:

    • Commercials of all Durations
    • Radio-Promotions
    • Billboards of Sponsored Programs
    • Live Commercial Announcements
    • Promos

    Thanks to advanced automatic practices by inserting a few data and parameters you will obtain complete schedules with:

    • Automatic Fulfilling of the Clusters
    • Automatic Split Optimization
    • Automatic Rotation
    • Priority Control
    • Subjects Rotation
    • Same Merchandise Category Separation
    • Radio ID’s Management, Prior/Within/After the Clusters
    • Log Exports

    A possible control with manual operation to move items in the grid before or after the schedule process is easy and immediate thanking to a powerful Graphic User Interface.

    Inserts of audio for the scheduled orders are matched by RAM-COMM RADIO with a Recording Studio feature to help administration in keeping suppliers and costs for the Production under control.

    Sales Features

    RAM-COMM RADIO keeps track of who is inserting an order or a contract thanking to the Author feature.

    RAM-COMM RADIO provides commercial flexibility to the Sales Manager’s policies and decisions supporting his/her own on:

    • Special Agreements
    • Discount Codes
    • Free Commercials
    • Sales Zones
    • Sales Origins (new or active client)

    RAM-COMM RADIO also supports the Sales Manager’s analysis needs:

    • Sales Electronic or Printed Reports
    • Sales Statistics by Month, Year or Any Period
    • Orders Analysis
    • Monthly Report by Agent (with or without payments)
    • Business Potential of the Agencies/Representatives
    • Avails Analysis by Single Order/Contract or Client
    • NEW! Microsoft Business Intelligence Interface!

    Ask for aquote now










      Subscribe to our newsletter





        Fields of Interest

        RadioTVCorporate A/V

        Giving your consent, you agree to the processing of your data in order to access the service of sending information, advertising material and sales communications by email; purposes and modes of data processing are mentioned in the privacy notice, available here: Privacy Notice

        I give my consentI do not give my consent

        Giving your consent, you agree to the processing of your data in order to access the service of: data profiling for analysis and market surveys (marketing); purposes and modes of data processing are mentioned in the privacy notice, available here: Privacy Notice

        I give my consentI do not give my consent

        Ask for aquote now










          Subscribe to our newsletter





            Fields of Interest

            RadioTVCorporate A/V

            Giving your consent, you agree to the processing of your data in order to access the service of sending information, advertising material and sales communications by email; purposes and modes of data processing are mentioned in the privacy notice, available here: Privacy Notice

            I give my consentI do not give my consent

            Giving your consent, you agree to the processing of your data in order to access the service of: data profiling for analysis and market surveys (marketing); purposes and modes of data processing are mentioned in the privacy notice, available here: Privacy Notice

            I give my consentI do not give my consent


            Macrotel X1/X2 Multimode

            Premium

            Multimode Telephone Hybrid

            WHAT’S NEW
            IN THE LAST RELEASE

            Macrotel X1 Multimode and Macrotel X2 Multimode can manage one or two POTS (Plain Old Telephone Service) landline, VoIP, BT or GSM (with optional interface) telephone connections.
            Audio enhancement features are custom designed to guarantee the best quality in phone calls, the internal framework based on DSP (Digital Signal Processor) works in real time taking care of the telephone signal process delivering the best possible audio performance. Macrotel X1/X2 Multimode it’s a Telephone Audio Processor able to shape the sound to optimize the yield of every single phone call.

            Macrotel X1/X2 Multimode manages calls from POTS (Plain Old Telephone Service), VoIP, BT or GSM (optional) telephone connections and it embeds a web server and a simple and intuitive GUI accessible from any device and browser. For services synchronisation and logs Macrotel X1/X2 Multimode connects to a NTP server.

            The main XLR input and output connectors can manage analogue or AES/EBU signals according to the device settings (AES/EBU input/output is optional) while a second XLR analogue output is also available. When in BT mode the two outputs act like a stereo balanced output.

            Macrotel X1/X2 Multimode records telephone calls on a USB flash memory plugged in the USB front panel slot. Audio will be recorded in PCM format with a self-explaining filename based on date/time and can include the RX audio only or both RX and TX signals. It is also possible to send an RTP-PCM audio stream to an external PC to record the call, in this case the recording will include the RX audio only or both RX and TX signals.

            Customers using any digital console of the Oxygen series can control Macrotel X1/X2 Multimode through the network, just adding its IP address. In this way there is no need to use a GPIO but you should only connect the Macrotel X1/X2 Multimode to the Oxygen Console through the Telco module.

            A multiple GPIO port allows to manage the device from external equipment, like audio console or PC. System sends “Ring”, “Hold”, “Hook” and “REC” status and manages “Hook”, “Rec”, “Mode” and “Hold” functions. On the front panel an audio meters with 18 LEDs shows the RX and TX audio level of each channel. Additional LEDs show working Mode and Power on. Power supply can be used between 90 and 260 V AC – 47-63 Hz: this allows to use it worldwide.

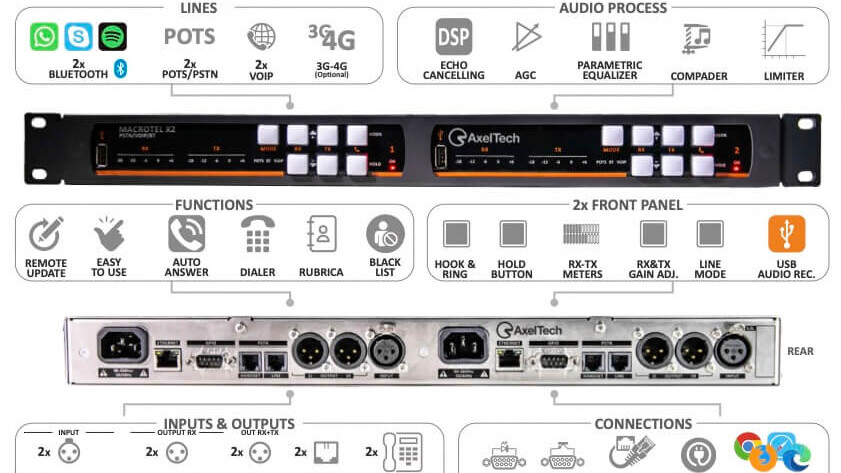

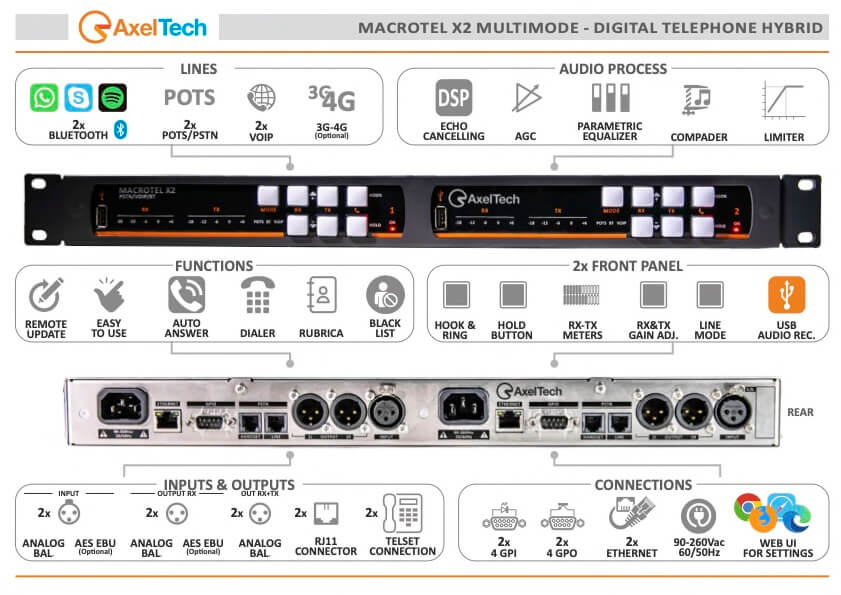

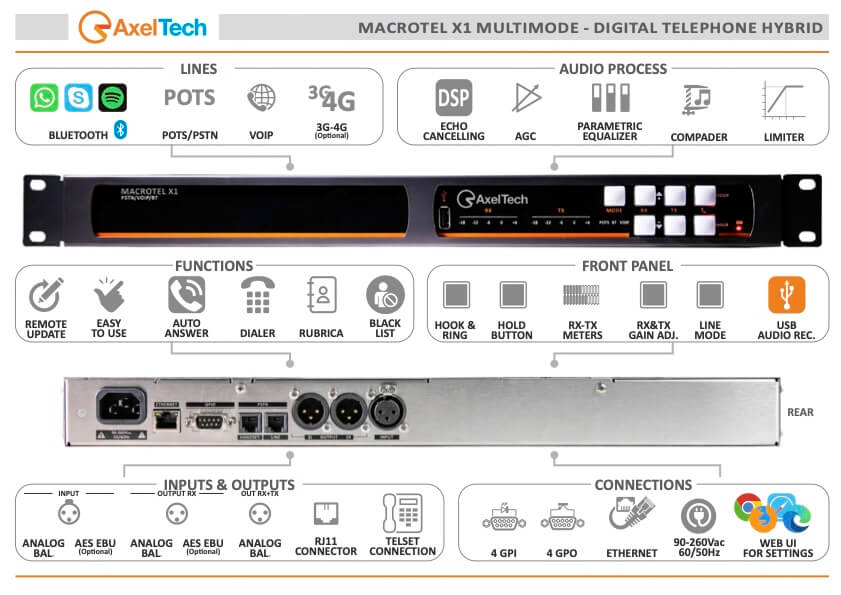

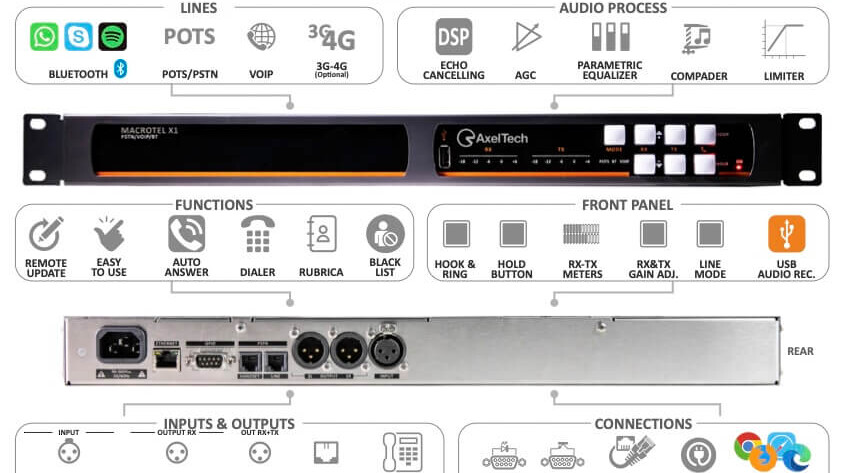

            • Multi-line digital telephone hybrid POTS/GSM/VOIP
            • Automatic gain control (AGC);
            • Digital echo canceller;
            • Hold caller/attenuator;
            • Expander and compressor;
            • Audio limiter;
            • Digital AGC processor with 3 bands fully parametric EQ;
            • Analog and AES/EBU digital inputs and outputs (optional);
            • 1 line and 2 lines models;
            • POTS/PSTN;
            • GSM Quad Band (optional);
            • Integrated web server for remote control;
            • Separate send and receive;
            • LAN and USB ports;
            • Auto-answer and disconnection;
            • Balanced XLR I/O;
            • Remote control software and dialer;
            • Echo cancellation through a digital process on DSP (POTS);
            • Advanced audio processing functions: AGC, parametric EQ, audio filters, compressor, expander and limiter;
            • Internal Web Server allows device configuration;
            • Automatic setup;
            • 1 selectable XLR input: Analogue or AES/EBU (AES/EBU is optional);
            • 1 selectable XLR output: Analogue or AES/EBU (AES/EBU is optional);
            • 1 balanced XLR analogue output;
            • Phone call recording in PCM format on USB support (RX only or RX+TX);
            • Front panel led meters displaying RX/TX levels;
            • Audio stream generation in RTP/PCM format (RX only or RX+TX);
            • Front panel LED: Gain RX, Gain TX, Mode;
            • “Hook” and “Hold line” lighted buttons;
            • 4 GPI interfaces, 4 GPO interfaces;
            • Integrated Caller Identifier (CID) – only for VOIP;
            • Input and output call logs;
            • G711-G722 VOIP audio codecs:
            • Local telephone output (POTS).

            GENERAL FUNCTIONS

            Macrotel X1/X2 Multimode parameters can be configured through a web interface and its web user friendly GUI is available from any kind of device: PC, notebook, tablet, smartphone.

            Macrotel X1/X2 Multimode supports TCP/IP standards such as HTTP for web GUI and UDP for streaming. Connection to external NTP server (Internal RTC with buffer) for time synch and ethernet/GPIO connection are available. Macrotel X1/X2 Multimode has stainless steel enclosure and a front panel with 22 levels and status LEDs. Power supply: 90-260V AC 47-63 Hz – 10 W (green approach).

            POTS MODULE

            Macrotel X1/X2 Multimode embeds standard RJ11 sockets for connecting to the telephone line and to an external telephone set. Internal DIAL system via DTMF for direct call is also available (so the external telephone set is not mandatory). It is possible to export logs phone numbers of incoming and outgoing calls and save them on a USB key (date, call time start, call time end). It is possible to set the automatic telephone line hooking after a settable number of rings and automatic telephone line release based on the “dropped line” tone (this feature can be disabled). Among the many customizable parameters Macrotel X1/X2 Multimode also has adjustable AGCcompressor/limiter and equalizer parameters and adjustable telephone band (with low or hi-cut).

            BT MODULE

            Macrotel X1/X2 Multimode has a fully certified BT version 3.0 audio module, compatible with BT version 2.1+EDR, 1.2 and 1.1. SIP version 2.0 (RFC 3261) is also on, together with adjustable AGC, compressor/limiter and equalizer parameters.

            Embedded BT stack profiles: A2DP and HFP/HSP. Supports iAP profile discovery for iPhone® and iPod® BT accessories G.711u. Dual-channels differential audio input and output for highest quality audio. Certifications: FCC, IC, CE.

            VoIP MODULE

            The VoIP is available through a standard network RJ45 connector. Macrotel X1/X2 Multimode embeds SIP version 2.0 (RFC 3261). Authentication methods: SIP/IAX Dynamic Registration (Register) and SIP Static IP authentication. Supported audio codecs: G.711u (PCM u) | G.711a (PCM a) | G.722 | G.722.1 24/32. Automatic telephone line hooking (after a settable number of rings) and automatic telephone line release based on the “dropped line” tone (this feature can be disabled). Logs of phone numbers of incoming and outgoing calls (date, call time start, call time end) are available and can get exported, as all the other logs, on USB key. Adjustable AGCcompressor/limiter and equalizer parameters are on as well as for the others connections mode.

            Please note that supported PBXs and phone service providers require interoperability with established VoIP providers. Such services are delivered via either a SIP-based IP PBX or through a cloud-based telephone service provider. These are complex  services, therefore sometimes configuring AxelTech products to interact with them can be difficult or not possible.

            AxelTech constantly updates its products to reach compatibility with these services, nevertheless incompatibilities are still possible and any change or update made by the service providers or by the PBXs themselves can cause problems with Macrotel X1/X2 Multimode in VoIP mode.

            Here below you can find the list of the PBXs and VoIP service providers that have been used successfully by our customers with our products: these services are not fully compatible 100% of the time, as one update can interfere with the compatibility and of course we cannot guarantee to test them. We would suggest to customers who are considering using Macrotel X1/X2 Multimode with services other than those listed below, to contact our technical support team before purchasing this service.

            We will allow the customer to return the AxelTech product and obtain a refund if the device is not compatible with the service he has selected. The following services are currently reported as compatible with AxelTech Products: Supported PBXs: Asterix Supported VoIP Providers: Olimon Tel.

            DIGITAL

            • Digital audio AES/EBU input/Output

            GENERAL
            Power supply:90-260 V AC / 47-63 Hz
            Power consumption:10 W
            Dimensions WxHxD:483 x 44,5 x 140 mm (1 rack unit 19”)
            Weight:< 2Kg

            ANALOG AUDIO INPUT
            Connectors:Balanced on XLR – EMI Suppression
            Input impedance:50 KΩ
            Nominal Input Level (sensitivity):Adjustable via software: -9 dBu  +15,0 dBu
            Level range:–20,0 dBu  + 20,0 dBu
            Input level max.:
            +20,0 dBu
            CMRR input: >60 dB (20 Hz  20 kHz)

            DIGITAL AUDIO INPUT (OPTIONAL)
            Connectors:Balanced on XLR – EMI Suppression
            Input impedance:110 KΩ
            Format:AES3/EBU & SPDIF
            Sample rate:32, 44.1, 48, 64, 88.2, 96 KHz
            Nominal Input Level (sensitivity):

            From 0,0 dBFs to –24dBFs (0,1dB step)
            Level range:
            0,0 dBFs  -36dBFs

            ANALOG AUDIO OUTPUT
            Connectors:Balanced on XLR – EMI Suppression
            Output impedance:47 KΩ
            Output level:Adjustable via software: -9dBu  +15,0 dBu
            Level range:–20,0dBu  + 20,0dBu
            Output level max.:+ 20,0dBu
            CMRR output:>60dB (20Hz  20kHz)

            DIGITAL AUDIO OUTPUT (OPTIONAL)
            Connectors:Balanced on XLR – EMI Suppression
            Input impedance:110 KΩ
            Format:AES3/EBU
            Sample rate:32, 44.1, 48, 64, 88.2, 96 KHz
            Nominal Input Level (sensitivity):

            From 0,0 dBFs to –24dBFs
            Level range:
            0,0 dBFs  -36dBFs

            POTS INTERFACE
            Connectors:2x RJ11 Line and Telephone set
            Output impedance:Selectable
            Bandwidth telephone line170Hz - 4.6kHz
            Echo canceller suppression:> 40dB

            VOIP INTERFACE
            Protocol:SIP Version 2.0 - RFC 3261
            Codec Audio Compatibility:G.711u (PCM u), G.711a (PCM a), G.722, G.722.1 24/32
            Authentication Methods:SIP/IAX Dynamic Registration (Register) SIP Static IP authentication

            BT INTERFACE
            Compatibility:Fully certified BT version 3.0 audio module, Fully compatible with BT version 2.1+EDR Compatible with 1.2 and 1.1
            Connection mode:Embedded BT stack profiles: A2DP and HFP/HSP
            IOS:Supports iAP profile discovery for iPhone® and iPod® BT accessories G.711u (PCM u)

            GENERAL
            GPIO Inputs/Outputs:4 GPI 4 GPO
            Communication Port:1xLAN
            Front Panel LEDs:18+4+2
            USB:Type A
            Operating Temperature:0°C ÷ 50°C

            COMMUNICATION
            Configuration Software:Web Server
            Password Protection:Yes
            UDP, TCP, HTTP, SNTP.Yes
            Supported Network Protocols:HTTP, UDP, TCP, NTP,











              RAM-COMM TV

              Ram-Comm TV

              The Complete Traffic &

              Business Software for Tv Stations

              RAM-COMM TV is a multi-station and multi-user software that manages all business processes of the Marketing & Sales department, from customer contact to invoicing and billing by Management/Administration.

              RAM-COMM TV is able to manage several users, with full administration control of the different rights associated to each single user; the software is also suitable to small stations as well as large publishing groups; multiple channels and advertising areas, the so called “splits”, are active.

              RAM-COMM TV offers special features to allow the best focus on customers’ contact information, on media Import/Export from agencies; same voice separation on spots and business and sales accurate reporting are on; the software also handles sales reps’ commissions and sales accounts, business contracts and invoicing/billing.

              Main Features

              Multi-user architecture with rights management

              Complete customer and contract management
              Automatic invoice generation
              Advertising scheduling: duration, rotation, priority, category conflict management

              Advertising splitting according to areas/territories
              Agents and areas management
              Commercial reports and statistics for customer and board

              Advertising certification

              RAM-COMM TV has a very effective built-in and multi-purpose scheduler developed thanking to AxelTech programming experience in order to create the best possible log of Radio for any sort of advertising on-air element or segment:

              • Spots
              • Billboards/Sponsorships
              • Commercial Announcements
              • Promos
              • And more…

              The software is strongly recommended in the scheduling process as it saves time for the advertising log creation.



              Thanks to advanced automatic practices RAM-COMM RADIO provides a complete planning with crucial controls:

              • Automatic fill of the hour selected points/clusters
              • Automatic rotation
              • Priority control
              • Subject rotation
              • Automatic managing of the “tails”
              • Product conflicts
              • Pre and post spot insertion
              • Manual Edit

              Another advanced feature of RAM-COMM RADIO is the automatic fill of the split-zone clusters; this is achieved using

              • Premium spots
              • Stand-by spots
              • Promos
              • Audio fillers selected by duration

              RAM-COMM is the essential tool for the company’s management to keep the business always under control.



              Due to the vast availability of its specific electronic and printed reports and statistics, RAM-COMM TV is the best tool to manage and to optimize the business of your company; it provides a clear, updated and objective outlook in order to allow the sales manager to take all the most effective commercial initiatives and policy decisions.

              It provides the best tools to major reports such as:

              • Number and typology of scheduled contracts
              • Present and future outcomes
              • Expiring contracts for the forthcoming period
              • Business potential of the representatives
              • Agent areas and management
              • Contracts to be invoiced next month
              • And many more..

              Ask for aquote now










                Subscribe to our newsletter





                  Fields of Interest

                  RadioTVCorporate A/V

                  Giving your consent, you agree to the processing of your data in order to access the service of sending information, advertising material and sales communications by email; purposes and modes of data processing are mentioned in the privacy notice, available here: Privacy Notice

                  I give my consentI do not give my consent

                  Giving your consent, you agree to the processing of your data in order to access the service of: data profiling for analysis and market surveys (marketing); purposes and modes of data processing are mentioned in the privacy notice, available here: Privacy Notice

                  I give my consentI do not give my consent

                  Ask for aquote now










                    Subscribe to our newsletter





                      Fields of Interest

                      RadioTVCorporate A/V

                      Giving your consent, you agree to the processing of your data in order to access the service of sending information, advertising material and sales communications by email; purposes and modes of data processing are mentioned in the privacy notice, available here: Privacy Notice

                      I give my consentI do not give my consent

                      Giving your consent, you agree to the processing of your data in order to access the service of: data profiling for analysis and market surveys (marketing); purposes and modes of data processing are mentioned in the privacy notice, available here: Privacy Notice

                      I give my consentI do not give my consent


                      DML

                      DML Video

                      DML Video

                      Digital Media Logger

                      Media logging is the process of capturing audio and video, usually in low quality format, and preserving the recordings for a large number of days, usually 2 or 3 months. In most countries media logging is obligatory by law for all TV broadcasters , but it can also be used for advertisement certification, audio/video quality surveillance, competition monitoring and media rebroadcasting.

                      DML Video

                      Main Specs

                      Archive any logging period 30, 60, 90, 180, 365 days
                      Single channel and multiple channels configuration
                      Compatible with WDM Tuner cards, DVB-T, DVB-S/S2, DVB-C, ATSC, analog TV
                      Compatible with BMD Decklink and Intensity
                      Ip input in UDP, RTP, RTSP, RTMP, HTTP
                      Capture resolutions CIF, SD and HD
                      Input rescale and crop with aspect ratio correction
                      Audio delay for AV sync shifting
                      Continuous 7x24 recording without any frame loss between file segments
                      Formats AVI (DivX), ASF (Windows media), MPEG1, MPEG2, MP4 (H264 and AAC), FLV
                      Customizable video and audio bitrates and advanced parameters
                      Customizable segmentation per file duration (typically 60 min), file size or at midnight
                      Automatic delete of oldest files when disk space is low
                      Virtual source creation for use with 3rd party sw (encoders, etc)
                      Ip streaming in WMV and RTMP (FMLE)
                      CG overlay with antialiased text for name of channel, date and time
                      Logo overlay for watermarking
                      Volume adjustment with compressor and AGC
                      Alarm notification via E-mail and SMS for black video, freeze, no audio, archive length, etc.
                      Accurate statistics on capture process and datarates
                      Accurate GPS (receiver optional) Date and Time synchronization
                      Data security featuring RAID architecture or software mirror, content is preserved in case of disk failure
                      Remote system monitoring from any LAN or Internet connected Pc.
                      Easy content export/conversion with Mark-In and Out points. Flexible transcoding to most of video formats
                      Multiple language GUI

                      Main Specs

                      DML Video Recorder:
                      Non Stop A/V Logging
                      and IP Streaming

                      DML records A/V contents coming from the widest variety of sources (composite, Y/C, SDI, HDMI, Antenna, SAT, DVBT, DVBC, ATSC, IP, etc) and stores them on Hard Disk (recordings stay on line depending on hard disks capacity, usually: 30/60/90 days as required by laws in many countries).
                      DML system is totally maintenance free and oldest recordings are overwritten by the newest ones automatically. Video compression/quality vary according to the archive space and the logging period chosen. Recording quality may be as high as HD BROADCAST quality. Content is accessible from the DML as well from any networked computer, never stopping the recording.
                      System status is constantly monitored either locally, thanks to
                      DML-embedded tools, as well as from any networked computer running the DML Monitor free software.
                      Whenever rising, alarms may be notified via email or SMS.
                      DML Recorder supports a large variety of video formats, compressions and resolutions, from the efficient DIVX and MP4 in H264 and AAC, to the more traditional MPEG-1, MPEG-2. DML files are standard multimedia files, which can also be played on any ordinary multimedia player.
                      Simultaneous capture and Windows Media or RTMP Flash streaming allows viewing of encoded A/V signal from anywhere through Internet. Date and time display are superimposed onto video signal or embedded into the A/V data stream. Accurate date and time certification is guaranteed through synchronization to GPS satellites time reference with AxelTech’s Sat Time Synchronizer receiver.
                      DML Recorder status is constantly monitored by auto-diagnostic tools. In case of alarms, the operator is warned via email or SMS.
                      Monitored parameters: Disk activity / video presence / video freeze / audio presence / instant data-rate / average data-rate / A/V stream integrity. DML architecture is future-proof and conceived for the easiest integration of any new video format.
                      With the free DML Player software, content can be easily edited and downloaded on external media and converted to the most popular video formats.

                      DML Player:
                      content searching,
                      browsing and conversion

                      DML Player is a free software application for real time content browsing from any networked Pc. Exclusive simultaneous multi-channel playback allows accurate audio temporal comparison. The calendar window shows the available recordings. Just ‘click’ on desired date and time to start playout. Play speed is variable from 0.5x to 16x. Go To date / time function allows direct playback to specific recorded events. Capability to jump to specific date and time using generic automation Log files.
                      Mark-in & Mark-out tools along with additional basic editing tools allow extraction of audio segments.
                      Fast export or conversion in native or popular formats to fit all distribution and storage needs.
                      Mark point positioning is frame-accurate using handy scroll & drag bars, along with keyboard shortcuts.

                      DML Monitor:
                      remote monitoring via web

                      DML Monitor is a free software tool which allows monitoring in real time through LAN and Internet of one or more DML units. System and recording supervision will be available from anywhere. DML Monitor displays current video frame for each recorder, together with status info, systems logs, streaming audio and the upcoming of alarms or parameters out of range.

                      DML Web Viewer:
                      content searching and browsing via web

                      DML Web Viewer is a free server application for real time viewing from any Internet browser and works on windows, linux, mac or any handheld device. The calendar widget shows the available recordings. Just ‘click’ on desired date and time to start listening.  Configuring main router ports allows viewing from internet from any remote location.

                      Lot of options

                      DML Copy

                      DML Copy is an optional software which copies files from multiple DML recorder units to centralized storage systems. In multiple channel systems it is advised to deplay a central storage unit with RAID 5 or 6 redundancy rather then on the single capture units. DML Copy will provide a “slow” and controlled copy service to avoid saturating LAN bandwidth.

                      DML Supervisor

                      Supervisor is an optional software which monitors multiple unit status and connected devices, managing hierarchical alarm levels and notification via email, SMS, fax, etc. Suggested for multichannel environments.
                      Featuring automatic system recover and emergency intervention (such as spare units activation, audio routing, remote control of audio matrix, asynchronous serial communication and GPI, etc.)

                      XMAM

                      XMAM is an optional archiving and catalogue system which provides fast and simple integration with DML allowing perpetual archiving of selected media.  XMAM is a Web-based, user focused interface that supports access and processing of digital assets like video, audio, images, documents and presentations. XMAM supports standard web browser navigation without additional client software needed.

                      Sat Time Synchronizer

                      STS is the optional antenna receiver and software which allows an extremely accurate synchronization of Pc clock to GPS satellite reference. Recomended for tamper-proof date / time certification.

                      Complete Multiple channel full Turnkey solutions

                      AxelTech can provide multiple channels turnkey systems with DML capture units, file servers with redundant storage, LAN infrastructure, KVM switches, completely precabled and configured in AxelTech’s laboratories. Monitoring and editing desks are customized according to customer needs allowing coroporate and government organizations to take advantage of a fail proof solution. Local installation, training, baby sitting and after sales support is provided directly by AxelTech.

                      Minimum system requirements

                      System requirements may vary on number of captured channels and video quality.
                      Intel i-7
                      8 GB RAM
                      Win 10
                      Separate disk partition for each channel
                      1 TB per 1 channel 90 days 1 Mb/s

                      Main Specs

                      Ask for aquote now










                        Subscribe to our newsletter





                          Fields of Interest

                          RadioTVCorporate A/V

                          Giving your consent, you agree to the processing of your data in order to access the service of sending information, advertising material and sales communications by email; purposes and modes of data processing are mentioned in the privacy notice, available here: Privacy Notice

                          I give my consentI do not give my consent

                          Giving your consent, you agree to the processing of your data in order to access the service of: data profiling for analysis and market surveys (marketing); purposes and modes of data processing are mentioned in the privacy notice, available here: Privacy Notice

                          I give my consentI do not give my consent

                          Ask for aquote now










                            Subscribe to our newsletter





                              Fields of Interest

                              RadioTVCorporate A/V

                              Giving your consent, you agree to the processing of your data in order to access the service of sending information, advertising material and sales communications by email; purposes and modes of data processing are mentioned in the privacy notice, available here: Privacy Notice

                              I give my consentI do not give my consent

                              Giving your consent, you agree to the processing of your data in order to access the service of: data profiling for analysis and market surveys (marketing); purposes and modes of data processing are mentioned in the privacy notice, available here: Privacy Notice

                              I give my consentI do not give my consent


                              FM distribution Network Control & Monitoring 2 MS AxelTech

                              Wolf 1MS - 2MS

                              Wolf 1MS & Wolf 2MS
                              FM Radio Monitoring

                              Everything under control

                              Wolf 2MS and 1MS are state-of-the-art FM Radio Monitoring devices, designed to control the signal presence and quality over an FM Distribution Network.
                              Onboard twin tuners allow to accurately scan frequencies, they offer high performances in FM reception, MPX audio encoding and RDS data streaming. This cutting-edge equipment features three main operating modes: continuously reception, bandscan and smart bandscan.
                              With FM static mode the user can focus on a single channel, selected and monitored exclusively. Thanks to the scan mode up to 32 channels for each tuner can be scanned and supervised in a single analysis. FM static mode also receives up to 64 memories. Wolf 1MS and 2MS allow to manage accurately RF, MPX, RDS, Audio and RDS data dynamic services. In smart mode the channel scan time is adjusted automatically according to instantaneous measurements requirements.
                              Wolf 1MS and 2MS are the ideal Probes for a Network Management System.
                              All data and information captured during the FM Monitoring can be collected by a Control Room and used to analyse the FM Network performances in real-time or in the past.

                              Models

                              For simple configurations that do not require NMS software, Wolf can send via email a daily report of the 24 hours events. Wolf provides a database sheet to manage these information. The two built-in audio streamers are the essential feature of Wolf 2MS (Wolf 1 MS has 1 built in audio streamer). Audio channels can be streamed to a remote logging system that records both, audio and data, coming from the transmitter site. It is also possible to send audio stream to a remote player for audio-on-demand purposes. Users can listen to each single FM tuner and streamed audio anywhere, using all Internet browsers.
                              Two onboard network interfaces provide maximum flexibility in streaming and connectivity processes. From PCs, tablets and smartphones broadcasters can completely control Wolf and have full access to all data and alarms. When an alarm is trigged, NMS system sends notifications via SMS or email or takes an action to manage any possible issue.
                              External input sources are available: analog Left + Right and digital AES/EBU inputs. Users can connect audio to the controlled external input sources. These audio inputs are constantly monitored: silence detection, and audio presence. Tests, performed also by end users, have shown that Wolf circuits are extremely safe and completely free from any kind of radiofrequency interference.

                              Wolf 1MS

                              FM distribution Network Control & Monitoring Wolf MS1 AxelTech

                              Wolf 2MS

                              FM distribution Network Control & Monitoring Wolf 2MS AxelTech
                              FM distribution Network Control & Monitoring Wolf 2MS AxelTech

                              Highlights

                              FM distribution Network Control & Monitoring Wolf 2MS AxelTech

                              General

                              • Real time measurements for FM networks, fully digital
                              • Wolf 1 MS: single FM Tuner and single audio over-IP streaming for monitoring
                              • Wolf 2MS: double FM tuner and double audio over-IP streaming for monitoring
                              • More than 30 alarms for any frequency received (Wolf 2MS 64. Wolf 1 MS 32)
                              • Fully independent time, Thr, Hysteresis, for any frequency parameter
                              • Configurable bandscan for each FM tuner
                              • Embedded web server for worldwide consultation
                              • Analysis modulers: RF, MPX, audio and RDS
                              • RDS decoder with group sequence decoding for each tuner
                              • SNMP and HTTP web interface and FTP supported
                              • Double ethernet ports and double USB interfaces
                              • Front LCD display
                              • Front panel headphone output
                              • Analog auxiliary input and AES/EBU
                              • Main Supply 90--260Vac 50/60Hz. 25W
                              • Graphic display
                              • Form factor: 1RU 19” - Inox steel
                              • High immunity to strong RF fields, designed to be installed in high power TX sites
                              • Fully programmable by a simple and intuitive Web GUI interface
                              • Headphones output with level control
                              FM distribution Network Control & Monitoring Wolf AxelTech

                              Monitoring Parameters

                              • RF parameters:
                              • RF level, Carrier offset, Multipath, Adjacent carriers level (+/- 100kHz), Alternative carriers level (+/- 200kHz)
                              • Deviation parameters
                              • MPX level, Audio level, Pilot level and RDS level
                              • Audio parameters
                              • Inbalance L/R, Mono, Peak left, Peak right, RMS left, RMS right, MPX power
                              • RDS parameters
                              • PI, PS, BLER, CT, TP, TA, M/S, DI, PIN & PTY (Day/Hour/Min/PTY), FILTERS, GROUPS, RT, AF, EON, IF, TMC (AID/Group/Data), RT+(AID/Group/Data), ODA-1(AID/Group/Data), ODA-2(AID/Group/Data), LA, EG, ILS, LSN, SLC0-SCL7
                              • 64 list of 25 frequencies always decoded
                              • 10 EON for each frequency received with PI, PS, PIN (date, hour, minute) PTY, TP, TA, LA EG, ILS, LSN, AF
                              • Received groups stats 0A-15A, 0B-15B
                              • RDS Stream with groups filters with download function

                              Communications & Management

                              • Ethernet/USB/RS232/GPIO connections
                              • SNMP V2c
                              • NTP Address for Time and Date synchronization
                              • 1 RS232 for RDS UECP data streaming
                              • 4 GPI and 4 Relay (DB 15p F HD)
                              • 2 USB A-Type
                              • HTTP, FTP, SNMP, SMTP, UDP, TCP support
                              • Alarms via: TRAP (SNMP), email(SMTP), GPO, HTTP
                              • uSD Card for clone function, for maintenance and easy replace of a faulty unit
                              • Import and export configurations function
                              • Logs 24/7 with export functions
                              • Right access management
                              • Easy configuration page setup with info connection diagrams
                              • Multi-user contemporary acces

                              Inputs & Outputs Audio

                              • Balanced analog input on XLR
                              • Balanced analog output on XLR
                              • Balanced digital AESEBU input on XLR
                              • Balanced digital AESEBU output on XLR

                              Alarms & Parameters

                              • Silence detector on analog input
                              • Silence detector on digital input
                              • 4 alarm on RF level with 4 Thr (RFL2, RFL1, RFH1, RFH2).
                              • Deviation level (Thr, Hysteresis, Validation Time and Hold Time, Mask, Label, Email and Trap enable)
                              • Pilot low level (Thr, Hysteresis, Validation Time and Hold Time, Mask, Label, Email and Trap enable)
                              • Pilot window (Thr Min, Thr Max, Hysteresis, Validation Time and Hold Time, Mask, Label, Email and Trap enable)
                              • RDS low level (Thr, Hysteresis, Validation Time and Hold Time, Mask, Label, Email and Trap enable)
                              • RDS window (Thr Min, Thr Max, Hysteresis, Validation Time and Hold Time, Mask, Label, Email and Trap enable)
                              • Audio deviation silence (Silence Thr, Validation Time and Hold Time, Mask, Label, Email and Trap enable)
                              • Audio left deviation silence (Silence Thr, Validation Time and Hold Time, Mask, Label, Email and Trap enable)
                              • Audio right deviation silence (Silence Thr, Validation Time and Hold Time, Mask, Label, Email and Trap enable)
                              • Audio mono level (Thr, Validation Time and Hold Time, Mask, Label, Email and Trap enable)
                              • Audio stereo in-balance level (Avg, Thr, Validation Time and Hold Time, Mask, Label, Email and Trap enable)
                              • RDS-PI (PI-1, PI-2, PI-3, Validation Time and Hold Time, Mask, Label, Email and Trap enable)
                              • RDS-PS (PS-1, PS-2, PS-3, PS-4, Wild Char, Validation Time and Hold Time, Mask, Label, Email and Trap enable)
                              • RDS-TP (Ref, Validation Time and Hold Time, Mask, Label, Email and Trap enable)
                              • RDS-TA (MaxOnTimeout, NoVarTimeout, Mask, Label, Email and Trap enable)
                              • RDS-CT (Timeout, Max Offset, Mask, Label, Email and Trap enable)
                              • RDS-RT (Timeout, Hold Time, Mask, Label, Email and Trap enable)
                              • RDS-AF (Validation Time, Hold Time, Mask, Label, Email and Trap enable)
                              • RDS-EON (Validation Time, Hold Time, Mask, Label, Email and Trap enable)
                              • RDS-IH (Data Timeout, Group Timeout, Hold Timeout, Mask, Label, Email and Trap enable)
                              • RDS-TMC (Reg. Timeout, Data Timeout, Hold Timeout, Mask, Label, Email and Trap enable)
                              • RDS-RT+ (Reg. Timeout, Data Timeout, Hold Timeout, Mask, Label, Email and Trap enable)
                              • RDS-ODA-1 (AID, Reg. Timeout, Data Timeout, Hold Timeout, Mask, Label, Email and Trap enable)
                              • RDS-ODA-2 (AID, Reg. Timeout, Data Timeout, Hold Timeout, Mask, Label, Email and Trap enable)
                              • RDS-BLER (Max, Hysteresis, Validation Time, Hold Time, Mask, Label, Email and Trap enable)
                              • RDS-GROUPS (Group mask, Timeout, Validation Time, Hold Time, Mask, Label, Email and Trap enable)
                              • RDS Filters (Block-1 Mask Ref., Block-2 Mask Ref., Block-3 Mask Ref., Block-4 Mask Ref., Timeout, Validation Time, Hold Time, Mask, Label, Email and Trap enable)
                              FM distribution Network Control & Monitoring Wolf AxelTech

                              Block Diagram

                              FM distribution Network Control & Monitoring Wolf AxelTech
                              FM distribution Network Control & Monitoring Wolf AxelTech

                              Wolf 1MS and Wolf 2MS are FM monitoring systems designed for FM Off Air signal monitoring purpose. Wolf 1MS is provided with one high quality FM tuner, while Wolf 2MS allows the broadcaster to receive up to two frequencies thanks to an internal double tuner. Tuners are independent and they can operate in three ways: Continuous reception, Bandscan and SmartScan.

                              Internal tuner ensures high performances in FM reception, RF and MPX audio analysis and RDS data stream output. The monitoring made on FM channels can be a basic RF analysis or an advanced RF, MPX and AUDIO measurement.

                              • Continuous reception: a single carrier is selected and monitored;
                              • Bandscan mode: 32 FM Channels can be scanned and monitored in Wolf 1MS and 64 FM Channels can be scanned and monitored in Wolf 2MS. The bandscan time is also user definable, in a range from 1 second up to 10 seconds for each channel;
                              • SmartScan mode allows a smart and variable scan time that is adjusted automatically to fit the instantaneous measurement requirements. Thanks to this feature it is possible to avoid false-positive rising errors.

                              Special Features

                              During continuous reception mode, each single tuner checks and completely decodes the multiplexed signal:
                              Mono level, Pilot level, Audio and RDS levels are measured and they are always under control. All datas, captured during FM Channel monitoring, can be sent to a Network Management System (such as AxelTech’s Ranger) or they can be shown in a common password protected web page. Communication between Wolf and Ranger NMS is SNMP v2C protocol. For all single parameters under monitoring, a threshold can be set. If one or more values go out of range, alarms are delivered.

                              FM distribution Network Control & Monitoring Wolf AxelTech

                              Once the RF signal is received, audio should be streamed from the transmitter site back to a remote logging system. The streamer input allows to do an internal selection between all inputs available: Tuners, External Analog In, External AES/EBU In.

                              Wolf 1MS and Wolf 2MS are completed with an “External Input” source: analog Left + Right input and Digital Left + Right in AES/EBU format. This audio input is continuously monitored: silence detection (Threshold/time and level), left and right presence, peak left, peak right. Rear-panel audio output always presents the audio decoded from Tuner-1 or Tuner-2 and this setting is user definable, while audio is available on analog or AES/EBU format.

                              Wolf 1MS and Wolf 2MS provide a large variety of connection: double Ethernet port, USB and front panel headphone output, 4x GPIn opto coupled and 4x GPOut over relays. Rs232 serial port for RDS-UECP bridging and rebroadcasting purposes, and rear panel placed SD card to store or recall the complete equipment configuration.

                              RF antenna inputs are over BNC connectors, a XLR balanced stereo analog input and output, AES/EBU input and output. OS and datas are loaded and stored over solid state memory as SD and flash RAM. Universal switching power supply, 1 rack unit space in fan-less configuration, allows to operate worldwide.

                              Measures

                              FieldType of measureDescriptionU.M.
                              RF4x RF Level lower thresholdMeasure, alarm via email/trap SNMPdBµV
                              2x Adjacent channel L1 thresholdMeasure, alarm via email/trap SNMP
                              Alternative channel - WorseMeasuredBr
                              Carrier precisionMeasureppm
                              Multi pathMeasure%
                              MPXDeviation maxMeasure, alarm via email/trap SNMPkHz/dBr
                              2x Pilot lower level - 2 threshold levelMeasure, alarm via email/trap SNMP
                              MPX power – ITU-R BS.412Measure, alarm via email/trap SNMP
                              RDS LevelRDS level lower thresholdMeasure, alarm via email/trap SNMP
                              RDS level higher thresholdMeasure, alarm via email/trap SNMP
                              AudioPeak left - Peak right thresholdMeasure, alarm via email/trap SNMPdBr
                              RMS left - RMS right thresholdMeasure, alarm via email/trap SNMP
                              Audio imbalance – L/R delta thresholdMeasure, alarm via email/trap SNMP
                              Mono silence – L+R thresholdMeasure, alarm via email/trap SNMP
                              Audio MPX deviation thresholdMeasure, alarm via email/trap SNMPkHz
                              Audio MPX Silence detection thresholdMeasure, alarm via email/trap SNMP
                              s
                              Audio left – Right silence det. thresholdMeasure, alarm via email/trap SNMP
                              RDS DataAF - Complete decoding + Visualization
                              PS – 4 PS matching reference
                              PI – 3 PI Code matching reference
                              CT – Time offset
                              DI – Decoder information
                              PTY – Program type
                              TP/TA – timeout TA
                              M/S – Music speech
                              BLER – Block error rate
                              TMC – AID – Group – Data
                              EON Enhance other channel
                              RT – RT+ data decoding
                              LA – EG – ILS – LSN-PIN
                              ODA TMC
                              ODA RT+
                              ODA - 1 ODA - 2
                              SLC0 - SLC1 - SLC2 - SLC3 - SLC4 - SLC5 - SLC6 - SLC7
                              RDS Data decoding group, visualization and storage. Alarm generation in case of error, can be shown in a common web page or delivered via email.

                              Interfacing with up to 4 NMS allows equipment to deliver traps using SNMP protocol.









                              Technical Specifications

                              PARAMETERSDESCRIPTION
                              Main Power100 Vac - 240 Vac 50/60 Hz internal, universal power supply
                              Power consumption25 W
                              Power connectorIEC plug filter with internal fuse 2.0 AT
                              HeadphonesStereo Jack 6.3 mm
                              Safety and EMCCompliant to CE laws
                              Working temperature0° to 50° C (storage -5 to + 50 °C)
                              Housing dimensions19 inch x 1u x 240 mm (depth)
                              Weight3.5 kg
                              RF TUNERS
                              Tuner frequency87.5 MHz ‐ 108.0 MHz
                              Tuner step10 kHz
                              RF tuning stability+/- 500 Hz
                              RF input sensitivity20 to 120 dBµV
                              RF input nominal level80 to 100 dBµV
                              RF inputs main2x BNC, with 50 Ohm unbalanced
                              Max frequency deviation125 kHz
                              IF filter bandwidth34 kHz to 138 kHz – Manual or automatic
                              Input RF level30 dBµV – 120 dBµV with internal attenuator
                              Bandscan carrier number32 channels
                              Bandscan timeStatic Mode, Scan 2s to 20s and Smart Mode*
                              Selectivity at ± 120 kHz> -3 dB
                              Selectivity at ± 200 kHz> -40 dB
                              Selectivity at ± 300 kHz>- 50 dB
                              Selectivity at ± 400 kHz>-65 dB
                              Image rejection @ 22.5 kHz70 dB
                              Adjacent channel rejection63 - 65 dB
                              Alternate channel rejection65 - 72 dB
                              THD @ dev=75 kHz0.05 – 0.1 %
                              Mono (S+N)/N75 dB typ – 68 dB min (No A-Weighting 30 Hz – 15 kHz)
                              STEREO DECODERS
                              Stereo (S+N)/N
                              61 dB Stereo/61 dB mono @ 40 dBµV
                              65 dB Stereo @ 50 dBµV
                              80 dB Stereo @ 70 dBµV
                              Pilot 19kHz suppression55 dB (Stereo modulation L = 1, R = 0,Deviation=67.5 kHz, Pilot deviation=6.75 kHz)
                              Stereo THD + NMeasures @ 70 dBuV with 75 kHz deviation
                              100 Hz - 0.055 %
                              1 kHz - 0.061 %
                              5 kHz - 0.19 %
                              10 kHz - 0.46 %
                              Stereo separation45 dB (Stereo modulation L = 1, R = 0,Deviation=67.5 kHz, Pilot deviation=6.75 kHz)

                              48 dB @ 400 Hz
                              48 dB @ 1 kHz
                              48 dB @ 5 kHz
                              38 dB @ 10 kHz
                              38 dB @ 14.7 kHz
                              RDS DECODER
                              RDS sensitivity20 dBµV (dev f = 2 kHz, RDS BLER < 5%)
                              RDS synchronization time80 ms (dev f = 2 kHz RF input = 60 dBµV)
                              RDS PI lock time100 ms (dev f = 2 kHz RF input = 60 dBµV)
                              RDS data decoding and streamingRDS level indication and deviation (voltage, kHz and dBr)
                              RDS data decoding servicesPS, PI, M/S, DI, TP, TA, AF, AF List Presence A/B Method, Scrolling PS, AF EON, Radio Text, Radio Text Plus, CT, PTY, PIN, IH, TMC, EWS, TDC. ODA generic services. RDS error detection with three shold adjustable
                              RF MEASUREMENT MODULERanges – Resolution - Precision
                              RF Level0 – 80 dBµV (resolution 1 dBµV, precision 2 dBµV)
                              82 – 120 dBµV (resolution 2 dBµV, precision 5 dBµV)
                              Deviation0-125 kHz (resolution 1 kHz, precision 2 kHz)
                              Tuned carrier frequency offset0-250 ppm (resolution 2 ppm, precision 5 ppm)
                              Multipath0-100 %
                              Adjacent channel RF level0 – 80 dBµV (resolution 1 dBµV, precision 2 dBµV) (+-200kHz)
                              MPX MEASUREMENT MODULERanges - Resolution - Precision
                              Pilot level0-20 kHz (resolution 0.1 kHz, precision 0.2 kHz)
                              Rds level0-20 kHz (resolution 0.1 kHz, precision 0.2 kHz)
                              Mpx power ITU-R-BS412 (Estimated)-20 dBr to + 12 dBr (resolution 0.1 dBr, precision 0.5 dBr)
                              StereoValid Stereo signal detector
                              AUDIO MEASUREMENT MODULERanges – Resolution – Precision
                              Left Quasi PeakProgrammable attack time from 0 mS to 2 mS (Resolution 0.1 dB)
                              Right quasi peakProgrammable attack time from 0 mS to 2 mS (resolution 0.1 dB)
                              Audio silenceThreshold - 80 dB to 0 dB, Time: 1-120 Sec
                              Unbalanced stereo signalThreshold - 80 dB to 0 dB, Time: 1-120 Sec
                              AUDIO OUTPUT
                              Available output on XLRTuner - 1 or Tuner - 2, definable via web page. Same audio on analog and AES/EBU
                              Audio frequency response30 Hz - 15 kHz, ± 0,3 dB
                              Phones (Front panel)Stereo jack 6.3 mm, 150 Ohm, 0.8 W
                              ANALOG OUTPUT MODULE
                              D/A Conversion24bit Sigma - Delta conversion - 32 kHz Sample rate
                              Connectors2x XLR, male - Electronically balanced
                              Output level-12.0 dBu to +14.0 dBu (0.1 dBu Step) - Max (+20 dBu)
                              Impedance Source47 Ω
                              Load impedance600 Ω or greater
                              DistortionLess than 0.02% TDH + Noise (0.0dBu @ 1Khz)
                              Dynamic range108 dB (110 dB A-weighted, 20Hz - 15kHz)
                              SourcesStreamer1_Source , Streamer2_Source
                              DIGITAL OUTPUT MODULE
                              Connectors:XLR, Male - Electronically balanced
                              FormatAES3/EBU
                              Sample rates32 kHz
                              Resolution24 bits
                              Operative nominal level:From 0.0 dBFs to - 24dBFs (0.1 dBu step)
                              Dynamic range:125 dB (Typ), 122 dB (Min)
                              Distortionless than 0.01% TDH+NOISE (-20dBFs @ 1Khz)
                              Freq. response20Hz -15kHz
                              Dynamic range108 dB
                              SourcesStreamer1_Source , Streamer2_Source
                              AUDIO INPUT
                              Encoder streaming input sourceUser selectable between Tuner-1, Tuner-2, External Input Analog, External Input AES/EBU
                              DIGITAL INPUT MODULE
                              Connectors:XLR, female – Electronically balanced
                              FormatAES3/EBU
                              Sample rates32 kHz/44.1 kHz/48 kHz/96 kHz with src and jitter correction
                              Operative nominal level:From 0.0 dBFs to - 24dBFs (0.1 dBu step)
                              Dynamic range:125 dB (Typ)
                              Distortionless than 0.01% TDH + Noise (-20dBFs@ 1Khz)
                              Input modes:Stereo, Mono (Left), Mono (Right), Mono (Left + Right)
                              ANALOG INPUT MODULE
                              A/D conversion24bit Sigma - Delta conversion - 32kHz sample rate
                              Connectors:XLR, female - Electronically balanced
                              AD clipping point+20.0dBu
                              Operative nominal level:From - 12.0dBu to +12.0dBu (0.1dBu Step)
                              Line impedance10 kΩ (Electronically balanced selectable) EMI - suppressed
                              Distortion:less than 0.02% TDH+NOISE (0.0dBu @ 1kHz)
                              AD dynamic range:108 dB RMS (110 dB A - weighted, 20Hz - 15kHz)
                              Input modes:Stereo, Mono (Left), Mono (Right), Mono (Left + Right)
                              AUDIO & RDS STREAMING MODULES
                              ProtocolsUDP/RTP, TCP/IP, IceCast2
                              EncodersOGG - VORBIS
                              InterfaceEthernet port 10/100 Mb/s
                              BitrateUser select 24 kbps to 192 kbps
                              Sample rates32Ksamples/sec
                              RDS streamingProprietary redundant protocol over UDP or RAW-TCP/IP
                              AdministrationUser right management

                              Dimensions

                              FM distribution Network Control & Monitoring Wolf AxelTech

                              Ask for aquote now










                                Subscribe to our newsletter





                                  Fields of Interest

                                  RadioTVCorporate A/V

                                  Giving your consent, you agree to the processing of your data in order to access the service of sending information, advertising material and sales communications by email; purposes and modes of data processing are mentioned in the privacy notice, available here: Privacy Notice

                                  I give my consentI do not give my consent

                                  Giving your consent, you agree to the processing of your data in order to access the service of: data profiling for analysis and market surveys (marketing); purposes and modes of data processing are mentioned in the privacy notice, available here: Privacy Notice

                                  I give my consentI do not give my consent

                                  Ask for aquote now










                                    Subscribe to our newsletter





                                      Fields of Interest

                                      RadioTVCorporate A/V

                                      Giving your consent, you agree to the processing of your data in order to access the service of sending information, advertising material and sales communications by email; purposes and modes of data processing are mentioned in the privacy notice, available here: Privacy Notice

                                      I give my consentI do not give my consent

                                      Giving your consent, you agree to the processing of your data in order to access the service of: data profiling for analysis and market surveys (marketing); purposes and modes of data processing are mentioned in the privacy notice, available here: Privacy Notice

                                      I give my consentI do not give my consent


                                      RDS Encoder RDS E5 AxelTech

                                      RDS E3-E5

                                      RDS E3 & RDS E5
                                      RDS Encoding and Monitoring

                                      Product Overview

                                      RDS E3 and RDS E5 are static/dynamic RDS Encoders supporting all the services and features requested by an advanced user. RDS E3 and RDS E5 support the most advanced RDS dynamic services, including TMC, ODA, IH, TDC, EWS, Radio Text and Radio Text plus.
                                      RDS E3 and RDS E5 manage up to 8 complete Data Set, each one with 1 Main PS and 10 EON. To assure the best flexibility, any Dataset can be managed via Standard Mode, using UECP commands or via Extended Mode using GPIOs, SNMP commands, REST API commands or ASCII commands.
                                      In addition to standard CENELEC NRSC methods, RDS programming has been enriched with larger PS and RT sets (that are also available in dynamic mode).
                                      RDS E3 and RDS E5 can interface with various Automation Systems and they offer an ASCII protocol for broadcast song/artist information. In case of alarms, they support SNMP alerting for NMS.

                                      RDS Encoder RDS E3 AxelTech

                                      RDS E3 and RDS E5 satisfy the high-end broadcasters’ requirements: UECP system features 4 TCP ports, 4 UDP ports, 2 serial ports and 1 SNMP port.
                                      RDS E3 and RDS E5 are RDS 2.0 Ready: they manage the 4 RDS subcarriers specified in the standard that is still under definition. A web interface has been created to control all these functions and it can be used by any browser with any device from the smartphone to the laptop.
                                      RDS E3 and RDS E5 are SNMP v2c in order to satisfy the most demanding deployments. RDS E3 and RDS E5 have an high resolution colour display that allows the display and insertion of the main machine parameters.

                                      • New features for Dynamic RDS

                                      Models

                                      RDS Encoder RDS E5 AxelTech

                                      RDS E5

                                      RDS Encoder RDS E3 AxelTech

                                      RDS E3

                                      Highlights

                                      General

                                      • Main Supply 90--260Vac 50/60Hz. 15W;
                                      • Green device - only 15W;
                                      • Full Colour Graphic display 480x128 (only RDS RDS E5);
                                      • Status led panel with 40 leds;
                                      • Rack 1u 19” - Inox steel;
                                      • Redundant PSU (available as an option);
                                      • High immunity to strong RF fields, designed to be installed in high power TX sites;
                                      • Fully Digital – No trimmer

                                      Inputs & Outputs Sections

                                      • Double MPX+RDS output with digital level setting;
                                      • RDS output;
                                      • Bypass HW on RDS+MPX Outputs (MPX to Out 1&2);
                                      • 1 MPX input (wide band);
                                      • 1 19kHz Sync imput to synchronize internal RDS.
                                      RDS Encoder RDS AxelTech

                                      Encoder RDS Section

                                      • RDS encoder fully compliant with UECP EBU SPB490 v7.05, CENELEC (Europa) and NRSC (America);
                                      • Fully support for all RDS services, Static and Dynamic services;
                                      • UEPC Ports (2 Serials, 4 TCPIP, 4 UDP);
                                      • n.8 Data Set;
                                      • n.10 EON + Main PS for each Data Set;
                                      • Integrated RDS decoder;
                                      • Tuner FM with RDS decoder (as an option);
                                      • Dataset switch managed by UECP/SNMP/REST/HTTP/ASCII PARSER/TXT FILE/GPI;
                                      • Easy to interface to any kind of automation system (UECP/SNMP/REST/HTTP/ASCII PARSER/TXT FILE);
                                      • The RDS can autonomously get data from the Radio Automation System (PS/RT/RT+/TA/MS);
                                      • Easy RDS page fast setup;
                                      • RDS 2.0 Ready.

                                      GUI & Monitoring

                                      • Fully programmable by Web GUI interface, all the browsers are supported;
                                      • Simple and intuitive GUI, supported by all devices (PC, notebook, tablet, smartphone, etc.);
                                      • Easy and configurable graphical interface;
                                      • Multi user web GUI;
                                      • Map with device geolocation (RX sat or fixed coordinates are required);
                                      • Web GUI with info bubbles;
                                      • Monitoring FM Tuner (as an option);
                                      • RDS Groups data analyser;
                                      • GUI with led meter bars.
                                      RDS Encoder RDS AxelTech

                                      Communications & Management

                                      • Ethernet/USB/RS232/GPIO connections;
                                      • Easy WiFi Access - Hot spot WiFi USB to connect directly a wireless device to RDS E3 and RDS E5;
                                      • SNMP V2c;
                                      • Possibility to set up to 3 NTP Servers (V1, V2, V3, V4);
                                      • Possibility to send email to 4 receivers and to set 3 different SMPT servers;
                                      • IPV4 and IPV6 support (3 addresses IPV4 and 3 addresses IPV6);
                                      • N°2 RS232 for UECP commands;
                                      • 6 GPI and 4 Relay Out (all GPIO are fully programmable by the GUI);
                                      • HTTP, FTP, SNMP, SMTP, UDP, TCP support;
                                      • Alarms via : TRAP (SNMP), email (SMTP), GPO, HTTP;
                                      • External GPS support (Time, Date and Geolocation);
                                      • uSD Card for clone function, for maintenance and easy replace of a faulty unit;
                                      • Import and export configurations function;
                                      • PRESET, with load/save/import /export functions;
                                      • Logs 24/7 with export function;
                                      • 6 levels of right access managment;
                                      • Easy configuration page setup with info connection diagrams;
                                      • REST API available to manage the device;
                                      • ASCII PARSER interface for easy command line settings;
                                      • SAMBA SHARE function to connect and get data from an external PC;
                                      • Multi-user contemporary access.
                                      RDS Encoder RDS AxelTech
                                      RDS Encoder RDS AxelTech

                                      Special features

                                      Broadcast “All” Your Information

                                      RDS E3 and RDS E5 are the result of the long-time AxelTech experience in RDS encoder development.
                                      RDS E3 and RDS E5 can simultaneously receive UECP commands through 4 TCP ports, 4 UDP ports and 2 serial ports, enabling the most demanding network operator to connect all the dynamic sources to the RDS encoder.
                                      In addition to the accurate use of the RDS through UECP commands, RDS E3 and RDS E5 enable the end user to benefit from more simple and flexible ways to send information to the encoder by offering: REST API commands, ASCII Parser and SAMBA connection to Radio Playouts.
                                      RDS E3 and RDS E5 can automatically get information from the Radio Playouts thus eliminating the need of Middleware Software between the Playout and the RDS encoder.

                                      Opened To The Future

                                      RDS E3 and RDS E5 are RDS 2.0 Ready. Their DSP can generate the multicarrier signal needed for the new RDS standard. Once this standard is defined, with a simple software upgrade the end user will be able to have a RDS 2.0 compliant encoder without any replacement that would vanify the initial investement.

                                      RDS Encoder RDS E3 AxelTech

                                      Easy Access

                                      RDS E3 and RDS E5 are fully configurable via WEB interface. Their web server is compatible with all the available web browsers (Chrome, Firefox, Edge, Opera, Safari etc.).
                                      RDS E3 and RDS E5 supports laptop, tablet and smartphones simplifying the browsing and setting of the device. They have a responsive-kind graphic interface that adapts the viewing mode according to the resolution and position (portrait/landscape) of the current viewing device.
                                      The provided WiFi USB dongle creates a specific WiFi hotspot that enables the access to the device without the need of cabled or wireless net.
                                      RDS E3 and RDS E5 have 3 IPV4 and 3 IPV6 addresses to ensure simultaneous connection to all the broadcasting and monitoring systems.

                                      Easy Maintenance

                                      Any first-time user can benefit from RDS E3 and RDS E5 simplified settings management.
                                      QUICK RDS SETUP is the easier way to set the main RDS parameters.
                                      IMPORT/EXPORT and PRESET MANAGER are available for RDS E3 and RDS E5’s advanced management.
                                      These functions can be used for the whole device configuration or only for some selectable modules (SYSTEM, RDS, and TUNER).
                                      RDS E3 and RDS E5 use a uSD card to create an automatic copy of all the device data when the user changes anything. If the device needs to be replaced or duplicated, the uSD card can be used to clone it.

                                      Monitoring

                                      RDS E3 and RDS E5 are provided with modern GUI (Graphical User Interface) that uses clear elements and useful information. The wide range of the available banners allows the user to monitor any function. The selected banners are always visible in any menu.
                                      In the RDS section, a specific area is available for on-air RDS group analysis (static and dynamic) to evaluate services balancing.
                                      Thanks to the FM Tuner (as an option), the FM signal can be received and decoded. With this feature it is possible to check MPX, RDS and Pilot deviations, BLER (Block Error Ratio) and RDS Decoder (PI, PS, RT, PTY, RT+,TP, TA, M/S, CT,AF,TMC, EON).

                                      Technical Specifications

                                      MPX Input – MPX
                                      ConnectorUnbalanced on 2 BNC – EMI Suppressed
                                      Input Impedance50K

                                      RDS+MPX Output - MPX
                                      Outputs number3 (2RDS out + 1 RDS)
                                      ConnectorUnbalanced on 3 BNC – EMI Suppressed
                                      Output Impedance10 Ω
                                      Load Impedance600 Ω or greater
                                      Maximum Load Capacitance5nF
                                      RDS Output Level0 to 8191 mVpp (1 mVpp step)
                                      S/N> 85dB
                                      Carrier Suppression> 85dB

                                      System
                                      GPIO Inputs/Outputs6 GPI / 4 GPO
                                      Communication Port2xRS232, 3xUSB, 1xLAN
                                      SynchronizationExt(Pilot Mpx)/Int/ Auto
                                      Synchronization MonitoringYes
                                      RDS Level adjustmentDigitally controlled
                                      Phase adjustmentYes, 0 ÷ 359.9°
                                      Separate outputs for RDS+MPX and for RDS onlyYes
                                      Side Chain Mode, Loop through mode, Bypass featureYes
                                      RDS Subcarrier100% Digitally Generated Shape
                                      CENELEC – EN50067 compliant –Yes
                                      Accurate Clock Time (CT) Sync with Internet ConnectionYes
                                      Remote TA actuation for Traffic AnnouncementsYes
                                      GPS module for automatic synchronization of the built-in Real Time Clock (RTC)Optional (USB External)
                                      In-field firmware updateYes
                                      Front-panel Colour TFT DisplayNo (RDS E3) Yes (RDS RDS E5)
                                      Data may be entered on-site with Front-panel knobNo (RDS E3) Yes (RDS RDS E5)
                                      Front Panel Leds40
                                      Operating Temperature0°C ÷ 50°C

                                      RDS Features
                                      Group supportedAll
                                      Group SequenceConfigurable
                                      PS8 DSN x MAIN+10 PSN
                                      PI8 DSN x MAIN+10 PSN
                                      PIN & PTYRDS/RBDS
                                      AF Method Aup to 1024 (64 lists)
                                      AF Method Bup to 1024 (64 lists)
                                      RTYes, 32 messages
                                      RT rate adjustmentGroup Sequence
                                      RT+ for songs and content taggingYes
                                      TPYes
                                      TA ControlCommand, Software, GPI
                                      PTYNYes
                                      EON10 PSN
                                      CTYes
                                      TMC, EWS, IH, TDCYes
                                      Free Format Groups (FFG)Yes
                                      Open Data Application (ODA)Yes
                                      PS ScrollingYes
                                      Scrolling by characters, by word, auto centre, long words’ truncationYes (Characters – from 1 up to 8)

                                      Communication
                                      Connection with Automation SoftwareYes
                                      Network Connectivity4 TCP ports / 4 UDP / 1 SNMP
                                      Configuration SoftwareWeb Server, FTP
                                      Password ProtectionYes
                                      ASCII ProtocolConfiguration Messages
                                      REST CommandYes
                                      Embedded SNMP agent for active management tasksYes
                                      Supported Network ProtocolsHTTP, SMTP, UDP, TCP, NTP, FTP
                                      UECP ProtocolEBU SPB490 Ver.7.05
                                      PI CalculatorYes
                                      RDS 2.0 ReadyYes

                                      PSU
                                      Power Supply90-260 Vac / 47-63 Hz 15W

                                      Dimensions
                                      Dimensions (W; H; D)485 x 44 x 240 mm
                                      Weight< 3Kg

                                      Ask for aquote now










                                        Subscribe to our newsletter





                                          Fields of Interest

                                          RadioTVCorporate A/V

                                          Giving your consent, you agree to the processing of your data in order to access the service of sending information, advertising material and sales communications by email; purposes and modes of data processing are mentioned in the privacy notice, available here: Privacy Notice

                                          I give my consentI do not give my consent

                                          Giving your consent, you agree to the processing of your data in order to access the service of: data profiling for analysis and market surveys (marketing); purposes and modes of data processing are mentioned in the privacy notice, available here: Privacy Notice

                                          I give my consentI do not give my consent

                                          Ask for aquote now










                                            Subscribe to our newsletter





                                              Fields of Interest

                                              RadioTVCorporate A/V

                                              Giving your consent, you agree to the processing of your data in order to access the service of sending information, advertising material and sales communications by email; purposes and modes of data processing are mentioned in the privacy notice, available here: Privacy Notice

                                              I give my consentI do not give my consent

                                              Giving your consent, you agree to the processing of your data in order to access the service of: data profiling for analysis and market surveys (marketing); purposes and modes of data processing are mentioned in the privacy notice, available here: Privacy Notice

                                              I give my consentI do not give my consent


                                              FM distribution Network Control & Monitoring Tiger E3 AxelTech

                                              TIGER E3/E5

                                              Tiger E3 & Tiger E5
                                              FM Transmission Site Feed, Control and Monitoring

                                              Product Overview

                                              TIGER E3/E5 is the device that can manage each kind of FM Transmitter Site and fulfills every custom requirement, from large national FM networks to local stations.
                                              TIGER E3/E5 is 7 devices in 1, thanks to the power of the digital technology Tiger E5 can fulfil the following functions: IP Audio Codec / Audio Changeover / Audio Limiter / Stereo Generator / RDS Encoder / MPX Changeover / FM Monitoring System with integrated Tuner.
                                              TIGER E3/E5 can manage and decode MPX and RDS signals, receive IP Audio streaming signals, be connected and analyze Analog and Digital audio signals; thanks to the audio 4 channels Audio changeover and MPX Changeover it can handle every kind of received signal in a transmitting site.
                                              TIGER E3/E5 has a double IP streaming receiver and SD card player managed by a multimedia changeover.

                                              FM distribution Network Control & Monitoring TigerE3 AxelTech

                                              TIGER E3/E5 supports the most advanced RDS dynamic services, including TMC, ODA, IH, TDC, EWS, Radio Text and Radio Text plus. TIGER E3/E5 allows to interface Radio Automation Systems to display song title, artist and other information, but always compliant to the CENELEC (Europe), NRSC (America) and UECP v7.05.
                                              The built-in ITU BS412 multiplex power controller acts on the output to meet even the most strict European government regulations.
                                              To control all these functions, a web interface has been created that can be used by any browers with any device from the smartphone to the laptop.
                                              To satisfy the most demanding technicians TIGER E3/E5 is SNMP v2c compliant.

                                              • MPX+RDS distribution (TX&RX) multicast streaming over IP
                                              • New features for Dynamic RDS
                                              • RDS data multicast streaming over IP

                                              Models

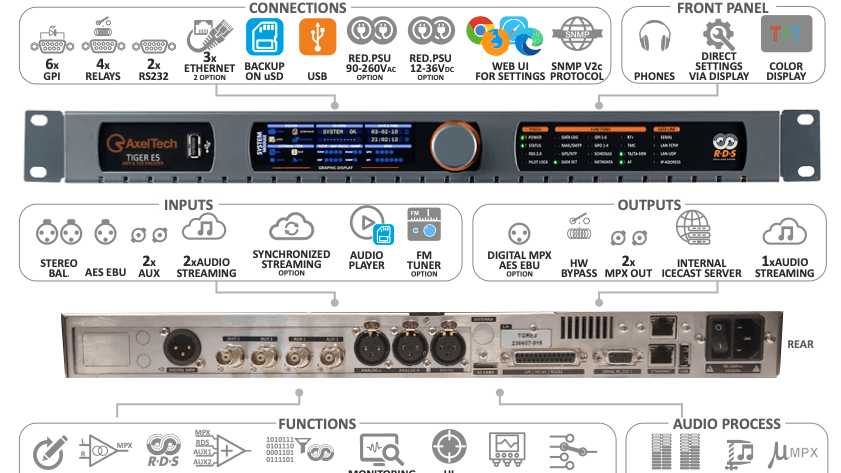

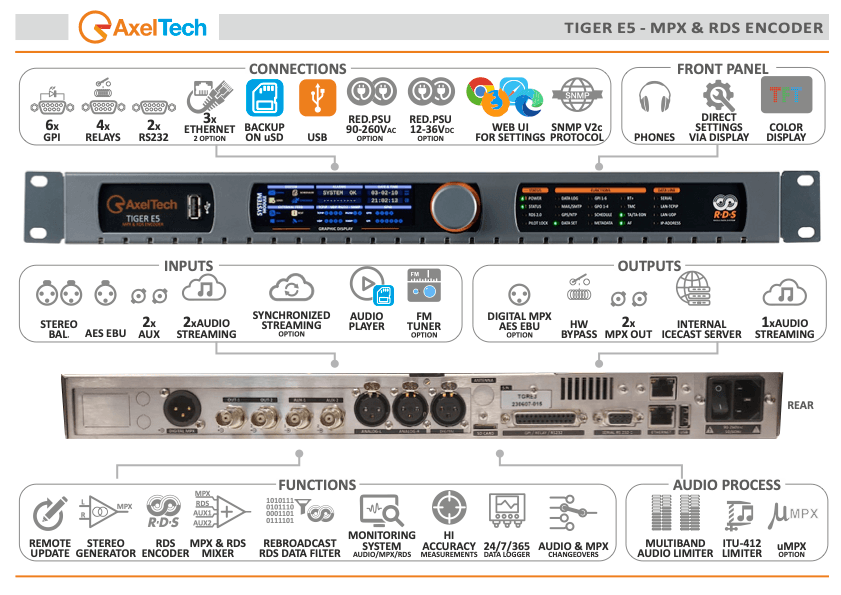

                                              FM distribution Network Control & Monitoring Tiger E5 AxelTech

                                              TIGER E5

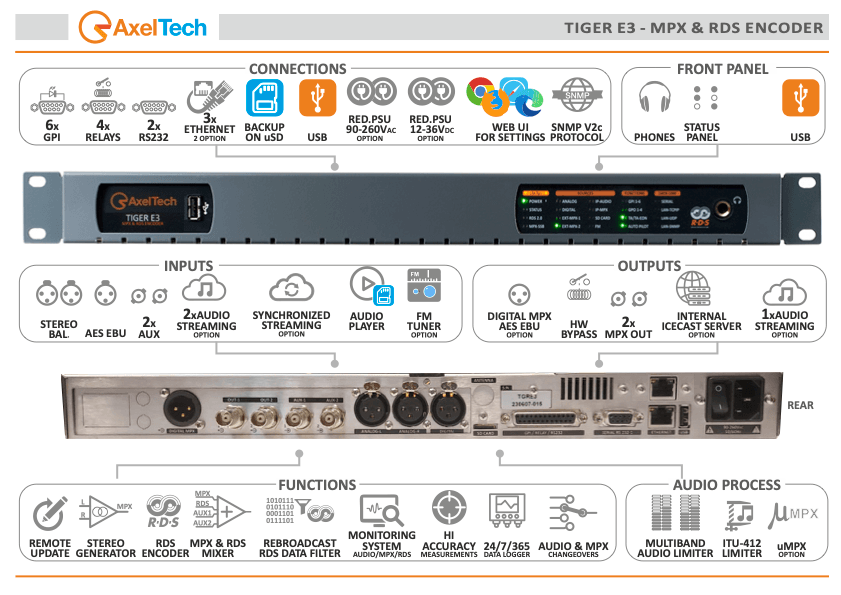

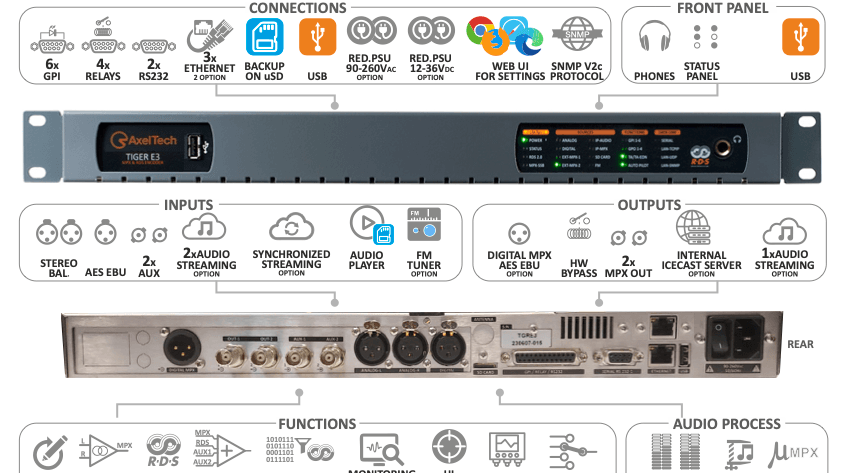

                                              FM distribution Network Control & Monitoring Tiger E3 AxelTech

                                              TIGER E3

                                              FM distribution Network Control & Monitoring Tiger AxelTech

                                              Highlights

                                              General

                                              • Main Supply 90--260Vac 50/60Hz. 15W
                                              • Green device - only 15W
                                              • Full Color Graphic display 480x128 (only Tiger E5)
                                              • Status leds panel with 40 leds
                                              • Rack 1u 19” - Inox steel
                                              • Redundat PSU (available as an option)
                                              • High immunity to strong RF fields, designed to be installed in high power TX sites
                                              • Fully Digital – No trimmer

                                              Inputs & Stereo Generator Section

                                              • Analog input on XLR,
                                              • Digital AESEBU input on XLR
                                              • Double streaming IP input (MP3, OPUS, PCM, VORBIS…)
                                              • Double MPX output with independent source and level
                                              • Optional Digital MPX AES192 (1 In + 1 Out)
                                              • Optional Analogue Audio Out (Tiger X3/X5 versions)
                                              • Optional Digital Audio Out (Tiger X3/X5 versions)
                                              • Bypass HW on MPX Outputs (Aux-1 to Out 1&2)
                                              • 2 AUX input (MPX/RDS/SCA) wide band - digitally controlled
                                              • MPX Changeover between external or internal MPX sources.
                                              • 2 Wide Band mixer to mix internal (Stereo generator an RDS) or external (MPX, RDS or SCA) signals
                                              • Configurable delay on MPX signals
                                              • AGC on each single source
                                              • Limiter, Clipper MPX
                                              • ITU BS412 control
                                              • ITU Loudness measurement
                                              • Out band noise and Pilot Noise measurement
                                              • RDS, Pilot, Main Audio and Sub Audio Measurement
                                              • Integrated Hi-Quality MPX Decoder
                                              FM distribution Network Control & Monitoring Tiger AxelTech

                                              Process

                                              • 4 channels Audio Changeover Changeover Audio with source priority / restore logic
                                              • Backup audio player on SD card
                                              • Configurable delay on Audio sources
                                              • Configurable UECP Filter on incoming RDS Signal (AUX-1) for rebroadcasting use
                                              • Capability to Digital erase RDS signal on incoming MPX+RDS Signal
                                              • Upgrade FW directly on the field managed by web GUI interface
                                              • Audio limiter integrated (Psicoacustic, Look-ahead, ITU BS412)
                                              • Fast DSP Starting time <5 sec (OS < 30 sec

                                              Encoder RDS Section

                                              • RDS encoder fully compliant with UECP EBU SPB490 v7.05, CENELEC (Europe) and NRSC (America)
                                              • Fully support of all the RDS services, Static and Dynamic services.
                                              • UEPC Ports (2 Serials, 4 TCPIP, 4 UDP)
                                              • n.8 Data Set
                                              • n.10 EON + Main PS for each Data Set
                                              • Integrated RDS decoder
                                              • Tuner FM with RDS decoder (as an option)
                                              • Dataset switch managed by UECP/SNMP/REST/HTTP/ASCII PARSER/TXT FILE/GPI
                                              • Easy to interface to any kind of automation system (UECP/SNMP/REST/HTTP/ASCII PARSER/TXT FILE)
                                              • Capability to connects all the Radio Automation System to get data for RDS (PS/RT/RT+/TA/MS)
                                              • Easy RDS page fast setup
                                              FM distribution Network Control & Monitoring Tiger AxelTech

                                              GUI & Monitoring

                                              • Fully programmable by Web GUI interface, all the browser are supported
                                              • Simple and intuitive GUI, supported by all devices (PC, notebook, tablet, smartphone, etc. ..)
                                              • Easy and configurable graphical interface
                                              • Multi user web GUI
                                              • Map with device geolocation (RX sat or fixed coordinates are required)
                                              • Web GUI with info bubbles
                                              • Monitoring FM Tuner (as an option)
                                              • MPX spectrum signal Analyzer on outputs, Aux inputs, and internal signals.
                                              • Dynamical graphics to see the value in the time
                                              • RDS Groups data analyzer
                                              • GUI with led meter bars
                                              • IP audio streaming encoding for remote audio monitoring, with indipendent source selection and level
                                              • Headphones output with indipendent source selections and level

                                              Monitoring Tuner (optional)

                                              • RF Level measurament
                                              • Carrier Offeset
                                              • MPX, RDS and Pilot deviations
                                              • BLER (Block Error Ratio)
                                              • RDS Decoder (PI, PS, RT, PTY, RT+,TP,TA, M/S, CT,AF,TMC, EON)

                                              Communications & Management

                                              • Ethernet/USB/RS232/GPIO connections
                                              • Easy WiFi Access - Hot spot WiFi USB to connect directly a wireless device to the Tiger.
                                              • SNMP V2c
                                              • Possibility to set up to 3 NTP Servers (V1, V2, V3, V4).
                                              • Possibility to send email to 4 receivers and set 3 differnet SMPT server.
                                              • IPV4 and IPV6 support (3 addresses IPV4 and 3 addresses IPV6).
                                              • N°2 RS232 for UECP commands.
                                              • 6 GPI and 4 Relay Out (all GPIO are fully programmable by the GUI)
                                              • HTTP, FTP, SNMP, SMTP, UDP, TCP support.
                                              • Alarms via : TRAP (SNMP), email(SMTP), GPO, HTTP
                                              • External GPS support (Time, Date and Geolocation)
                                              • uSD Card for clone function, for manteniance and easy replace of a faulty unit.
                                              • Import and export configurations function
                                              • PRESET, with load/save/import /export function
                                              • Logs 24/7 with export funtions
                                              • 6 levels of right access managment
                                              • Easy configuration page setup with info connection diagrams.
                                              • REST API available to manage the device
                                              • ASCII PARSER interface for easy command line settings
                                              • SAMBA SHARE function to connect and get data from an external PC.
                                              • Multi-user contemporary access
                                              FM distribution Network Control & Monitoring Tiger AxelTech
                                              FM distribution Network Control & Monitoring Tiger AxelTech

                                              Block Diagram

                                              FM distribution Network Control & Monitoring Tiger AxelTech

                                              Special features

                                              Connect “any” Kind of Sources

                                              TIGER E3/E5 manages different kind of audio sources such as Analog & Digital audio, IP-Audio, Backup-Player and MPX, thanks to the 4 channels audio changeover and 2 channel MPX Changeover.

                                              A delay can be assigned to any source and allows the time alignment of two or more sources.

                                              It is possible to use the internal audio player as a backup if all the external sources fail.

                                              The internal limiter continuously monitors the sources audio levels, allowing the level managing and avoiding any overshoot generated by the satellite or IP-Audio MPEG decompression.

                                              MPX inputs are decoded (L&R) and available to be used as sources for the Audio Changeover or MPX Changeover.

                                              Digital MPX AES192 available optionally (1 In + 1 Out)

                                              MPX Changeover features a UECP filter that allows the regeneration or filtering of any RDS service (PS, RT,RT+,IH,TMC,TA/TP), thus giving the user the chance to maintain, replace or filter any RDS parameter starting from the incoming RDS signal.

                                              With the optional Tuner, it becomes a Changeover / FM Monitoring System with integrated Tuner.
                                              TIGER E5 can manage and decode MPX and RDS signals, receive IP Audio streaming signals, receive and analyze Analog and Digital audio signals. Thanks to the 4 channels Audio changeover and MPX Changeover it can handle every kind of received signal in a transmitting site.

                                              Easy Access

                                              TIGER E3/E5 is fully configurable via WEB interface. Its web server is compatible with all the available web browsers (Chrome, Firefox, Edge, Opera, Safari…).
                                              TIGER E3/E5 supports laptop, tablet and smartphones simplifying the browsing and setting of the device with its responsive-kind graphic interface that adapts the viewing mode according to the resolution and position (portrait/landscape) of the current viewing device.
                                              The provided WiFi USB dongle creates a specific WiFi hotspot that enables the access to the device without the need of cabled or wireless net.
                                              TIGER E3/E5 features 3 IPV4 and 3 IPV6 addresses to ensure concurrent connection for all the broadcasting and monitoring systems.

                                              FM distribution Network Control & Monitoring Tiger AxelTech

                                              Easy Maintenance

                                              Any first-time user can take advantage of Tiger E3/E5 simplified settings management. EASY CONFIGURATION FUNCTION quickly and easily enables the user to set the working mode, while QUICK RDS SETUP brings the mostly simple way to set the main RDS parameters.
                                              IMPORT/EXPORT and PRESET MANAGER are available for a more advanced management of Tiger E3/E5.
                                              These functions apply to the whole device configuration or only to some selectable modules (SYSTEM, RDS, MPX, AUDIO, MULTIMEDIA and TUNER).

                                              TIGER E3/E5 uses a uSD card to create an automatic copy of all the device data whenever the user changes anything. If the device needs to be replaced or duplicated, the uSD card can be used to clone it.

                                              Monitoring

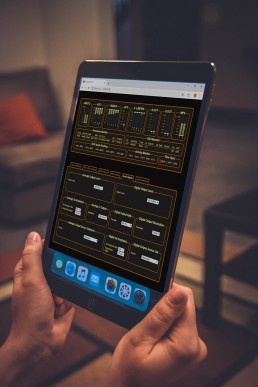

                                              Tiger E3/E5 features an endearing GUI (Graphical User Interface) that makes use of clear elements, rich of information. With a simple and straightforward selection of the available banners, it is possible to keep under control any function. The selected banners are always visible in any menu.
                                              Tiger E3/E5 displays in both graphical and numerical format all the input and output levels as well as the internally generated signals. The visualization can be numerical, bar graph or time related.

                                              In the RDS section, a specific area is available for on-air RDS group analysis (static and dynamic) to evaluate services balancing.
                                              In the MPX section, spectrum analyzers display the MPX+RDS input and output signals.
                                              TIGER E3/E5 provides two independent listening paths for every internal audio source:
                                              Local: using the headphone socket on front panel and the display to select the source
                                              Remote: using the internal IP audio encoder that enables the remote audio receiving with different listening quality choices
                                              The MPX decoder let the user listen to the decoded L&R audio for any of the MPX sources, input, output or internal.

                                              Technical Specifications

                                              Analog Left & Right Input
                                              ConnectorBalanced on 2 XLR – EMI Suppressed
                                              Input Impedance10Kohm
                                              Nominal Input Level (Sensitivity)Software Adjustable from -12dBu to + 13,0 dBu (0,1dB step)
                                              Nominal Input Level-21,0dBu ÷ +24,0dBu
                                              Max Input Level (clipping point)Selectable +15,0dBu or +24,0dBu
                                              A/D conversionCS4272, 24 bit / 48 Khz
                                              Input CMRR>60dB (20Hz-20kHz)

                                              Digital Input
                                              ConnectorBalanced on 1 XLR – EMI Suppressed
                                              Input Impedance110Ω
                                              StandardAES3
                                              Audio Sample Rate32/44.1/48/96/192KHz
                                              Adjustable Nominal Input Level (Sensitivity)From -25,0dBFS to -0,2dBFS (0,1dB step)
                                              Nominal Input Level-36dBFS ÷ 0,0dBFS
                                              Dynamic Range (Converter Values)124dB (32KHz) – 126dB (44,1KHz) 126dB(48KHz) – 122dB (96KHz)
                                              Resolution24 bit

                                              MPX Input – MPX
                                              ConnectorUnbalanced on 2 BNC – EMI Suppressed
                                              Input Impedance50K
                                              Adjustable Nominal Input Level (Sensitivity)Software Adjustable -9dBm to +15,0dBm
                                              Range of Level-21,0dBu ÷ +24,0dBu
                                              Max Input Level (clipping point)Selectable +5,0dBu or +18,0dBu
                                              A/D ConversionTexas PCM4202

                                              MPX Output - MPX
                                              ConnectorUnbalanced on 2 BNC – EMI Suppressed
                                              Output Impedance10 Ω
                                              Load Impedance600 Ω or greater
                                              Maximum Load Capacitance5nF
                                              D/A ConversionTexas PCM 1796
                                              Composite Output Level-0,0dBm to +15,0 dBm (0,1 dBm step)
                                              S/N≥ 85dB
                                              THD≤ 0.01%
                                              Separation≥ 70dB

                                              Analog Output AUDIO - Only for Tiger X3 & X5
                                              Output Number1
                                              Connectors2 XLR, female - Electronically balanced – EMI Suppression
                                              D/A Conversion24 bit Sigma-Delta Conversion (Crystal CS4272)
                                              Output Level-6.0 dBu to +20.0 dBu (0.1 dBu Step)
                                              Output Level Max.+ 24,0 dBu
                                              Impedance Source10 Ω
                                              Load Impedance600 Ω or greater
                                              THD + NoiseLess than 0.01% (0.0dBu @ 1 kHz)
                                              Signal to noise Ratio>80 dB unweight - 100% Mod. 20 Hz–15 KHz
                                              L/R CrossTalk< –70 dB, 20 Hz–15 KHz
                                              Pre-emphasisOFF, 50 µsec, 75 µsec
                                              FM Frequency range5 Hz-15 kHz (+/- 0,5dB when processing is disabled)
                                              DAB Frequency range5 Hz-20 kHz (+/- 0,5dB when processing is disabled)

                                              Digital Output AUDIO - Only for Tiger X3 & X5
                                              Outputs Number2 (1st for audio, 2nd for audio or Digital MPX)
                                              ConnectorsBalanced on 1 XLR – EMI Suppression
                                              FormatAES3/EBU
                                              Output impedance110 Ω
                                              Sample rates32 kHz / 44.1 kHz / 48 kHz / 96 kHz / 192 kHz Software selectable
                                              Resolution24 bit
                                              Operative Nominal levelFrom 0.0 dBFs to -30dBFs (0.1 dBu step)
                                              Dynamic Range125 dB (Typ), 122 dB (Min)
                                              DistortionLess than 0.01% TDH+NOISE (0.0 dBu 1 Khz)
                                              Pre-emphasisOFF, 50 µsec, 75 µsec
                                              FM Frequency range2 Hz-15 kHz (+/- 0,025 dB when processing is disabled)
                                              DAB Frequency range2 Hz-20 kHz (+/- 0,025 dB when processing is disabled)

                                              Backup Player
                                              SupportOn Micro SD CARD (max 64GB)
                                              Supported formatsMP3, WAV
                                              Supported Sample Rates32,44.1,48,64,96 KHz

                                              MPX & RDS Signal
                                              Pilot Frequency19 KHz +/- 1Hz
                                              Pilot InjectionAdj from -25,0dB a -15,5dB (0,1 dB step); 6 to 18% of total deviation
                                              Pilot Stability±10 ppm (-10 to +55°C)
                                              Pilot Distortion0,05% (typical)
                                              Pilot Distortion + Noise0,068% (on 100KHz band)
                                              Composite out THD0,01% (typical on the whole band)
                                              Stereo Separation>70 dB (typical on the whole band)
                                              Linear Crosstalk Main to Sub / Sub to Main>70 dB (minimum)
                                              Digital filtering / band30 Hz to 15 kHz (-0,1dB), 17 kHz (-70 dB), 19 kHz (-100 dB)
                                              57 kHz (RDS/RBDS) ProtectionBetter than 51 dB
                                              Pre-emphasisOff, 50uS, 75uS (+/-0,1dB)
                                              Freq Response±0,3 dB (30Hz-15kHz)
                                              OperationMono / Stereo
                                              MPX/RDS OutputAdj from -10,0 dB to 15,0 dB (0,1 dB step)
                                              Signal/Noise Ratio≥ 85 dB (on 100 kHz band)
                                              Carrier Suppression> 85 dB

                                              Digital Output MPX
                                              Connectors:Balanced on 1 XLR – EMI Suppression
                                              Input impedance:110 Ω
                                              Format:AES192
                                              Sample rate:192 KHz
                                              Output level adjustment:From 0,0 dBFs to –30,0 dBFs (0,1 dB steps)

                                              Digital Input MPX
                                              ConnectorsBalanced on 1 XLR – EMI Suppression
                                              Input impedance110 Ω
                                              FormatAES192
                                              Sample rate192 kHz
                                              Nominal input level (sensitivity)From 0 dBFs to –25,0 dBFs (0,1 dB step)

                                              System
                                              GPIO Inputs/Outputs6 GPI / 4 GPO
                                              Communication Port2xRS232, 3xUSB, 1xLAN
                                              SynchronizationExt(Pilot Mpx)/Int/ Auto
                                              Synchronization MonitoringYes
                                              RDS Level adjustmentDigitally controlled
                                              Phase adjustmentYes, 0 ÷ 359.9°
                                              Separate outputs for RDS+MPX and for RDS onlyYes
                                              Command to activate the RDS SCAYes
                                              Side Chain Mode, Loop through mode, Bypass featureYes
                                              RDS Subcarrier100% Digitally Generated Shape
                                              CENELEC – EN50067 compliant –Yes
                                              Accurate Clock Time (CT) Sync with Internet ConnectionYes
                                              Remote TA actuation for Traffic AnnouncementsYes
                                              GPS module for automatic synchronization of the built-in Real Time Clock (RTC)Optional (USB External)
                                              RDS decoder for rebroadcasting RDS DataYes
                                              Firmware can be upgraded on the fieldYes
                                              Front-panel Colour TFT DisplayNo (Tiger E3) Yes (Tiger E5)
                                              Data may be entered on-site with Front-panel knobNo (Tiger E3) Yes (Tiger E5)
                                              Front Panel Leds40
                                              Operating Temperature0°C ÷ 50°C

                                              RDS Features
                                              Group supportedAll
                                              Group SequenceConfigurable
                                              PS8 DSN x MAIN+10 PSN
                                              PI8 DSN x MAIN+10 PSN
                                              PIN & PTYRDS/RBDS
                                              AF Method Aup to 1024 (64 lists)
                                              AF Method Bup to 1024 (64 lists)
                                              RTYes, 32 messages
                                              RT rate adjustmentGroup Sequence
                                              RT+ for songs and content taggingYes
                                              TPYes
                                              TA ControlCommand, Software, GPI
                                              PTYNYes
                                              EON10 PSN
                                              CTYes
                                              TMC, EWS, IH, TDCYes
                                              Free Format Groups (FFG)Yes
                                              Open Data Application (ODA)Yes
                                              PS ScrollingYes
                                              Scrolling by characters, by word, auto centre, truncate long wordsYes (Characters – from 1 up to 8)

                                              Communication
                                              Connection with Automation SoftwareYes
                                              Network Connectivity4 TCP ports / 4 UDP / 1 SNMP
                                              Configuration SoftwareWeb Server, FTP
                                              Password ProtectionYes
                                              ASCII ProtocolConfiguration Messages
                                              REST CommandYes
                                              Alert notifications on user-defined events via SNMP traps or E-mailsYes
                                              Embedded SNMP agent permitting active management tasksYes
                                              Supported Network ProtocolsHTTP, SMTP, UDP, TCP, NTP, FTP
                                              UECP ProtocolEBU SPB490 Ver.7.05
                                              PI CalculatorYes
                                              RDS 2.0 ReadyYes

                                              PSU
                                              Power Supply90-260 Vac / 47-63 Hz 15W

                                              Dimensions
                                              Dimensions (W; H; D)485 x 44 x 240 mm
                                              Weight< 3Kg

                                              Dimensions

                                              FM distribution Network Control & Monitoring Tiger AxelTech

                                              Ask for aquote now










                                                Subscribe to our newsletter





                                                  Fields of Interest

                                                  RadioTVCorporate A/V

                                                  Giving your consent, you agree to the processing of your data in order to access the service of sending information, advertising material and sales communications by email; purposes and modes of data processing are mentioned in the privacy notice, available here: Privacy Notice

                                                  I give my consentI do not give my consent

                                                  Giving your consent, you agree to the processing of your data in order to access the service of: data profiling for analysis and market surveys (marketing); purposes and modes of data processing are mentioned in the privacy notice, available here: Privacy Notice

                                                  I give my consentI do not give my consent

                                                  Ask for aquote now










                                                    Subscribe to our newsletter





                                                      Fields of Interest

                                                      RadioTVCorporate A/V

                                                      Giving your consent, you agree to the processing of your data in order to access the service of sending information, advertising material and sales communications by email; purposes and modes of data processing are mentioned in the privacy notice, available here: Privacy Notice

                                                      I give my consentI do not give my consent

                                                      Giving your consent, you agree to the processing of your data in order to access the service of: data profiling for analysis and market surveys (marketing); purposes and modes of data processing are mentioned in the privacy notice, available here: Privacy Notice

                                                      I give my consentI do not give my consent

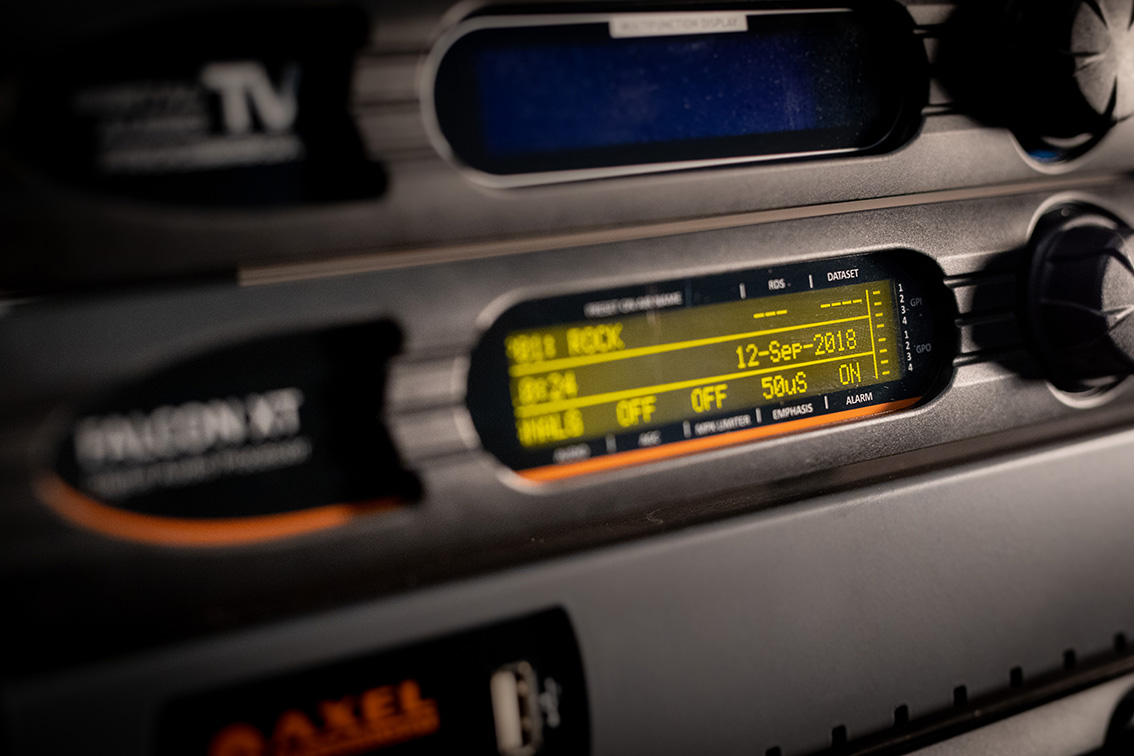

                                                      Broadcast audio processor Falcon XT AxelTech

                                                      Falcon XT

                                                      Radio has the power

                                                      FALCON XT is the top class digital audio processor that also features Stereo Generator and RDS Encoder. It’s the full optional and most prestigious equipment, designed for those broadcasters that really want to get the best performances.

                                                      FALCON XT ensures top quality performances and exclusive audio. It features powerful DPSs, 5-band architecture, dual band AGCs, 3-band equalizer, stereo enhancer, speech detector and 4 limiters. The comprehensive and accurate control of each audio parameter allows to shape perfectly the audio to broadcast unique and exceptional branded sound.

                                                      The LAN port and the built-in Web Server allow to control the processor and tune audio from anywhere. The built-in digital Stereo Generator ensures an extremely precise MPX Signal. The RDS Encoder (optional) is in compliance with UECP SPB490, provides 2 Data Set with a wide range of static services, including Radio Text.

                                                      FALCON XT features full connectivity with analog and digital I/O (over XLR connectors) and 2 independent MPX outputs, USB, GPI and serial ports. The hardware bypass circuit is always included to guarantee audio presence and audio programs continuity.



                                                      Broadcast audio processor Falcon XT AxelTech
                                                      Broadcast audio processor Falcon XT AxelTech
                                                      Broadcast audio processor Falcon XT AxelTech
                                                      Broadcast audio processor Falcon XT AxelTech

                                                      Highlights

                                                      General

                                                      • Main Supply 90--260Vac 50/60Hz. 15W
                                                      • Green device - only 25W
                                                      • Dual Graphic display
                                                      • 1RU standard 19” - Inox steel
                                                      • High immunity to strong RF fields, designed for high power TX sites
                                                      • Fully Digital

                                                      Inputs Outputs

                                                      • Analog input on XLR,
                                                      • Analog Input Settings : Sensitivity, Input Mode, Phase Rotator and High Pass Filter
                                                      • Analog Output on XLR
                                                      • Analog Output Settings: Level, Preemphasis, Source and Impedance.
                                                      • Bypass HW on Analog Outputs (Analog Input to Analog Output)
                                                      • Digital AESEBU input on XLR
                                                      • Digital AESEBU Input Settings: Sensitivity, Input Mode, Phase Rotator and High Pass Filter
                                                      • Digital AESEBU Output on XLR
                                                      • Digital AESEBU Output Settings: Level, Preemphasis, Source, Rate, Resolution
                                                      • Bypass HW on Digital AESEBU Outputs (Digital Input to Digital Output)
                                                      • Automatic audio input changeover
                                                      • Double MPX output with independent and level setting.
                                                      • Bypass HW on MPX Outputs (Aux-1 to Out 1&2)
                                                      • 2 AUX input (MPX/RDS/SCA) wide band
                                                      Broadcast audio processor Falcon XT AxelTech

                                                      Process & Stereo Generator Section

                                                      • 5-Band digital audio processor
                                                      • Multiband agc
                                                      • Mpx power control - ITU-R BS.412
                                                      • Fast DSP Starting time <5 sec (OS < 30 sec)
                                                      • Brilliance control
                                                      • Expander control
                                                      • Overdrive control
                                                      • Super bass harmonizer control
                                                      • Speech detector
                                                      • 3-Band EQ control
                                                      • Stereo enhancer function
                                                      • Limiter lookahead
                                                      • Clipper MPX
                                                      • Pilot level and Phase control
                                                      • ITU BS412 control

                                                      Encoder RDS Section

                                                      • Digital RDS encoder
                                                      • RDS encoder compliant with UECP EBU SPB490 v7.05, CENELEC (Europa) and NRSC
                                                      • (America).
                                                      • RDS Level and Phase control
                                                      • 2 dataset with 1 Main PS + 10 EON
                                                      • Dataset switch managed by UECP/SNMP/ASCII PARSER/GPI.
                                                      • Service Groups settings
                                                      • UEPC Ports (2 Serials + LAN).
                                                      • Access Rights management for each communication port
                                                      • RDS Services : PI, AF, PS, RT, CT, M/S, DI, TP, TA, PIN, PTY, SLC0-7, LA, EG, ILS, LSN
                                                      • AF: 64 AF lists (max 25 Frequencies)
                                                      • RT: 16 strings (max 64 chr)
                                                      • RDS Scheduler max 64 events
                                                      Broadcast audio processor Falcon XT AxelTech

                                                      GUI & Monitoring

                                                      • Fully programmable by Windows GUI interface.
                                                      • Simple and intuitive Web GUI.
                                                      • RDS Monitor with Data Set, RT number, PTY, TA, TP, M/S, PS on air
                                                      • GUI with led meter bars
                                                      • Headphones output with level control

                                                      Communications & Management

                                                      • Ethernet/USB/RS232/GPIO connections
                                                      • UECP - Individual Address Manager
                                                      • SNMP V1
                                                      • NTP Address for Time and Date synchronization
                                                      • SNMP Manager Address
                                                      • N°2 RS232 for UECP commands
                                                      • 4 GPI and 4 GPO (DB 15p F HD)
                                                      • HTTP, SNMP, TCP support
                                                      • External GPS support for Time and Date Synchronization (by Sat Time Synchronizer)
                                                      • Import and export configuration functions
                                                      • PRESET, with load/save/import/export functions
                                                      • Easy configuration page setup
                                                      • ASCII PARSER interface for easy command line settings
                                                      Broadcast audio processor Falcon XT AxelTech
                                                      Broadcast audio processor Falcon XT AxelTech

                                                      Special Features

                                                      Falcon XT is the top class digital audio processor that also features Stereo Generator and RDS Encoder.
 It is the full optional and most prestigious equipment designed for those broadcasters that really want to get the best performances.
                                                      Falcon XT ensures top quality performances and exclusive audio.
It features powerful DPSs, 5-band architecture, the dual band AGCs, 3-band equalizer, stereo enhancer, speech detector and 4 limiters.

                                                      The comprehensive and accurate control of each audio parameter allows to shape perfectly the audio to broadcast unique and exceptional branded sound.
 The LAN port and the built-in Web Server allow to control the processor and tune the audio from anywhere.
The built-in digital Stereo Generator ensures an extremely precise MPX Signal.

                                                      The RDS Encoder (optional) is in compliance with UECP SPB490, provides 2 Data Set with a wide range of static services, including Radio Text.
                                                      Falcon XT features full connectivity with analog and digital I/O (over XLR connectors) and 2 independent MPX outputs, USB, GPI and serial ports.

                                                      Broadcast audio processor Falcon XT AxelTech

                                                      The hardware bypass circuit is always included to ensure audio presence and audio programs continuity. Falcon XT meets the most demanding broadcasters with extremely sophisticated audio features and high standards level: 5-band control compression, dual-band power AGC, three-band EQ and Brightness control.

                                                      The Stereo Enhancer parameterized command provides to radio station sound, spacing effect and large stereo horizon opening.

                                                      With phases control of mono audio signals, the voice sounds more natural, the Expander control allows to minimize background or unwanted noise, while the Overdrive and the Super Bass improve the sound on low and very low frequencies, creating an impressive effect of loudness.

                                                      Furthermore, the SuperBass Harmonizer controls the distortion of bass sound/low frequency, creating a unique sound effect, increasing the energy transmitted by the low frequency. Listening experience becomes beyond compare.

                                                      Broadcast audio processor Falcon XT AxelTech

                                                      Technical Specifications

                                                      GENERAL
                                                      Dimensions434x351x44 mm (1 rack unit)
                                                      AC Rate230 Vac/110 Vac 50 Hz/60 Hz 30 VA
                                                      Power factor0.9
                                                      Type of power supplySwitching power supply
                                                      Processing architectureFully digital, based on DSP 24 bit/100 Mhz. Signal processing is performed by phase linear filter
                                                      Weight≈ 5 Kg
                                                      Operating Temperature-5°C/+50°C
                                                      Safety StandardCE, ETL, UL.
                                                      GroundingOne more earth terminal is provided in Falcon XT body to connect audio earth connection

                                                      ANALOG INPUT MODULE
                                                      A/D Conversion24bit Sigma-Delta Conversion (Crystal CS4272)
                                                      ConnectorsXLR, female - Electronically balanced
                                                      AD Clipping Point+24.0dBu
                                                      Operative Nominal LevelFrom – 12.0dBu to +12.0dBu (0.1dBu Step)
                                                      Line Impedance10 kΩ (Electronically balanced selectable) EMI–suppressed
                                                      Distortionless than 0.01% TDH+NOISE (0.0dBu 1 kHz)
                                                      AD Dynamic Range108 dB RMS (110 dB A weighted)
                                                      Input ModesStereo, Mono (Left), Mono (Right), Mono (Left+Right)

                                                      DIGITAL INPUT MODULE
                                                      ConnectorsXLR, female – Electronically balanced
                                                      FormatAES3/EBU
                                                      Sample rates32 kHz/44.1 kHz/48 kHz/64 kHz/88.2 kHz/96 kHz with src and jitter correction
                                                      Operative Nominal levelFrom 0.0 dBFs to -24dBFs (0.1 dBu step)
                                                      Dynamic Range125 dB (Typ), 122 dB (Min)
                                                      Distortionless than 0.01% TDH+NOISE (0.0dBu 1kHz)
                                                      Input ModesStereo, Mono (Left), Mono (Right), Mono (Left+Right)

                                                      ANALOG OUTPUT MODULE
                                                      D/A Conversion24bit Sigma-Delta Conversion (Crystal CS4272)
                                                      ConnectorsXLR, male - Electronically balanced
                                                      Output Level-6.0dBu to +20.0dBu (0.1dBu Step) – Max (+20dBu)
                                                      Impedance Source10 Ω
                                                      Load Impedance600 Ω or greater
                                                      THD + NoiseLess than 0.01% (0.0dBu @ 1 kHz)
                                                      Signal to noise Ratio>80 dB unweighted - 100% Mod. 20 Hz – 15 kHz
                                                      L/R CrossTalk< –70 dB, 20 Hz–15 kHz

                                                      DIGITAL OUTPUT MODULE
                                                      ConnectorsXLR, Male – Electronically balanced
                                                      FormatAES3/EBU
                                                      Sample rates32 kHz/44.1 kHz/48 kHz/64 kHz/88.2 kHz/96 kHz with src and jitter correction
                                                      Resolution16 bit – 20 bit – 24 bit
                                                      Operative Nominal levelFrom 0.0 dBFs to - 25dBFs (0.1 dBu step)
                                                      Dynamic Range125 dB (Typ), 122 dB (Min)
                                                      Distortionless than 0.01% TDH+NOISE (0.0dBu 1Khz)
                                                      Input ModesStereo, Mono (Left), Mono (Right), Mono (Left+Right)

                                                      REMOTE INTERFACE
                                                      Digital Inputs GPIn4x GP In optocoupled
                                                      Digital Outputs GPOut4x GP Out Open Collector optoisolated
                                                      Serial Interface2x RS-232 Serial protocol ports EMI filtered
                                                      USB1x Universal Serial Bus port – B type EMI filtered
                                                      Ethernet Port and Parser ASCII protocolEthernet (option), over RJ45 connector with web server interface.

                                                      MPX/COMPOSITE OUTPUT
                                                      Mod Power Limiteradjustable from -1.0dB to +12dB according to ITU-R BS.412
                                                      Pilot Frequency19 kHz +/- 1Hz
                                                      Pilot Level-25.5 to -14.0dB in 0.1dB/Step - Ref 100% Mod
                                                      Pilot Stability19 kHz, ± 1 Hz.
                                                      Pilot PhaseAdjustable +/- 12 deg. 1 deg step
                                                      Pilot THD+Noise0.03% (TDH 0.002%)
                                                      Stability+/-10 ppm (-10 to +55 °C)
                                                      Signal-to-Noise Ratio (S/N)> 85dB on a 60 kHz Bandwitdh, referenced to 100% modulation, unweighted
                                                      Distortion<= 0.01% THD - Bypass mode, de-emphasized, 20 Hz – 15 kHz bandwidth, referenced to 100% modulation, unweighted
                                                      Stereo SeparationGreater than 70 dB, 30 Hz – 15 kHz
                                                      Linear Crosstalk>-80 dB - main channel to sub-channel or sub-channel to main channel referenced to 100% modulation
                                                      38 kHz Suppression>= 70 dB (referenced to 100% modulation)
                                                      Pilot Protection> 65 dB relative to 10% pilot injection, ± 500 Hz
                                                      Crosstalk M/S70 dB
                                                      Crosstalk S/M70 dB
                                                      MPX clipping & limitingBased on look-ahead techniques
                                                      RDS/RBDS Protectionbetter than - 55 dB @ 56kHz, better than - 65dB@57 kHz (MPX Clipper Disabled)
                                                      Pre-emphasis50usec, 75usec/+- 3usec adjust control
                                                      MPX Outputs2, with independent level controls
                                                      Connector TypeBNC, floating, EMI suppressed
                                                      Levels- 6.0 dBu to + 12.0dBu, 0.1 dB/step
                                                      Load Impedance600 Ohm or greater
                                                      Source impedance10 Ohm
                                                      Maximum Load Capacitance5nF
                                                      MPX ModesStereo, Mono, L+R, L.-R, Pilot only, No Pilot
                                                      MPX ClipperOn/Off and adj 95% to 105 %, 1% step

                                                      SINE WAVE GENERATOR
                                                      PurposeTest
                                                      Freq30 Hz - 100 Hz - 400 Hz - 1 kHz - 5 kHz - 10 kHz - 15 kHz
                                                      Levelfrom 0% to 120% of modulation
                                                      ModesLeft=Right, Left=-Right, Left or Right Only

                                                      Dimensions

                                                      Broadcast audio processor Falcon XT AxelTech

                                                      Live Graphics & Character Generator CG Live AxelTech

                                                      CG Live

                                                      Discontinued: See new CG Plus

                                                      CG Live
                                                      Live graphics & Character Generator

                                                      Amazing Graphics

                                                      CG Live is a software based solution for real time character generation. CG Live features animated backgrounds, movements and effects on text, images, clocks, animated logos, dates, crawl and news tickers. CG Live works via both SDI video boards and via NDI.
                                                      The solution is ideal to display graphical contents, such as text, logos and animations, crawls, tickers and rolls with dynamic contents/metadata retrieved from external data sources, like RSS, txt, Microsoft Excel files and more. Top broadcast quality and easy of use allow CG Live to be used for News Graphic, live production in talk shows, sports and entertainment.
                                                      CG Live is very simple to use and does not need any specific training. Page compositing is also very user friendly and allows to add multiple object like texts, clocks, crawls, rolls and media (audio, bitmaps, video and animations) e and define their specific aspect in detail.

                                                      Live Graphics & Character Generator CG Live AxelTech

                                                      Broadcast quality

                                                      CG Live delivers top quality antialiased text, smooth interlaced crawls, tickers and rolls over SDI or NDI output. All layers are managed in 32 bits allowing precise alpha channel and transparency compositing. Text and media can be updated on the fly allowing to perform in live production environments.

                                                      Live Graphics & Character Generator CG Live AxelTech

                                                      Excel as

                                                      an App

                                                      CG Live imports data automatically from TXT, CSV, RSS feeds and especially Excel files, so whenever data is updated, it goes straight on air. CG Live respects fonts, colors and alignment specified in the Excel files selecting from which sheet and cells to acquire the data. Hidden or unprintable cells will not air, very handy fro comments and remarks to the user inputting the data. CG Live also respects the formulas and database connections specified in the Excel files, allowing to create custom applications with macros and VBA scripting.

                                                      Live Graphics & Character Generator CG Live AxelTech

                                                      Social media

                                                      CG Live integrates with Social Hub (optional), which allows retrieving text, images and video clips from your favourite social media sources, such as whatsapp, facebook, instagram, skype, email, sms, openweathermap, line and rss feeds. User can select and edit messages before airing or create them from scratch. If your favourite social media is not among the supported plugins, a special Google Chrome plugin allows capturing text and images directly from the browser window and send them on air. Social Hub is a great add-on for any live program to add dynamic graphical content to the production and engage more efficiently with the audience.

                                                      Live Graphics & Character Generator CG Live AxelTech

                                                      Best of Both World

                                                      Included in the CG Live package is also the DLG Plus software, which share the same multimedia engine, allowing interchange of templates and projects. DLG Plus features an easy to use videomixer-like user interface so it can be used both in master control as in production environments. According to the type of interactivity which is needed for a specific production, you can choose which application to deploy.

                                                      Live Graphics & Character Generator CG Live AxelTech

                                                      CG LIVE Features

                                                      • HD/SD static and animated graphics and logos
                                                      • Antialiased text with gradients, borders and shadows
                                                      • Clock, countup/down, date, crawl, ticker and roll
                                                      • Template editor with multiple layers
                                                      • Preview channel over VGA and SDI/NDI
                                                      • TGA, BMP, PNG, TIF, JPG bitmap sequences
                                                      • Smooth IN/OUT transition: fade, move, zoom
                                                      • 32 Bit images processing with alpha and transparencies
                                                      • GPI on TCP/IP (or Rs-232 as option)
                                                      • Effects: shadow, blur, motion blur, smooth edge (deflicker)
                                                      • Internal key mode (video in – video out) or external key mode (Key and fill outputs)
                                                      • Audio output over SDI/NDI in external key mode
                                                      • Infinite layers on each page
                                                      • Social media integration with Social Hub (sold separately)
                                                      • Customizable shortcuts for each page
                                                      • Safe area on page composer
                                                      • Checkered background on page composer for transparancies highlight
                                                      • On the fly text and media change from user lists
                                                      • UNICODE texts with double byte language support
                                                      • Right to left language support
                                                      • Automatic text size adaptation to areas
                                                      • TTF fonts support
                                                      • Top/bottom/left/right/middle text alignment
                                                      • Text foreground, border and backrgound with 10 point color and alpha gradients with custom angle
                                                      • Custom identation for precise background alignment
                                                      • Fade in/out, move left/right/top/bottom, squeeze X/Y/XY transitions
                                                      • Shadows with color, offset and blur which follow animation alpha
                                                      • Video file animations in bitmap sequences, GIF, quicktime ANIM and Prores 4:4:4:4
                                                      • Video files import in DV, HDV, DVCPRO, MJPEG, MPEG-2, TS, MPG, VOB, H.264, H.265,
                                                      • AV1, MP4, QuickTime, PRORES, DNxHD, AVI, WMV, ASF, MXF, XDCAM, IMX, GXF, LXF, FLV, MKV, WebM, HuffYUV, VP8, VC3, JPEG2000, DPX
                                                      • Animations and video files in loop/stop at end/ stop at end and hide modes
                                                      • Automatic upscale/downscale of media as background
                                                      • Media on background outputs audio in external key mode
                                                      • Smooth crawls with area and speed selection
                                                      • Text, Crawl, roll and ticker datasource from text, CSV, RSS and excel files
                                                      • Automatic update of graphics on datasource change
                                                      • Excel file support of font, front/back color, alignment and hyperlinks to media
                                                      • Smooth tickers with number of lines, timing and transition type
                                                      • Multiple shapes with color gradients, outlines and rounded corners
                                                      • Date and clock with customizable formatting
                                                      • Object layering with priority managemen
